Pressure Transducer Companies Melt Pressure Transducers
US $598.00-$629.00
China Huatian CYX12 CE I2C 100 to 100kpa low cost water hydraulic oil iquid pressure sensor
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1601201791378):
Product Overview
Description
CYX-12 600kPa~100MPa high sensitive stainless medical pressure transmitter steel pressure sensor
Recommend Products
Product Paramenters
Range | -100kPa~100MPa | |||
Parameters | Typical Value | Maximum Value | Unit | |
Zero Output | ±1 | ±2 | mV | |
Nonlinearity | 0.2 | 0.5 | %FS | |
Hysteresis | 0.05 | 0.1 | %FS | |
Repeatability | 0.05 | 0.1 | %FS | |
Input/ Output Impedance | 2.6 | 3.8 | kΩ | |
Zero Temperature Drift* | ±0.15 | ±0.8 | %FS,@25℃ | |
Sensitivity Temperature Drift* | ±0.2 | ±0.7 | %FS,@25℃ | |
Long-term Stability | 0.1 | %FS/year | ||
Excitation Current | 1.5(Max input voltage is 10VDC) | mA | ||
Insulation Resistance | 500(500VDC) | MΩ | ||
Compensation Temperature | 0~50; -10~80 | ℃ | ||
Operating Temperature | -40~+85 | ℃ | ||
Storage Temperature | -40~+125 | ℃ | ||
Response Time | ≤1 | ms | ||
Shell & Diaphragm Material | 316L Stainless Steel | |||
Measuring Medium | The fluid which is compatible with 316L, viton, nitrile rubber | |||
Vibration(20~500Hz) | 20 | G | ||
Useful Time(25℃) | >1*108Pressure Circulation(80%FS) | times | ||
Packing Medium | Silicon Oil / Fluorine Oil | |||
Weight | 36 | g | ||
O Ring | Φ16*1.8mm(nitrile rubber or viton) | |||

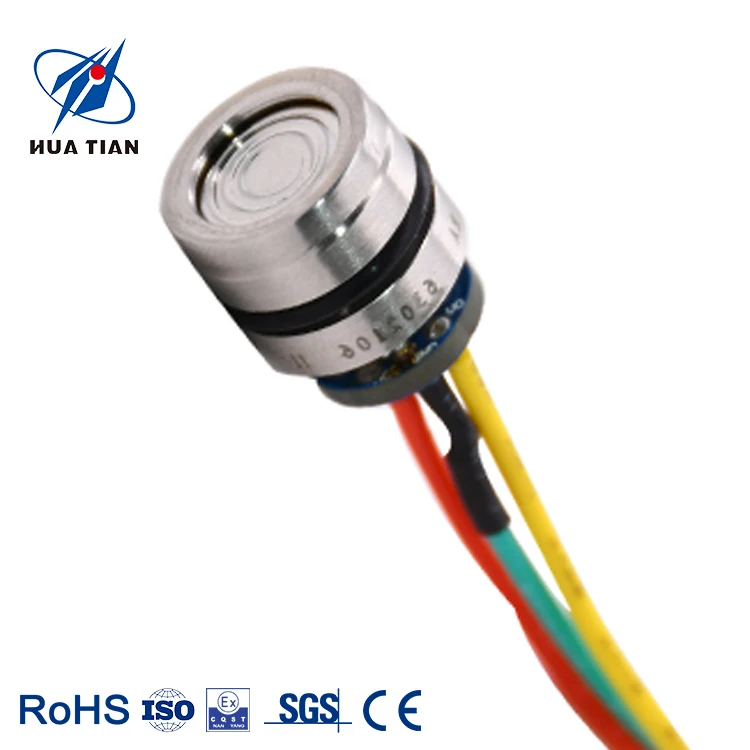

Connection:
red wire -- positive vdd black wire -- ground
yellow wire -- positive output blue wire -- negative output
red wire -- positive vdd black wire -- ground
yellow wire -- positive output blue wire -- negative output

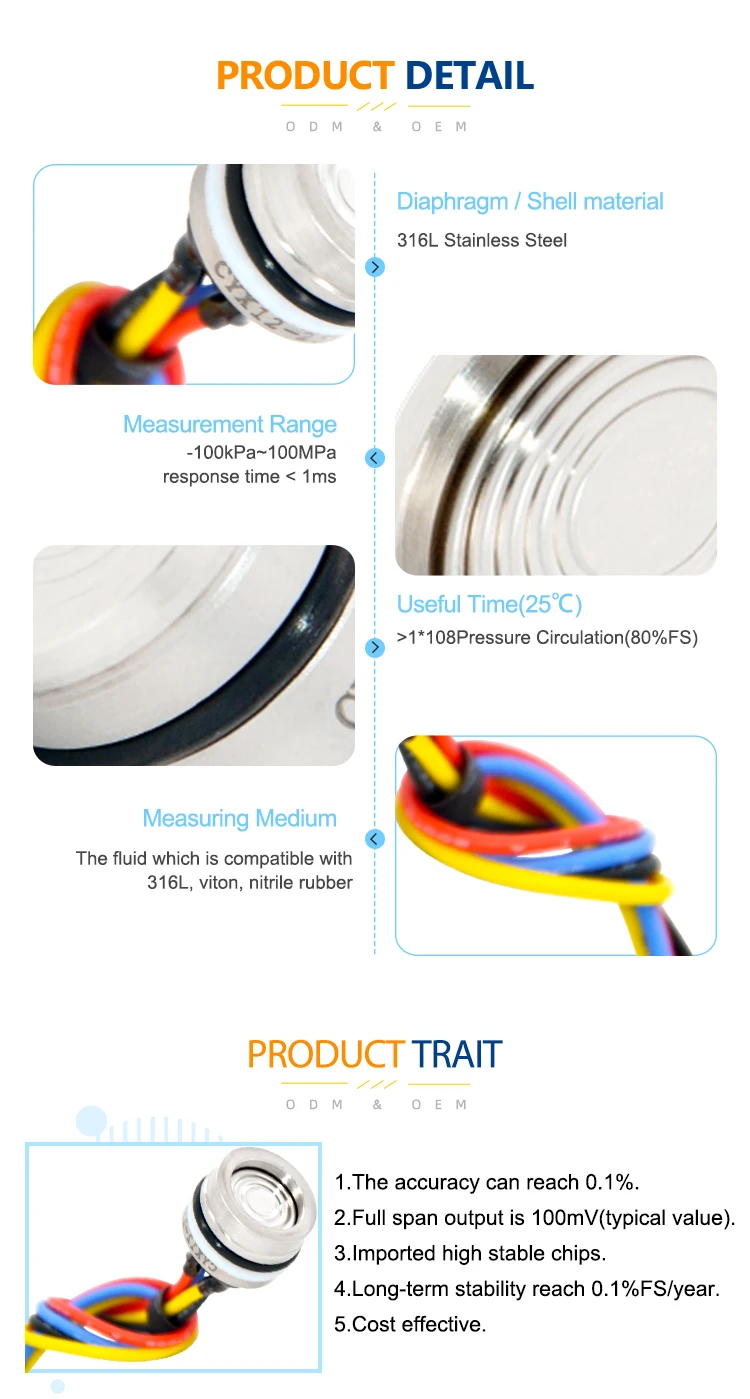

Details Images

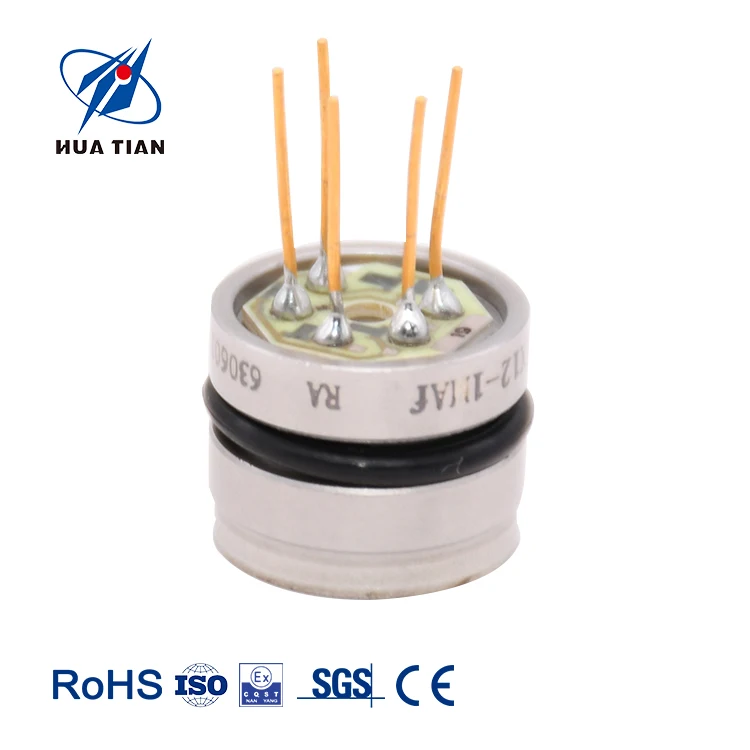

CYX series piezoresistive pressure sensor adopts the internationally advanced high stability and high precision silicon pressure chip, and adopts the sintering seat with stress optimization design, which is produced by the processes of chip mounting, gold wire bonding, diaphragm welding, high vacuum oil injection, pressure cycle stress relief, high temperature aging, temperature compensation, etc. With more than 30 years of development, production experience and technological innovation, the products have excellent stability and performance, and are widely recognized by users.
The piezoresistive pressure sensor imported high precision, high stability force sensitive chips, adopted advanced technology, military industry production conditions and equipment manufacturing delicately. Widely used in petroleum, chemical, metallurgy, electric power, aviation, medical equipment.
Trait:
1.The accuracy can reach 0.1%.
2.Full span output is 100mV(typical value).
3.Imported high stable chips.
4.Long-term stability reach 0.1%FS/year.
5.Cost effective.
2.Full span output is 100mV(typical value).
3.Imported high stable chips.
4.Long-term stability reach 0.1%FS/year.
5.Cost effective.
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
● liquid level measurement
● gas and liquid pressure measurement
● gas and liquid pressure measurement
● pressure detection and calibration instrument
● pressure switch and hydraulic system
● pressure switch and hydraulic system
● well monitoring
● refrigeration equipment and air conditioning system
● refrigeration equipment and air conditioning system
● fire Internet of things

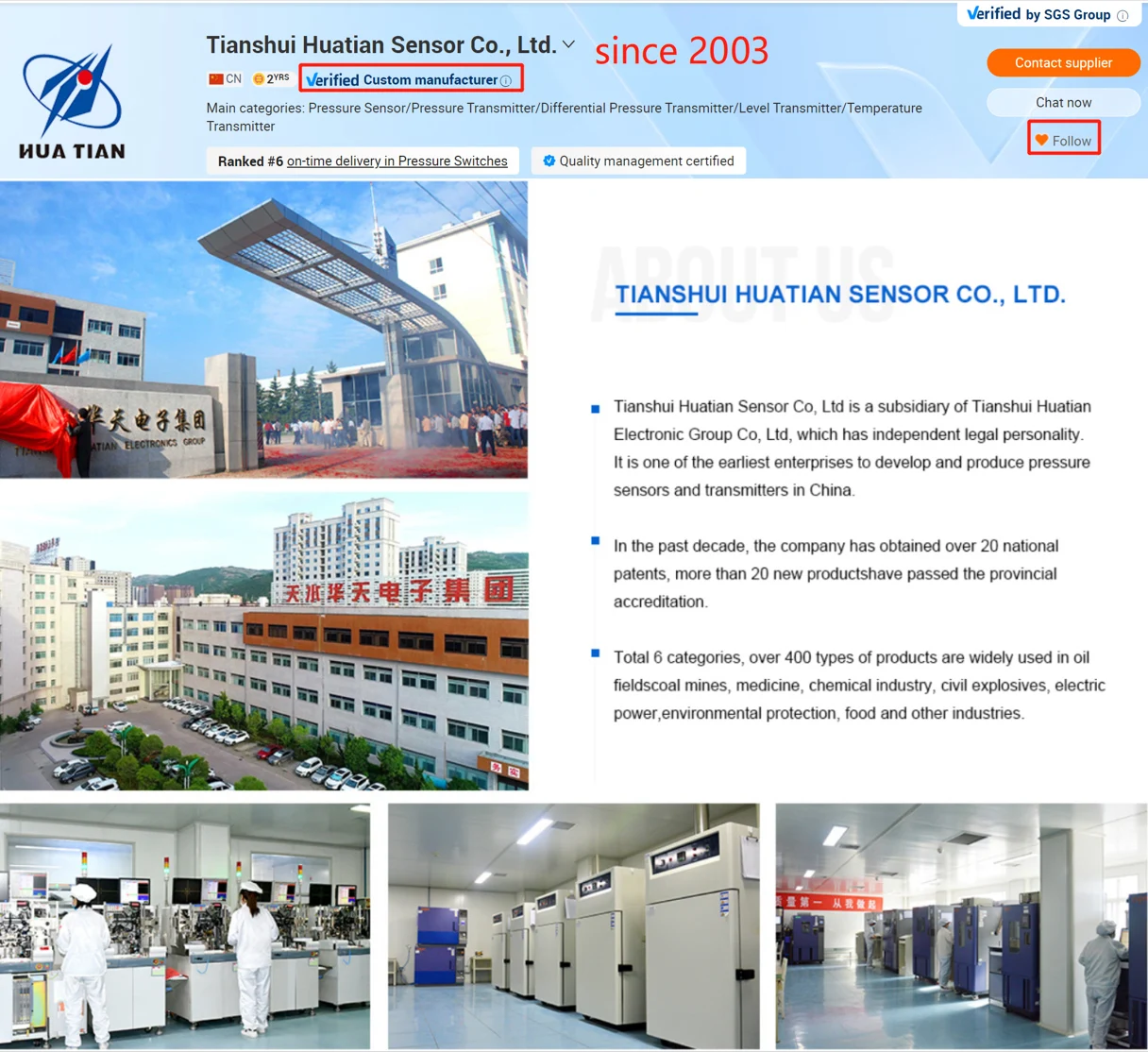

Company Profile
Tianshui Huatian Sensor Co., Ltd.,
High-tech R&D, production, sales and construction of industrial intelligent centralized control
It is one of the earliest enterprises engaged in the R&D and production of pressure sensors and transmitters in China.
* Over 20 national patents, including 5 invention patents
* Over 20 new products have passed the provincial evaluation records
Product categories:
1、MEMS pressure sensor
2、Wireless pressure transmitter
3、Digital intelligent pressure transmitter
4、Special pressure transmitter
Usage: Coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry etc.
Product Packaging
