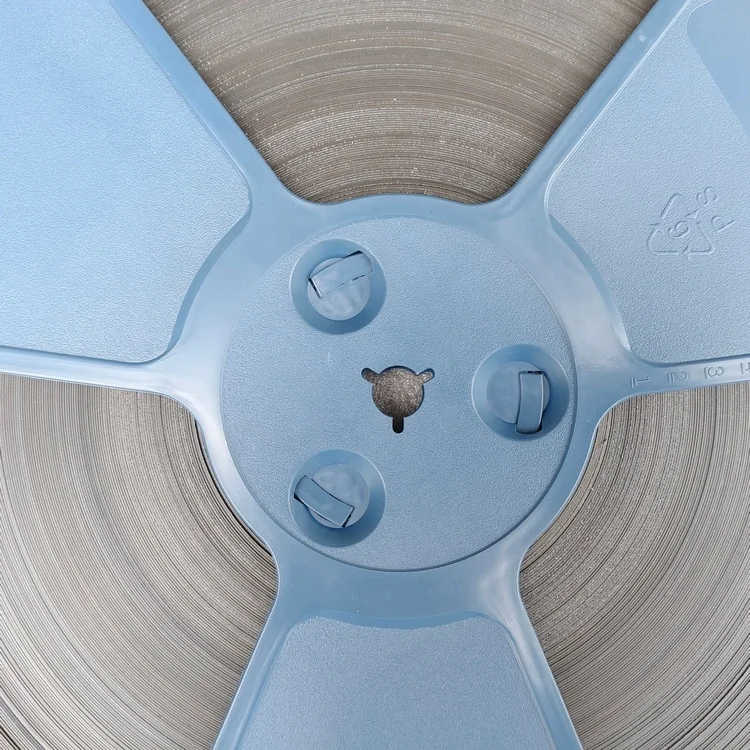

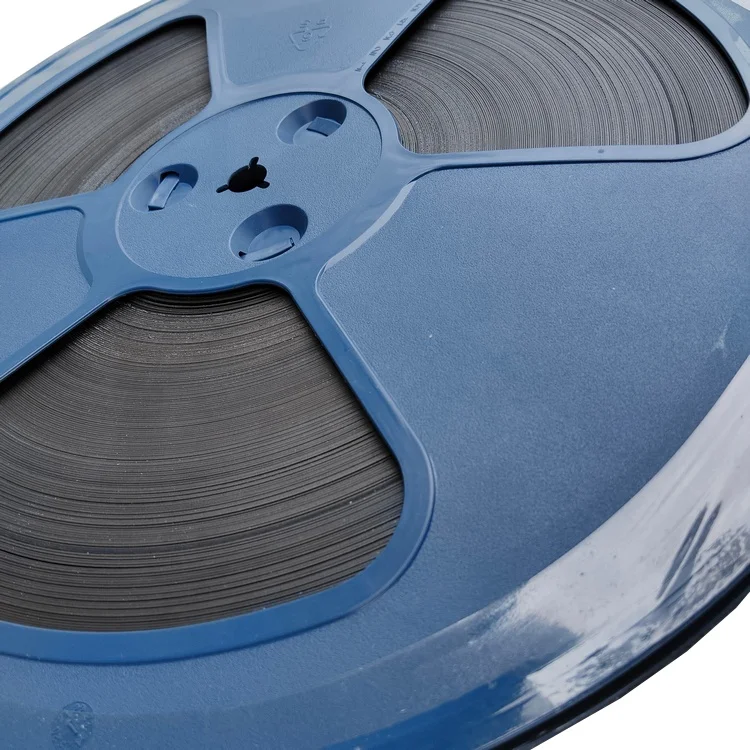

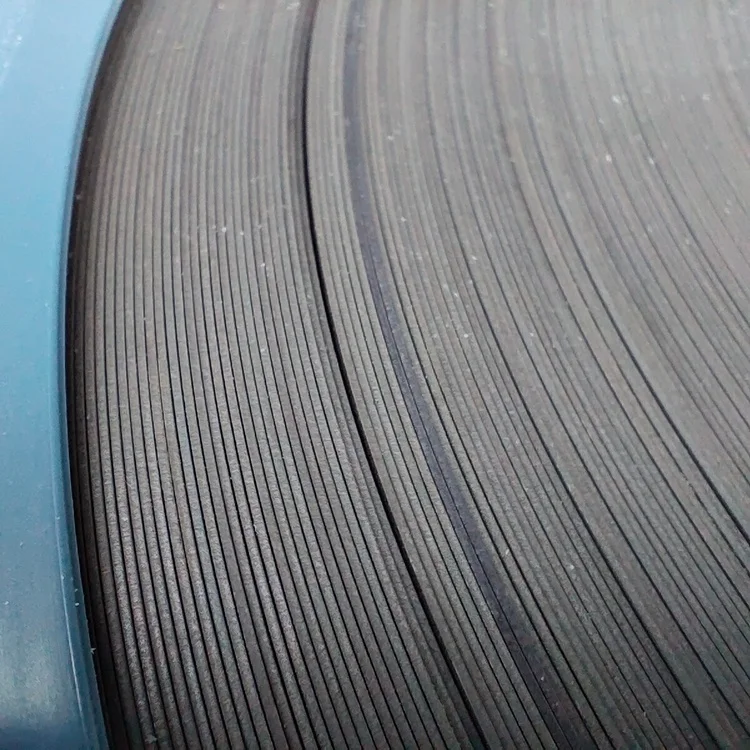

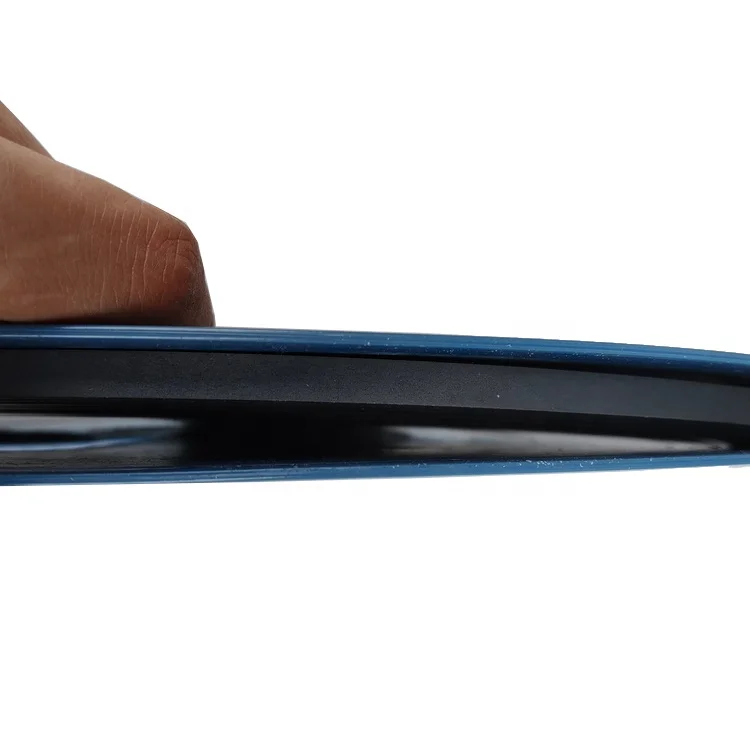

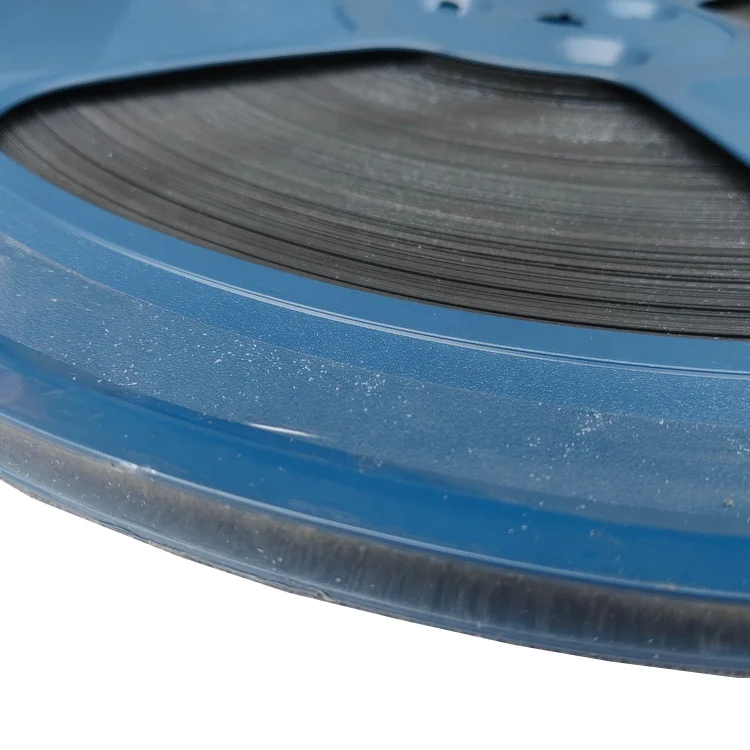

Stock 0.635x6.35mm Mmo coating titanium ribbon anode for Cathodic Protection
- Category: >>>
- Supplier: Baoji Taihengte Metal Co. Ltd.Baoji Ltd.
Share on (1601362129190):
Product Overview
Description
Data Sheet
Diameter (mm2) | Length/Roll(m) | Weight/Roll(kg) | Output current (mA/m) | Lifetime (A) |
6.35x0.635 | 152/155 | 2.8 | 17 | 50 |
6.35x0.635 | 152/155 | 2.8 | 42 | 50 |
12.7x0.635 | 152/155 | 5.6 | 84 | 50 |
Specification
1. Composition: ASTM standard B265 grade 12. Thermal expansion coefficient:8.7×10-5K
3. Thermal conductivity(20℃):15.6W/(m·K)
4. Resistivity:0.000056 ohm-cm
5. Good sandy soil environment
6. In the environment of chlorine evolution, oxygen evolution or a mixture of both
7.Usually used in the bottom of storage tanks， reinforced concrete structures，buried steel structures
3. Thermal conductivity(20℃):15.6W/(m·K)
4. Resistivity:0.000056 ohm-cm
5. Good sandy soil environment
6. In the environment of chlorine evolution, oxygen evolution or a mixture of both
7.Usually used in the bottom of storage tanks， reinforced concrete structures，buried steel structures
Mixed Metal Oxide MMO titanium Anode Ribbon
Feature
1. Ribbon titanium anodes are often made into grids2. The anode is easy to cut off, so it can be used for cathodic protection of all areas of the tank floor
3. Even current distribution
4. Easy installation
5.It has excellent performance when used in reinforced concrete structures and has a good combination with concrete
6.The anode strip spacing can be adjusted to achieve the required design life
3. Even current distribution
4. Easy installation
5.It has excellent performance when used in reinforced concrete structures and has a good combination with concrete
6.The anode strip spacing can be adjusted to achieve the required design life
Production Process
Application
Chlorine dissect use DSA anode
1. Sodium chlorate production
2. Sodium hypochlorous production
2. Sodium hypochlorous production
3. Electrolyze to exact nonferrous metal
4. Seawater electrolysis
5. Caustic soda production etc
Oxygen dissect use DSA anode
1. Electrodialysis
2. Continuous production of tinsel
3.Organic electrolysis
4. Industrial plating
5. Cathode protection etc
Functional Electrode
1. Industrial plating
2. Electrolysis oxidation
3. Steel plate plating in iron and steel industry
4. Acid-base ionic water generator
Quality Feedback
All shipped order we have sales specialist to follow our titanium anode quality.
Much better titanium anode solution for clients's application is our final working goal.
Much better titanium anode solution for clients's application is our final working goal.
How To Order
Our Test
Our Test for Titanium Anode includes below:
Accelerated Life Test, Coating Thickness Test,Coating composition test，Conduct electricity conductivity testing ，Surface roughness test, Helium Leak Detection Test, Contact Resistance Test, Electrochemical Performance Test and other test.
More Anode
FAQ
1. Q: Do you have XX model titanium anode?
A: Our titanium anode are all customized, so there are no models, according to your exact drawing, nearly any shape and size we could produce.
2. Q: Can you produce the anode for our XX equipment/generator?
A: Yes, we can.But different clients have different equipment/generator, and need different anode size,so your anode drawing is required.
3. Q: Which coating anode is suitable for me?
A: Your industry please. According to your application environment, we will give you professional advice.
4. Q: How about the anode working current and voltage?
A: Titanium anode could be used for many industries, different industries have different suitable current and voltage take the following into consideration:
The suitable environment for our titanium anode:
Current density: bellow 2000A/M2
Temperature: 40-60℃
There mustn't be any fluorine and cyanide ions in the electrolyte
5. Q: How about the titanium anode lifetime?
A: The titanium anode lifetime for different industry aren't the same, half year to 50 years, according to your exact industry and environment, we will give you the guaranteed lifetime.
A: Our titanium anode are all customized, so there are no models, according to your exact drawing, nearly any shape and size we could produce.
2. Q: Can you produce the anode for our XX equipment/generator?
A: Yes, we can.But different clients have different equipment/generator, and need different anode size,so your anode drawing is required.
3. Q: Which coating anode is suitable for me?
A: Your industry please. According to your application environment, we will give you professional advice.
4. Q: How about the anode working current and voltage?
A: Titanium anode could be used for many industries, different industries have different suitable current and voltage take the following into consideration:
The suitable environment for our titanium anode:
Current density: bellow 2000A/M2
Temperature: 40-60℃
There mustn't be any fluorine and cyanide ions in the electrolyte
5. Q: How about the titanium anode lifetime?
A: The titanium anode lifetime for different industry aren't the same, half year to 50 years, according to your exact industry and environment, we will give you the guaranteed lifetime.
