Product Overview

Description






Product Description











































Product Name



mmo coated titanium anode



Material



Pure titanium Grade 1 as substrate


with ruthenium dioxide coating



Technology



Sand blasting, Acid washing, Electroplating



Dimension & Shape



Different dimension and shape is available



Working


Parameter



1) Current density≤2000A/M2


2) Temperature<60°C



Features



1) Effective & environment-friendly method


2) High anti-corrosion property


3) High current efficiency property


4) Low chlorine evolution voltage


5) High catalytic property


6) Long lifetime


7) Light weight electrodes


8) Keep the operating voltage stably



Applications



1) Organic sewage treatment,


2) Chemical sewage treatment,


3) Pesticide sewage treatment,


4) Drinking water disinfection,


5) Bleaching & dyeing,


6) Swimming pool water


7) Domestic sewage treatment,


8) Hospital sewage treatment,


9) Food industry disinfection


10) Industrial waste water treatment,etc.



Remarks



1) Titanium anode also called MMO anode,


     DSA & Insoluble anode


2) Cathode also be provided

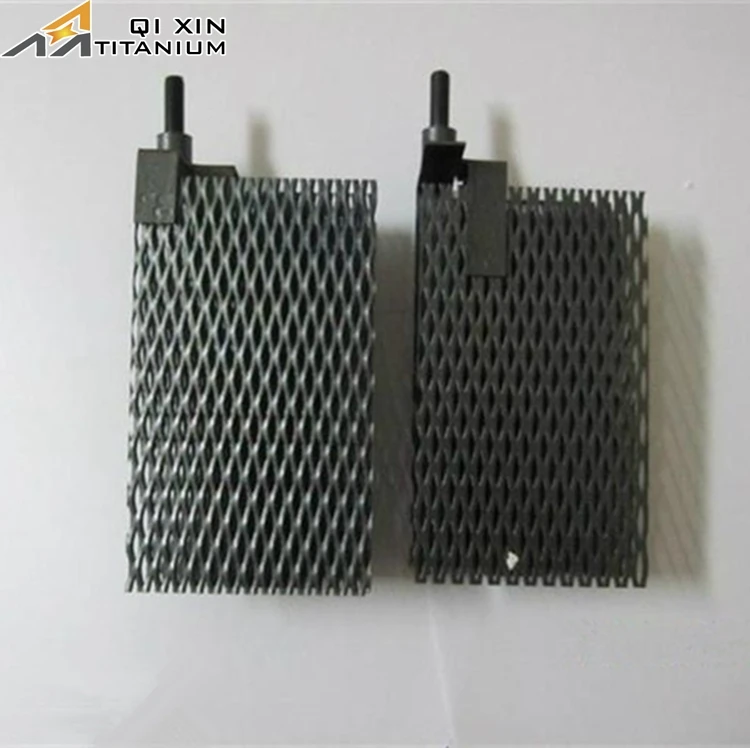

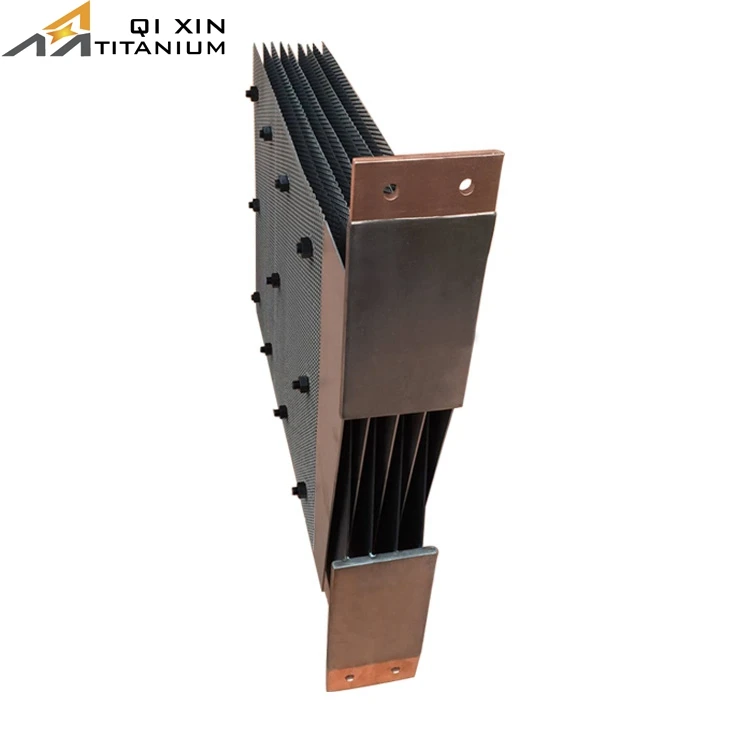

Products Show

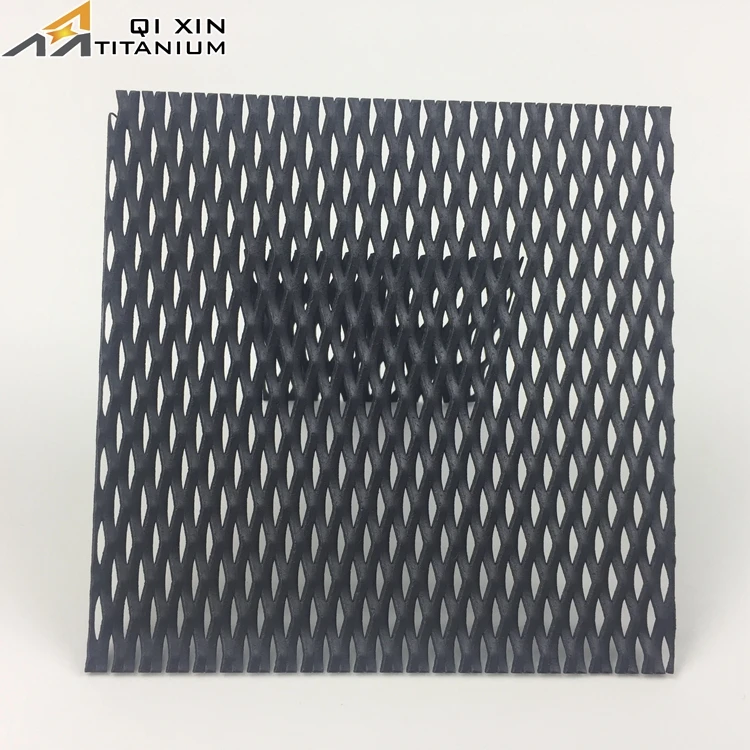

titanium anode mesh


titanium anode 17




































Qixin titaniumThe Advantages of Titanium Anode
1. Dimension Stable; it is unchangeable for space between electrodes during electrolysis; cell voltage is stable that makes electrolysis operation guaranteed well.

2. Lower working voltage and small energy consumption;


3. Titanium anodes have longer working life.
4. Compared with soluble graphite anode and lead anode, titanium anodes are avoiding any pollution to electrolyte and products on cathode.
5. Increasing current density is available, which can boost production efficiency.
6. It can be worked in stronger corrosive medium or other special medium because of its better anti-corrosion property.
7. Short circuit is easily happened if lead anode is out of shape during working. However, titanium anode can avoid this problem and increase current efficiency.
8. Light weight can easily to be installed.
9. Different shape is available with high accuracy.





Production Method









Qixin titaniumTitanium Anode Production Method


















Titanium anode is a kind of electro-catalysis electrode in electro-chemistry, which is composed by substrate that is pure titanium and coated that is precious metal oxide.





Three Procedures:


1. Substrate treatment: it needs to be treated by roughing, cleaning and removing oil, which can increase the compactness of catalytic.

2. Brushing


    Drying



After substrate treatment, it will be proceeded brush coated. The main coated content is platinum group metal, which is a kind of mixed solution.


Then, heat treatment will be going on after drying.


The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to substrate surface.


3. Heat Treatment

Anode production 1








Packing & Shipment









Qixin titaniumPackaging and Transportation Details for Titanium Anode








Packaging: plastic or paper inside, carton or plywood box as outside, or as clients' requirements.
Delivery Time: 15-20 days, or offer exactly time after your enquiry.



packing and shipment 1





Company Information


titanium anode company 1











Baoji Qixin Titanium Co., L td. was built in 2006. It is located in Xuguang Industrial Park , Maying town,in Baoji. The company is private enterprise and focus on production and research of electrochemical industrial titanium anodes, titanium materials or other related titanium products.
The main products are including mixed Ru-Ir oxide coated titanium anode,mixed Ru-Ir-Sn oxide coated titanium anode , mixed Ir-Ta oxide coated , platinium coated titanium anode,lead oxide coated titanium anode and so on.

equipment
































Our Advantage
1. Main quality indicators: Titanium substrate, precious metal ratio, accelerated life, coating binding force to the titanium substrate (coating adhesion)
2. Technical Standard Final product test: Ultrasonic test, Eddy current test, Hydraulic test, Flaring test and so on.
3. Certification: ISO9001, SGS, PED.
4. Advanced technology and equipment, abundant experiences and skilled workers, during the production of titanium anode, each process must be strictly supervised and tested.
5. Own R&D, production and sales department, we always struggling to supply the product with the most excellent quality and the most favorable price and supply the most favorable price and supply the most efficient service.

6. Each production process are looked at to make sure the specifications and performance are qualified.



7. The original Mill Test Certificate is available to be attached to the delivery.



8. We can accept the third party certificate if the custom need.



Certificate 03
