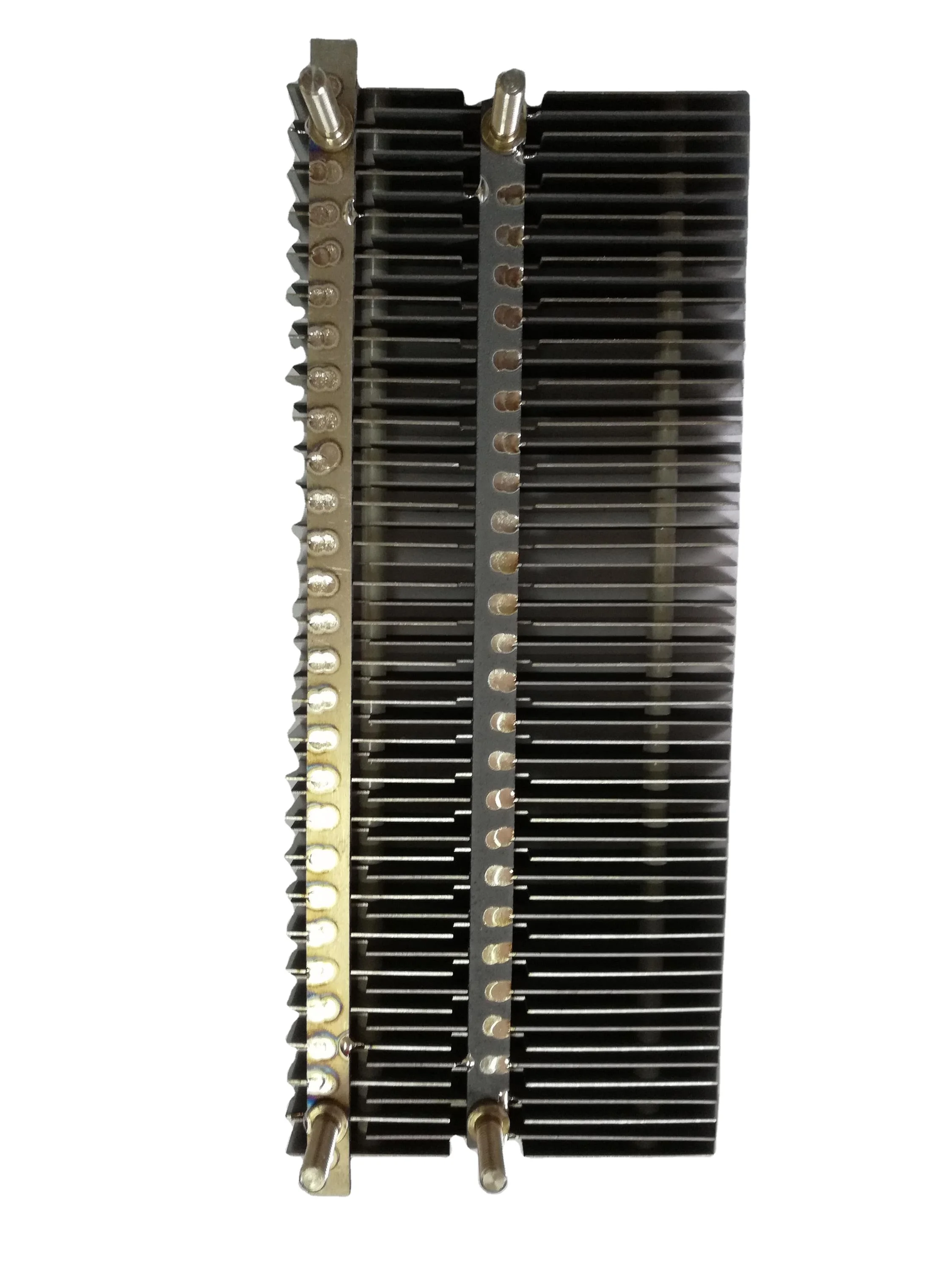

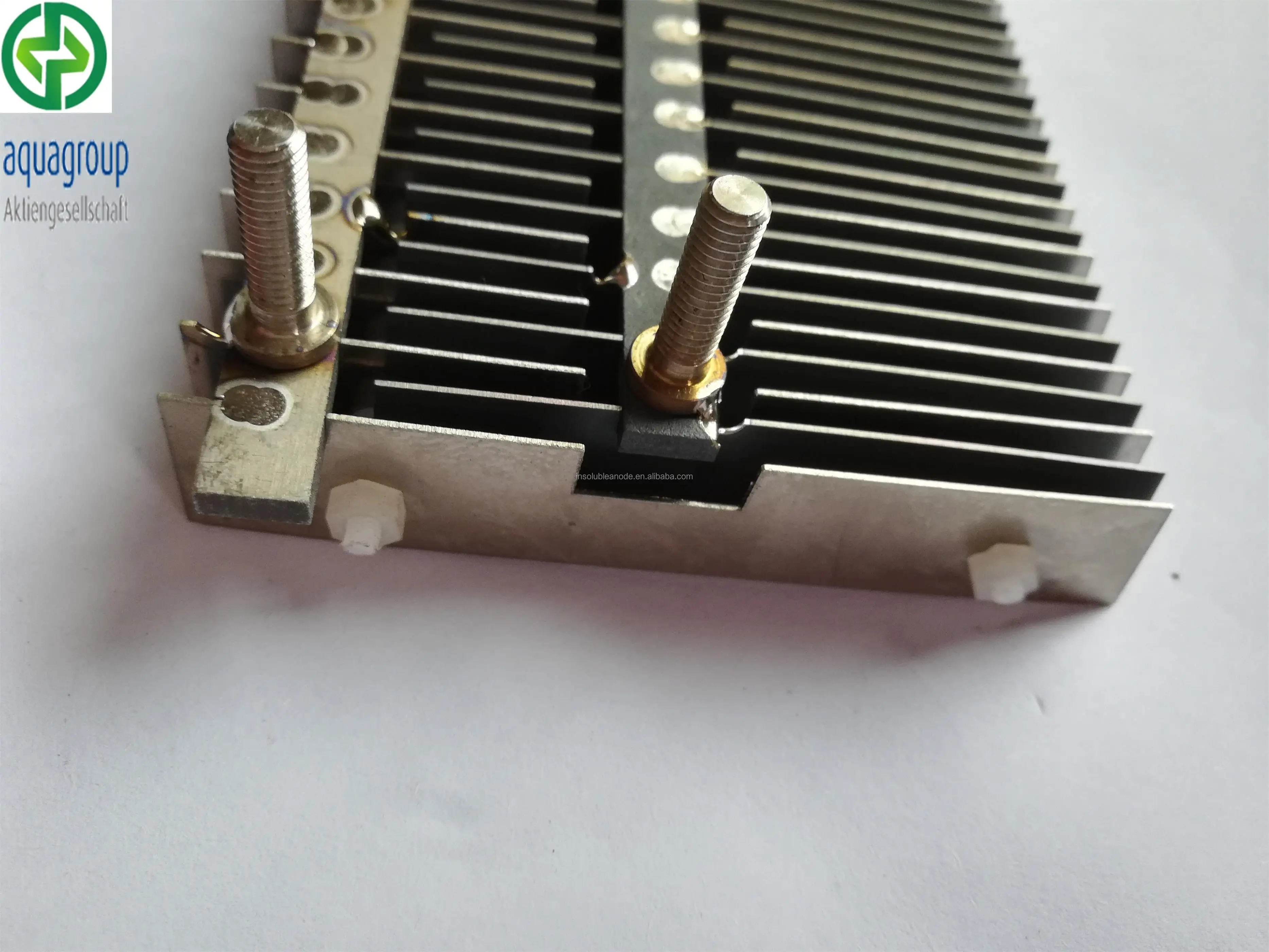

Mixed ruthenium Iridium oxides coated Titanium electrode for chlorinator cell

Share on:


Price:$50.00 - $60.00
Price in USD:Details

Quantity:


Product Overview

Description





Products Description


-Regular Coating
Platinum:0.5μm/1um
Mixed Iridium and Platmum:0.5μm/1μm
Mixed Ruthenium and Iridium:6-8μm
Mixed Iridium and Tantalum:6-8μm


-Characteristics
Coatmg:Mixed Ruthenium and Indium
Chlorine evolution potential:<1.13V;
Polarizability:≤40mv;
Accelerated life: ≧3000min under current density 1000A/m2
Anode strengthening weightlessness:≤10mg,
Suitable working environment:Solution contains Cl-,PH<=7


-Coating contents & life span
8grams/m2:>6,000hours
10grams/m2:>8,0000hours;
12grams/m2:>10000hours;
15grams/m2:>12,000hours;
20grams/m2:>15,000hours


-working parameters
Cunent density:<600 A/m2
Temperature:40-60℃;
Chlorine concentration:About30~50grams/liter
Polarity reversal:sultable
Reversal frequency:2-4 hours


-regular sizes
application-specific design,tight adhesion between platinum layer and base titamum material,stable performance,high current and
low voltage,even coating.

What kind of titanium anode group
is used for the sodium hypochlorite generator?
Sodium hypochlorite is a strong oxidizing agent and disinfectant which occurs by electrolysis without a diaphragm by taking a dilute solution of a widely available industrial salt or seawater.
To ensure that the sodium hypochlorite texture is fresh and has a high activity.
To ensure the disinfection effect, the sodium hypochlorite generated will be added to the device while it is occurring.
It has the same oxidative and disinfecting properties as chlorine and chlorine compounds.



What is a titanium anode?
The titanium anode is called a titanium-based metal oxide coated titanium anode (MMO). Also called KSA anode. (Dimensional shape stable anode). It uses titanium as the substrate and brushes the precious metal coating on the titanium substrate to make it have good electrocatalytic activity and electrical conductivity.



What is the role of the metal oxide coating on the titanium anode?
The titanium anode is called a titanium-based metal oxide coated titanium anode (MMO). Also called KSA anode. (Dimensional shape stable anode). It uses titanium as the substrate and brushes the precious metal coating on the titanium substrate to make it have good electrocatalytic activity and electrical conductivity.



Thickness of metal oxide coating on titanium anode:
By covering different coatings, the electrical conductivity and electrocatalytic activity are enhanced, the electrolysis reaction process is promoted, and the service life of the anode in different use environments is prolonged to achieve the intended use effect.


What is anode passivation?
What is the passivation phenomenon of metal?
When the wire is immersed in dilute nitric acid, the wire will dissolve quickly, but when the wire is placed in concentrated nitric acid, the dissolution of the wire is almost completely stopped. At this time, if the wire is replayed back In dilute nitric acid, the iron wire is no longer dissolved. It is impossible to see what changes the surface of the wire with the naked eye or even with a microscope. It is considered that the wire is in a passivated state at this time.


The platinum-iridium coated titanium anode is insoluble anode, and the platinum-iridium coating is firmly bonded to the titanium substrate. The utility model has the advantages that it is extremely stable and corrosion resistant and can be used for various media; for the oxygen discharge reaction, the overpotential is high, and for the hydrogen release reaction, the overpotential is low; and the chlorine evolution efficiency during electrolysis is better improved.
The shape of the electrode can be designed according to customer requirements.can withstand higher current density High electrolysis efficiency

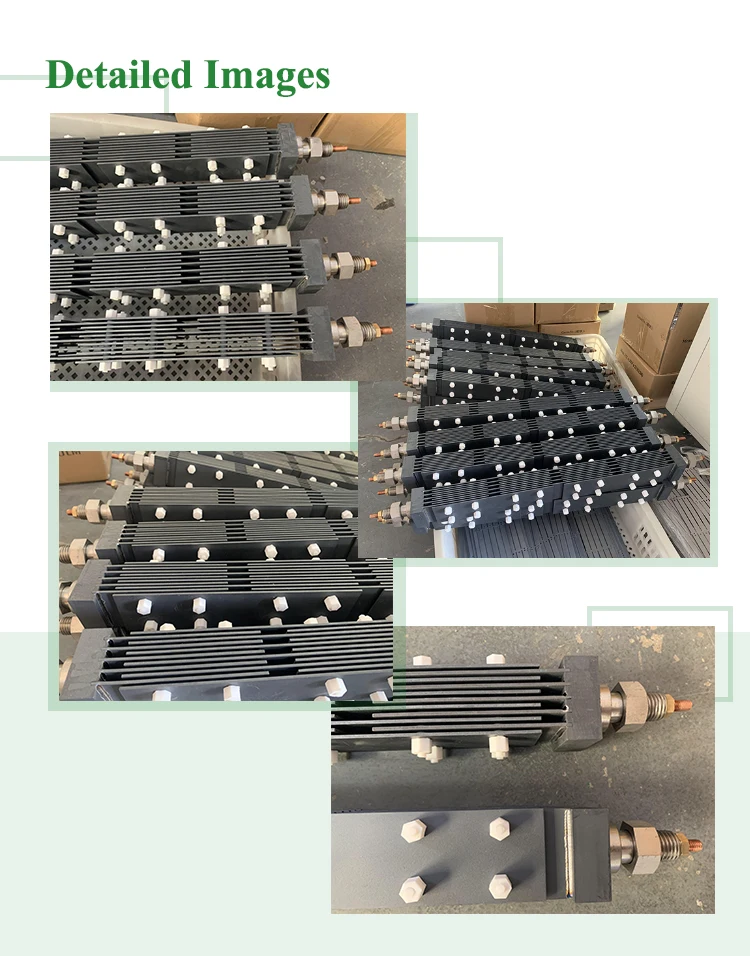

Appearance shape:
Excellent corrosion resistance
Long electrode life
Good electrocatalytic performance
Strong anti-oxidation
Good performance
The base metal titanium can be used repeatedly
