XZ6326 China mini universal drilling milling machine for sale
- Category: Manual Mills >>>
- Supplier: Shandong Weida Heavy Industries Co. Ltd.
Share on (1629745112):
Product Overview
Description
Product Description

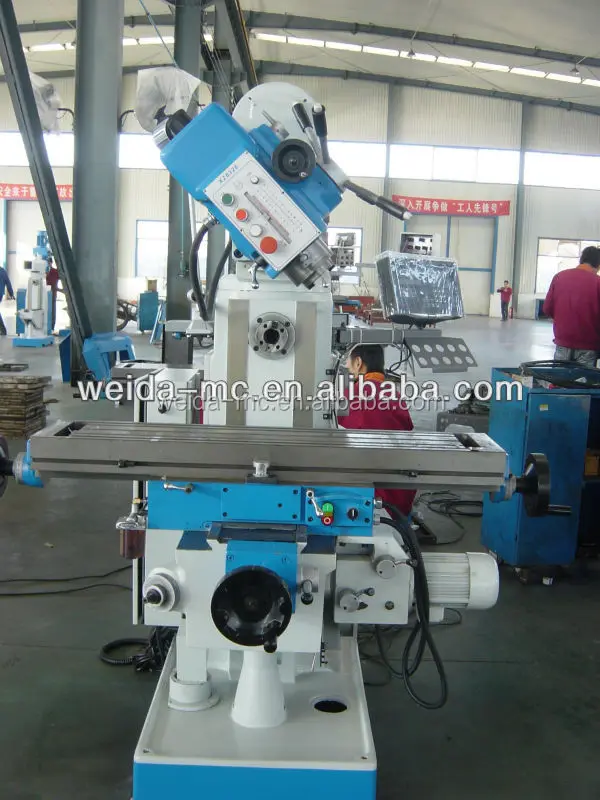

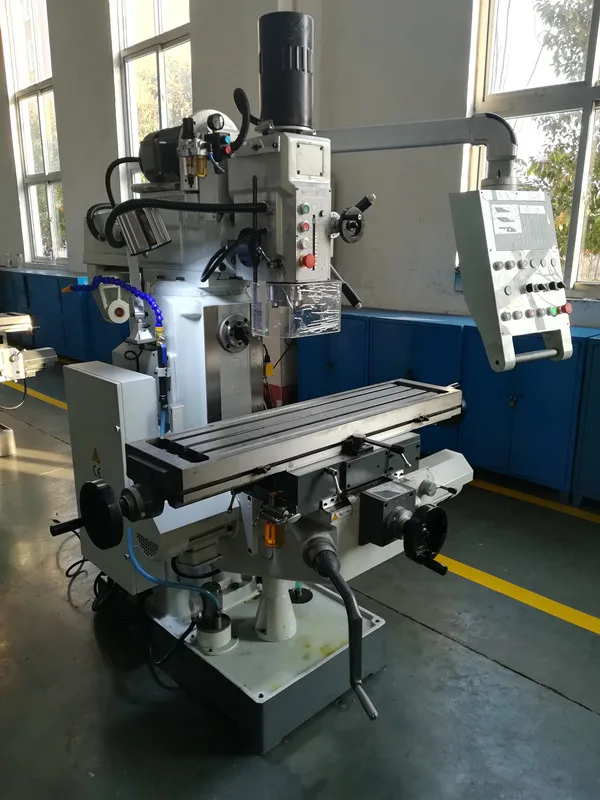

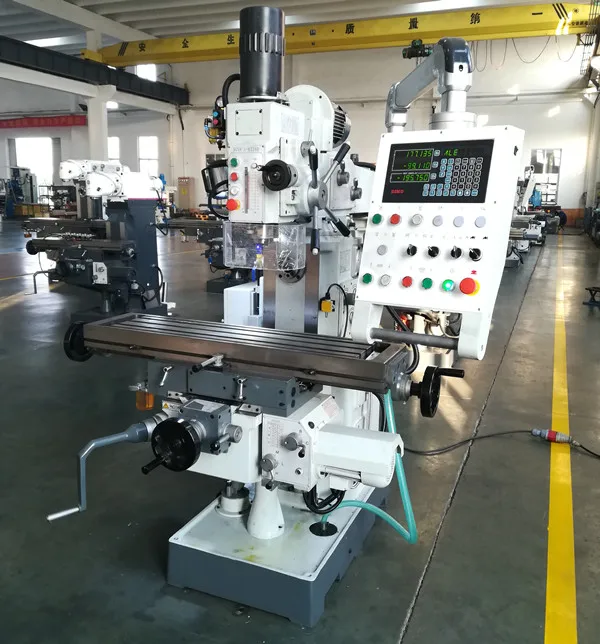

China small universal milling drilling machine XZ6326
| unit | specification XZ6326 | |
| Table size | mm | 1120X260 |
| T slot no./width/distance | no | 5/14/50 |
| Max. load of Table | kg | 200 |
| table Longitudinal travel(manual/auto) | mm | 600 |
| table Cross travel (manual) | mm | 300 |
| table Vertical travel(manual) | mm | 380 |
| Spindle taper | ISO40 | |
| spindle speed /step -- Vertical | rpm | 67-2010/12steps |
| --Horizontal | rpm | 40-1300/12steps |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 125 |
| Max. vertical milling Dia. | mm | 25 |
| Max.tapping dia. | mm | M16 |
| quill travel | mm | 120 |
| swivel angle of headstock | degree | ±45º |
| vertical spindle axis to column surface | mm | 220-760 |
| vertical spindle nose to table surface | mm | 115-430 |
| horizontal spindle axis to table surface | mm | 0-380 |
| horizontal spindle axis to ram bottom | mm | 175 |
| ram travel | mm | 520 |
| Longitudinal feed | mm / min | 24-720/8steps |
| Longitudinal rapid speed | mm / min | 1040(X) |
| automatic spindle feed | 0.1/0.15/0.3 | |
| main motor | kw | 1.5/2.2(V),2.2(H) |
| feed motor | kw | 0.37(X) |
| coolant motor | kw | 0.04 |
| overall dimension | cm | 158X145X215 |
| N/W,G/W | kg | 1350/1500 |

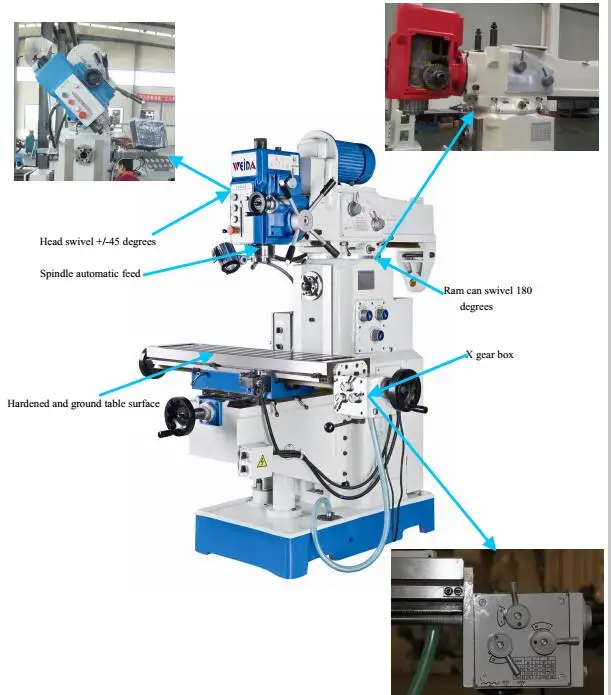

Spindle can feed automaticly
Spindle can be tapping
Spindle can be forward and reversal
X,Y,Z axis can feed automaticly
Table size 1270*260mm is optional

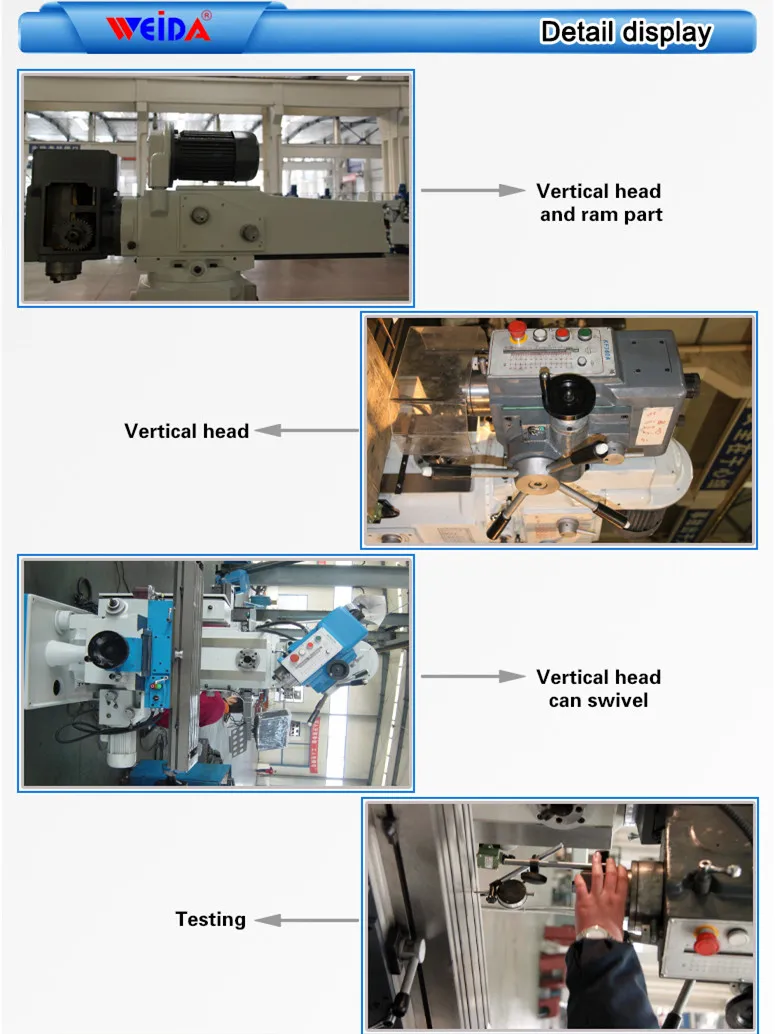

Detailed Images
Packaging & Shipping
Model: drilling milling machine XZ6326
Type of package: Plywood case
Packing dimension: 160x152x222cm 1 set N.W./G.W.: 1350/1500KGS 220x152x222cm 2 sets
Suitable Container and quantity:
Standard 20' container: 3 sets Standard 40' container: 6 sets
Company Introduction
1. We are the biggest manufacturer in our city. Our products includes milling drilling machine , universal milling machine,cnc machines etc.
2. We attend many home and abroad exhibitions every year. In China, we attend Beijing or Shanghai exhibitio,
Canton fair. In abroad, we attend EMO, Russia exhibition, Brazil exhibition etc.
3. Our market covers more than 70 ountries and regions, especially Europe & America market.
4. We have got many certifications, such as CE,ISO etc.
Trade Shows
Certifications
