Description

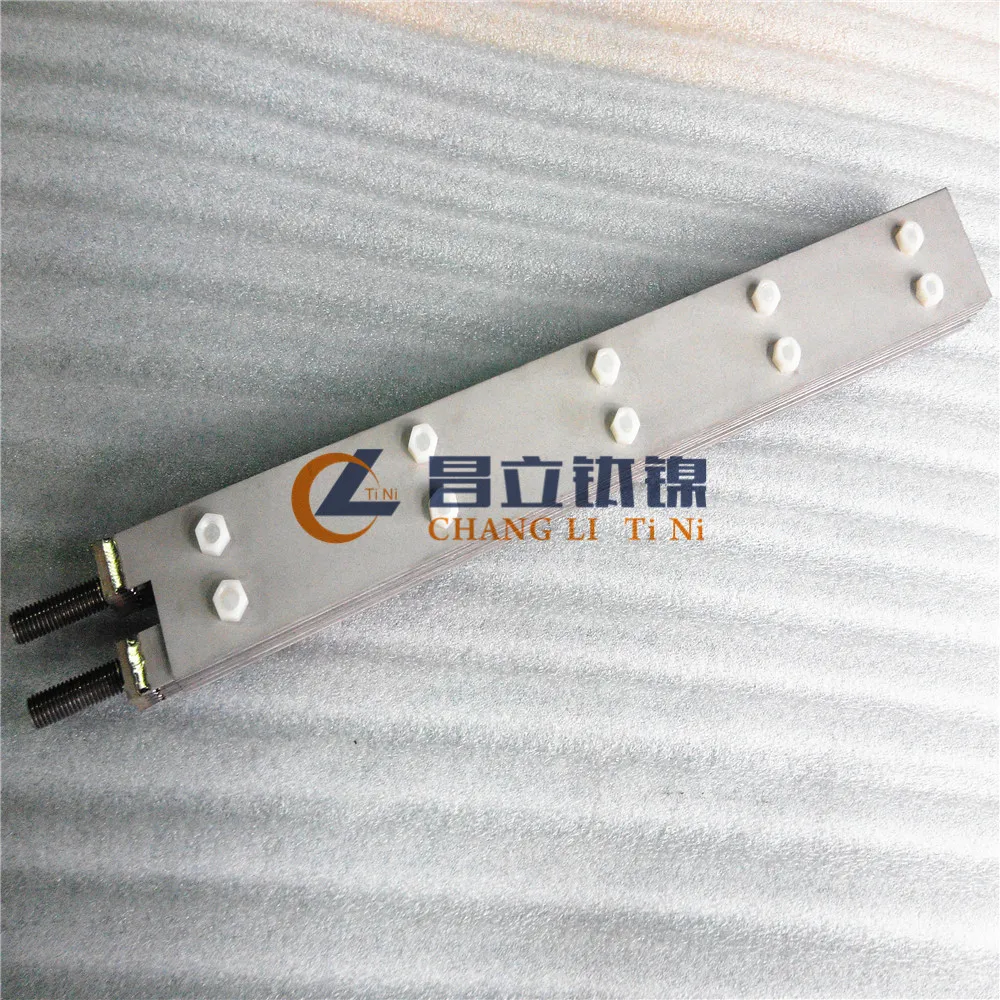

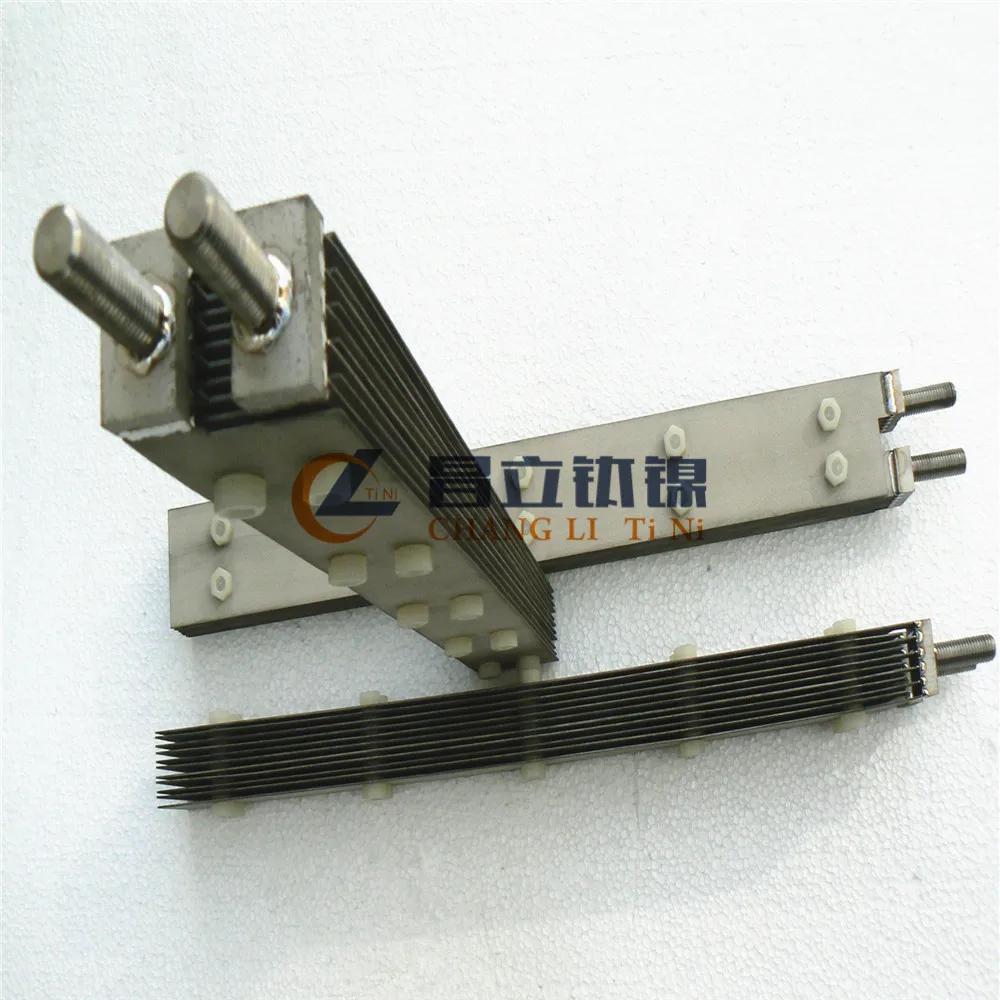

platinum coated titanium anode for seawater electroysis

Platinized titanium anode can be taken as a high quality and economical substitute of Platinum anode. It is made up of titanium substrate material and platinum plated(0.5~5um) on the titanium substrate material. Platinized titanium anode integrates good physical and chemical properties of platinum and titanium.

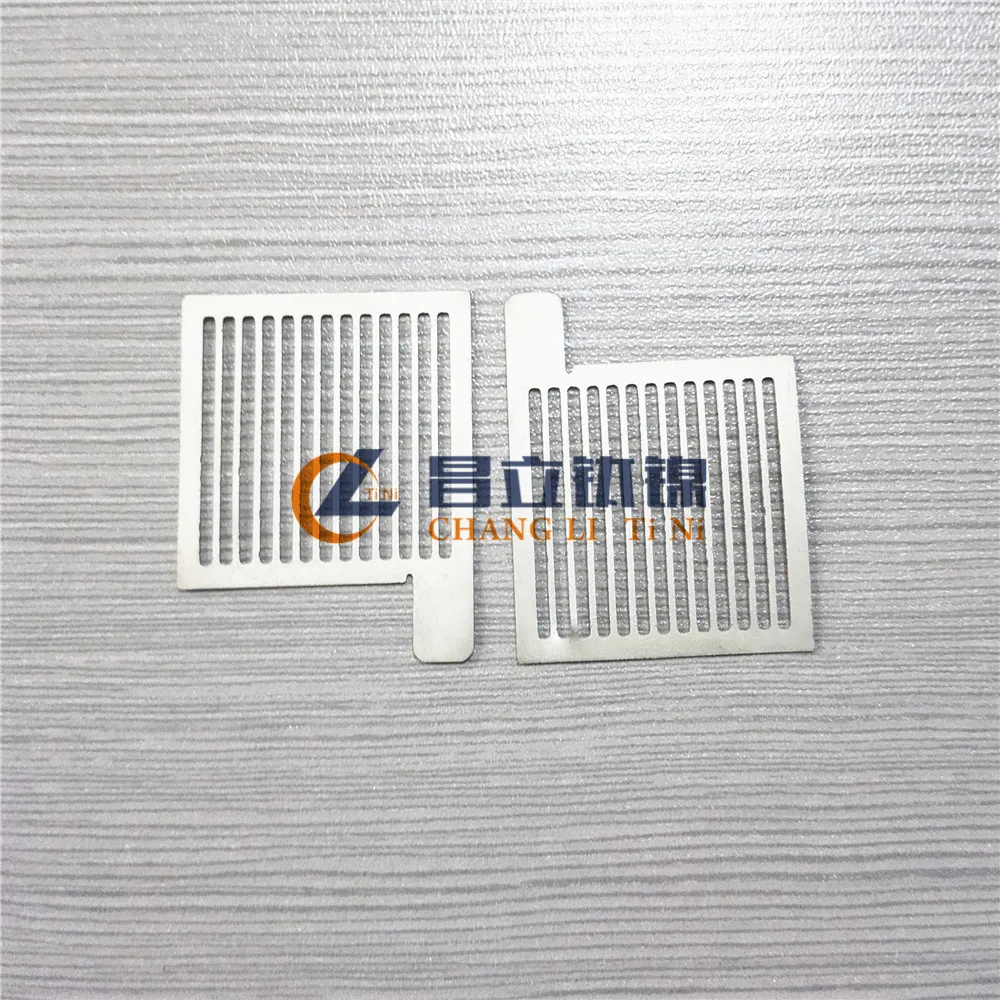

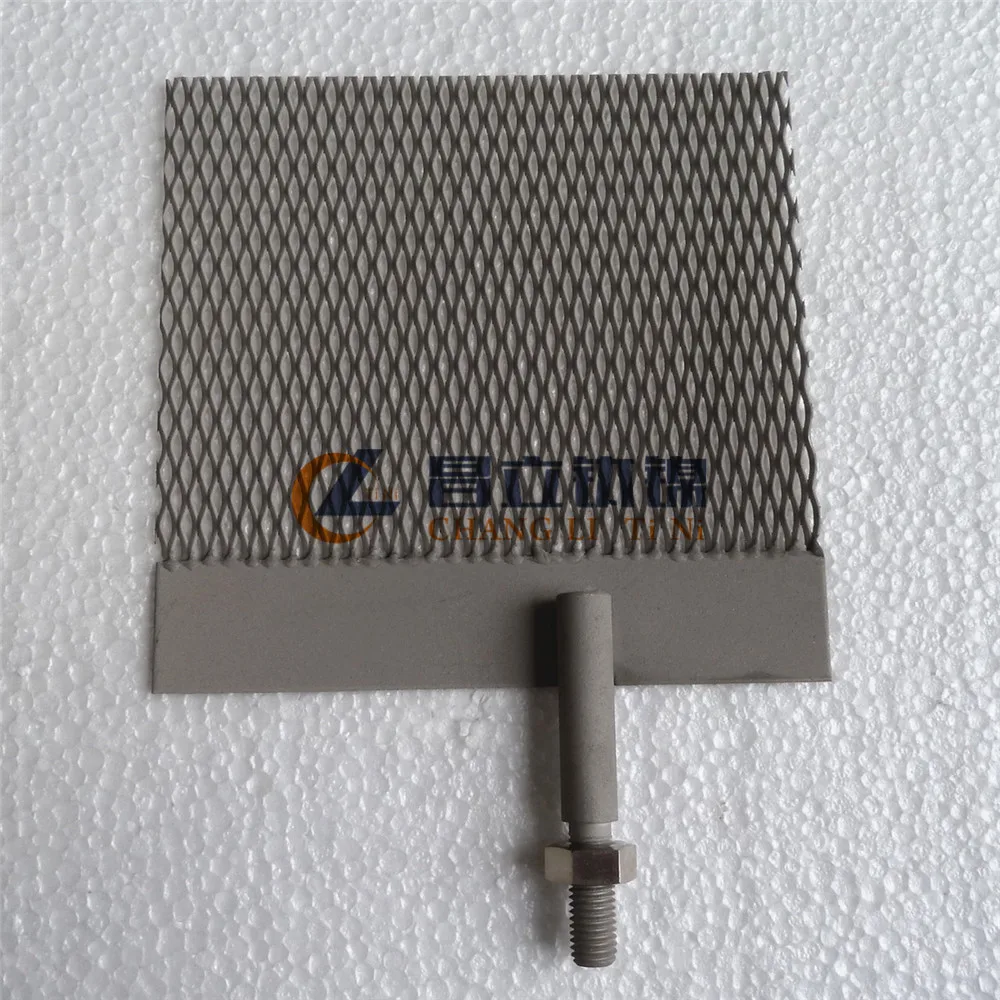

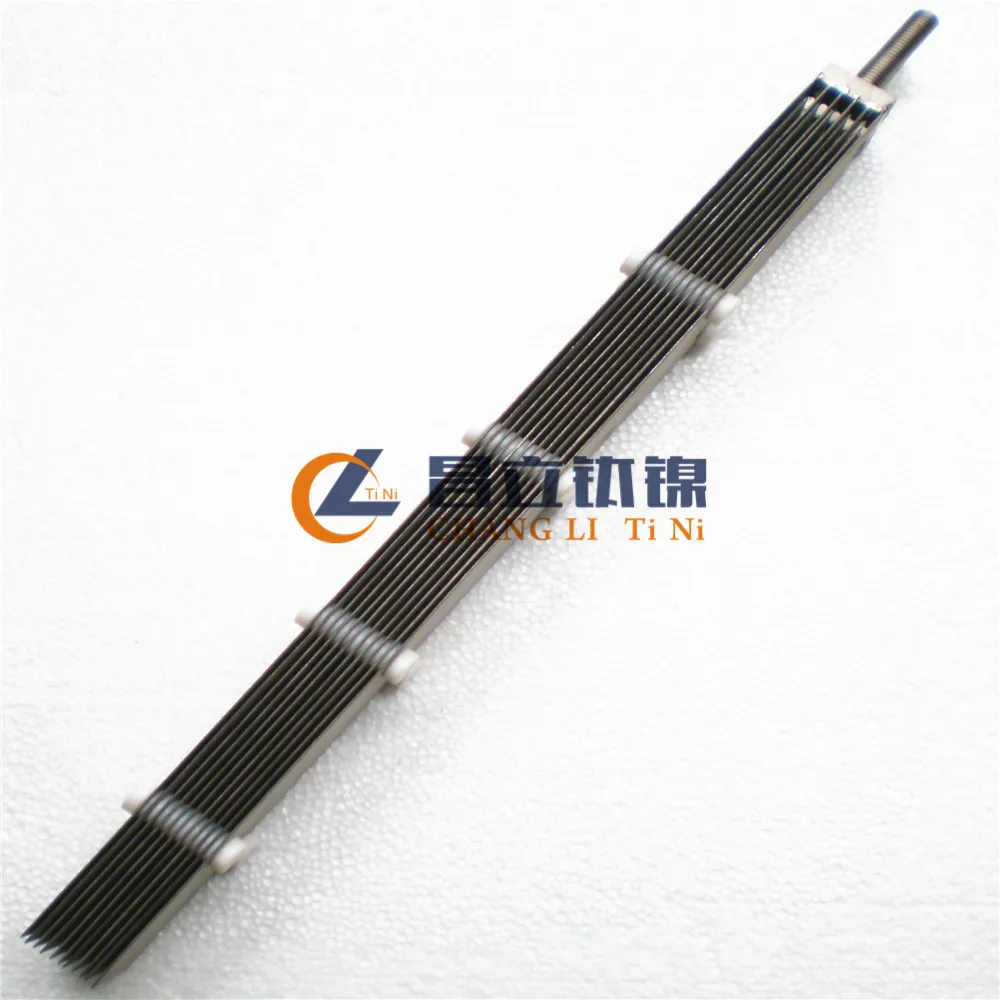

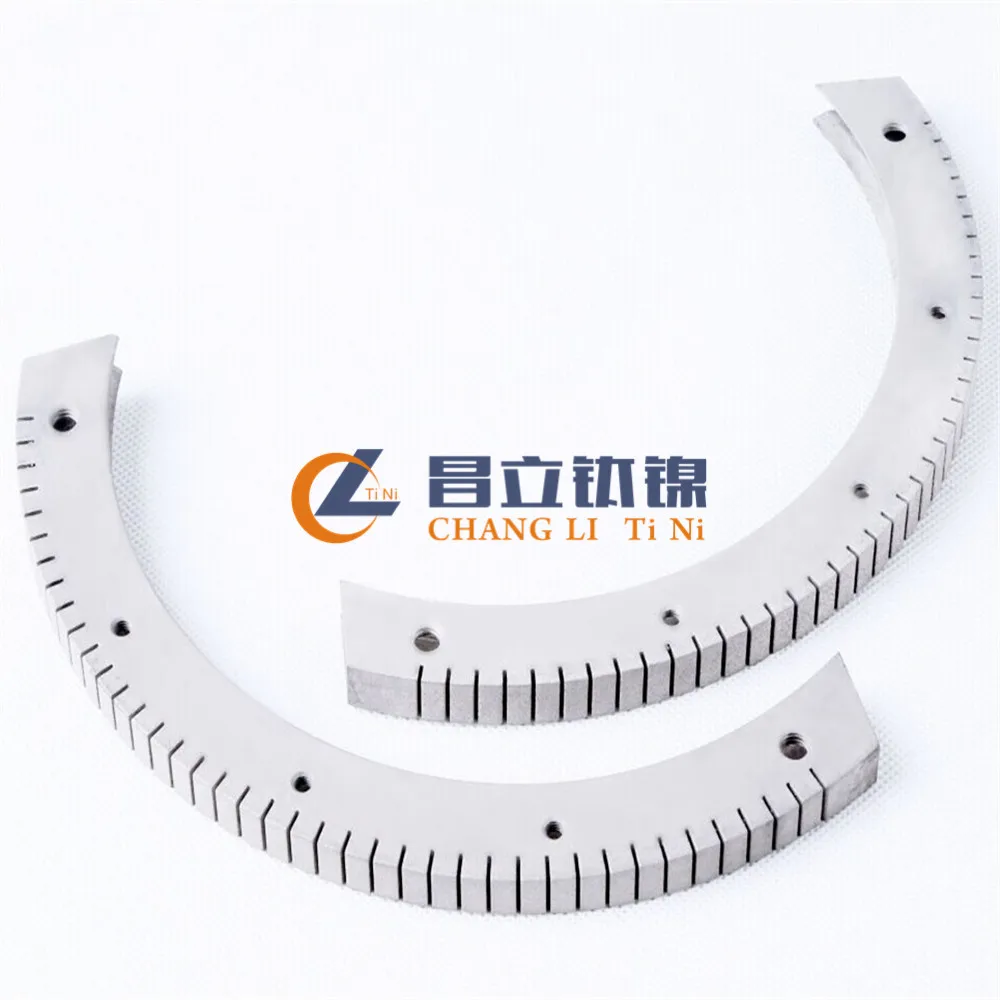

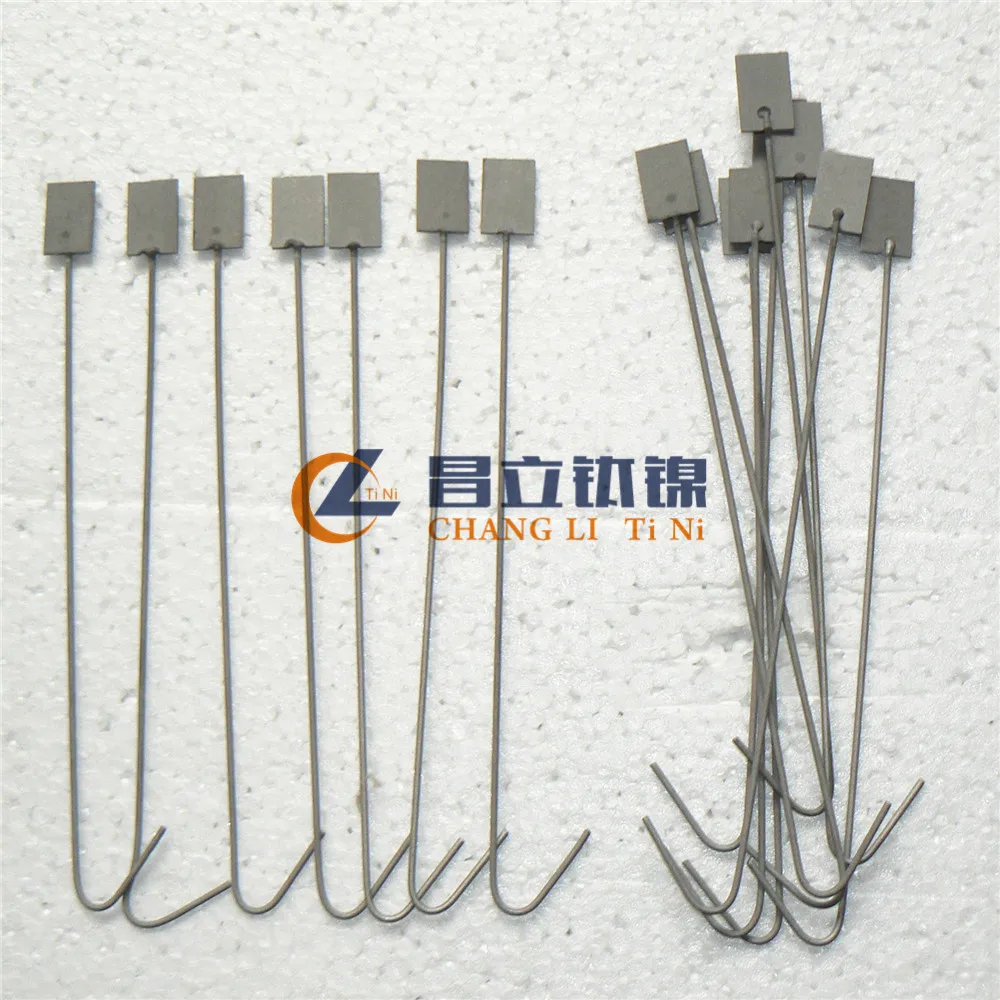

We make the platinized titanium anode in shape of mesh, plate,  rod,  tube and other complex shape. Mesh and plate are normally in plating, electroanalysis and water treatment. Rod and tube normally use in cathodic protection. We have leading technology in platinized titanium anodes which are very smooth on anode surface and can be nice substitute of pure platinum anode. The purity of platinum coating is 99.99%. Also we supply design, manufacturing, recoating and repair service.

Product Introduction

1. Substrate Metal Chemical Composition:

Grade	N	C	H	Fe	O	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	bal



   Substrate Metal Mechanical Properties:

Grade	Tensile strength(min)		Yield strength(min)		Elongation (%)
	ksi	MPa	ksi	MPa
Gr1	35	240	25	170	24



2. MMO Coating: Platinum 0.5~5 micron

Coating	Oxygen revolution potential	Suitable working environment
Platinum	<1.68V	Fluoride ion< 200PPM, PH:1-11



3. Working Parameters for Platinum Coating:

Current density	Temperature	Chlorine concentration	Polarity reversal	Reversal frequency
<2000A/m2	40-60°C	About 30grams/liter	suitable	2-4 hours

Main Application areas

* Electroplating Industries such as Gold plating, Electro Dyalysis, Electrolytic

Cells, Rhodium Plating, Sensing Elements, Electrogalvanizing, Electrochlorination, Hard Chrome               Plating, Waste water treatment, Precious Metal Recovery, Rotogravure printing

* Cathodic Protection such as Sea water intakes, Heat exchanger & Condensers, Jetties & Tanks, Water Heaters
* Water Ionizer

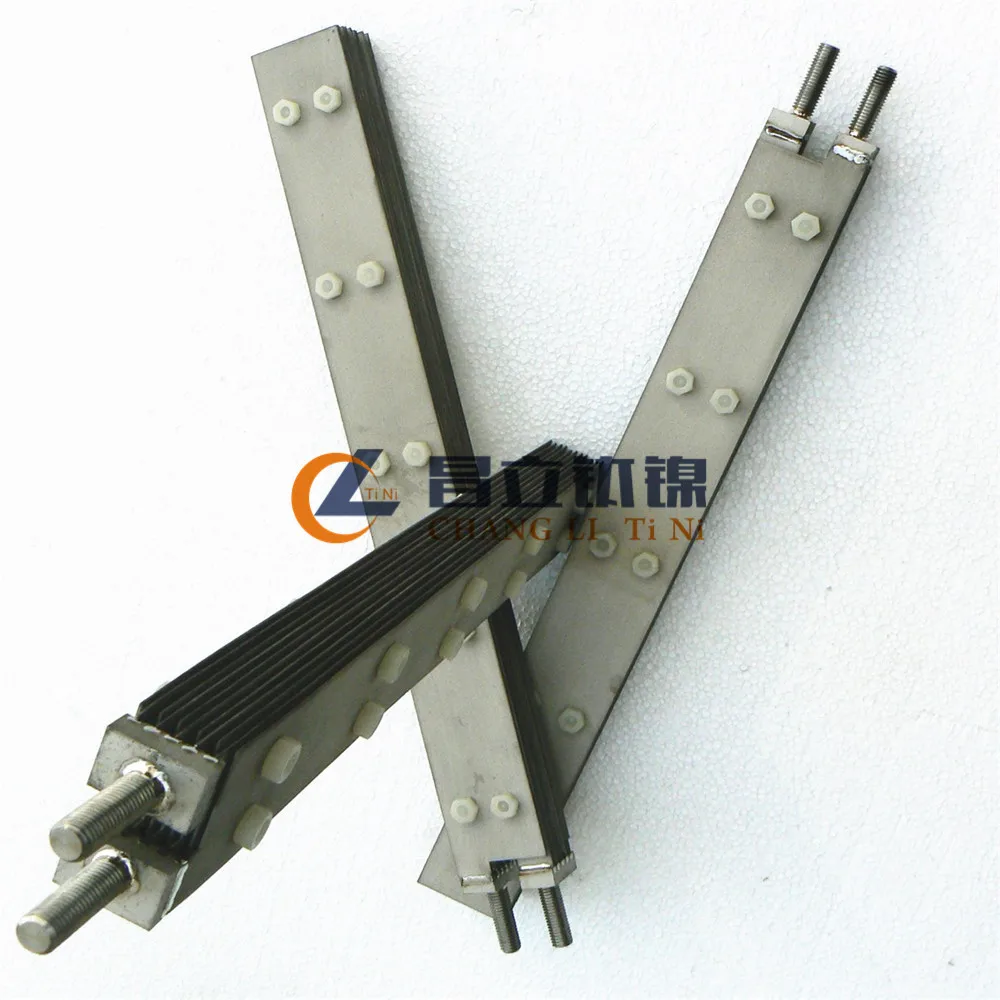

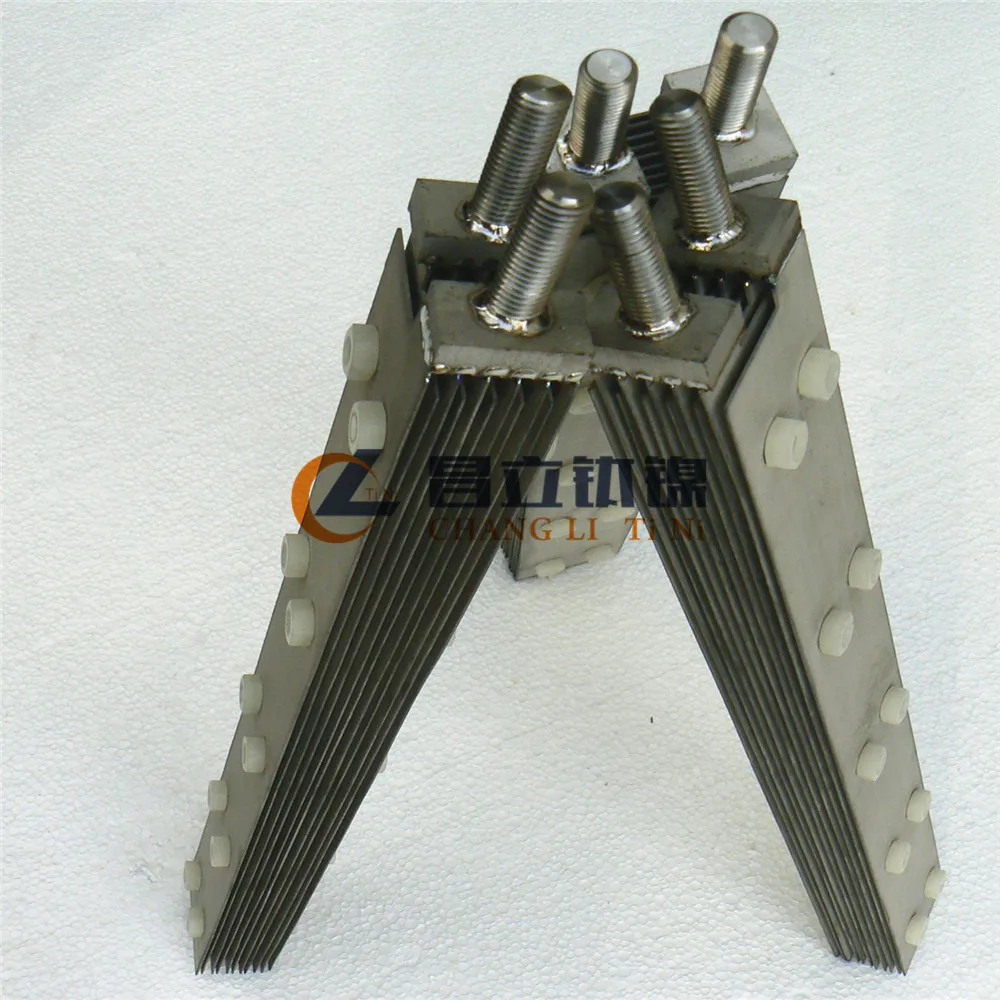

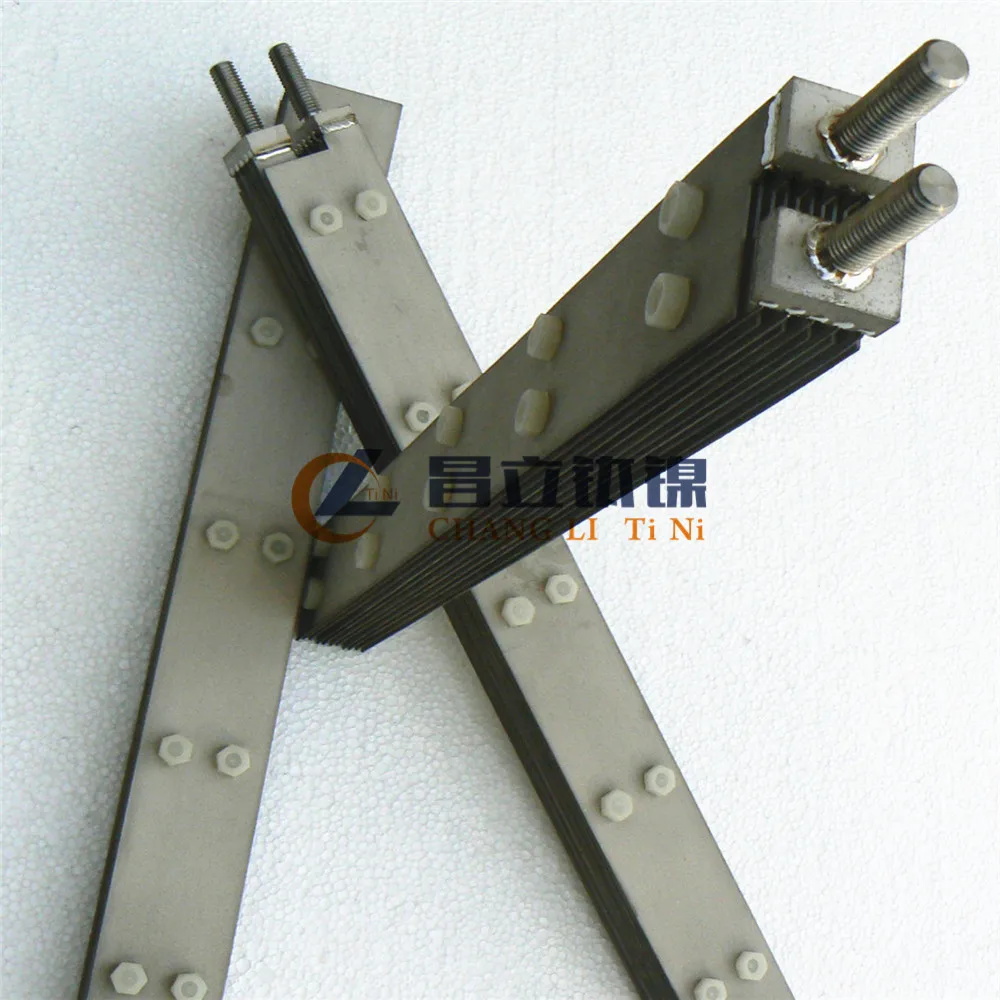

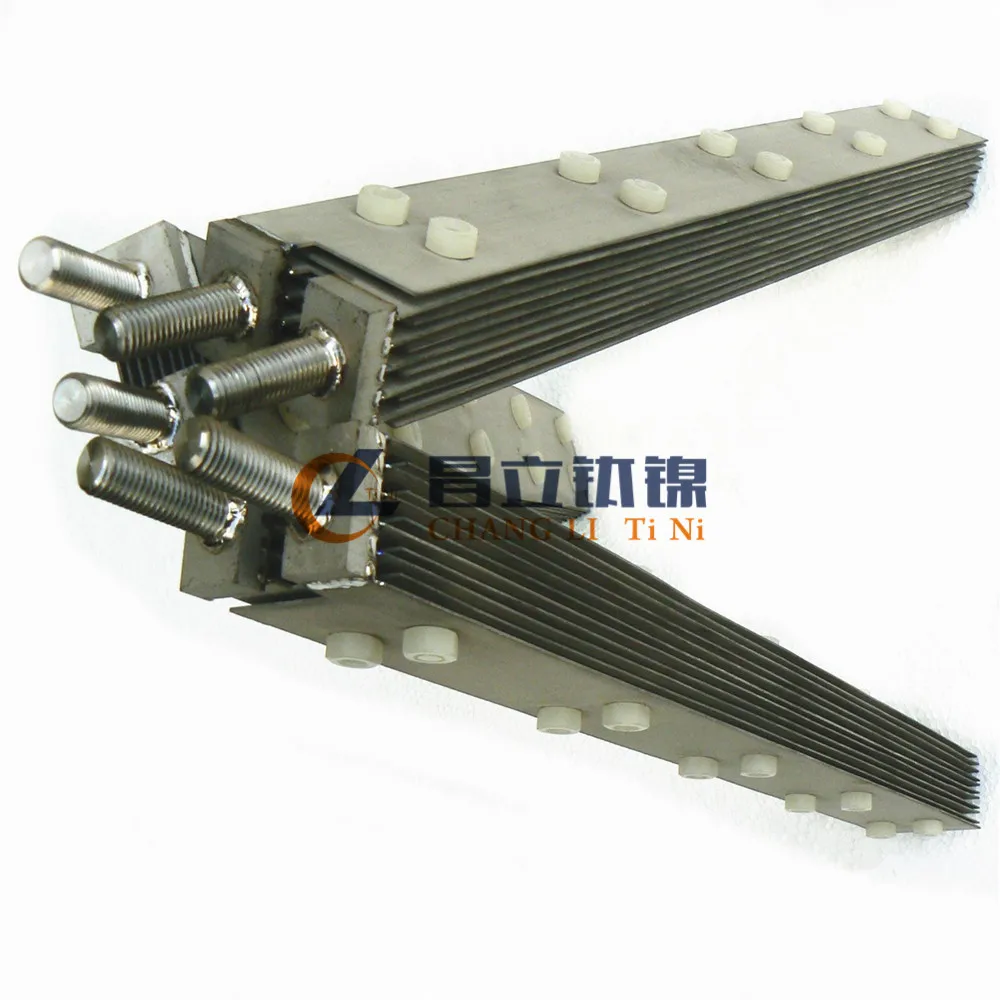

Products Details

Qualificates

FAQ

We need below information to quote for you:





1. What are the main electrolyte solution, percentage and final purpose?
2. Operating current density A/M2?
3. Electrode plate's size and q'ty or your designed drawing?
4. Reversal electrolysis or not?

5. Target working life?

6. Quantity



If you have any interests, please don't hesitate to inquiry.

We welcome the sample orders.
