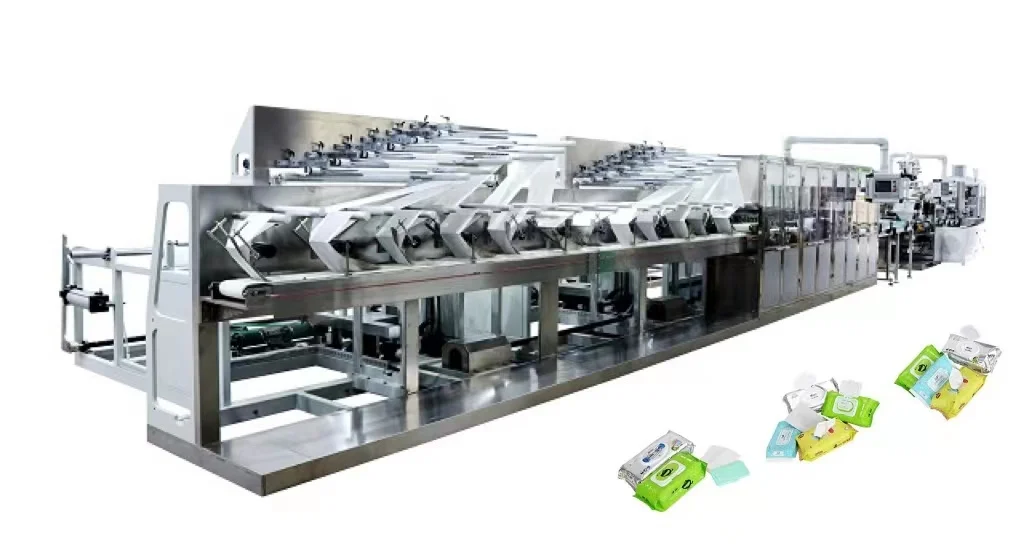

DCW 4300 Midium speed 5400 6600pcs/pack baby wet wipe making machine

Power :

380V 50HZ

Power supply:

13KW

Max. Speed:

5500-6600pcs/min

Unfolding size(mm):

(120-250)×(150-250) (L×W)

Folded size (mm):

 (120-250)×(90-120) (L×W)

Folded type:

Pop up or Non-Pop up(Adjustable)“Z”“W”“C”

Suitable material:

spunlace

Raw material width(mm):

180-220

Product type:

baby wipes, dress up wipes, lady wipes, cleaning wipes

Suitable material:

spunlace

GSM:

40 -80g/m²

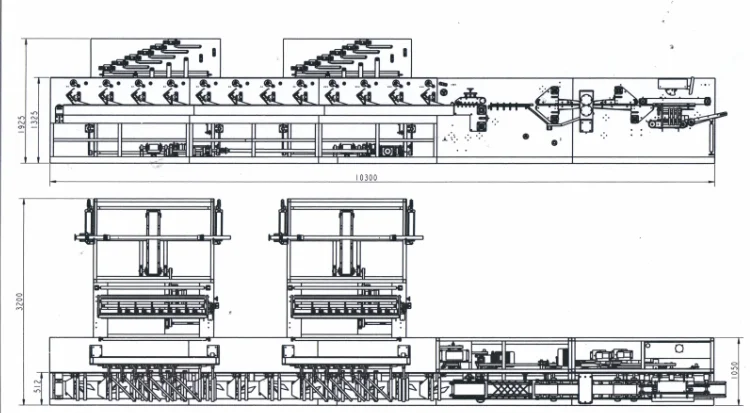

Installation space(mm):

10000X3000X2400 (L×W×H)

Weight:

9T

1. Folding way: “Z” “W” “C” shape.

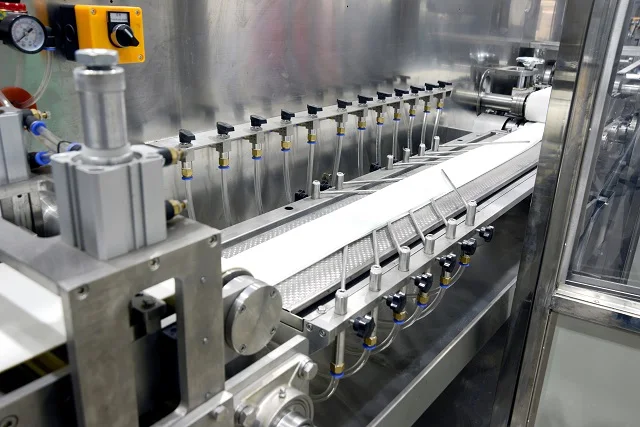

2. Wetting system: Double tanks with agitators. Wetting system with continuous mixing system, circulating system, the maximum flow rate of fluid volume can be adjusted to 20L/min.


3. Mitsubishi Servo system control.

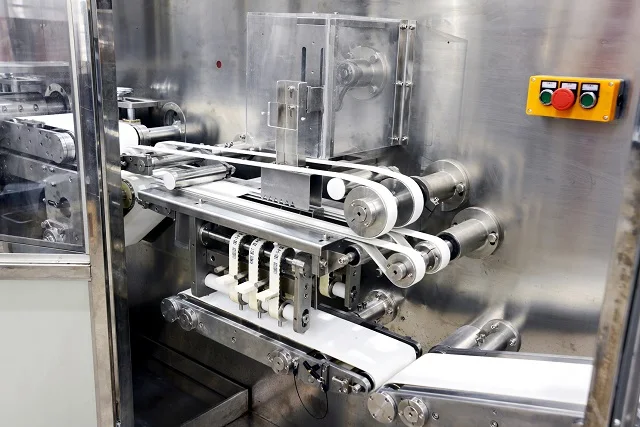

4. Sheet counting and stacking unit, servo motor adopted for easy adjusting quantity.


5. Automatically monitoring the raw material. When the material lack of in shortest time, it can automatically stop the machine to avoid the loss of material.


6. Emergency braking system


7. Counting automatically and automatically record the date of manufacture.
