Product Description

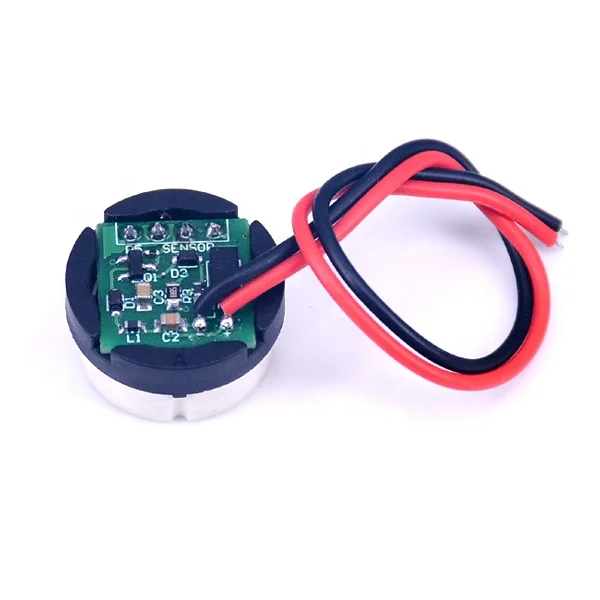

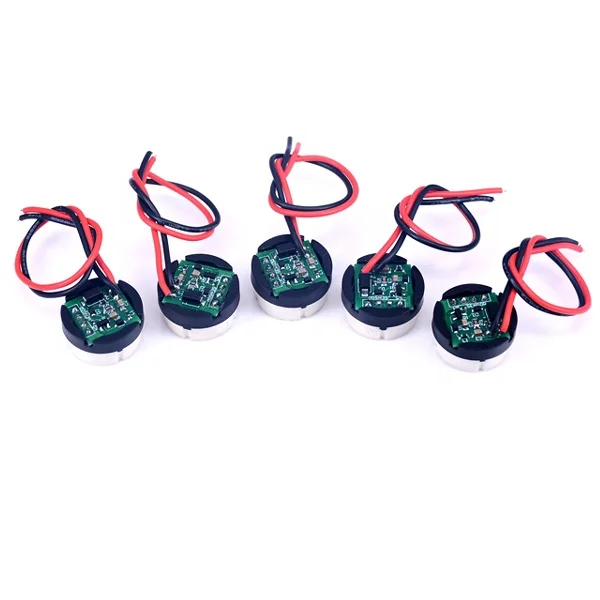

PSM18A is a pressure sensor module,using the high accuracy import ceramic piezoresistive sensor core,small size and easy to install,it has nice stability at the wide temperature range,widely used in the field of automobile,refrigerator,air-conditioning plant,air compressor,water treatment system etc.
Using the advanced chip for signal conditioning of high integrated bridge pressure sensor which can meet AEC-Q100 standard,with 24-bit ADC for input voltage detection,high precision 1x~256x variable gain instrument amplification,maximum digital gain of 8 times,low temperature drift 16-bit DAC,built-in calibration logic for universal sensors based on MCU,EEPROM multiple programming,high cost performance,good electrical performance and long-term stability.
Technical Parameters:
Pressure Range
0-10bar(0-50bar can be customized)
Output Signal
4-20mA
Power Supply
10-36VDC
Working Temperature
-40℃~85℃
Overload Capacity
200%FS
Accuracy
±0.5%FS
Temperature Drift
±0.02%F.S./℃
Electrical Connection
Blank pad or direct lead
Dimensional Drawing:mm
Definition for the wires:
