XL6436 Digital Readout swivel head Universal Milling Machine Price
- Category: Manual Mills >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (60077160955):
Product Overview
Description
Product Description
XL6436 Digital readout universal milling machine
It is a new series of conventional machines equipped with servo motors and drives for 3 working feeds,which is a patented product of our factory:
Tengzhou Xili Machine Tool Co.,LTD.
(Shandong yourong Machine Tool Co.,LTD)
Main Features of XL6436 Digital Readout Universal Milling Machine Price:
1. X Y Z 3-axis auto feed and fast feed ,finely graduated feeds in all axis, driven by servomotor
2. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process
3.Rotary table ±45° can be ordered
4.Easy operation, low trouble rate
5.ideal for workshop&training
Specification of universal milling machine price:
Specifications | Unit | XL6436 | XL6436C | XL6436CL |
Table size | mm | 1325×360 | 1325×360 | 1600×360 |
Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 | 30~750/20~500/15~375 | 30~750/20~500/15~375 |
Spindle taper | 7:24 IS050 (H) 7:24 IS050 (V) | 7:24 IS050 (H) 7:24 IS050 (V) | 7:24 IS050 (H) 7:24 IS050 (V) | |
Arm travel | mm | 550 | 550 | 550 |
Distance between spindle nose and table surface | mm | 196-656 | 196-646 | 196-646 |
Distance between horizontal nose and table surface | mm | 20-480 | 20-470 | 20-470 |
Distance between spindle axis and arm surface | mm | 200 | 200 | 200 |
Spindle speed range | r.p.m | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | 12 steps 60-1750 (V) 12 steps 60-1800 (H) |
T-slots(NO./width/pitch) | mm | 3/18/80 | 3/18/80 | 3/18/80 |
Main motor power | Kw | 5.5 (H) 4 (V) | 5.5 (H) 4 (V) | 5.5 (H) 4 (V) |
3 to feed Ac servo motor torque | N.m | 10 | 10 | 10 |
Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2245×2100×2000 |
Net weight | kg | 2685 | 2750 | 2800 |

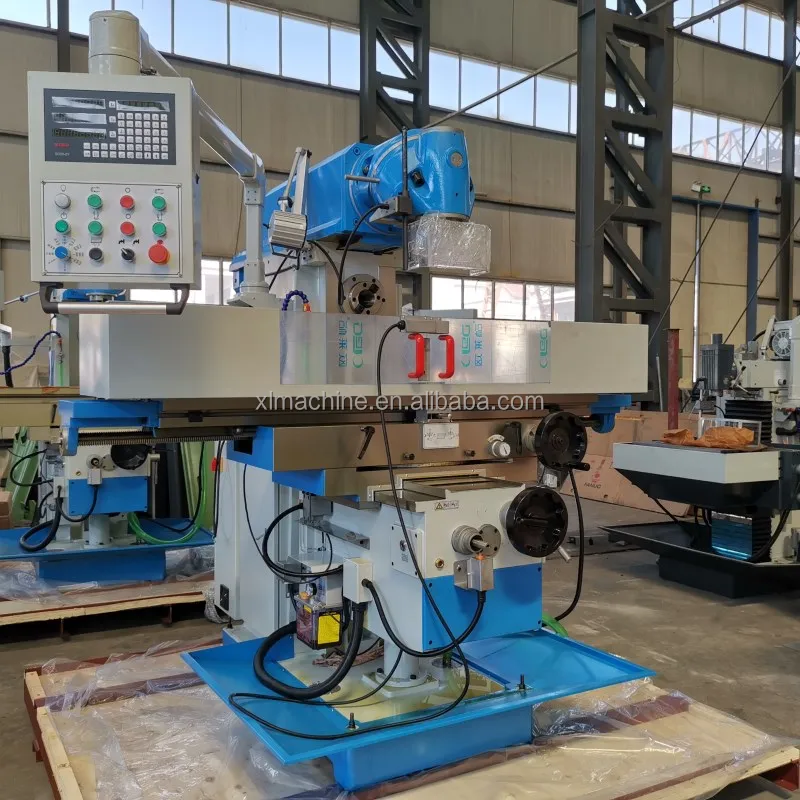

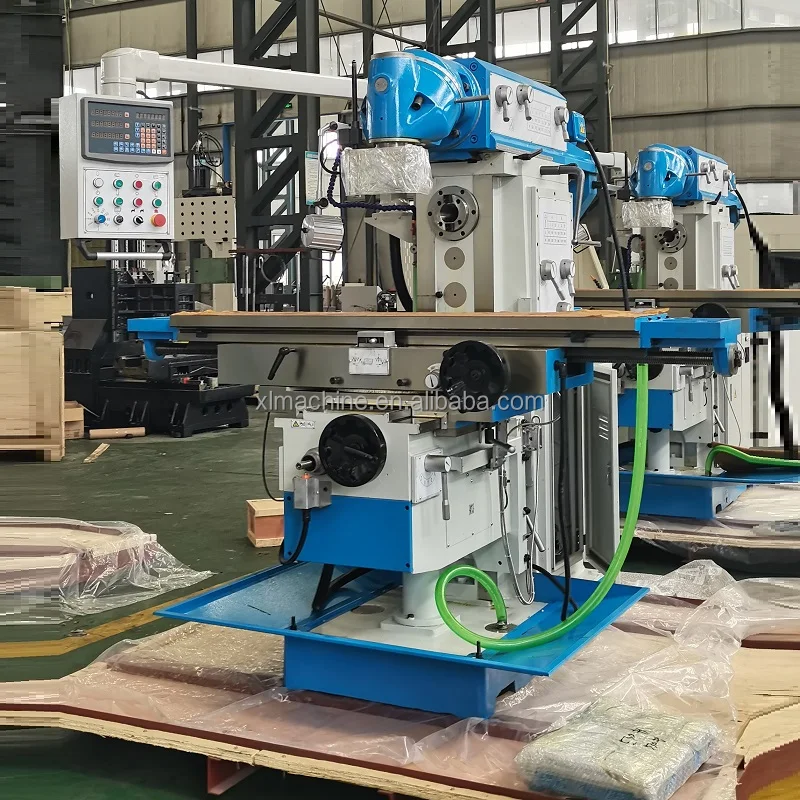

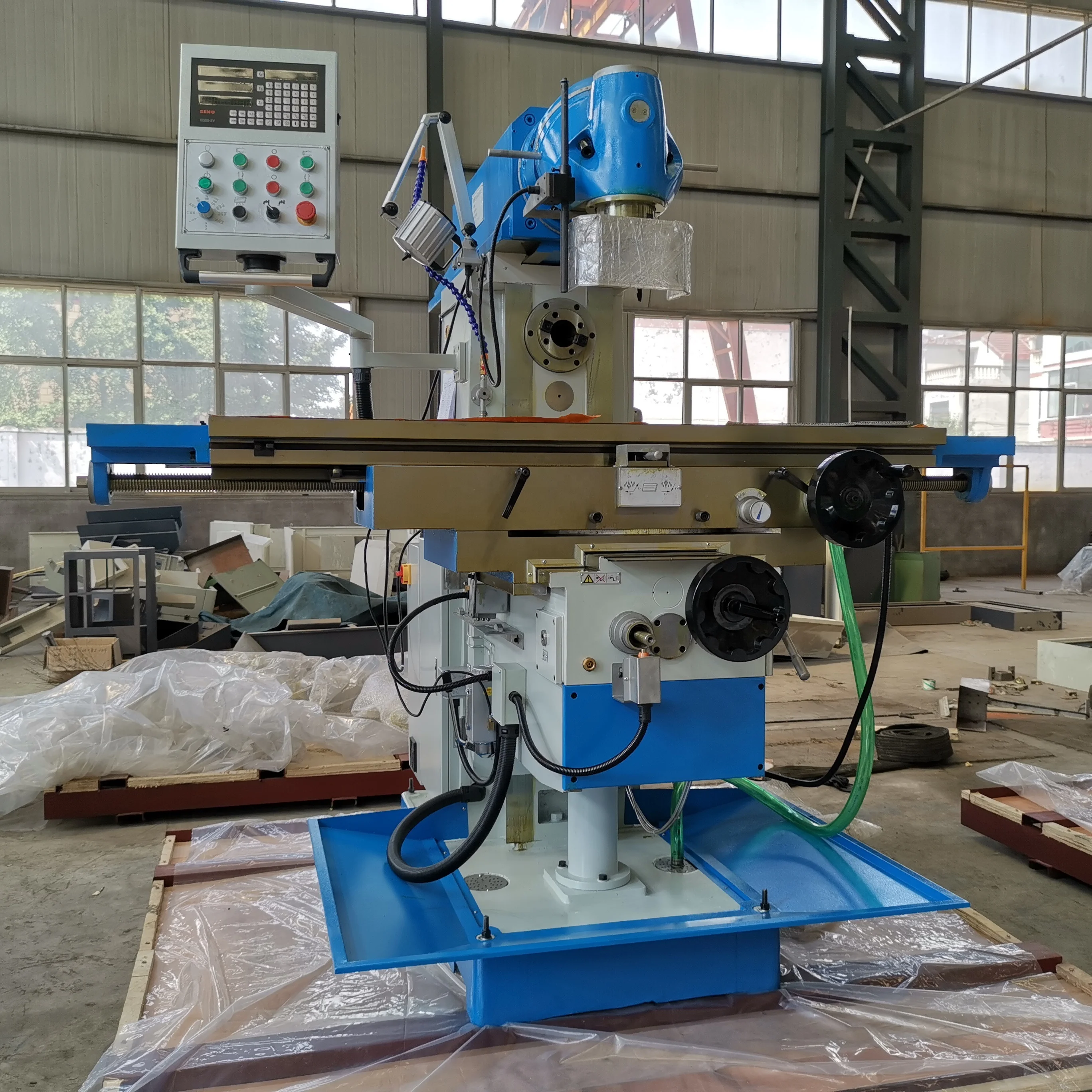

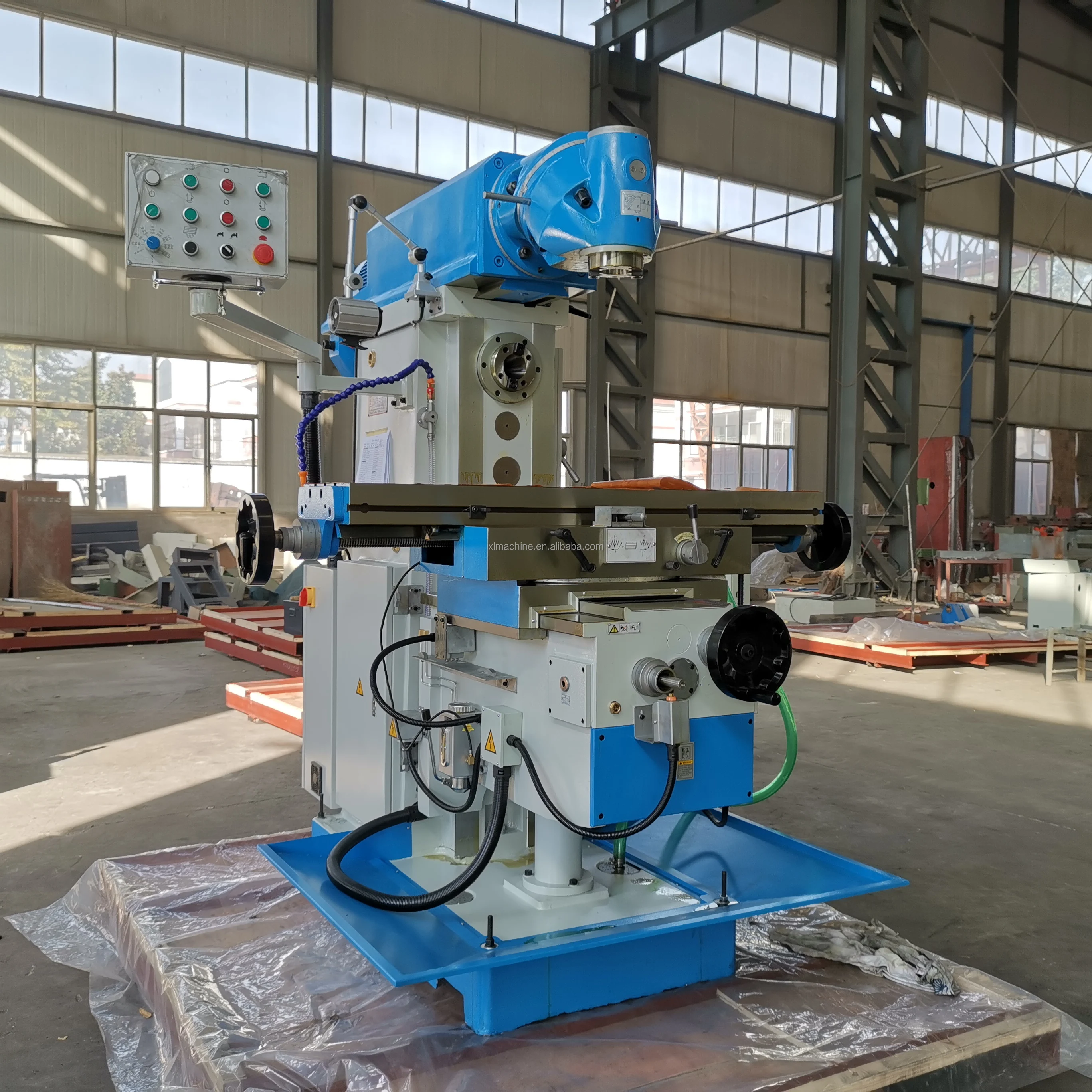

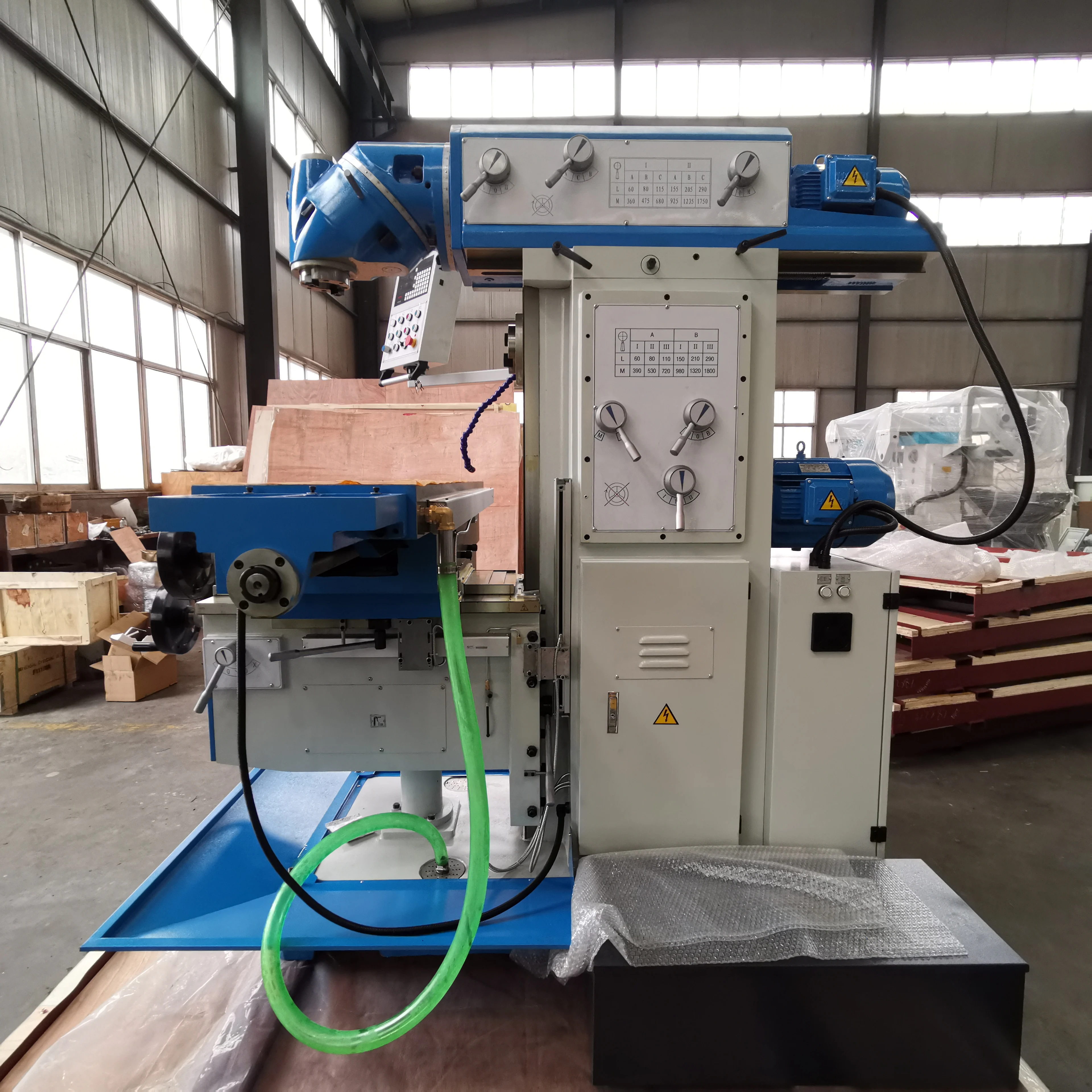

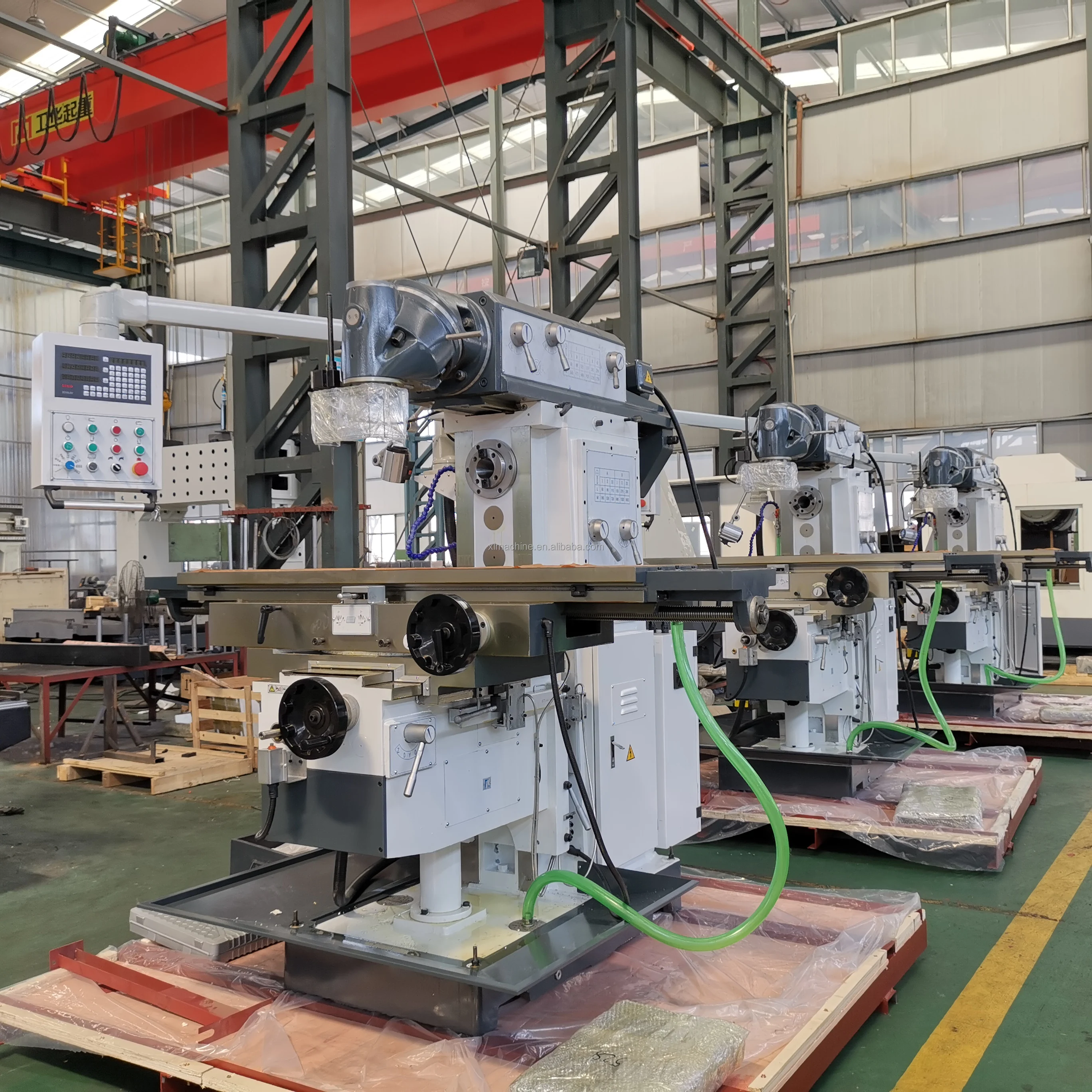

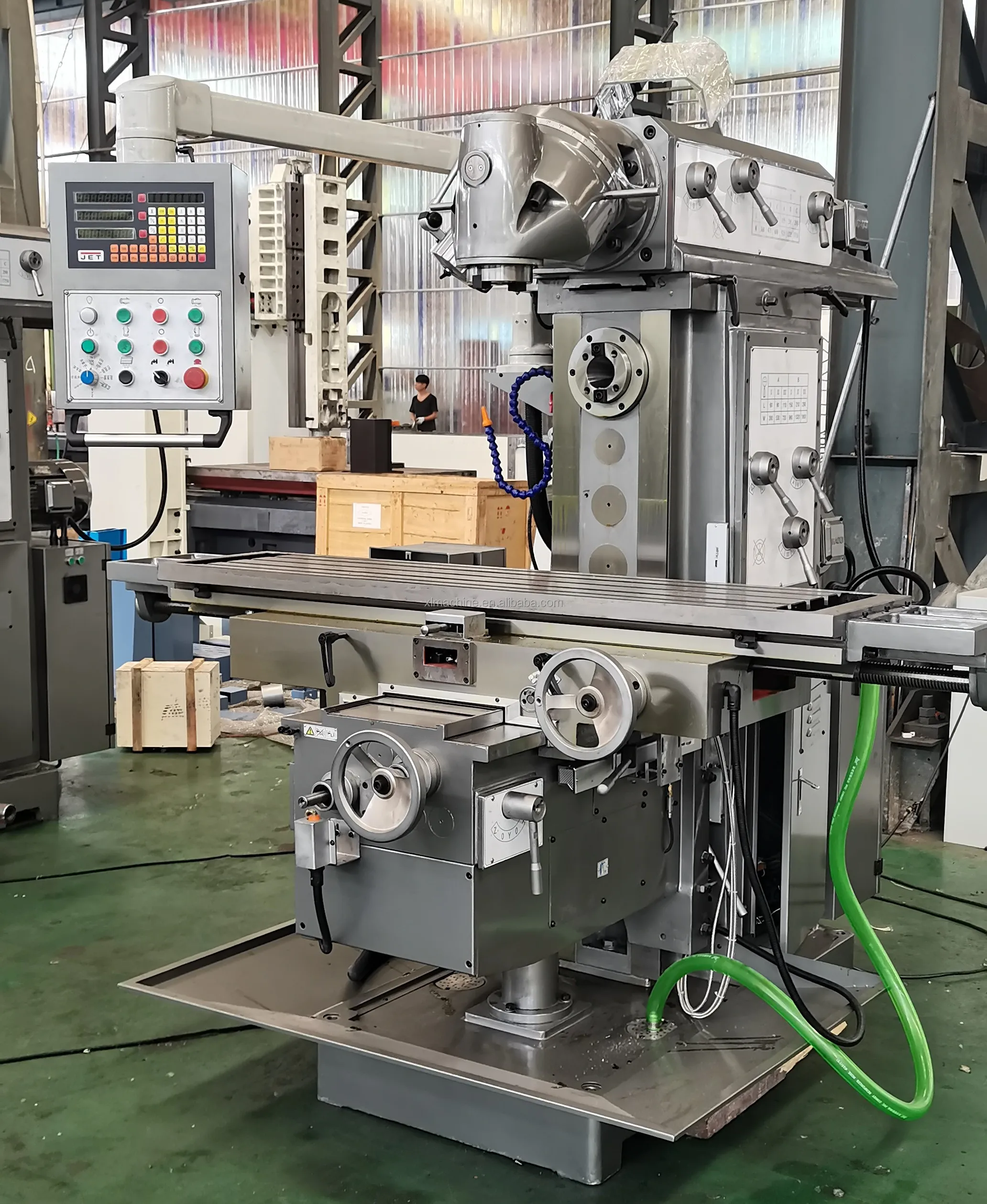

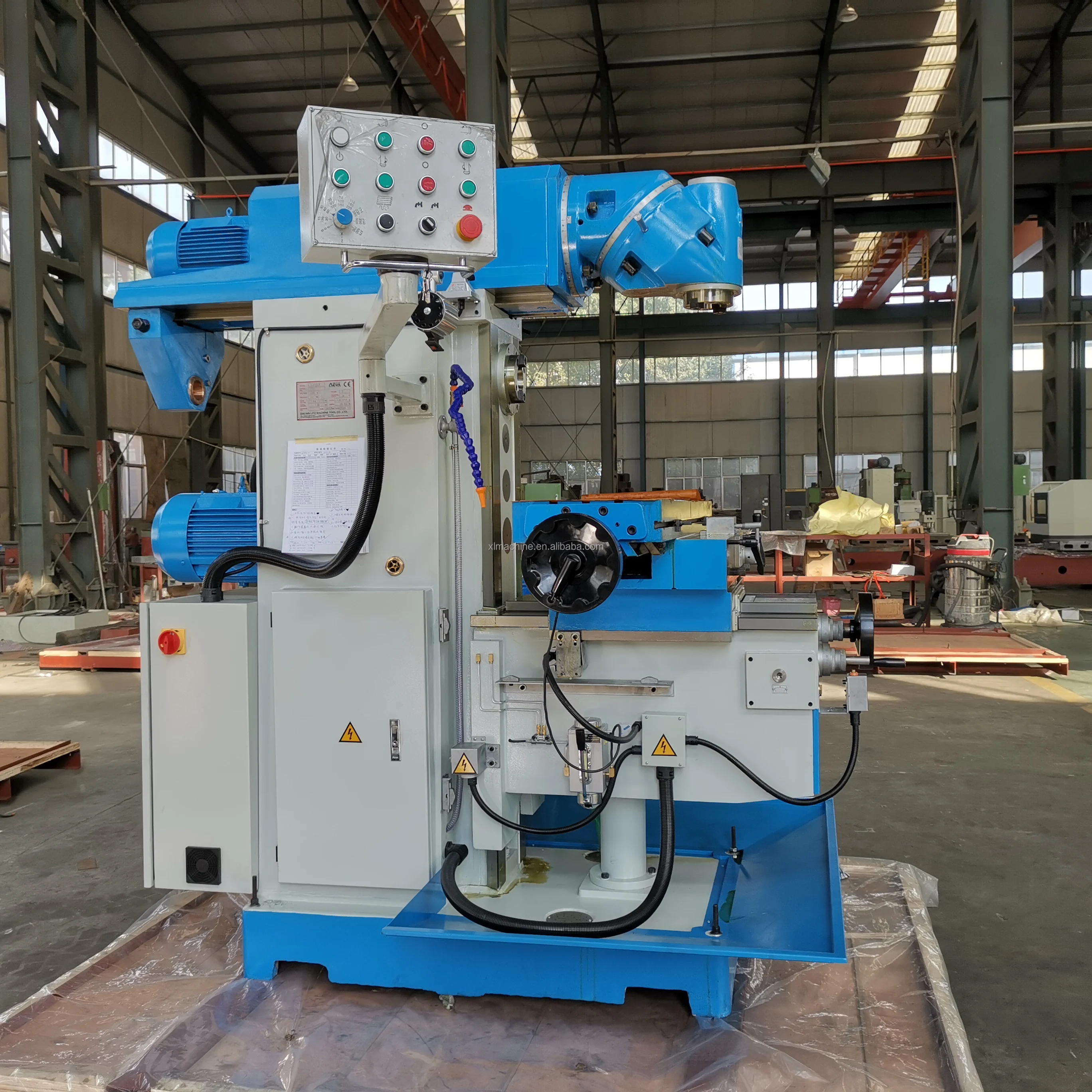

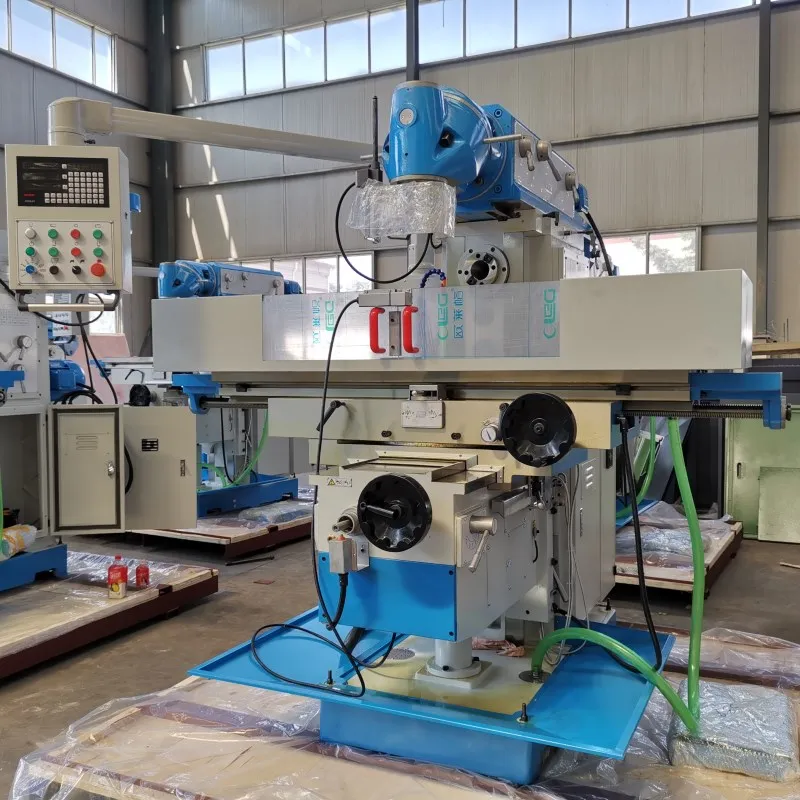

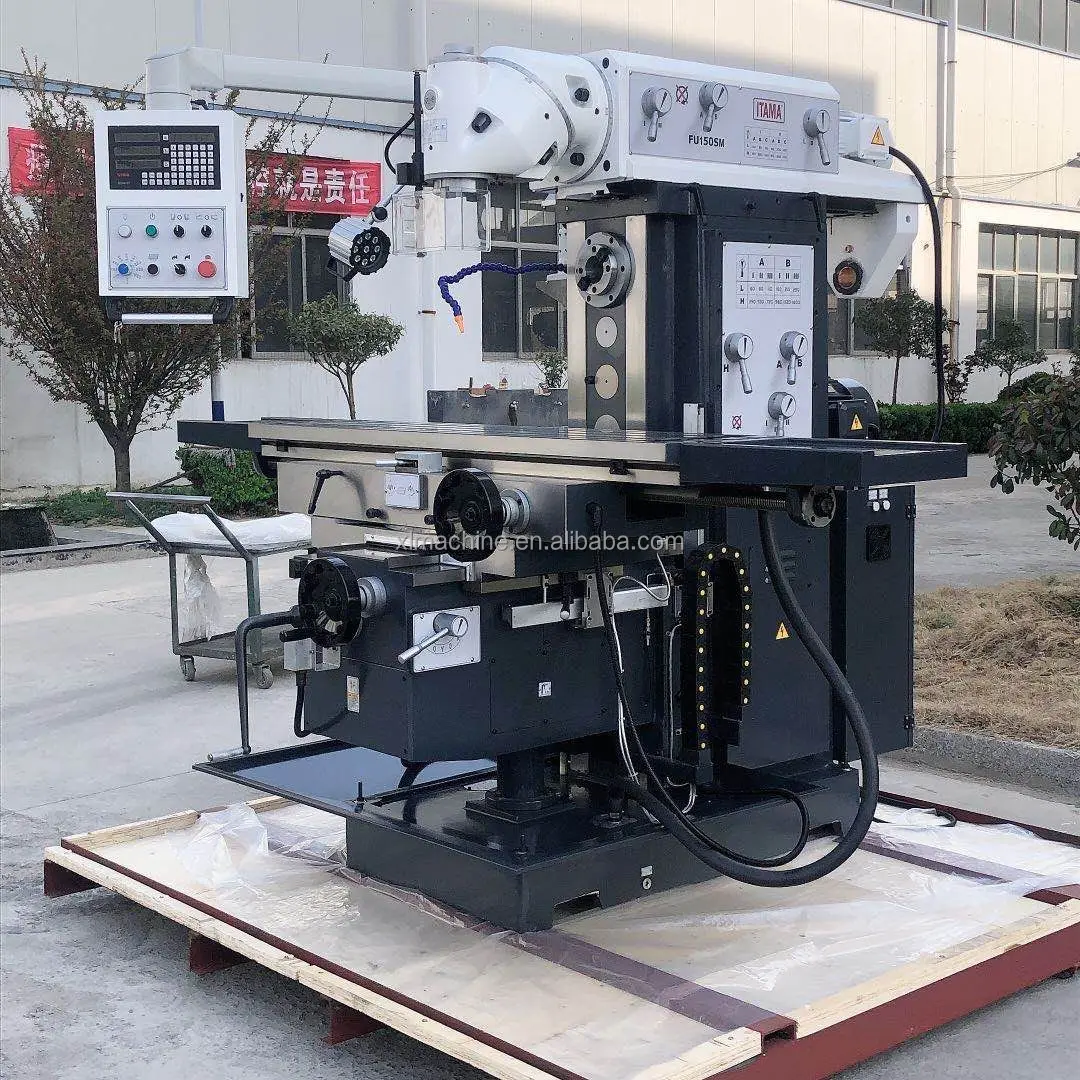

Photos of XL6436 Universal Milling Machine :
Featuring High Flexibility, High Accuracy and High Efficiency, the universal swivel head milling machine has a wide variety of applications, ie drilling, milling & boring on tools, jigs, moulds and other complex jobs in instrument, workshops as well as training.
Standard Accessories:
Milling cover, Horizontal arbor assmbly, Drawbar, Double-ended wrench, Inner hexagonal wrech,Machine vice,sleeve,washer,milling chuck,Milling cutter arbor....
Optional Accessories:
Digital Readout, Aluminum hangarm , Spindle cover, Worktable cover, LED Worklamp, Swivel table ±45°........
Certificate
CE Certificate / ISO9001 Certificate
Company Information

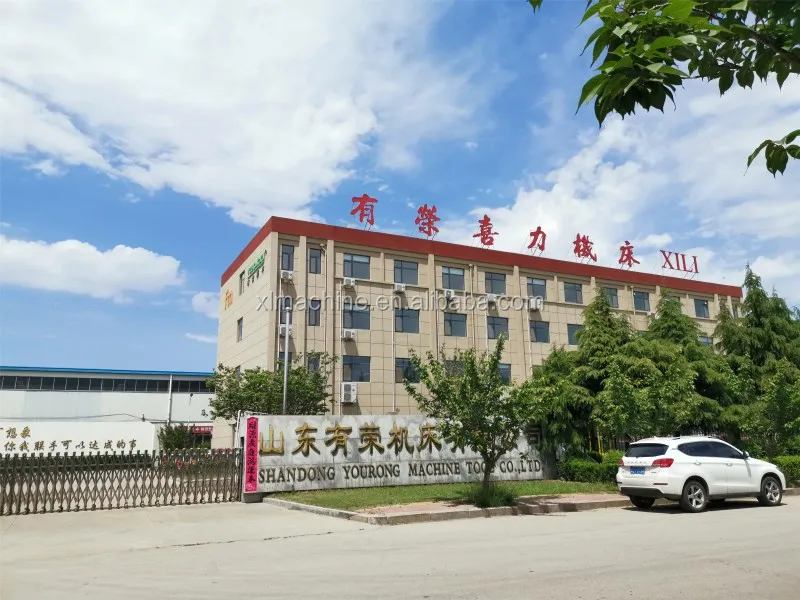

Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
