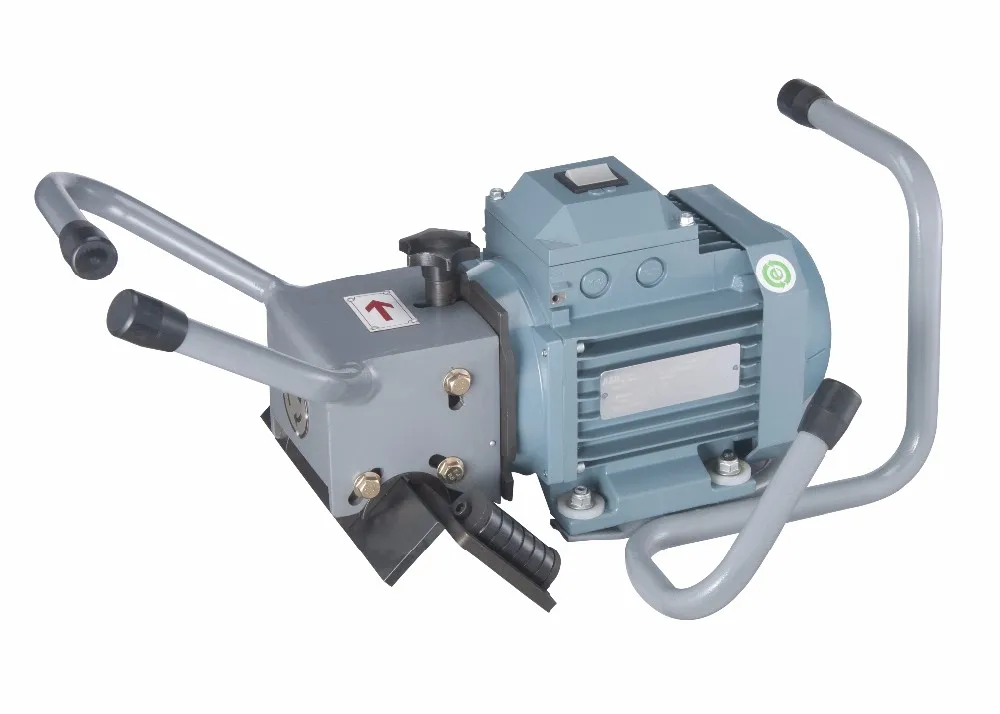

This machine is a handy, portable and flexible unit for the preparation of welds, bevelling of meaterials. And chamfer / bevel large pipe, the low weight (please compare with our competition) enables use on almost every work place and a rattling-free, steady milling operation. The operation is easy and safe. The machineis suitable for milling steel plate or pipe, VA, cast iron and nonferrous heavy metal by one-hand operation.
Patents No.: ZL200530106371.X
Features

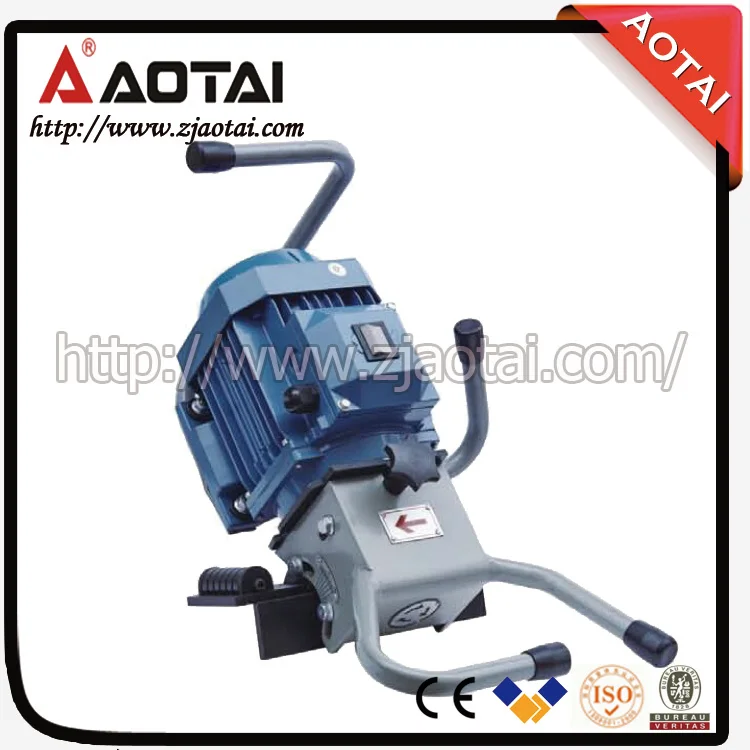

SKF 15 Plate Bevel Milling Machine Plate Beveler
*Designed for metal plate prep- welding, to beveling, chamfering and milling
*Cold cutting, don’t change the material of welding surface, be suitable for milling steel, carbon steel, alloy, etc
*Smooth and flat beveling surface, meet the need of K, V, X,Y shapes for welding.

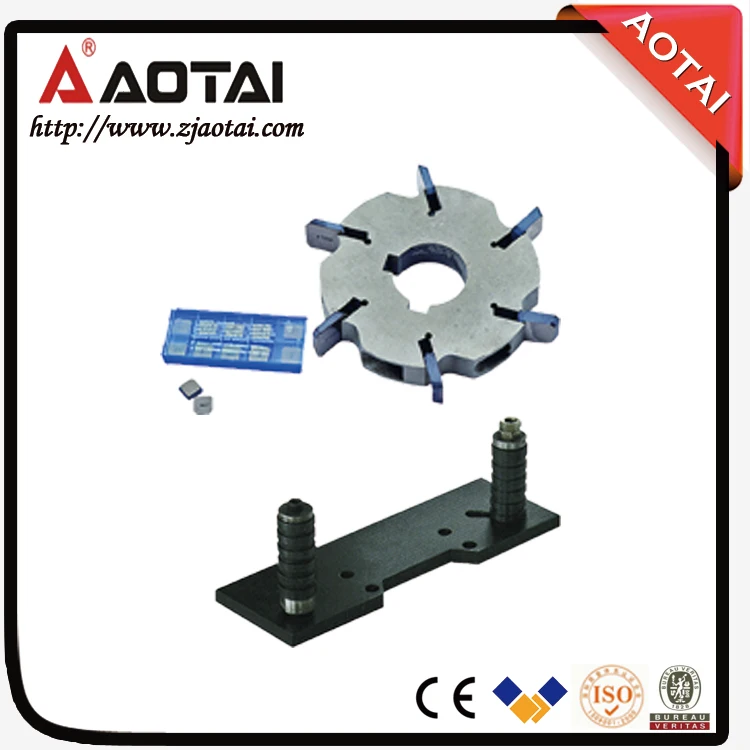

*Also can use pipeline clamp tool, to bevel the end of pipeline
Technical Parameter
SKF 15 Plate Bevel Milling Machine Plate Beveler
Motor: ABB, power 1.1kw,380v 3phase 50Hz, rotating speed 2870rpm
MODEL
SINGLE MILLING DEPTH
LAND WIDTH
MILLING ANGLE
DEPTH
SKF-15
3~5mm
15mm
30~60°
≤200mm
*Process plate or bended implement, middle concave radius can’t be less than 55mm; Pipe clamp optional for process pipeline, ID of pipe must be more than 160mm.
Company Information
AOTAI,since 1998,focus our attention on manufacturing all kinds of pipe beveling machine.
