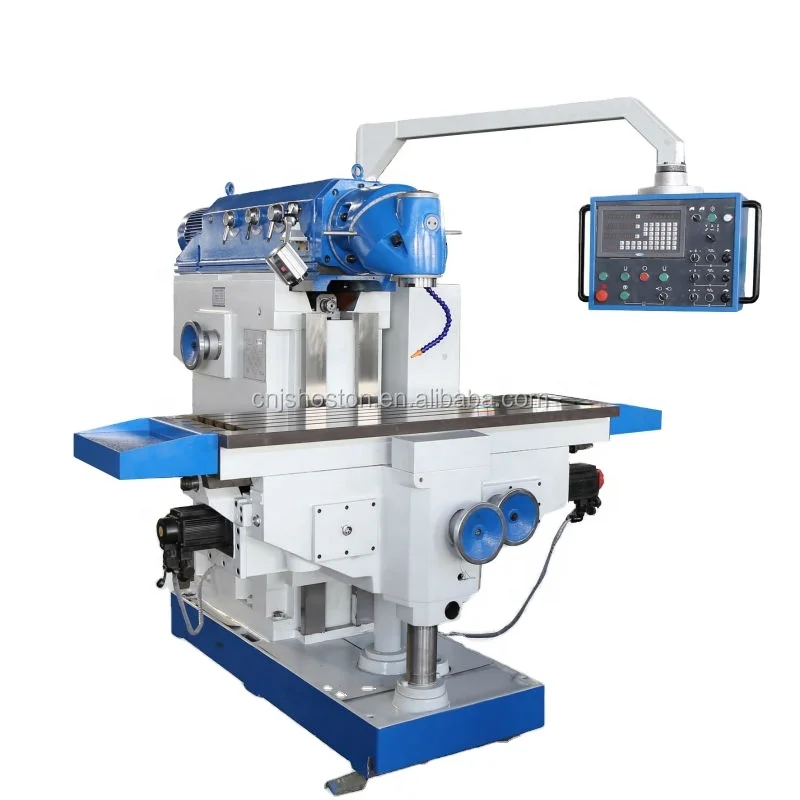

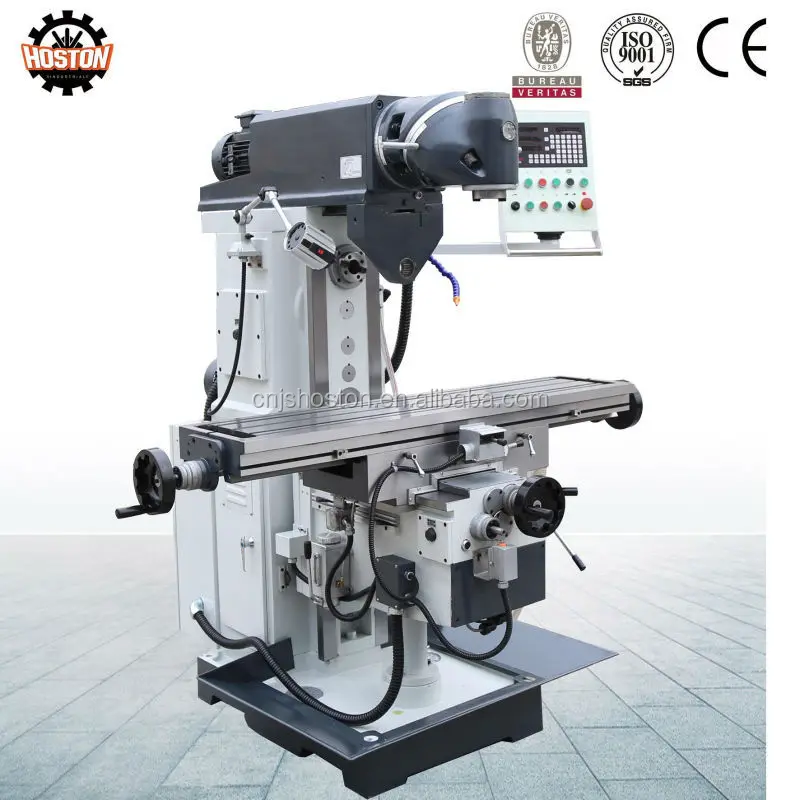

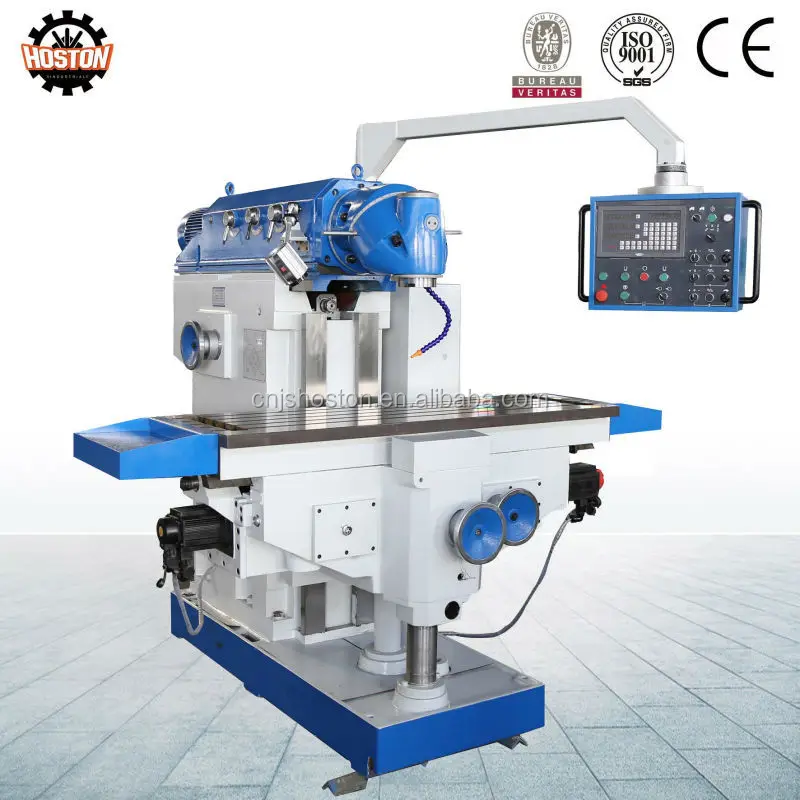

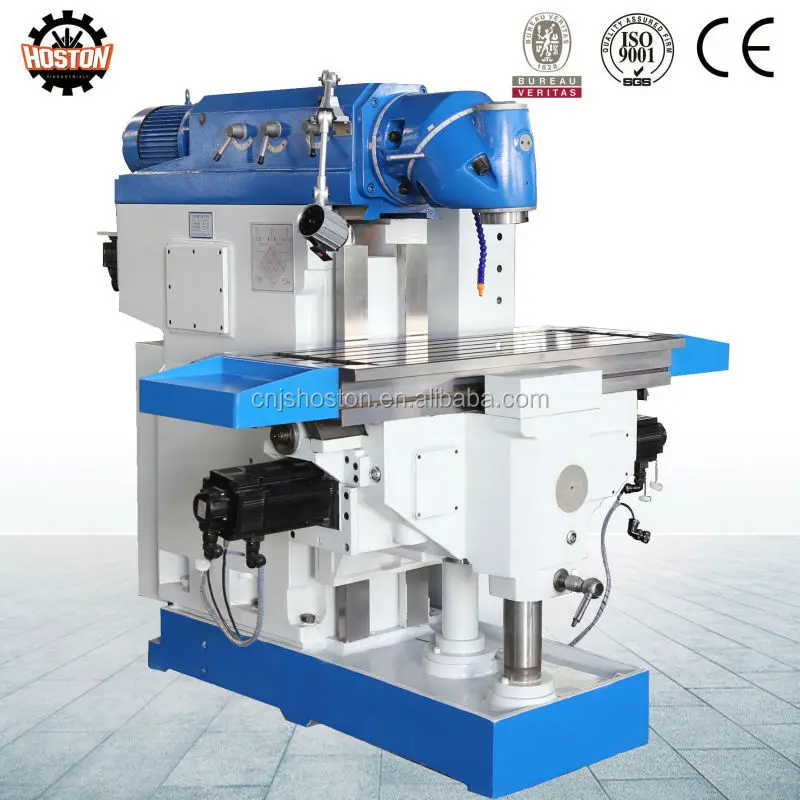

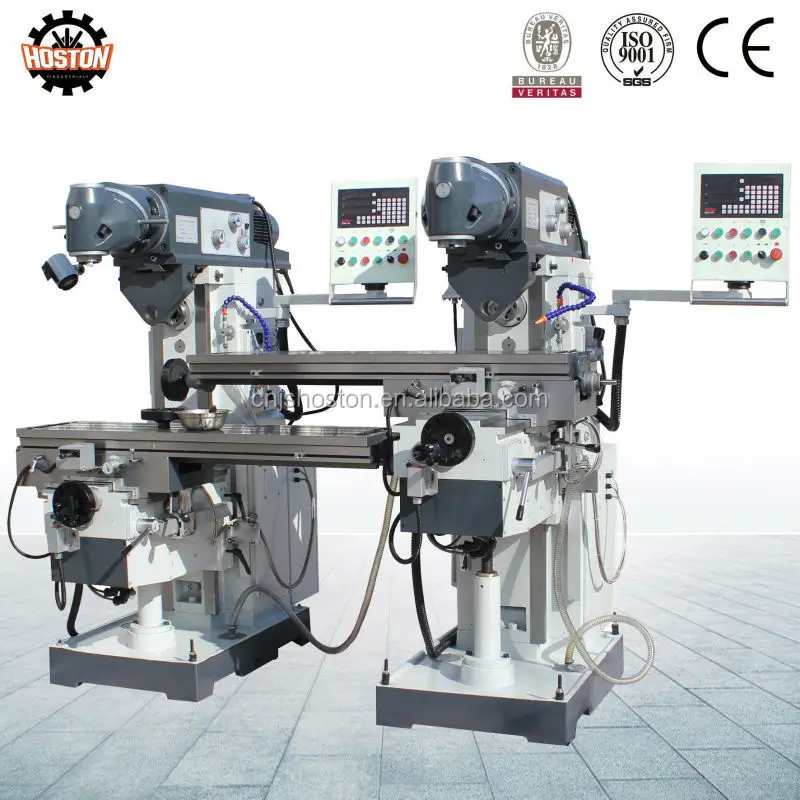

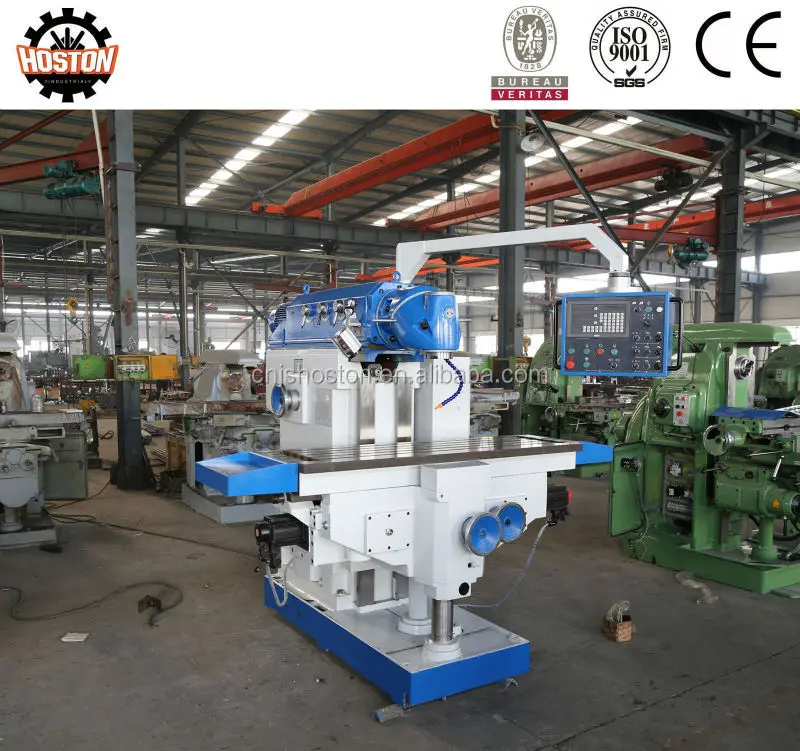

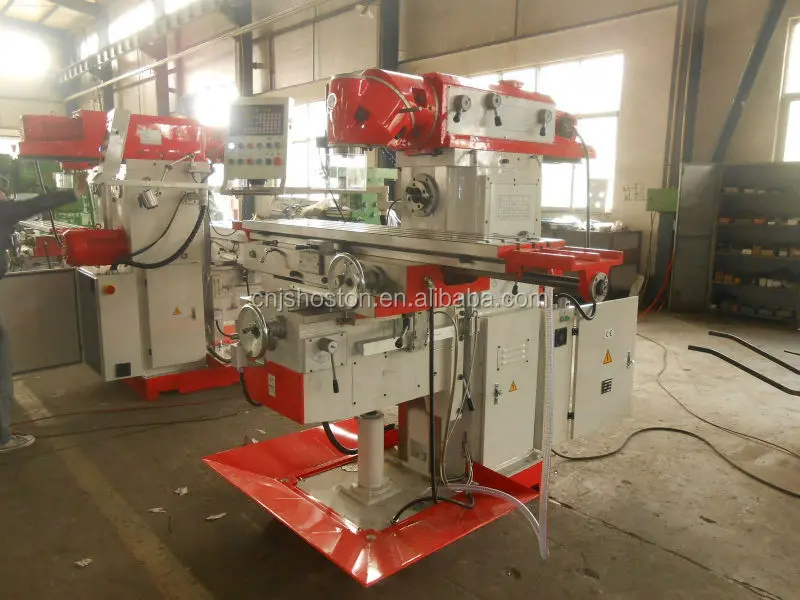

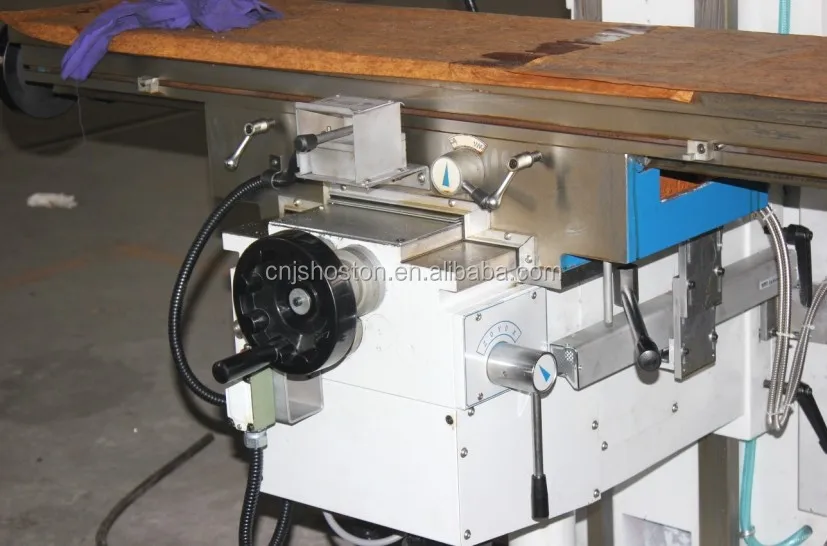

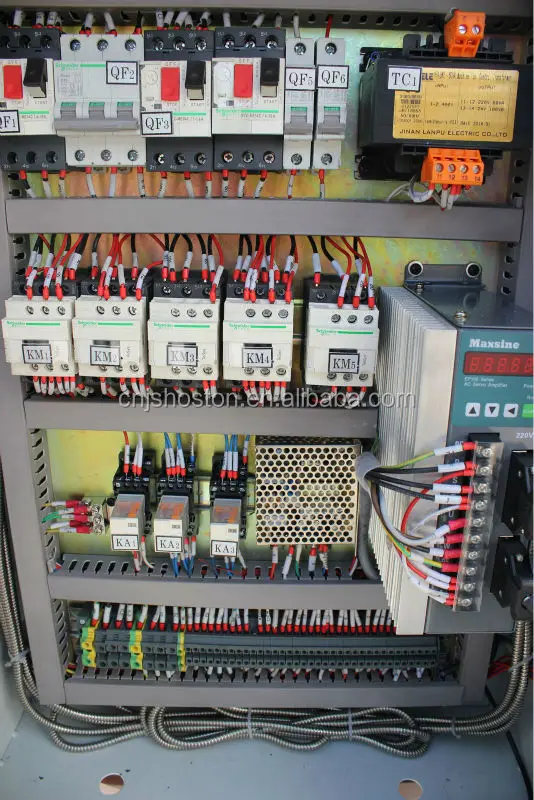

Hoston Large universal vertical ram turret milling machine

Specification

Unit

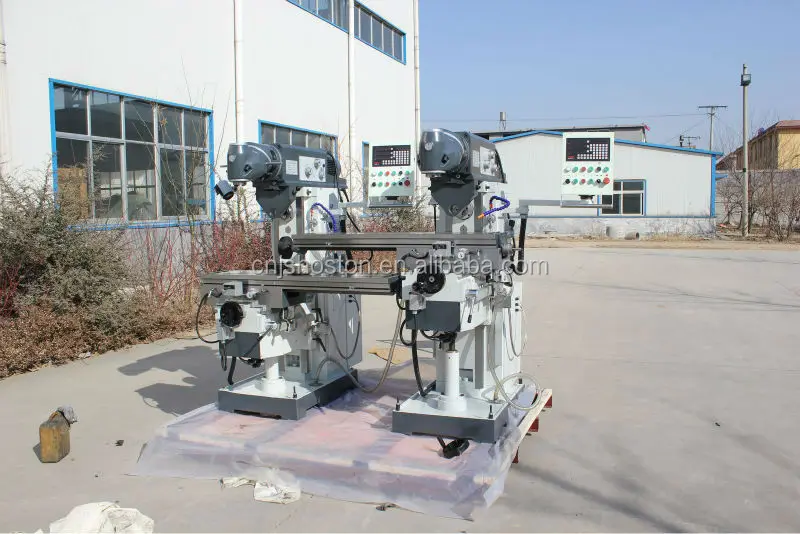

XQ6432

XQ6432A

XQ6432B

XQ6432C

Table size

mm

1270x320

1370x320

1270x320

1370x320

Table travel (X/Y/Z)

mm

720/300/400

820/300/400

900/380/400

1000/380/400

Rapid speed of table (X/Y/Z)

mm/min

1000/1000/750

Spindle taper

7:24 ISO40

Table feed (X/Y/Z)

mm/min

No finite

Spindle center to table surface

mm

75-475

Spindle nose to table surface

mm

260-660

Horizontal spindle center line to arm surface

mm

180

Spindle speed range

r.p.m

(V)11 steps 45-1660; (H) 12steps 35-1500

T-slots (NO./width/pitch)

mm

3/14/80

Arm travel

mm

400

Main motor power

kw

2.2 or 3 (V)   3(H)

Torque of X/Y/Z axis AC servo motor

n.m

10

Cooling pump motor power

W

40

Flow of cooling pump

L/m

12

Overall size

mm

1720x1680x1860

1820x1680x1860

1720x1680x1860

1820x1680x1860

Net weight

kg

1875

1925

1925

1975

Rotary table can be ordered at special request

Model

Table size

Max table travel-X/Y/Z

Max. rotary angle of table

Spindle center line to table surface

Spindle nose to table surface

XQ6432W

1270x320

750x300x400

±45°

35-435

220-620

XQ6432AW

1370x320

820x300x400

XQ6432BW

1270x320

900x380x400

XQ6432CW

1370x320

1000x380x400
