Product Overview
Description
Features:

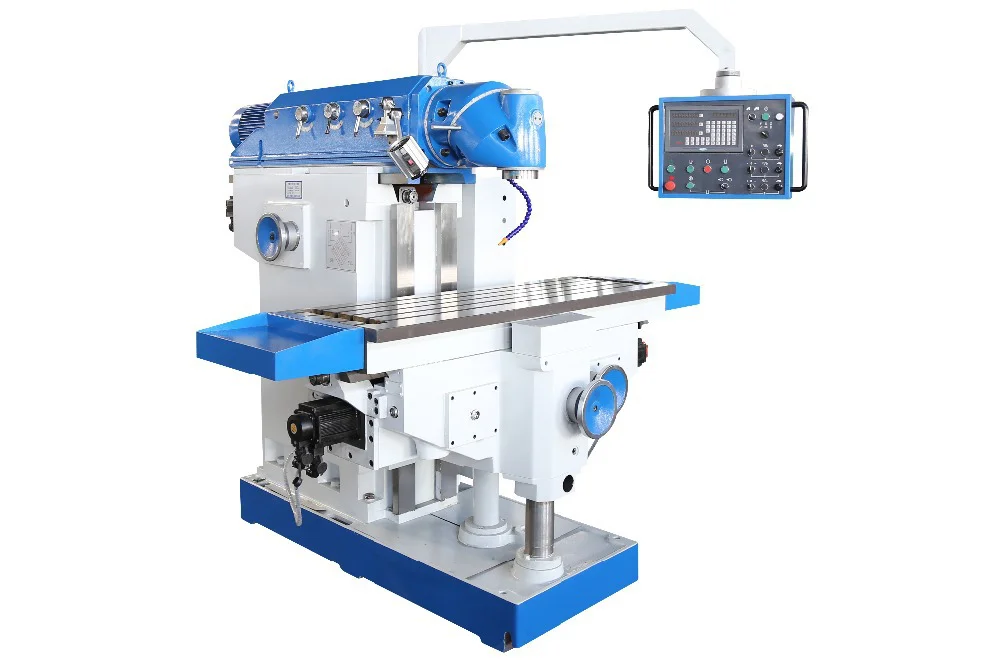

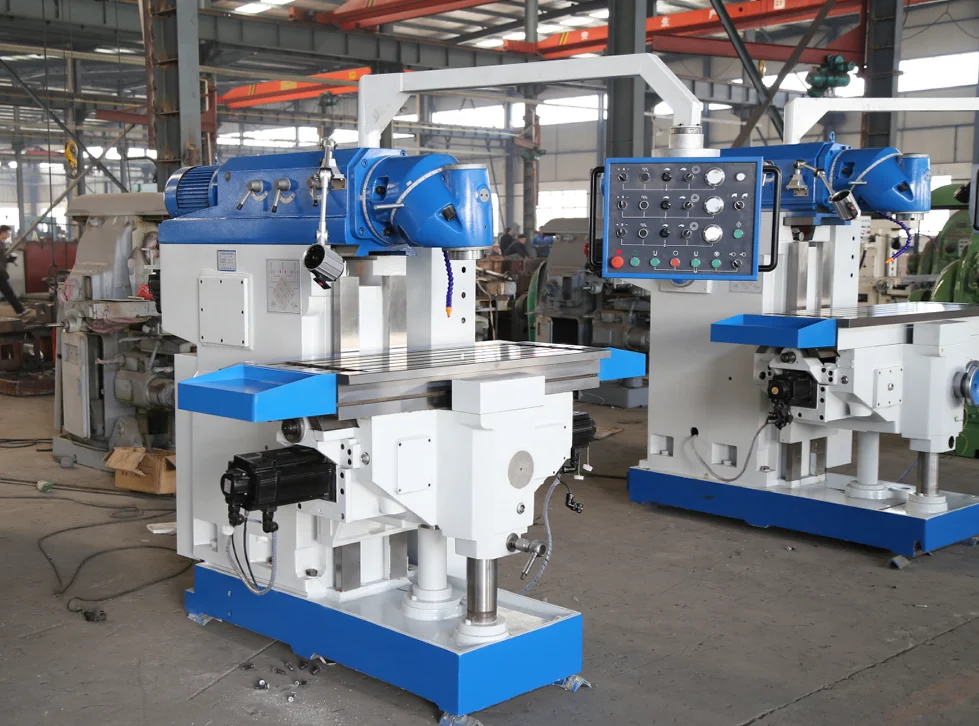

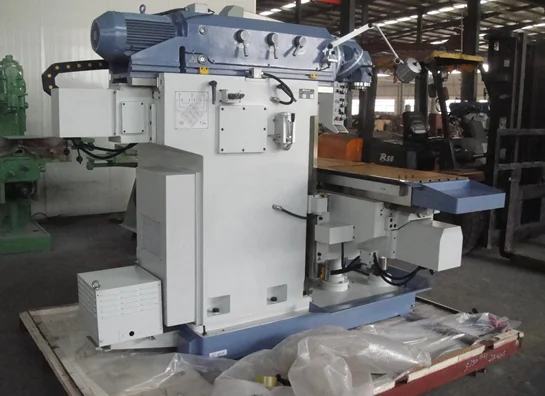

Universal ram milling machine .

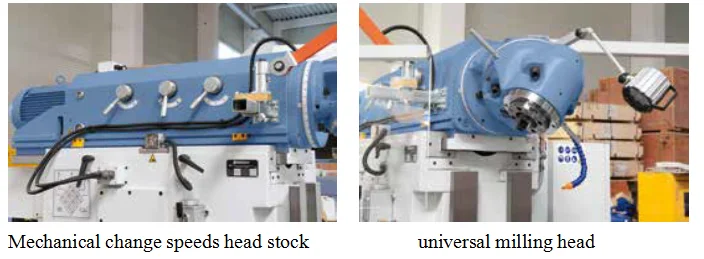

Head can swivel 360 degree
It can mill any angle surface through front half-sphere by swivelling milling head
It can mill any angle surface through front half-sphere by swivelling milling head

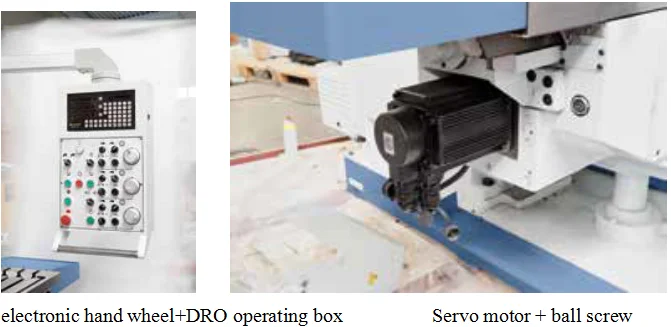

Table 3 axes with ball screws, high precision
Machine Specification
specifications | unit | X5746 | X5750 | X5750A | ||
Table size | mm | 460x1235 | 500x1600 | 500x2000 | ||
T-slots(NO./Width/pitch) | mm | 5x18x80 | ||||
Table travel (X/Y/Z) | mm | 900x650x450 | 1200x700x500 | 1400x700x500 | ||
Swivel angle of milling head | - | 360° | ||||
Spindle taper | - | ISO40 | ISO50 | |||
Spindle speed range | r.p.m | (27) 30-2050 | ||||
Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 | |||
Table rapid speed | 2200/2200/1100 | |||||
Distance between spindle nose and table surface | mm | 32-482 | 25-525 | |||
Distance from spindle center line to column | mm | 47-697 | 55-755 | |||
Main motor power | Kw | 5.5 | 7.5 | |||
Feed motor | Kw | AC servo motor X/Y:15NM,Z: 18NM | ||||
Max load | Kg | 800 | 1800 | |||
Overall size | mm | 1835x2362x2090 | 2475x2260x2180 | 2625x2860x2080 | ||
Weight | Kg | 4000 | 4500 | 4800 | ||
Machine Details
