Milling drilling machine /Milling machine ZX6350C
- Category: Manual Mills >>>
- Supplier: Tengzhou Wellon Machinery Co. Ltd.
Share on (60351476902):
Product Overview
Description
Features:

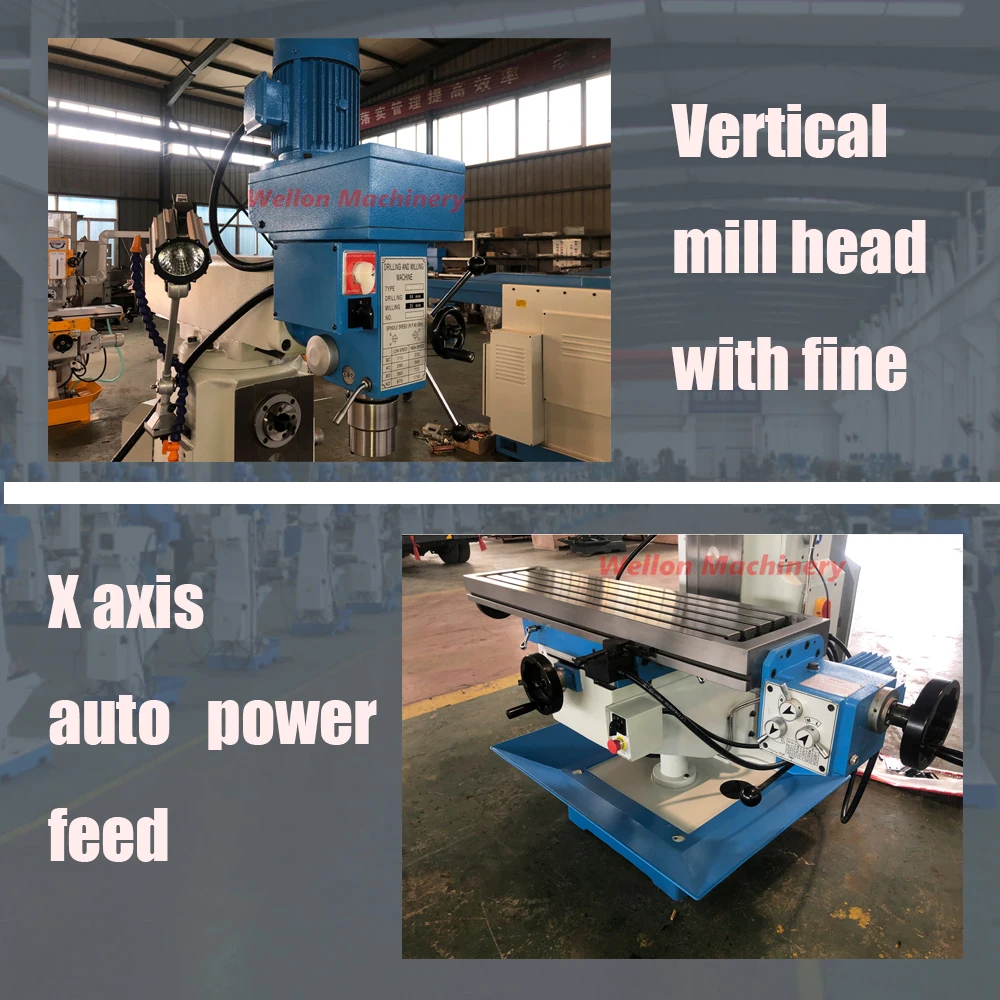

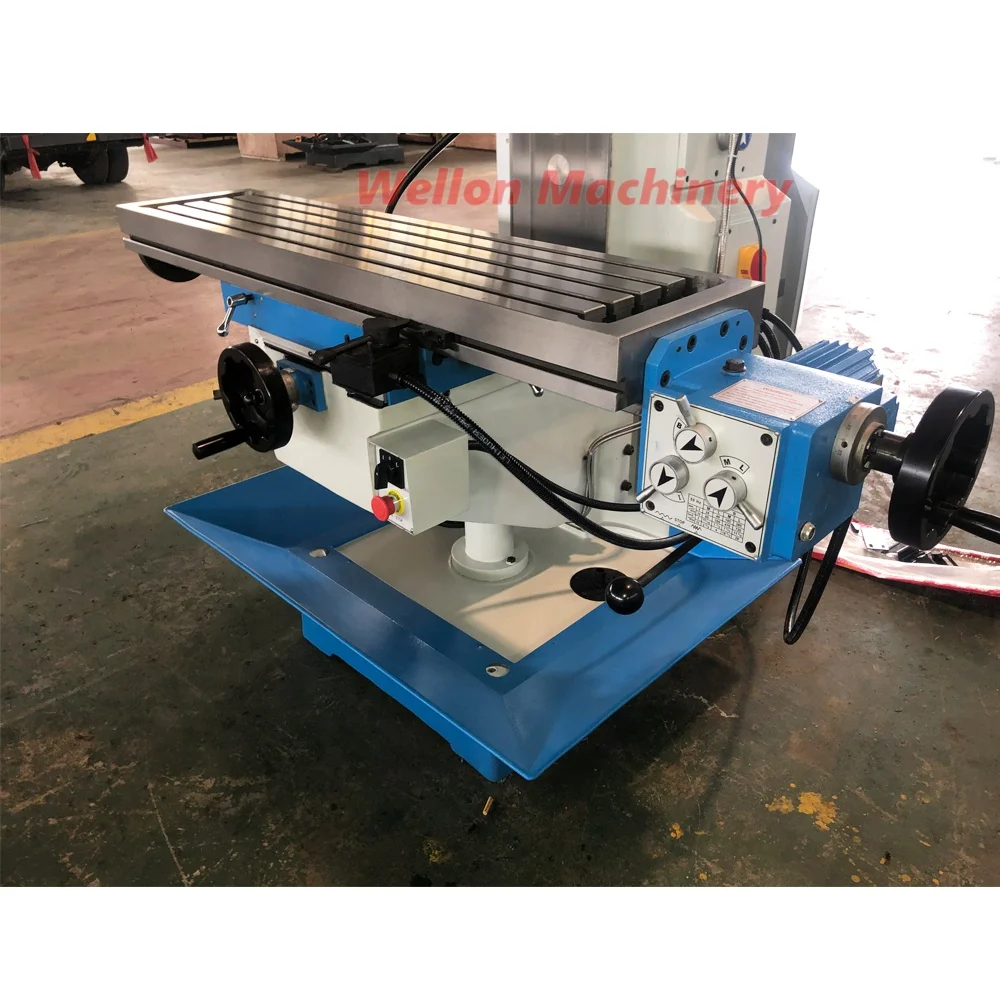

1.X axis is automatic feed through gear box

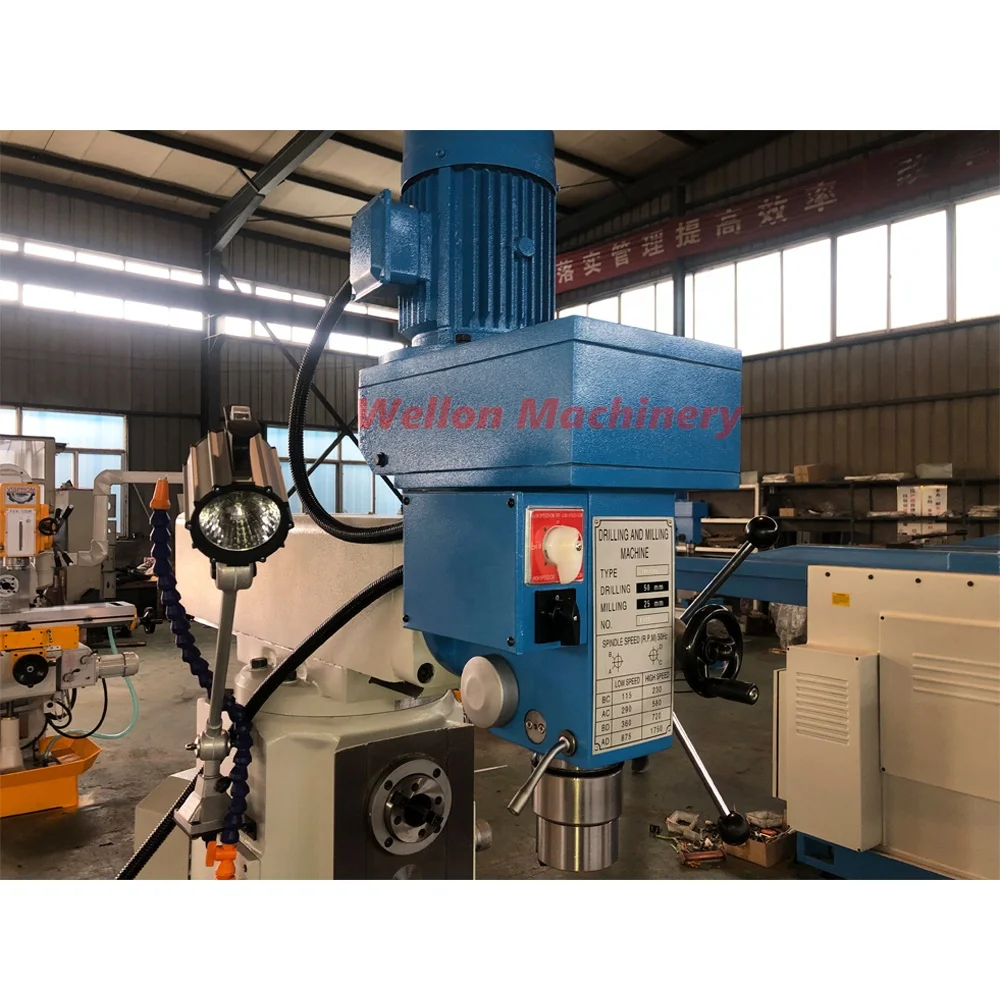

2.Spindle box is gear driven, quill can fine feed manually.
3.Ram is movable forward and backward, and swivel 180 degrees.
4.Three axis hardened treatment.
5.Mill head can swivel ±45 degree

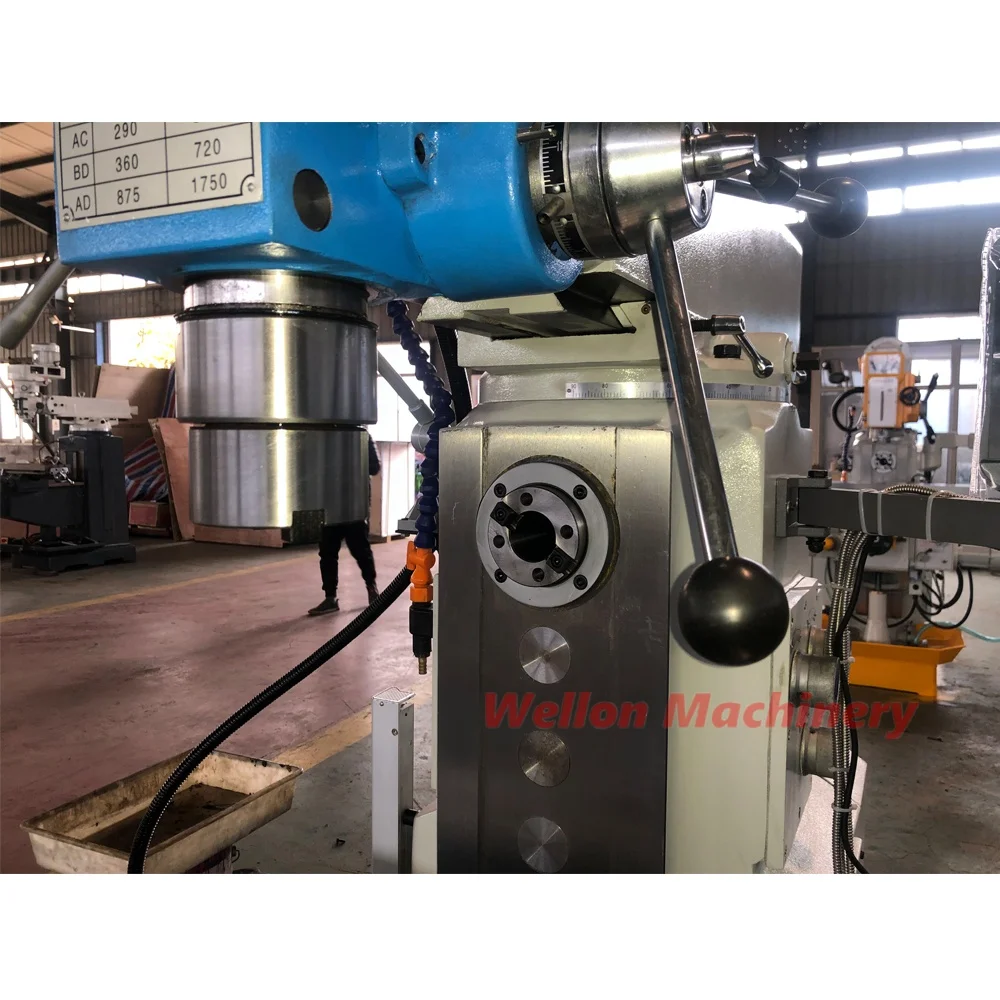

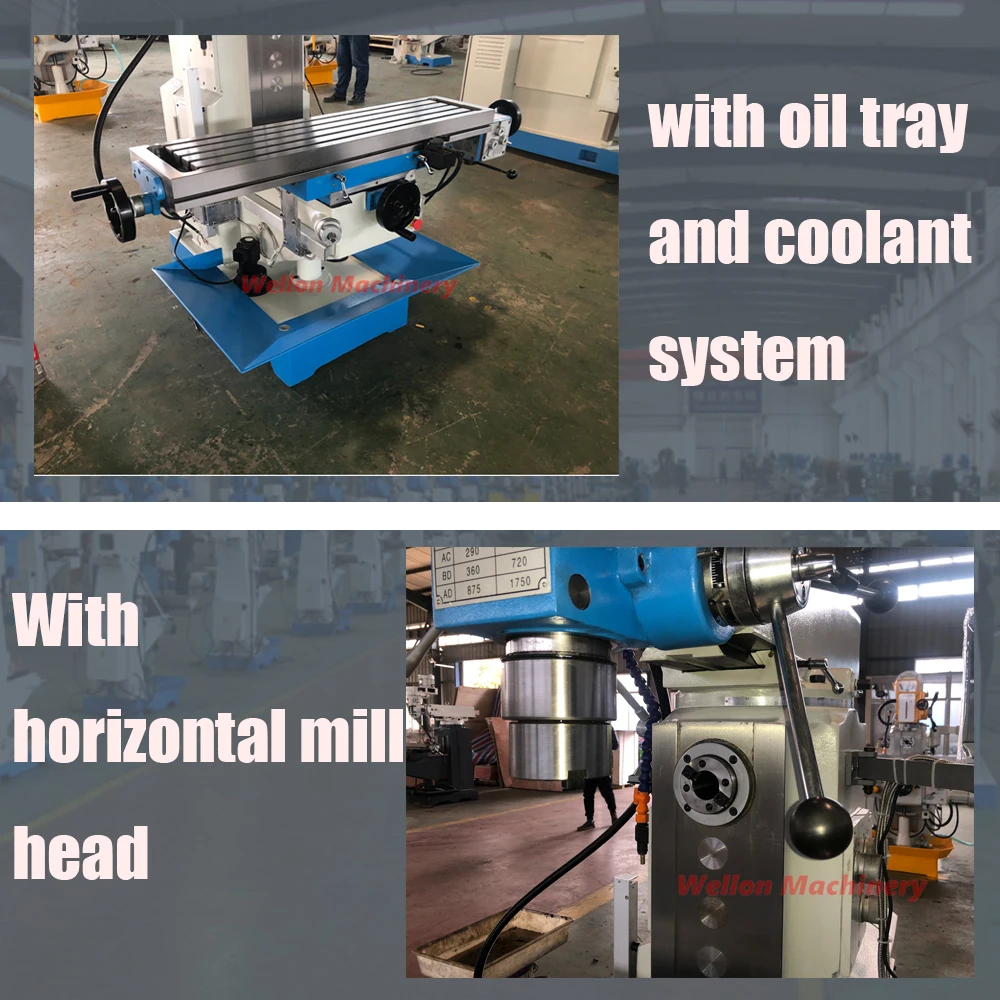

6.Both vertical and horizontal mill head
Technical Parameter :
Specifications | Unit | ZX6350C |
Table size | mm | 1200x280 mm |
T slot no. /width/distance | mm | 3/16/50 mm |
Max. load of Table | kg | 250 kg |
Table XYZ axis Travel | mm | 600x240x355 mm |
Spindle taper |
| ISO40 |
spindle speed /step -- Vertical |
| 115-1750/8steps |
--Horizontal |
| 40-1300/12steps |
Max.drilling dia. | mm | 30 |
Max.end milling width | mm | 100 |
Max. vertical milling Dia. | mm | 25 |
Max.Tapping Dia. | mm | M16 |
Quill travel | mm | 120 |
swivel angle of headstock |
| ±45º |
Vertical spindle axis to column surface | mm | 230-680 |
Vertical spindle nose to table surface | mm | 30-385 |
Horizontal spindle axis to table surface | mm | 0-355 |
Horizontal spindle axis to arm bottom | mm | 200 |
Ram travel | mm | 500 |
Longitudinal/cross feed | mm/min | 24-720/8steps |
Longitudinal/cross rapid speed | mm/min | 720(X) |
Main motor | kw | 0.85/1.5(V), 2.2(H) |
Feed motor | kw | 0.37(X) |
Coolant motor | kw | 0.04 |
Overall dimension (CM) | cm | 152X1285X215 |
N/W,G/W | kg | 1350/1500 |
