Жидкость/кремовый/Заполнение/кашеобразной массы/автоматическая машина для наполнения

Product Overview

Description

automatic filling machine is a small type automatic filling machine which uses Panasonic servo motor as dynamic. It could ensure exclusively high quality filling precision. Capacity could reach 30-70 bottles/min. It is suitable to fill cream, lotion, shampoo, body lotion, liquid detergent and other liquid products.

Compare with similar products on the market, this machine shows best efficiency and precision. Its operation is much easier and wider range of application. It has great flexibility on products switch and higher level of sanitary.















Filling
Material	Shampoo , cream , bath foam , water injection and ointment
Suitable Bottel Size	diameter:35-100mm high:80-230mm
Quantity	10ml/bottle - 1000ml/bottle
Speed	20-40 bottles/minute
Accuracy	>99%



Model	CXG1000-12CX	CXG1000-8CX	CYZ -02-100
Material	Shampoo , cream , bath foam , water injection and ointment
Servo motor	Available
Head	12	8	2
Quantity / Bottle	100ml-1000ml	80ml-1000ml	10ml-1000ml
Speed	80-120 bottle	50-80 bottle	20-40 bottle







Characteristic
Model	CYZ -02-100
Filling Head	2
Material	Stainless steel
Working air pressure	0.6~0.8 MPa
sensor	available
Servo motor	Japan Panasonic Electric
Touch screen	German SIEMENS
Power	220V 50Hz / 60Hz
Size	high:1.8m   long:0.8m   wide:1m
Weight	200kg

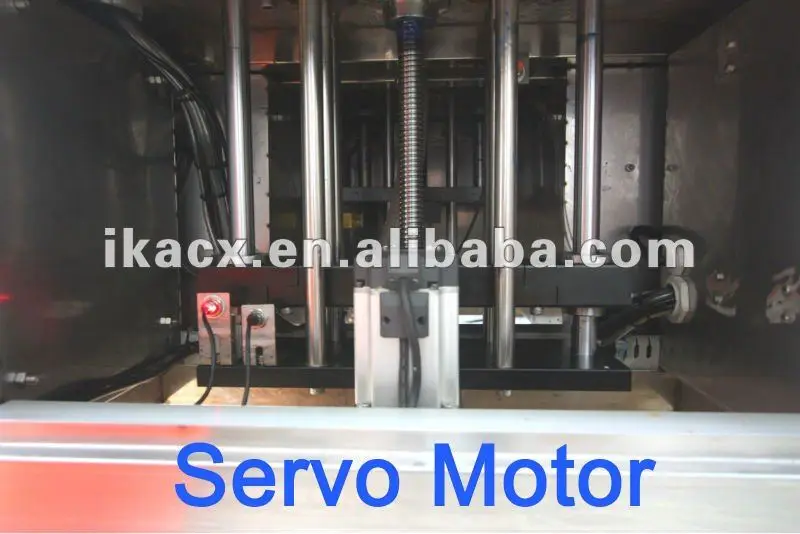

Controlled by servo motor , accurate and steady !









Two-nozzle design , widely used in Small and medium scale filling !

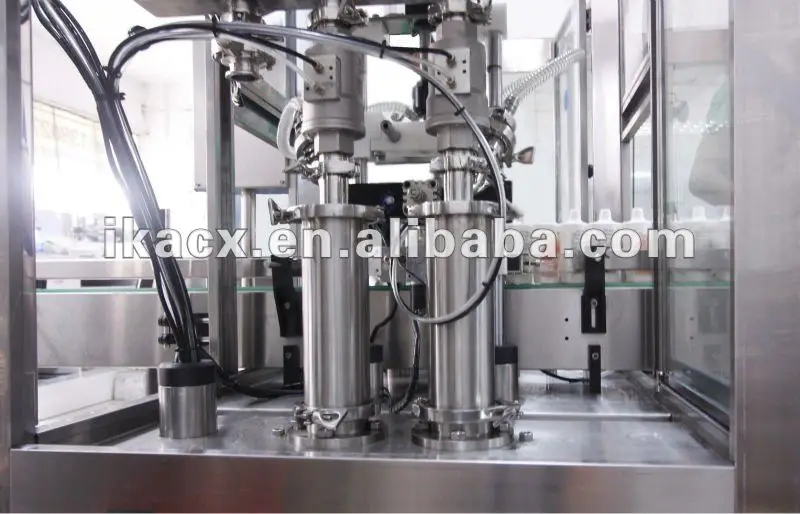

Piston cylinder is easy to install and can be dismantled to clean !





If there are any information you want to learn about, please feel free to contact me.

Thank you!
