Product Description
Features:
Solid State,MEMS Technology,High Reliability
Low Cost
Standard Gauge Pressure Range:0-5.8psi(0-40kPa)
Easy to Use
Applications:
Medical Devices and Monitoring
Digital Blood Pressure Meter
Blood Pressure Monitors
Environmental Measurement
Consumer and Sports Products
Technical Parameters:
Mix
Typical
Max
Unit
Note
Energizing Voltage
5.0
V
Energizing Circuit
1
mA
Output Span(FS Span)
40KPa
50
65
80
mV
Zero Point Output
15
40
65
mV
Full Scale Temperature Coefficient
-24
-19
-15.5
%FS/100℃
Constant Voltage Supply
Zero Point Temperature Coefficient
-7
+7
%FS/100℃
Resistance Temperature Coefficient
+18
+25
+32
%/100℃
Linearity
-0.45
-0.15
+0.45
%FS
Bridge Resistance
5
KΩ
Overload Pressure
2X
Rating FS
Breakdown Pressure
4X
Rating FS
Working Temperature
-20
+80
℃
Storage Temperature
-55
+150
℃
Dimensional Drawing:

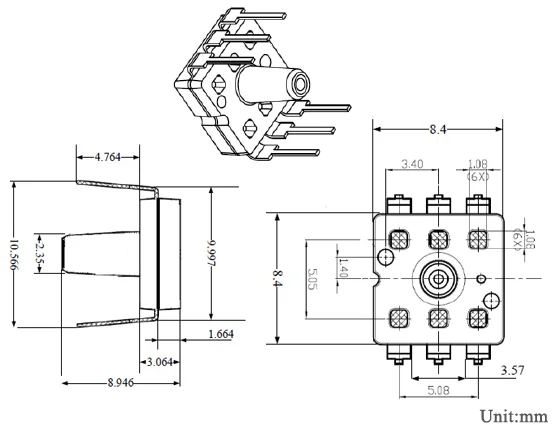

PSG010:

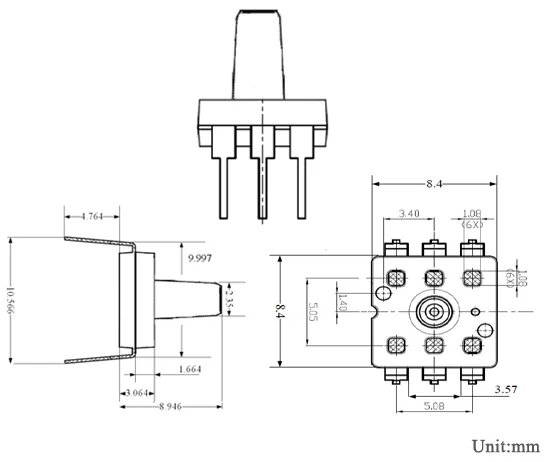

PSG010R:

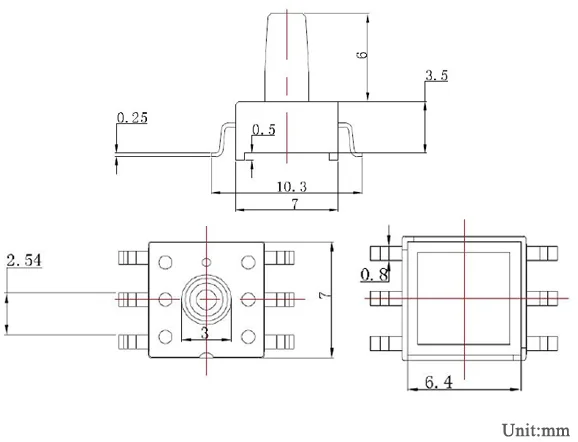

PSG010S:
Connection Diagram:
