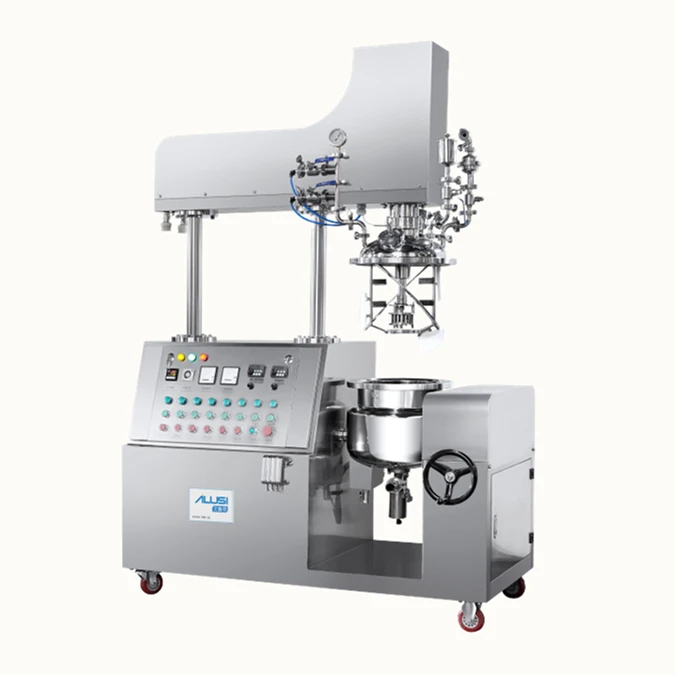

Product Line Cosmetic Fixed Type Vacuum Homogenizer Emulsifier with CE
Vacuum homogenizing emulsifier mixer means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic sheraing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be disperesed and emulsifed instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
The product mainly applied in such industries as daily chemical care products, biopharmacutical industry, food industry, paint and ink ,nanometer materials, petrochemical
Industry, printing and dyeing auxiliaries, pulp & paper, pesticide, ferilizer, plastic & rubber, electronic and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
The Vacuum homogenizing emulsifier mixer is mainly composed of water pot,oil pot,emulsifying pot, vacuum system, lifting system(optional), electronic control system (PLC is optional), operation, etc.
Item
MixerKW
homogenizer
Main pot heater
Water pot heater
Oil pot heater
Water pot mixer
Oil pot mixer
Vacuum pump
Hydraulic
50L
1.1
2.2kw
3kw
6kw
3kw
0.37kw
0.37kw
0.75kw
0.75kw
100L
2.2
4kw
6kw
6kw
6kw
0.55kw
0.55kw
1.5kw
0.75kw
200L
3
5.5kw
9kw
12kw
9kw
0.75kw
0.75kw
1.5kw
1.1kw
300L
4
5.5kw
9kw
12kw
12kw
1.1kw
1.1kw
2.2kw
1.5kw
500L
4
7.5kw
12kw
18kw
18kw
1.5kw
1.5kw
2.2kw
1.5kw
1Ton
5.5
11kw
18kw
18kw
18kw
2.2kw
2.2kw
4kw
2.2kw
2Ton
7.5
15kw
27kw
27kw
27kw
3kw
2.2kw
4kw
3Ton
11
18kw
36kw
36kw
36kw
4kw
3kw
5.5kw
Main Features
1) Vacuum homogenizing emulsifier mixer consist of main emulsifying mixer, water pot, oil pot, vacuum pump etc
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High quality SUS304&316L material, internal and external mirror polish.
4) High effection homogenizer, 2μm smooth finish
5) Apply to cosmetics, pharmaceutical, food etc industries.
Detailed Images

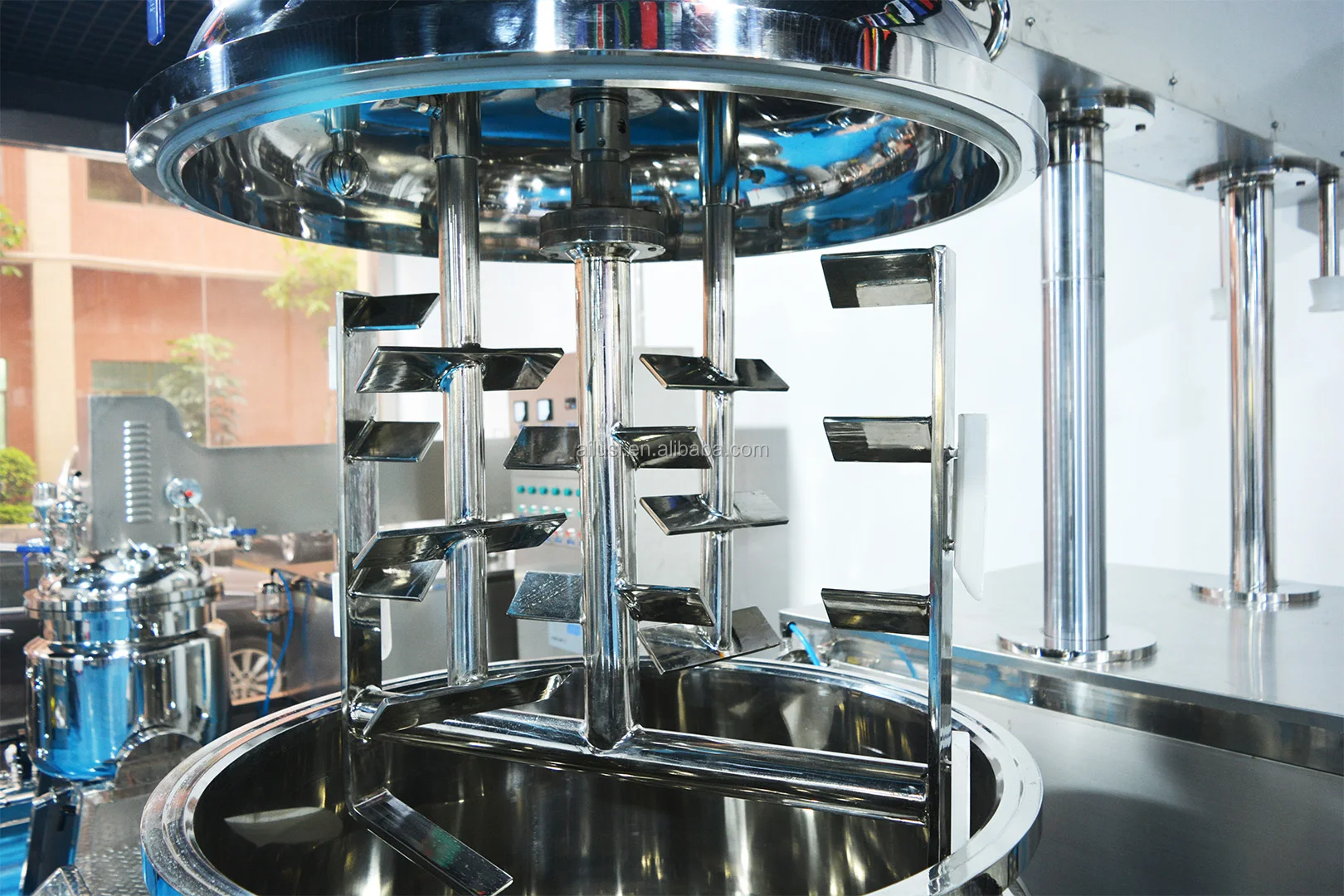

Blender
Type: frame oar scrape blender, single way or double way rotating
Material: SUS316L
Speed: 0-75rpm

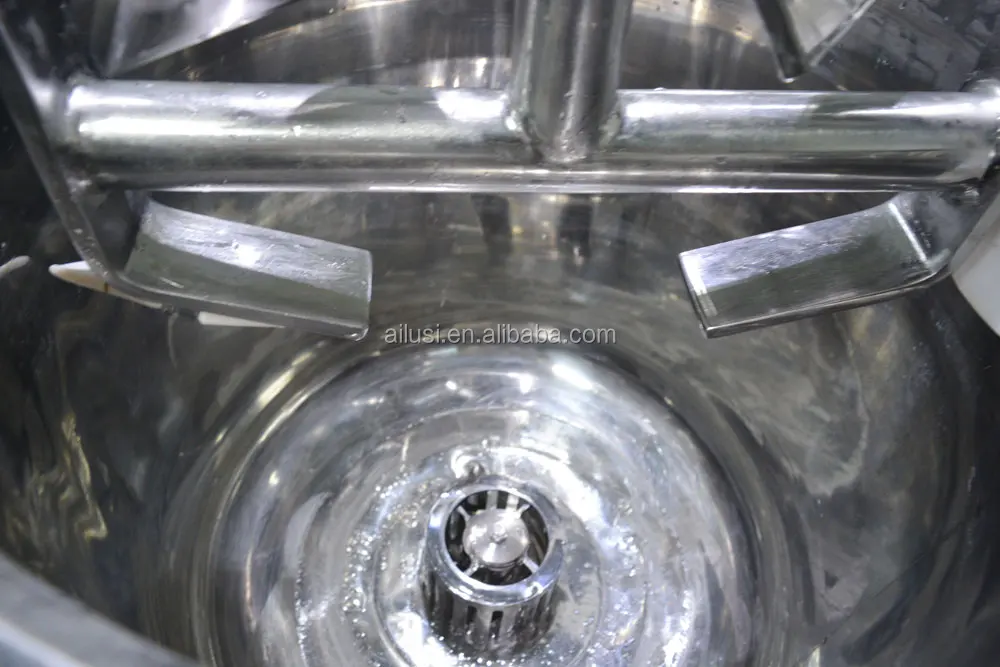

Homogenizer
Name: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer Material: SUS316L Speed: 0-3600rpm water circulation cooling, cooling and homogenizer synchronization

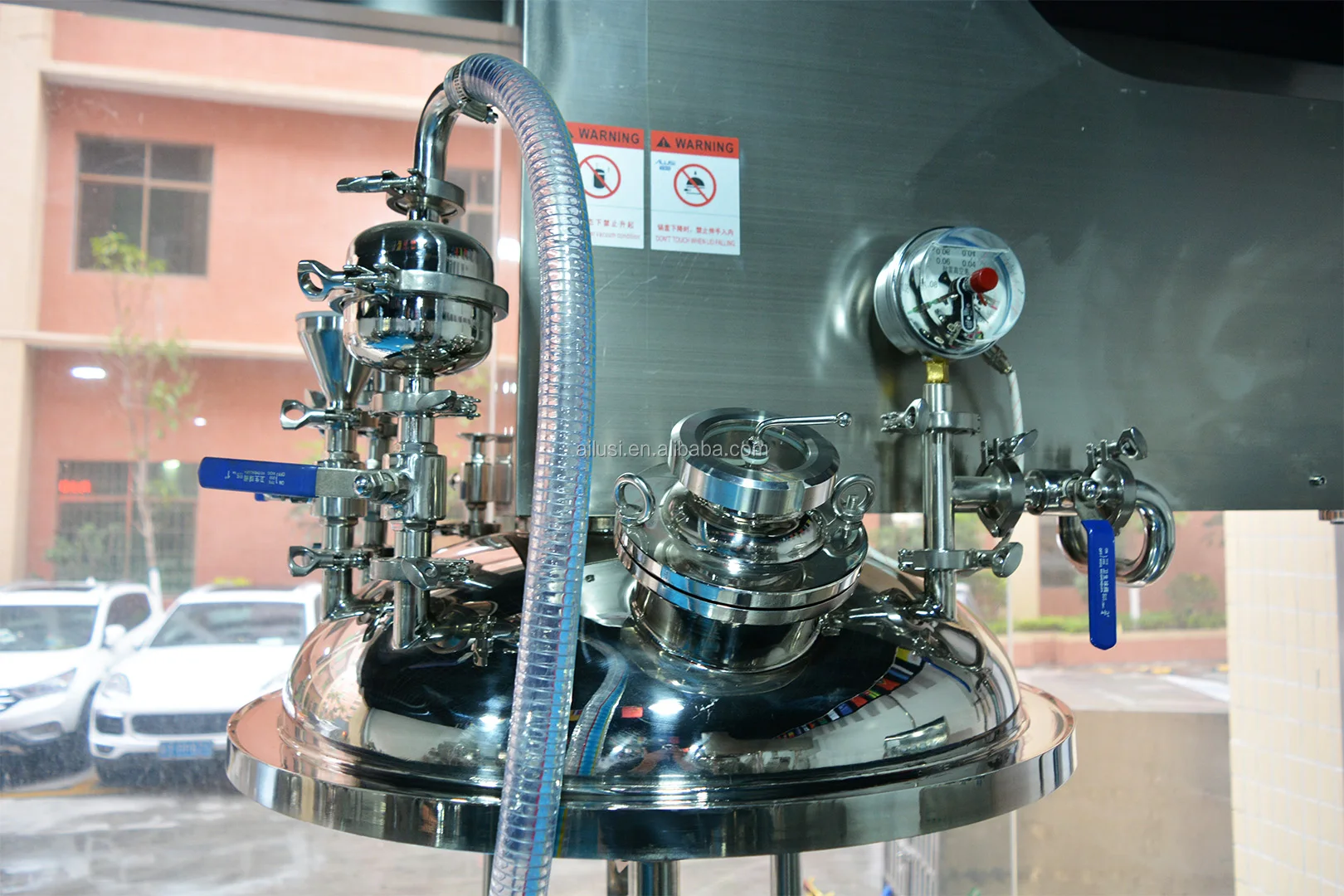

Pipeline
Name: pure water, tap water, cooling water, blow-off etc setup full connection for the machines.
Controller
Name: Electric control cabinet buttons control or PLC touch screen controller design.
