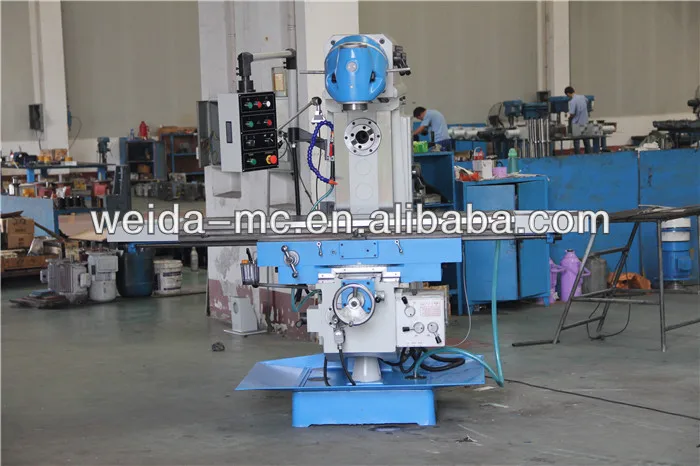

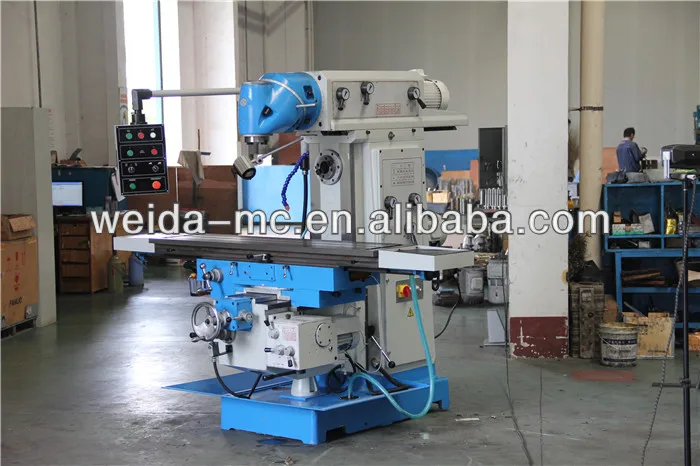

X6436A CE vertical and horizontal small universal milling machine

Product Overview

Description









specification	unit	X6436	X6436A
TABLE
Table size	mm	1320x360	1650X360
No. of T slot	no	3	3
T slot Size ( Width )	mm	14	14
Centre distance of T slot	mm	95	95
Max. load of Table	kg	300	400
swivel angle of table	degree	±35º	±35º
machining range
table Longitudinal travel(manual/auto)	mm	1000	1300
table Cross travel (manual/auto)	mm	300	300
table Vertical travel(manual/auto)	mm	400	400
MAIN SPINDLE :
Spindle taper		ISO50	ISO50
spindle speed /step -- Vertical	rpm	58-1800/	58-1800
--Horizontal	rpm	60-1750/	60-1750

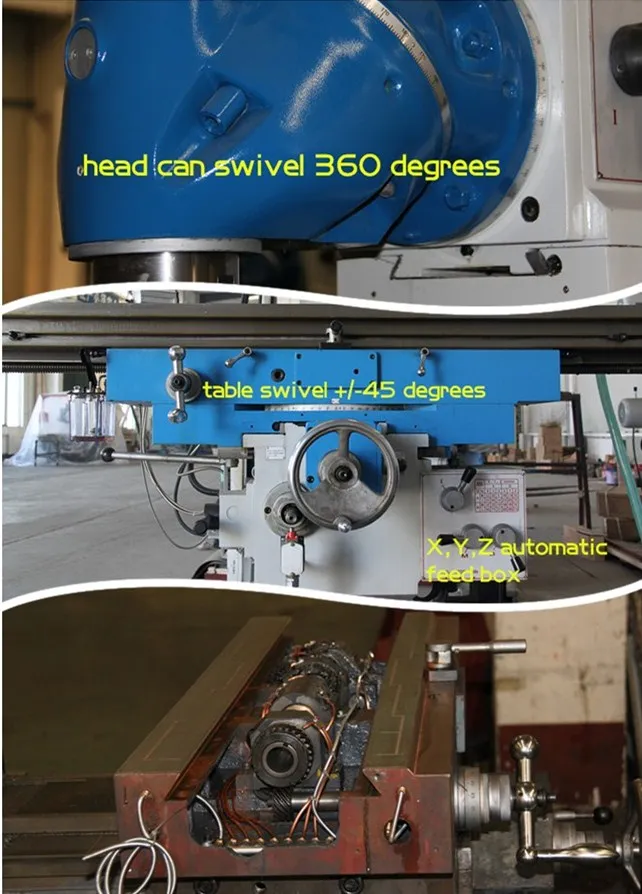

swivel angle of swivel head	degree	360º	360º
Distance from vertical spindle axis to column surface	mm	220-720	220-720
Distance from vertical spindle nose to table surface	mm	170-570	170-570
Distance from horizontal spindle axis to table surface	mm	0-400	0-400
Distance from horizontal spindle axis to ram bottom	mm	175	175
ram travel	mm	500	500
FEEDS :
Longitudinal/cross feed	mm / min	22-420(X), 22-393(Y)	22-420(X), 22-393(Y)
Vertical feed /step	mm/min	10-168(Z)	10-168(Z)
Longitudinal/cross rapid speed	mm / min	1290(X),1205(Y)	1290(X),1205(Y)
Rapid Traverse vertical	mm/min	513(Z)	513(Z)
POWER :
main motor	kw	4	4
X/Y/Z) feed motor	kw	1.1	1.1
coolant motor	kw	90W	90W
overall dimension	cm	207x202.5x202	255X202.X202
Machine weight	kg	2480	2580















Machine model: X6436A  CE  vertical and horizontal small universal milling machine

Type of package: Plywood case

Packing dimension: 207X193X225  (one set in one case)

N.W./G.W.: 2250/2450KGS

Suitable Container and quantity:

20' Standard Container: 3sets

40' Standard Container:6 sets

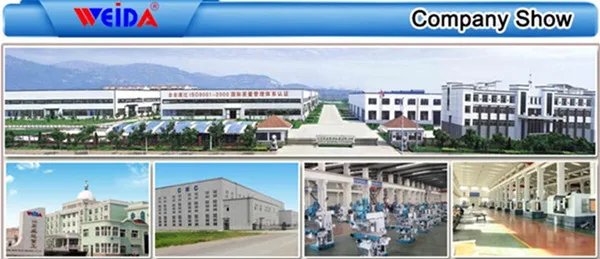

We are the biggest manufacturer in our city. Our products includes milling machine, drilling machines, cnc machines,vertical knee type milling machine,bed type milling machine ,vertical and horizontal milling machine, universal knee type milling machine,radial drilling machine, fixed beam gantry type milling machine, movable beam gantry type millilng machine,vertical lathe ,boring machine ,horizontal boring machine ,Gantry type milling and planing machine,universal swivel head milling machine,universal radial milling machine ,milling and drilling machine,turret milling mchine ,lathe machine  etc.



Our market covers more than 70  ountries and regions, especially Europe & America market.



We attend many home and abroad exhibitions every year. In China, we attend Beijing or  Shanghai

exhibition, Canton fair. In abroad, we attend EMO, Russia exhibition, Brazil exhibition etc.



We have got many certifications, such as CE,ISO etc.
