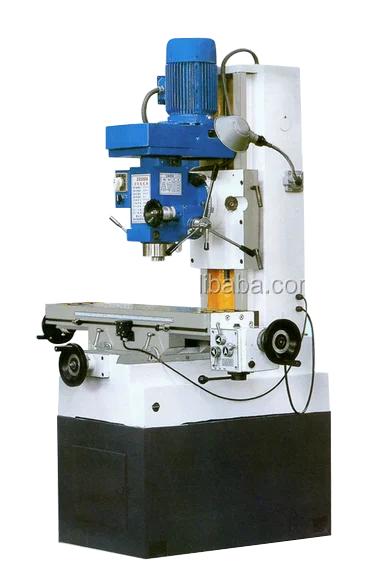

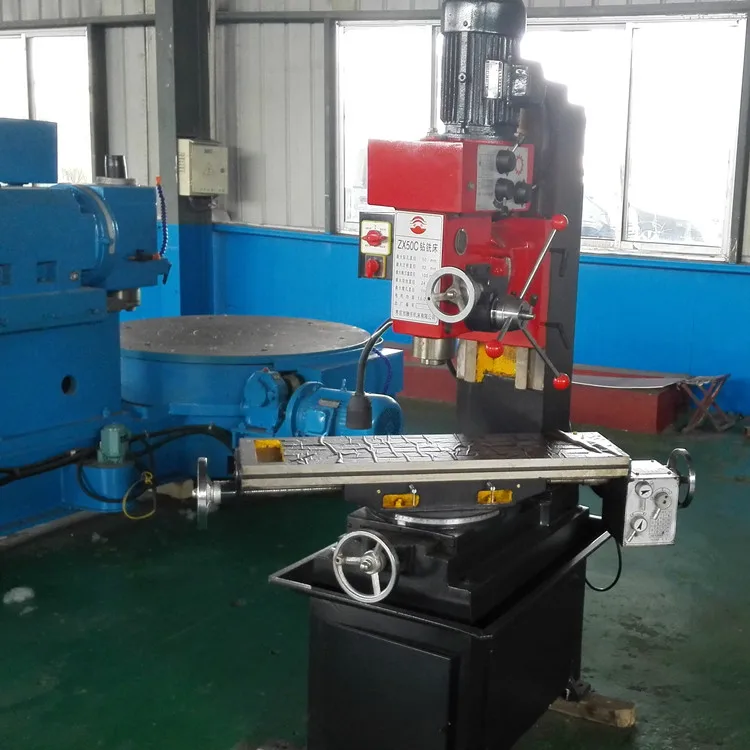

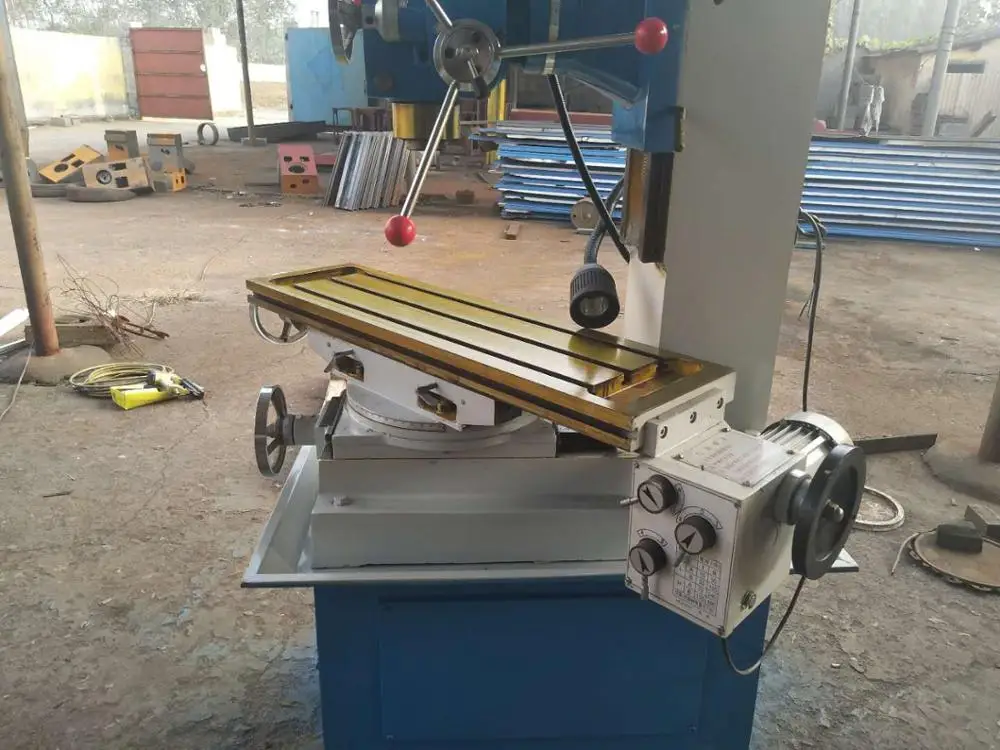

Provide high quality Chinese made drilling and milling machine ZX50

Product Overview

Description









Main Feature



Drilling milling machine

Vertical milling spindle  manual  feed

Vertical milling head rotate 45 °for right side and left side



Technical Information

		ZX50CF
Spindle taper		ISO30
Drilling capacity		50mm
Vertical milling capacity		32mm
Face milling capacity		120mm
Boring capacity		120mm
Max.taping dia.		M16
Spindle travel		120mm

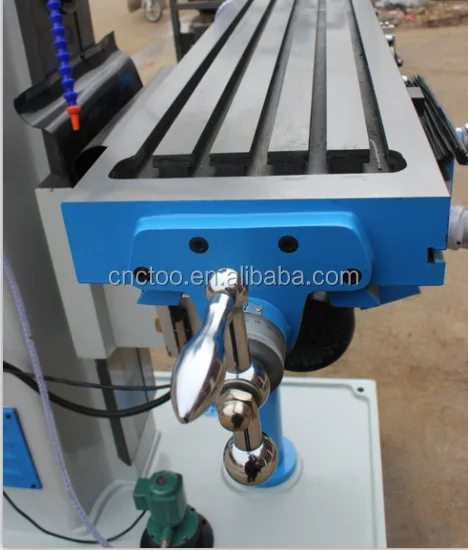

Table size		(1000)800x240
Table travel(horizontal/cross/vertical)		(600)400x230x380mm
Head movement(left/right)		45degrees
Spindle nose to worktable		30-420mm
Spindle center to column		320mm
Spindle speeds		(8)115-1750r/min
Max weight of workpiece		230kg
T-slot number /width/distance		3/14mm/60mm
Horse power for main motor		0.85/1.5KW
Overall dimension		1100x1100x1950mm
N.W./G.W.		550/600kg

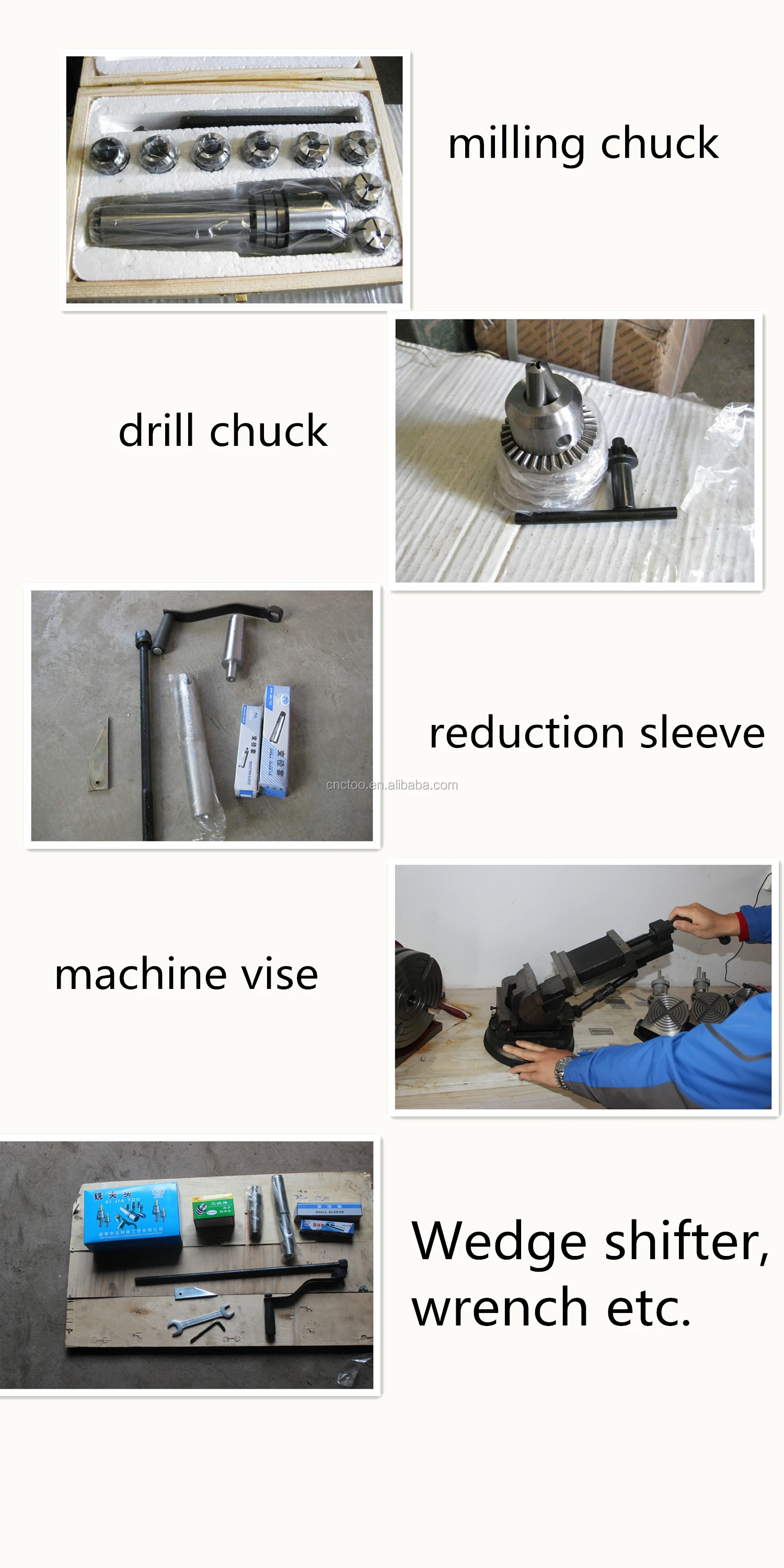

Item	Name		Q’TY
1	Drilling and milling machine		1
2	Drill chuck		1
3	Milling chuck		1(8 pcs)
4	Reduction sleeve		2
5	Machine vise*		1
6	Wrench		1
7	Inner hexagonal spanner		1
8	Cam lock		1
9	Wedge shifter		1
10	Spindle arbor		1
11	Boring bolt		1
12	Operation manual		1





 company information







Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool equipment consisting mainly of modern production group production enterprises. Company under the three production bases, an import and export foreign trade companies









Q1.What machines can be available in your factory?
A:We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after receiving the deposit.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.How' s your after-sale service?
A:Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q6.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q7.Are you manufacturer?
A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
