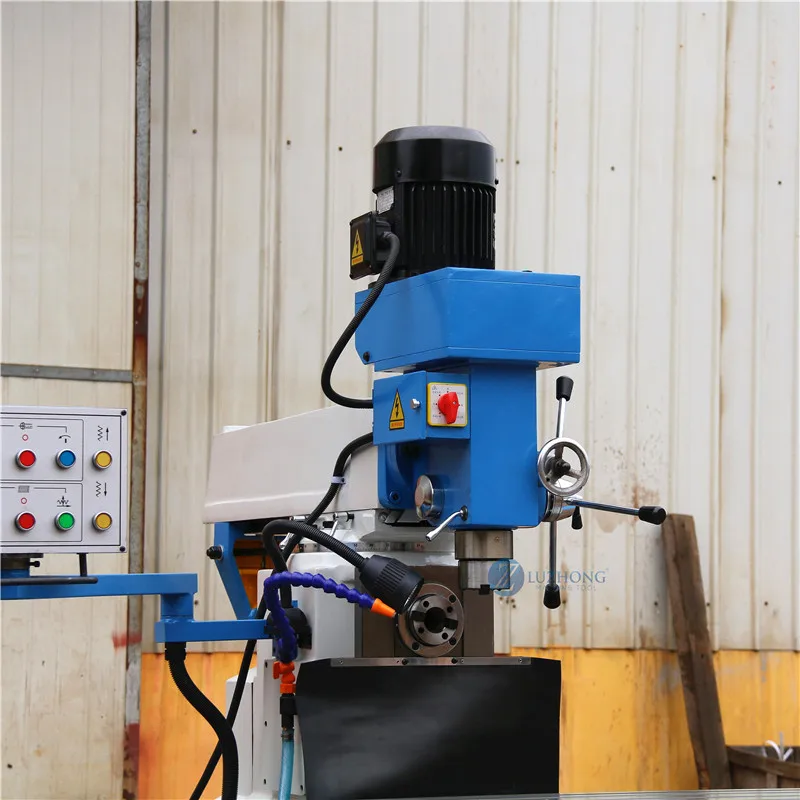

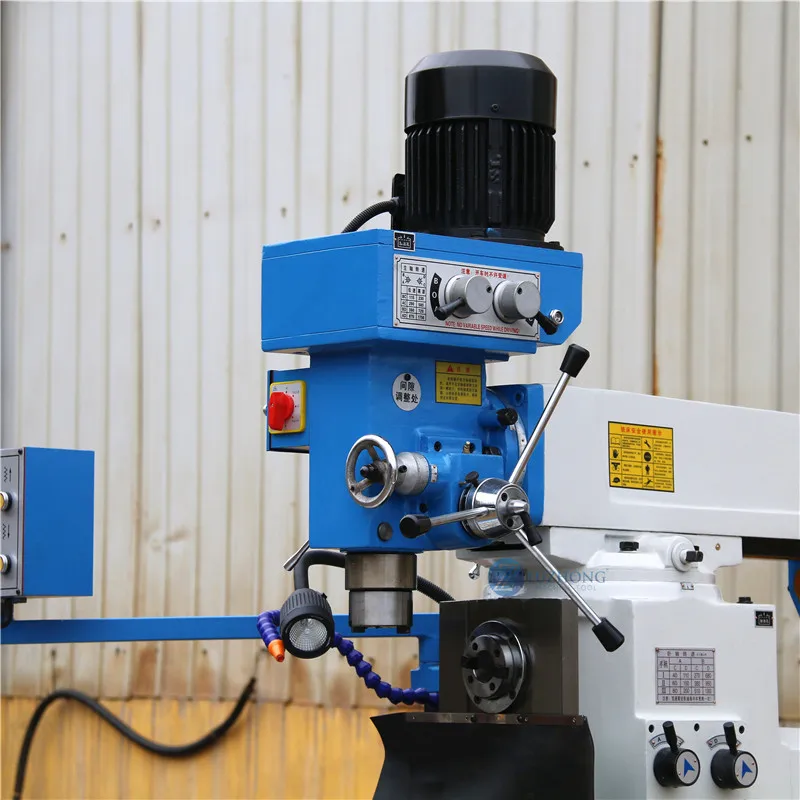

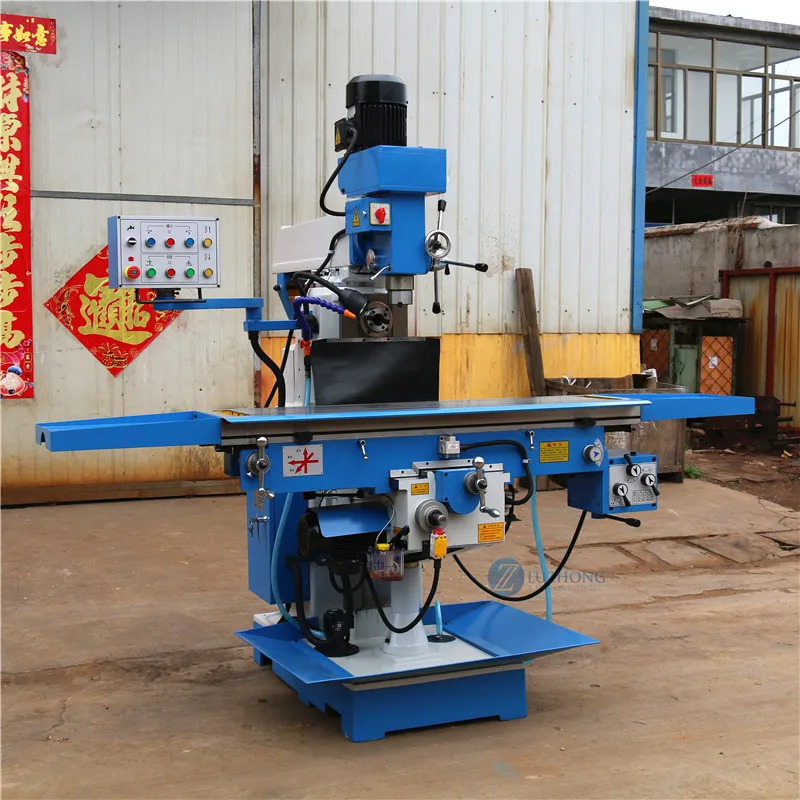

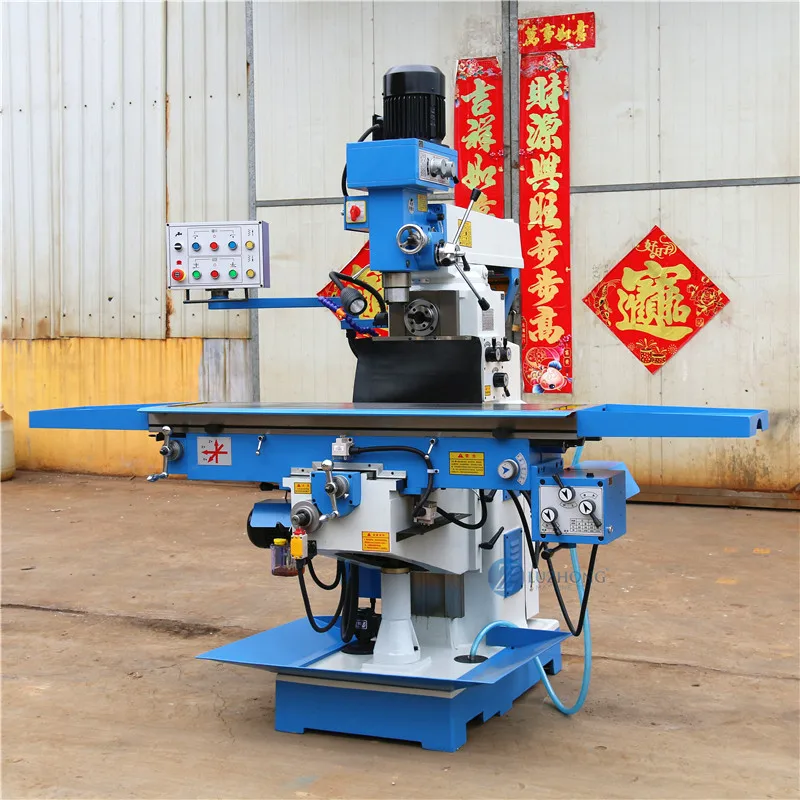

Manual Automatic milling and drilling machine ZX6332 Drilling milling machines
- Category: Manual Mills >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (60678437067):
Product Overview
Description
Product Description
Specification
Specification | ZX6332B | ZX6332Z | ZX6332A |
Max. drilling diameter | 28mm (manual,cast iron) | 50mm | 50mm |
Max.Auto feed drill diameter | 10mm (cast iron) | 14mm (cast iron) | |
Max diameter of vertical mill | 20mm | 50mm | |
Distance from spindle end to table surface | 90-430mm | 180-580mm | 85-460mm |
Distance from spindle axis to column surface | 50-550mm | 200-780mm | 200-500mm |
Spindle speed range | 80-5440rpm(vertical) 38-1310rpm(horizontal) | 90-2000(vertical) 38-1310rpm(horizontal) | 115-1750rpm(vertical) 40-1300rpm(horizontal) |
Spindle travel | 127mm | 120mm | 120mm |
Table size | 1500x320mm | 1500x320mm | 1500x320mm |
Table travel | 1000x320mm | 1000x300mm | 1000x300mm |
Motor power | 3kw(vertical) 2.2kw(horizontal) | 2.2kw | 2.2kw |
oversall size | 1710x1720x2330mm | 1710x1720x2330mm | 1710x1720x2330mm |
Net weight | 1650/1760kgs | 1650/1760kgs | 1650/1760kgs |

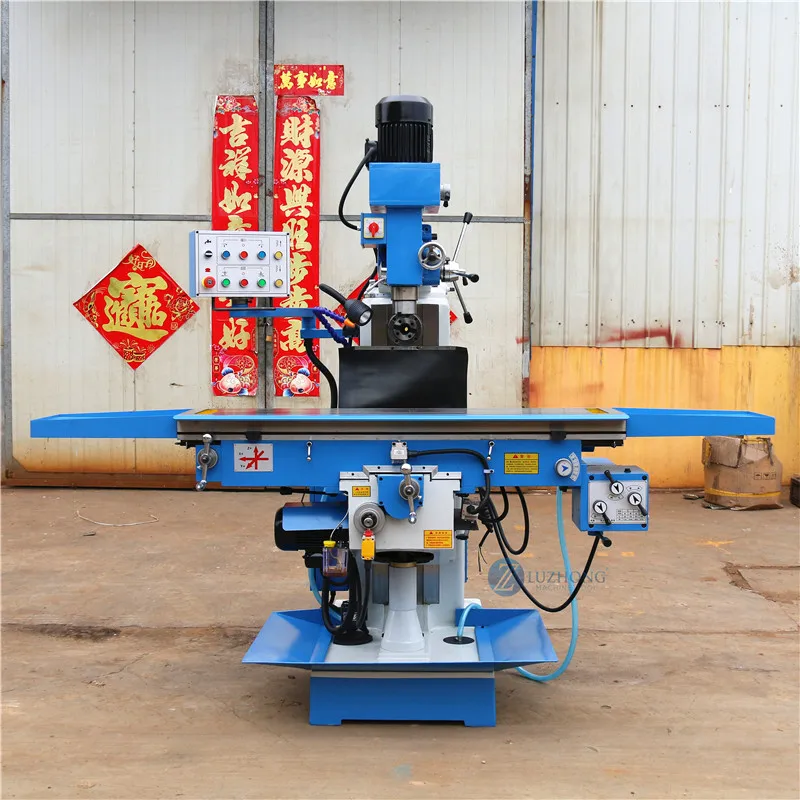

Details Display
Recommend Products
Company Profie
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
