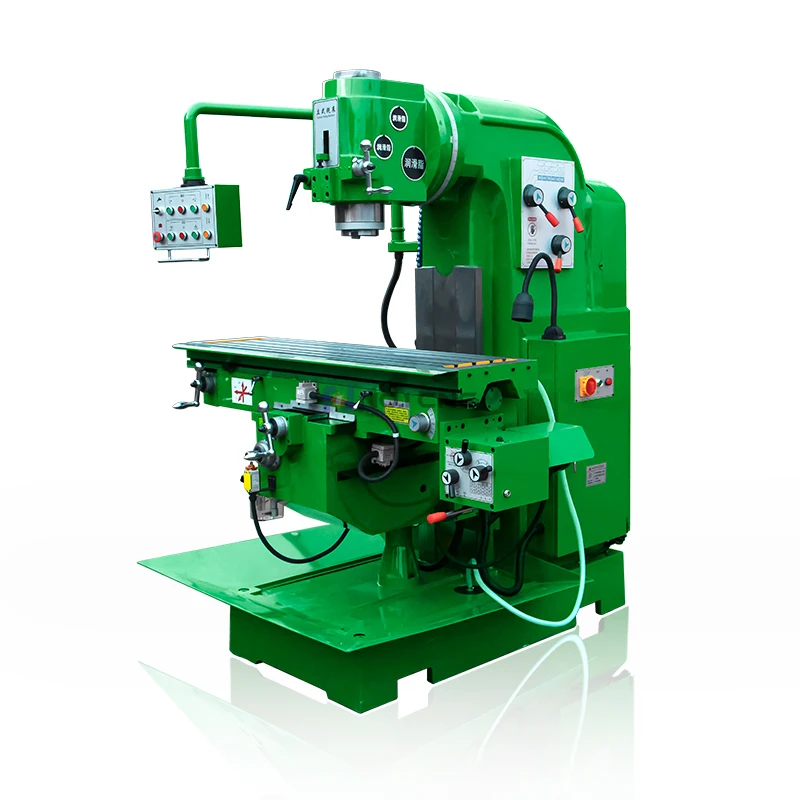

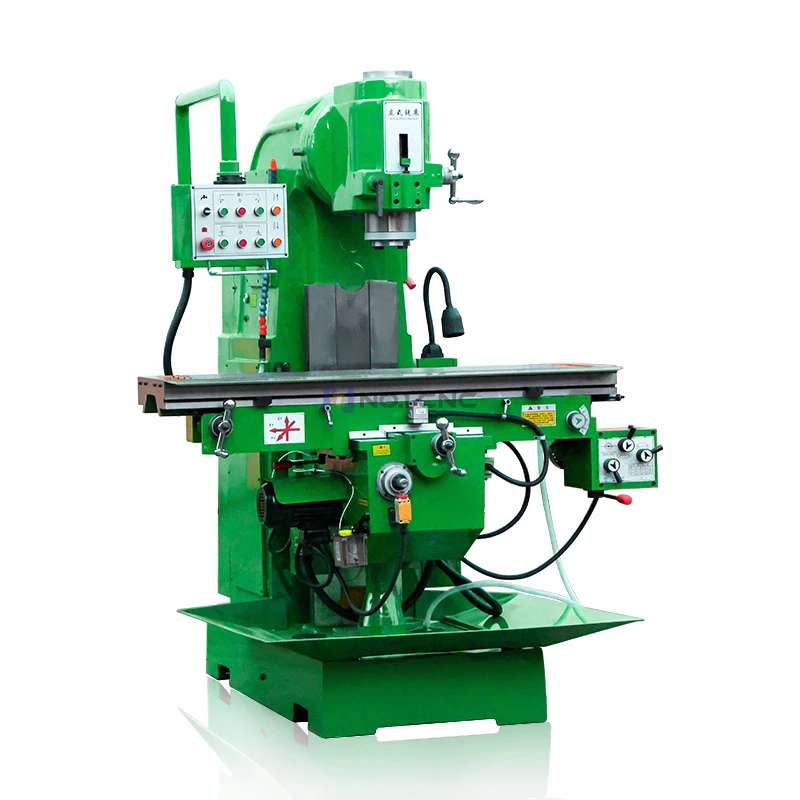

Mini Low Cost Swivel Head Vertical Milling Machine XQ5032
- Category: Manual Mills >>>
- Supplier: Zaozhuang No.1 CNC Machine Tool Co. Ltd.
Share on (60684183125):
Product Overview
Description
Product Description
The main performance characteristics:
1. Using the moment type rail steel for good stability
2. X, Z, Y direction fast feed
3. Lengthen the slider, the distance is lengthened, and the stability is increased.
4. Concentrated lubrication of the guide surface
X5032 milling machine can be used for drilling, milling plane, hinge hole, and the repair of a variety of forms of processing, X5032 milling machine is widely used in small and medium enterprises, township and individual industrial machinery processing, and various types of machinery manufacturing processing of small parts, also applies to repair shop.
Specifications for XQ5032 Vertical Milling Machine | ||||
Specification | Units | XQ5032 | ||
Distance between spindle nose and table | mm | 60~420 | ||
Distance between spindle and column | 350 | |||
Spindle taper | 7:24 ISO50 | |||
Spindle bore | mm | 29 | ||
Spindle speed | r/min | (12Steps)40~1300 | ||
Swivel angle of vertical milling head | ±30 | |||
Spindle travel | mm | 70 | ||
Table size | mm | 320×1325 | ||
Table travel(x.Y.Z) | mm | 700/680 255/24 370/350 | ||
Table feed (x.Y.Z) | 23.5~1180/23.5~1180/8~394 | |||
Rapid speed of table (X.Y.Z) | mm | 2300/1540/770 | ||
T-slots(NO:/width/pitch) | 3/18/70 | |||
Maim motor power | kw | 4 | ||
Rapid motor power | kw | 1.5 | ||
Overall size | mm | 1600 x 1700 x 1800 | ||
Net weight(N.W/G.W) | kg | 2000/2100 | ||
Packing & Delivery
Packaging | ||
Size | 1600(L) * 1700(W) * 1800(D) | |
Weight | 2000/2100KGS | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Zaozhuang one-machine CNC machine tool Co.,LTD
Zaozhuang one-machine CNC machine tool Co.,LTD is located in the beautiful Tengzhou city, Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for many years.
Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales service for all customers in the world. Our product range is CNC machines, Lathes, Milling machines, Drilling machines, Grinding machines, Saws, Shapers, Presses, Sheet metal machines, Metal forming machines, Garage equipment and other machine accessories.
Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected
We wish to cooperate sincerely with friends all over the world to realize mutual development.
Certifications
