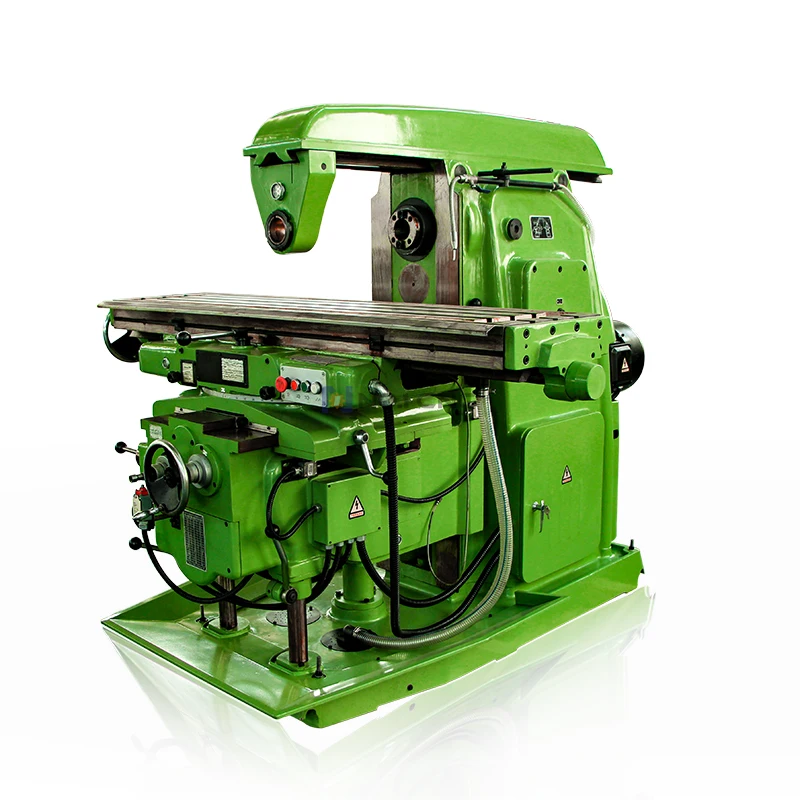

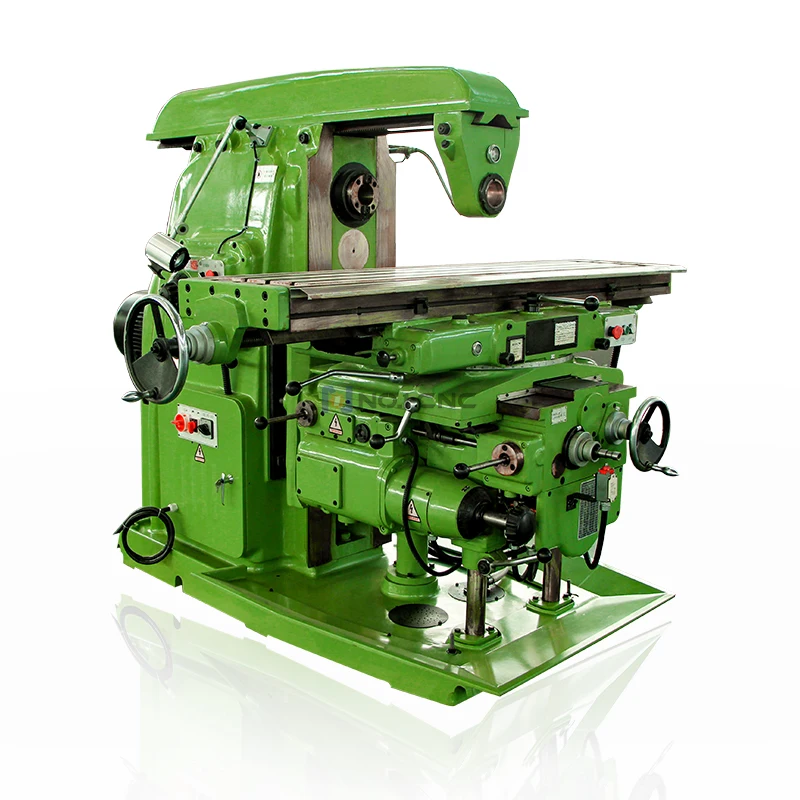

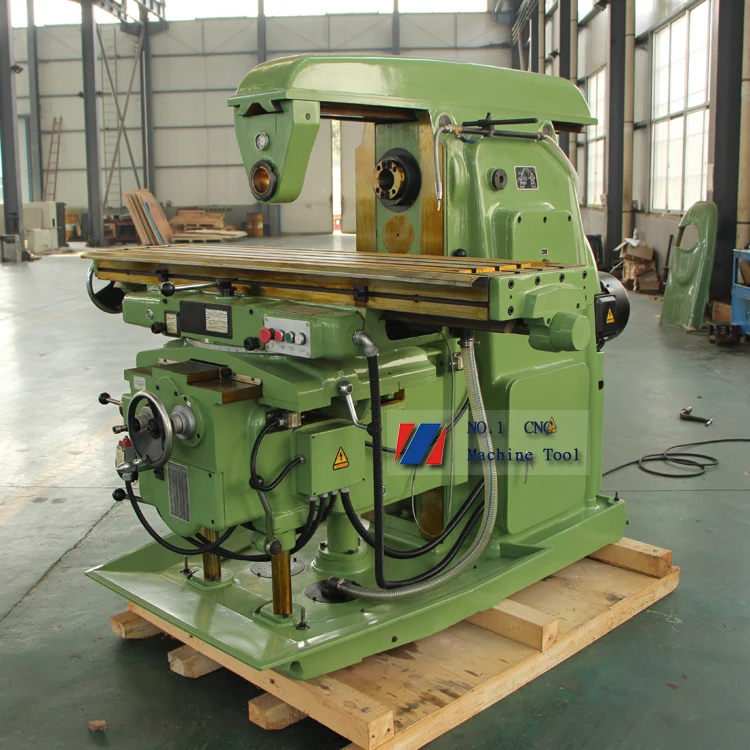

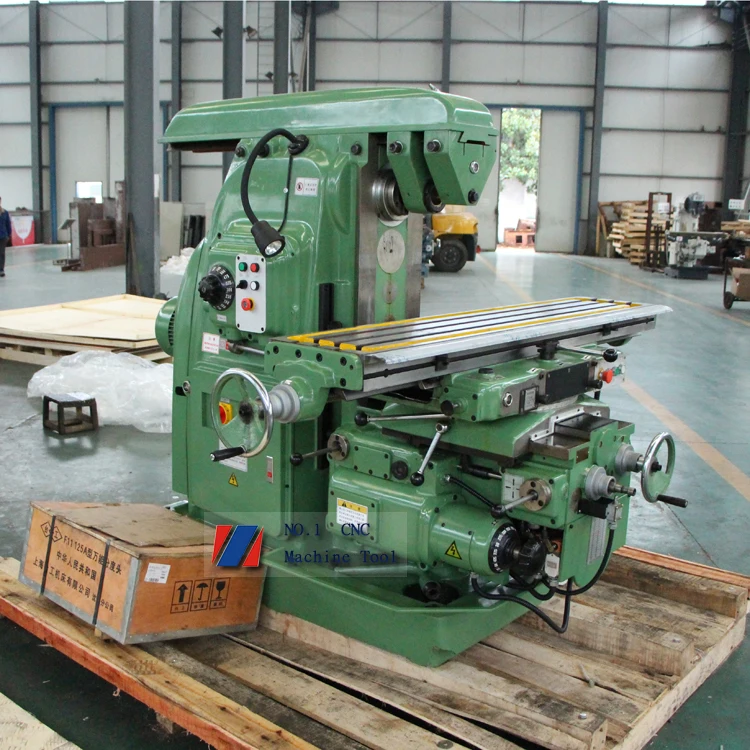

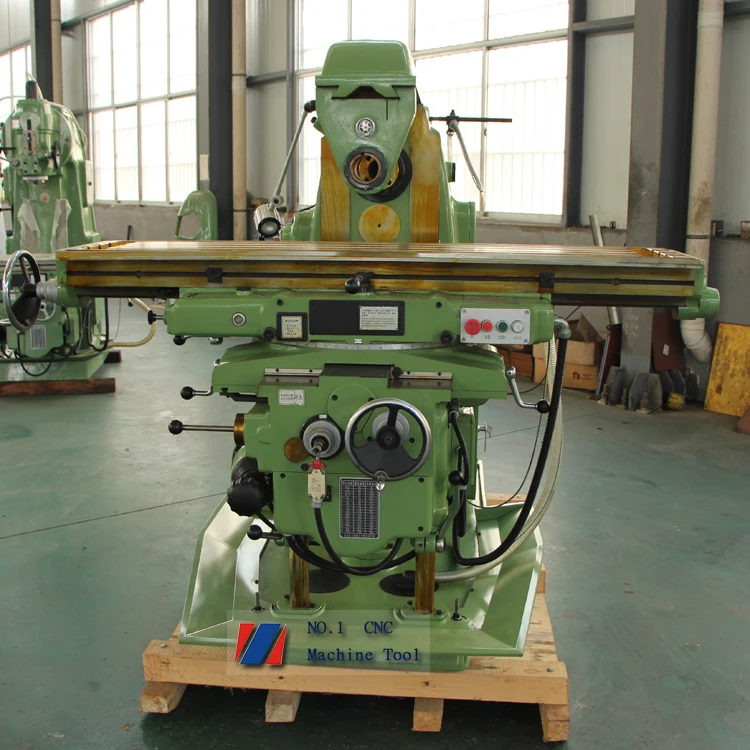

X6140 Manual Milling With DRO Horizontal Milling Machine
- Category: Manual Mills >>>
- Supplier: Zaozhuang No.1 CNC Machine Tool Co. Ltd.
Share on (60685084705):
Product Overview
Description
Product Description
The main performance characteristics:
1, X6140 universal lift milling machine
2, High quality that combines the advantages of both domestic and foreign milling machines
3, Self-developed value milling machine
4, Reasonable structure, easy handle
5, Energy saving, high efficiency and excellent stability
Specifications for X6140 Lifting Milling Machine | ||||
Specification | Units | X6140 | ||
Table size | mm | 1700x400 | ||
Table travel (manual/power) | mm | X: 900/880 | ||
mm | Y: 315/300 | |||
mm | Z: 380/360 | |||
Spindle feed range | mm/min | X: 19-950 | ||
Z: 6.3-317 | ||||
Spindle speed range | mm/min | (18 step) 30-1500 | ||
Y: 2300 | ||||
Z: 770 | ||||
T-slot (No/width/distance) | mm | 3/18/90 | ||
Spindle taper | ISO50 7:24 | |||
Distance from spindle center to table | mm | 30-410 | ||
swivel angle of table | +-45° | |||
Main motor power | kw | 11 | ||
Feed motor power | kw | 3 | ||
Overall size | mm | 2556x2159x1770 | ||
Net weight | kg | 3800 | ||
