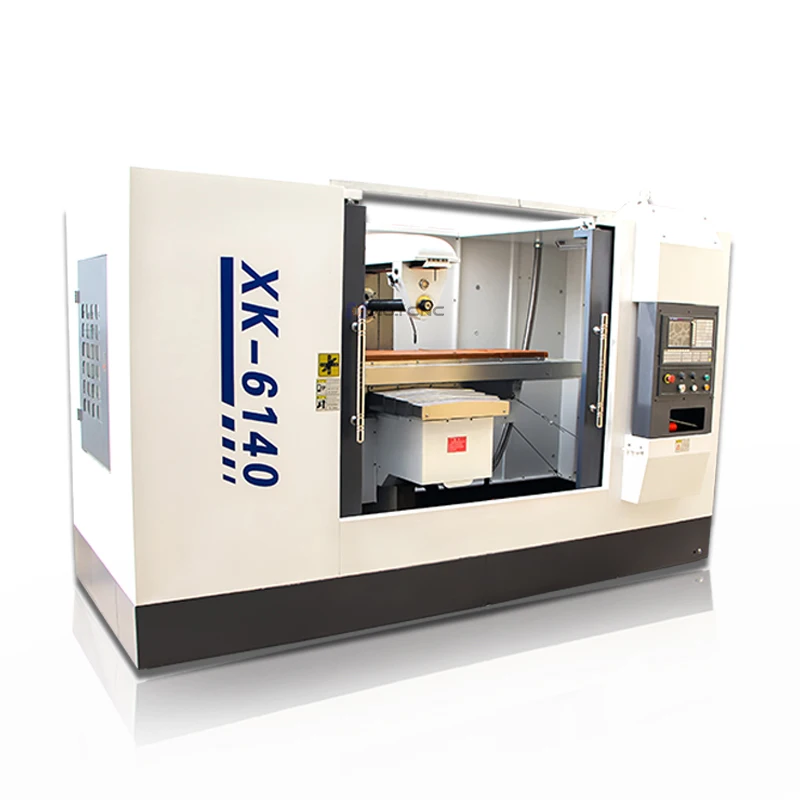

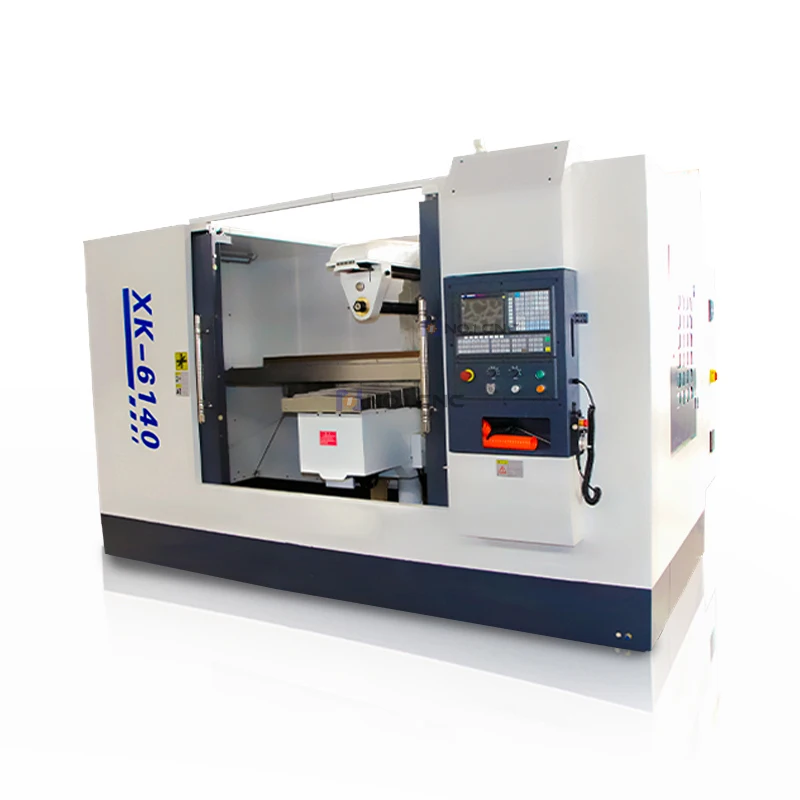

XK6140 Low Cost Automatic High Speed 3 Axis CNC Milling Machine
XK6140 Low Cost Automatic High Speed 3 Axis CNC Milling Machine
XK6140 Low Cost Automatic High Speed 3 Axis CNC Milling Machine
XK6140 Low Cost Automatic High Speed 3 Axis CNC Milling Machine

XK6140 Low Cost Automatic High Speed 3 Axis CNC Milling Machine

Share on (60716730488):


Price:$25,500.00 - $27,000.00

Quantity:


Product Overview

Description



Products Description




Specifications


Specifications
Units
XK6140
Table size
mm
1700x400
Table travel (X.Y.Z)
mm
920x380x350
T-slot
mm
3-18-90
Max. load working table
kg
500
Distance from spindle axis to table
mm
30-410
Distance from column to the center of table
mm
275-625
Rapid feed speed(X.Y.Z)
mm/min
6000/3000/6000
Feed speed (X.Y.Z)
mm/min
6-3200 (X,Y)
3-1600(Z)
Spindle taper
ISO50(7:24)
Spindle speed range
rpm
30-1500(18 steps)
Spindle motor power
KW
11
X,Y Axis feed motor torque(X.Y)
N. m
12
Z axis feed motor torque (Z)
N. m
22
Max. spindle torque
N. m
1000
Overall dimensions(Lx W x H)
mm
2400x2200x2400
Machine weight
Kg
4250

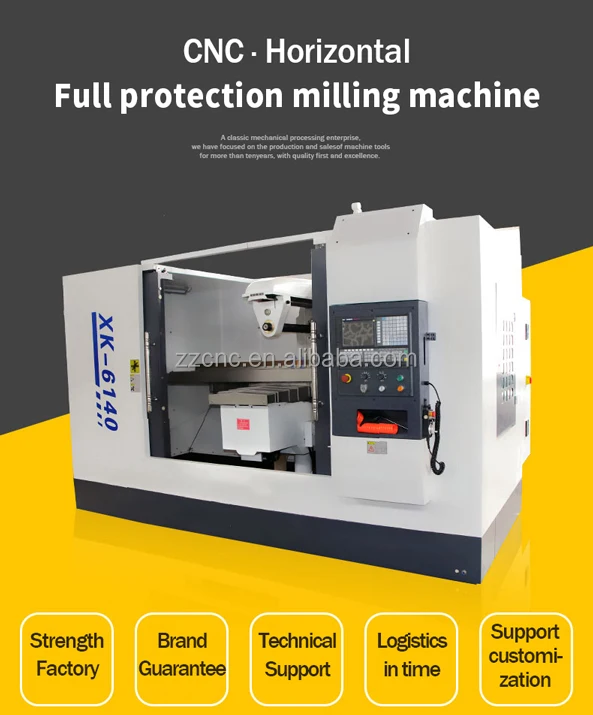

Details Images
