 High temperature melt pressure transducer low cost pressure sensor







Profiles:

DPT124 Series melt pressure Transducer’s instruments for high-temperature fusion pressure Transducer is applicable for

measuring and controlling pressure of high-temperature articles in the fields of chemical fibers, plastics and rubber or high-

temperature resistant fluid. By assimilating advanced technologies of similar international products and using imported raw

materials and key elements, the instrument is characteristic of stable operation, reliable performance, high accuracy, strong

output signal, excellent dynamic performance and slight high-temperature resistant zero drift. If HPT124 series Transducers

are jointly used with PY series instruments manufactured by us, then all requirements of customers can be fully satisfied.

It can be also be used with import instruments without any adjustment or modification. Connecting screws and outgoing

connectors are all universal. Transducer’s instrument can also be replaced with import ones.





Characters:

  • Accuracy: ≤±0.5%F.S.
  • High stability and reliability
  • Good linear and temperature compensation
  • High precision strain gage
  • mature stamp mounting technology
  • Isolated and Silicon Oil filled Diaphragm
  • High temperature environment application
  • Applicable for various gas and liquids
  • CE approved

Applications:

  • Plastic extrusion machine
  • Rubber industry
  • Chemical fiber industry
  • Laboratory equipment
  • High pressure liquid measurement
  • High temperature steam system
  • Petro-chemical and other special occasions.
  • And so on

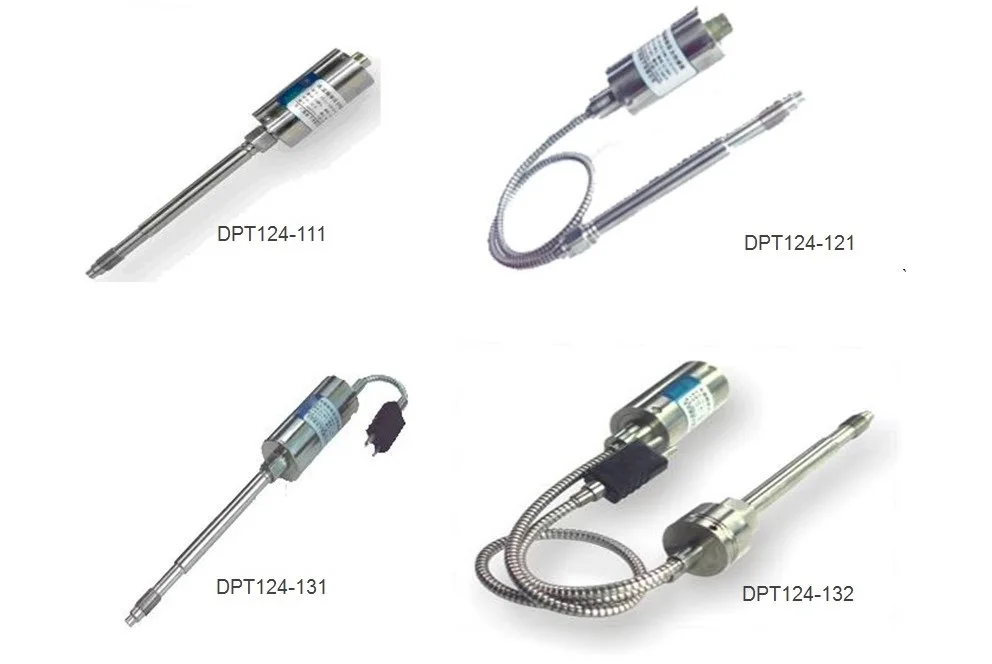

   Products Show:

DPT124 (2).jpg


Specification

Model:

Parameter:

DPT124 Series Melt Pressure Transducers

Model No.:

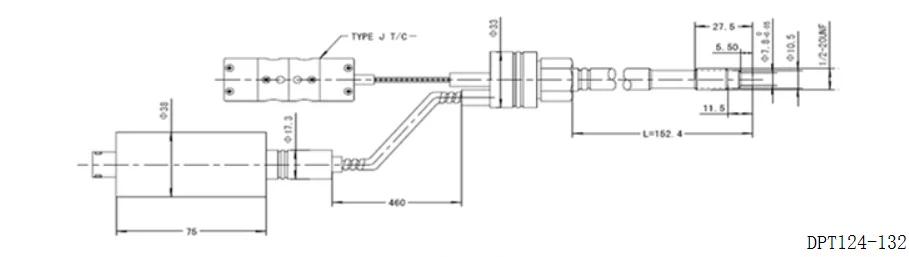

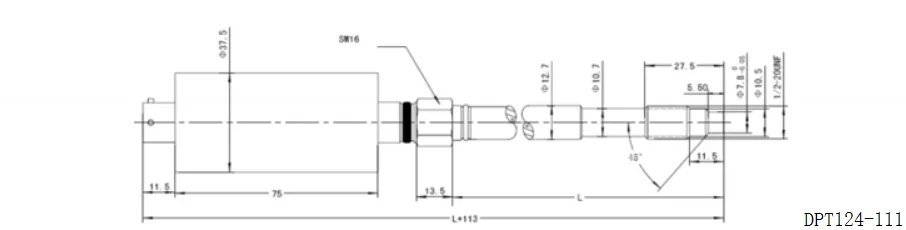

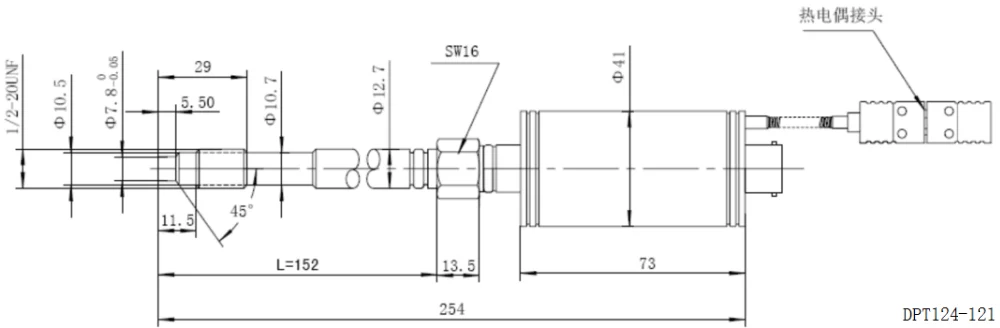

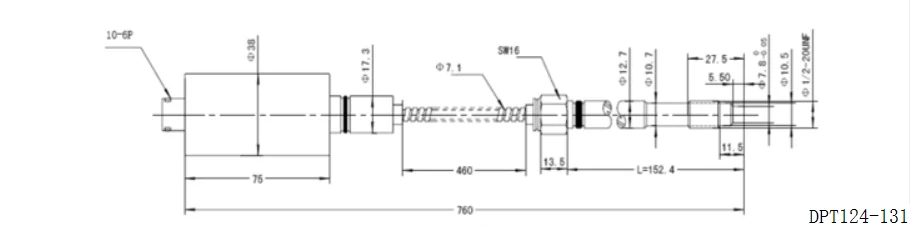

DPT124-111; HPT124-121; HPT124-131; HPT124-132

Pressure Type:

Gauge Pressure

Pressure Range:

0-10 Bar……1500 Bar / 0-150Psi……20000Psi G Optional.

Power Supply:

24V DC

Electronic Wire:

5Cores or 6 Cores/Pins/Wires

Output:

4-20 mA; 0-10V; 0-5V optional.

Overload:

1.2 times Full Range.

Burst Pressure:

1.5 times Full Range.

Accuracy:

(Linearity; Hysteresis;

Repeatability)

≤ ±0.5%F.S;

≤ ±0.25%F.S;

optional

Stability:

0.2%F.S

Working Temp:

0℃~400℃

Storage Temp:

-40℃~125℃

Medium compatible:

Various media compatible with the 316L stainless steel

Repeatability:

±0.2%F.S.O

Hysteresis:

±0.2%F.S.O

Permanent Stability (1 Year):

0.3% F.S.O

Bridge impedance:

350 ohms±10%

Insulation Resistance:

≥3000 MΩ

Electronic connection:

Fixed cable Explore Proof and water proof IP67; 5 Pin Plug; 6 Pin Plug IP65;

Terminal Box (Hirschman) IP65.

Process connect port:

1/2’’-20UNF Male; M14*1.5; M20*1.5… (by customized)

Thermocouple type

J,K,E, PT100 Optional

Response time:

≤10 ms

Certificate approve:

CE Certificate.

Explore Proof:

Exd II CT5

EMC Standard:

electromagnetic radiation:EN50081-1/-2

electromagnetic susceptibility:EN50082-2

Remarks:

Special applications request by customized
