Product Overview
Description
Product Description

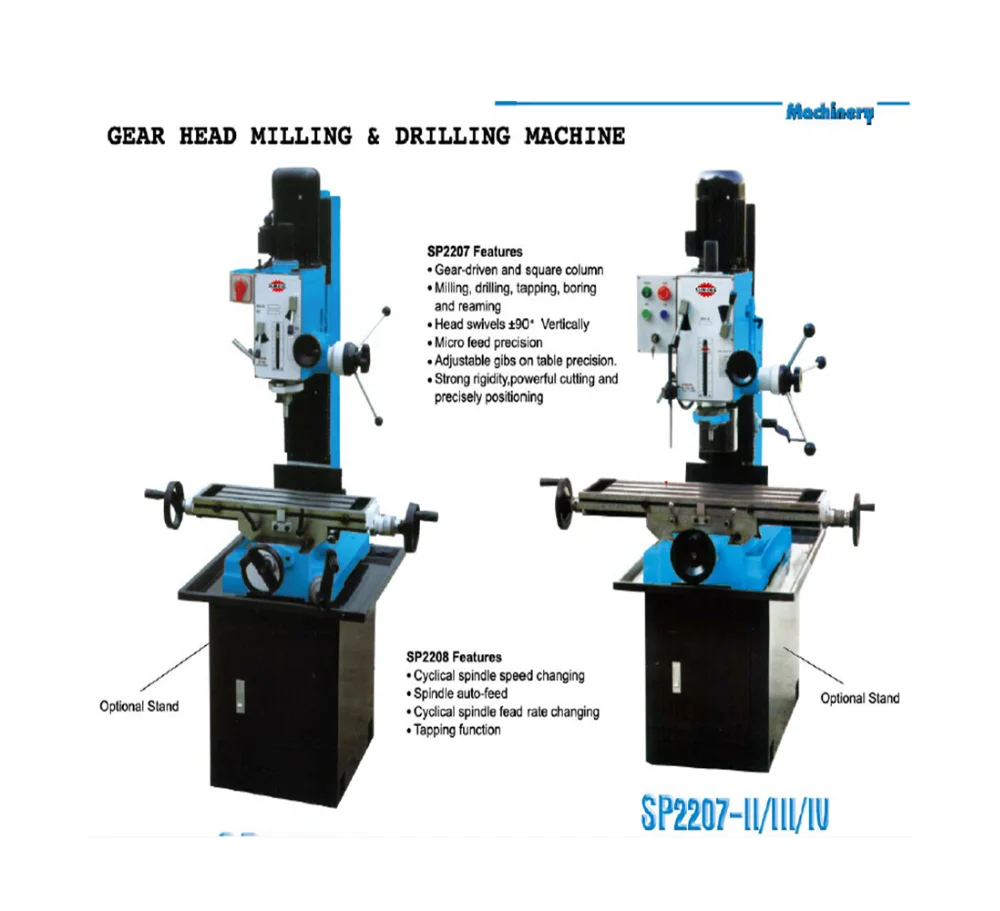

ZAY7040FG vertical milling machine pdf SP2207-III thread milling machine!!!
Features
Exceptional SUMORE Quality
Individual Accuracy Test with Each Machine
- Robust Construction & Stable Performance
- Brushless Motor & Variable Spindle Speed
- Fine & Smooth Feeding Movement on Every Directions
- High Precision for Model Engineering
- Changable Table Length for Different Workpieces
- Optional Spindle Speed & Cutting Depth Digital Readout
- Optional Automatic Longitudinal Feeder
Technical Data
| Model | SP2207-I | SP2207-II | SP2207-III | SP2207-IV |
| Drilling Capacity | 25 mm | 32 mm | 40 mm | 45 mm |
| End Milling Capacity | 20 mm | 20 mm | 32 mm | 32 mm |
| Face Milling Capacity | 63 mm | 63 mm | 80 mm | 80 mm |
| Longitudinal Axis Travel (X) | 290 mm | 500 mm | 500 mm | 500 mm |
| Cross Axis Travel (Y) | 140 mm | 175 mm | 175 mm | 175 mm |
| Spindle Stroke | 85 mm | 130 mm | 130 mm | 130 mm |
| Effective Table Size | 520 x 160 mm | 800 x 240 mm | 800 x 240 mm | 800 x 240 mm |
| Spindle Taper | MT3 / R8 | MT3 / R8 | MT4 / R8 | MT4 / R8 |
| Spindle Speed Range (50Hz) | 95-1,420 rpm | 80-1,250 rpm | 80-1,250 rpm | 80-1,250 rpm |
| Spindle Speed Range (60Hz) | 115-1,700 rpm | 95-1,500 rpm | 95-1,500 rpm | 95-1,500 rpm |
| Steps of spindle speed | 6 | 6 | 6 | 6 |
| Distance Between Spindle to Table | 445 mm | 450 mm | 450 mm | 450 mm |
| T-slot Amount | 3 | 3 | 3 | 3 |
| Vertical Head Tilt Angle (Left / Right) | 90° / 90° | 90° / 90° | 90° / 90° | 90° / 90° |
| Motor Power | 370 w | 750 w | 1,100 w | 1,500 w |
| Voltage and Frequency | Customrized | Customrized | Customrized | Customrized |
| Net Weight | 180 kg | 320 kg | 320 kg | 325 kg |
| Packing Size (LxWxH) | 680 x750 x 1,000 mm | 770 x 880 x 1,160 mm | 770 x 880 x 1,160 mm | 770 x 880 x 1,160 mm |
| Gross Weight | 230 kg | 370 kg | 370 kg | 375 kg |

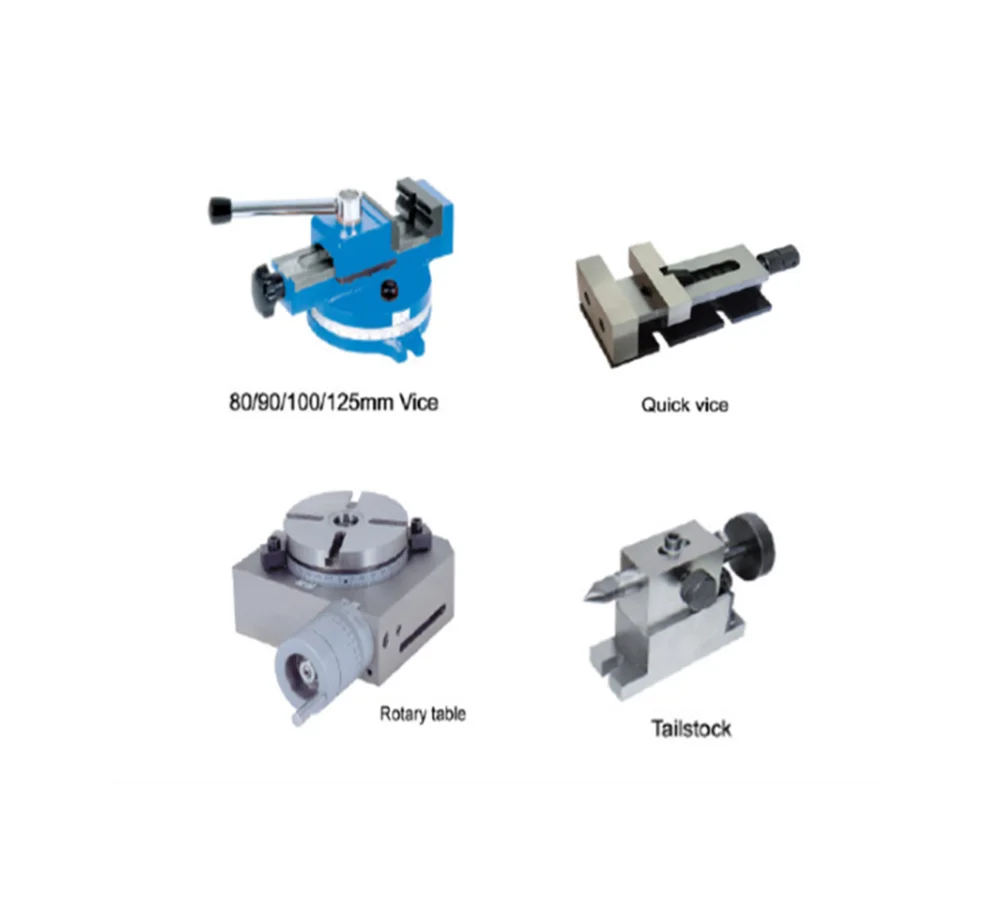

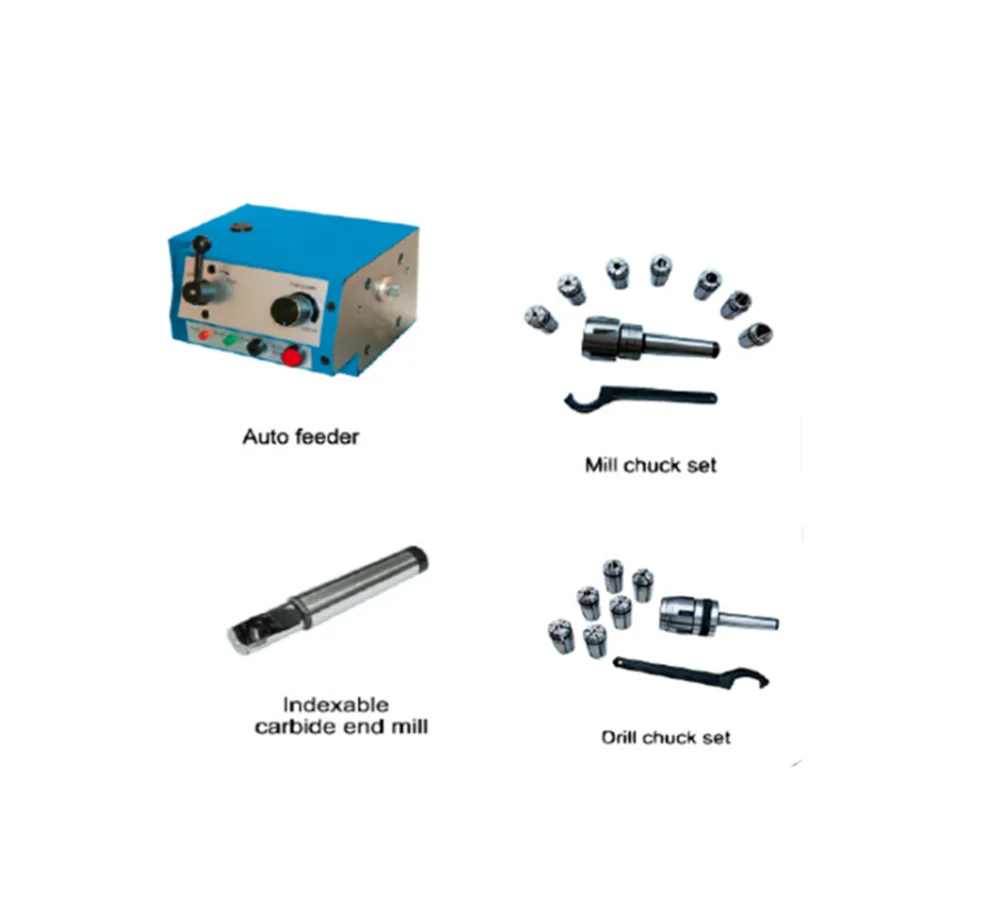

Accessories
| Standard Accessories | Optional Accessories |
| Drill Chuck | Automatic Worktable Feeder |
| Wrench Set | Spindle Speed Digital Readout |
| Toolbox and maintain tools | Cutting Depth Digital Readout |
| Oil Tray | Clamping Kit |
| Manual Instruction & Parts List | Mill Chuck |

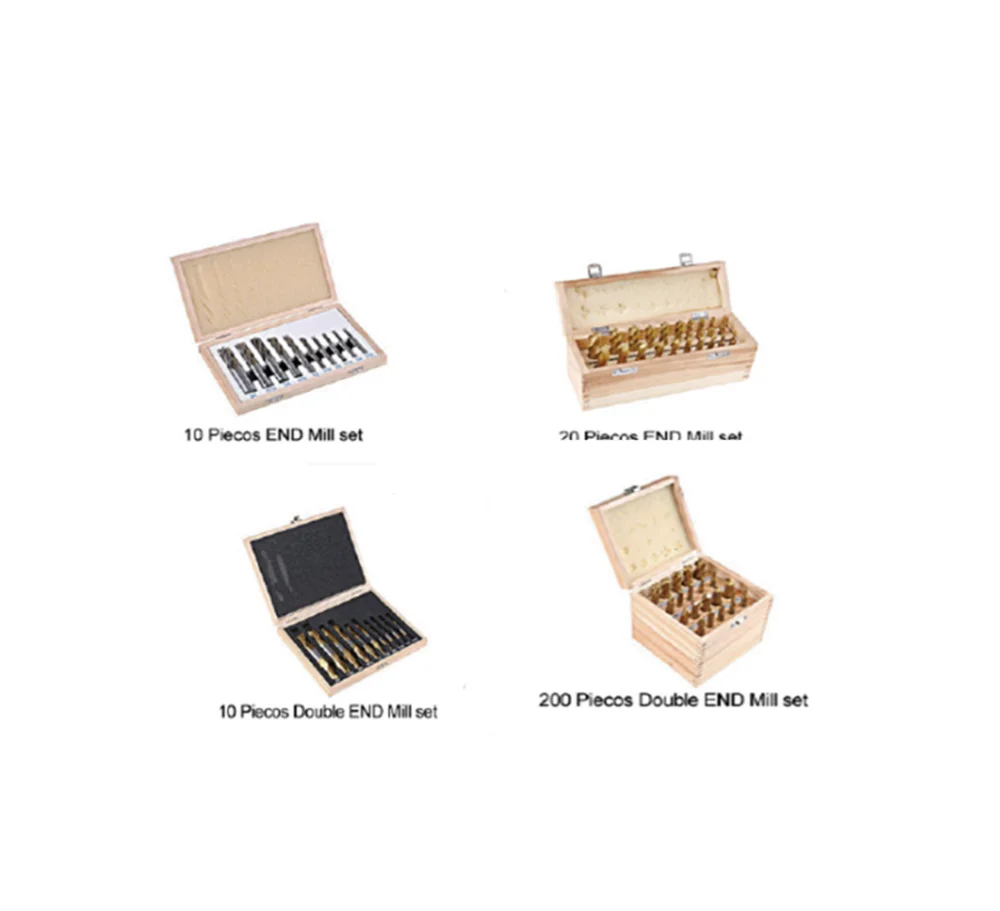

| Milling Set | |
| Tapping Set | |
| Boring Set | |
| Swivel Worktable | |
| Vice | |
| Stand | |
| Work Light |
