Pressure Transducer Companies Melt Pressure Transducers
US $598.00-$629.00

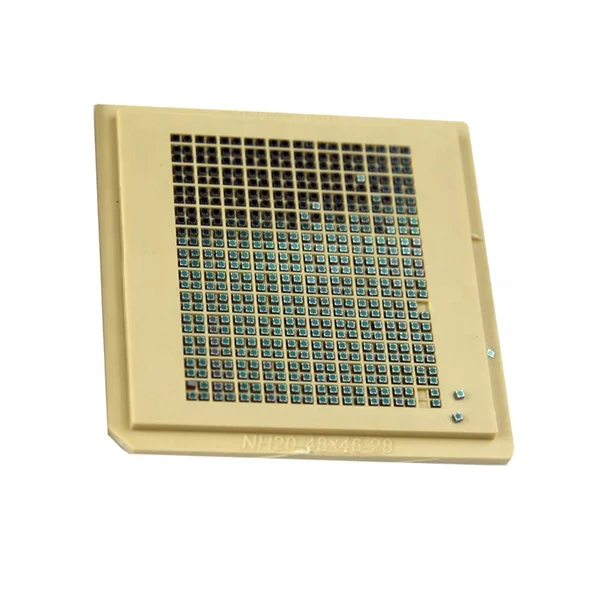

0 1700KPa Absolute or Differential Pressure Silicon Pressure Sensor DIE
- Category: Pressure Sensors >>>
- Supplier: Shanghai Benxu Electronics Technology Co. Ltd.
Share on (60765922051):
Product Overview
Description
Our Advantages
Why choose BENXU?
♦ Focus on Sensor Production all the time
♦ The Best Quality with Reasonable Factory Directly Price
♦ Have Passed CE,RoHS etc Certificates
♦ 18 Months Quality Guarantee Starting from the Date of Delivery
Do you care about followings after place an order?
♦ Quality problem?
BENXU signs the 18 months warranty of quality with you.
♦ Price problem?
If think price is higher at same top quality by comparison with others,we will refund you.
♦ After sale problem?
Artificial damage:will offer technical support.
Quality problem:will do repair or offer replacement without any cost within 18 months.
♦ Can’t deliver in time or some other problems?
Go ahead with Trade Assurance Online:
Product Description
Description:
The series of pressure sensor is a small size piezoresistive pressure sensor.The die size is 1x1mm,when the input voltage is 5VDC the sensor produces mV DC voltage output which is direct proportion of the input pressure,pressure sensor is the absolute pressure sensor,and we also can offer the differential pressure mode.
Features:
1, Solid,MEMS Technique,High Reliability
2, Low Cost,Tiny Size
3, Standard Pressure Range:0-100KPa;0-150KPa;0-700KPa;0-1700KPa
4, Non-linearity:<0.2%FS
5, Silicon/Silicon Bonding wafer,High Stability
Applications:
1, For high resolution absolute sensor systems
2, Engine control
3, Tire gauge
4, Barometers,Altimeters,Variometers,Sphygmomanometer
Technical Parameters:
All parameters are measured at 5.0V supply at room temperature,unless otherwise specified.
|
| Min | Type | Max | Unit | Remarks |
Excitation Voltage |
|
| 5.0 |
| V |
|
Excitation Current |
|
| 1 |
| mA |
|
Span(FS Range) | 150KPa | 50 | 70 | 90 | mV | 1 |
300KPa | 70 | 100 | 150 | mV | ||
700KPa | 70 | 100 | 150 | mV | ||
1700KPa | 100 | 150 | 200 | mV | ||
Offset |
| -35 |
| 35 | mV | 2 |
TC Span |
| -24 | -19 | -15.5 | %FS/100℃ | 3 |
TC Offset |
| -7 |
| +7 | %FS/100℃ | 3 |
TCR |
| +18 | +22 | +33 | %/100℃ | 3 |
Linearity |
| -0.45 | -0.15 | +0.45 | %FS | 4 |
Bridge Impedance |
|
| 5 |
| k ohms |
|
Overload Pressure |
| 2 times |
|
| Fixed FS |
|
Burst Pressure |
| 4 times |
|
| Fixed FS |
|
Operating Temperature |
| -40 |
| +125 | ℃ |
|
Storage Temperature |
| -55 |
| +150 | ℃ |
|
Notes:
1,Measured at 5V constant voltage excitation;
2,The offset is ±50mV for 150KPa;
3,Measured from 0 to 60℃;
4,Defined as best straight line.

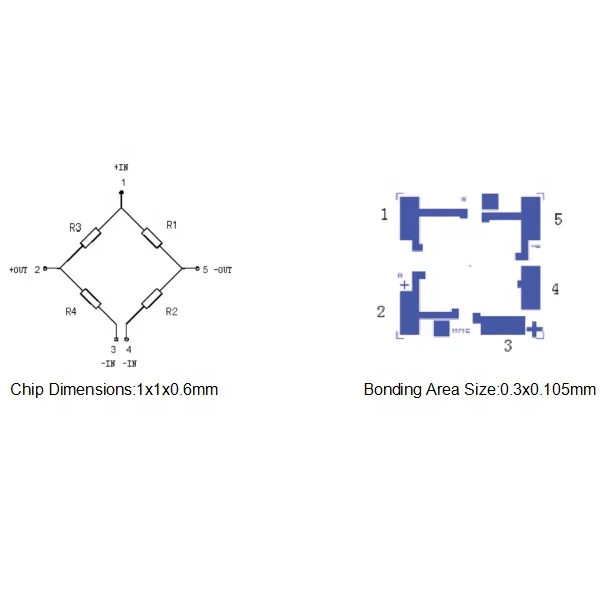

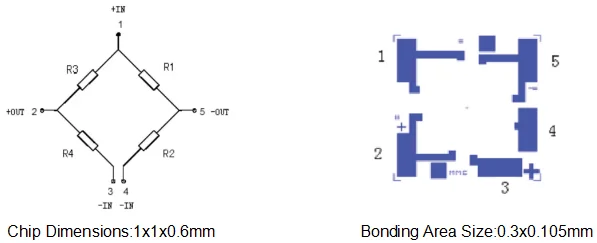

Block Diagram:
