Vertical and horizontal drilling milling machine price/universal milling machine ZX6350Z
- Category: Manual Mills >>>
- Supplier: Tengzhou Wellon Machinery Co. Ltd.
Share on (60832999352):
Product Overview
Description
Product Description

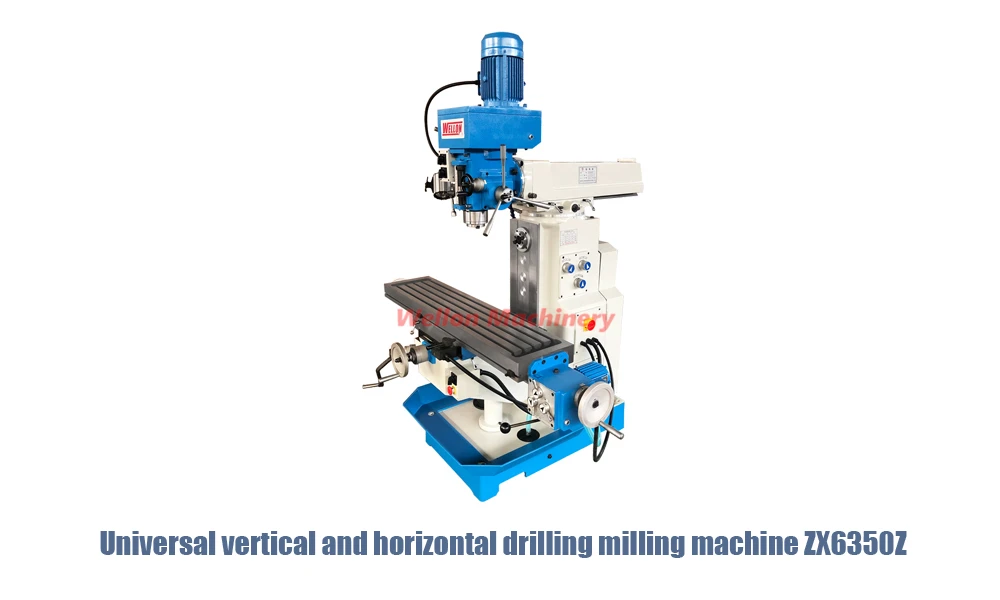

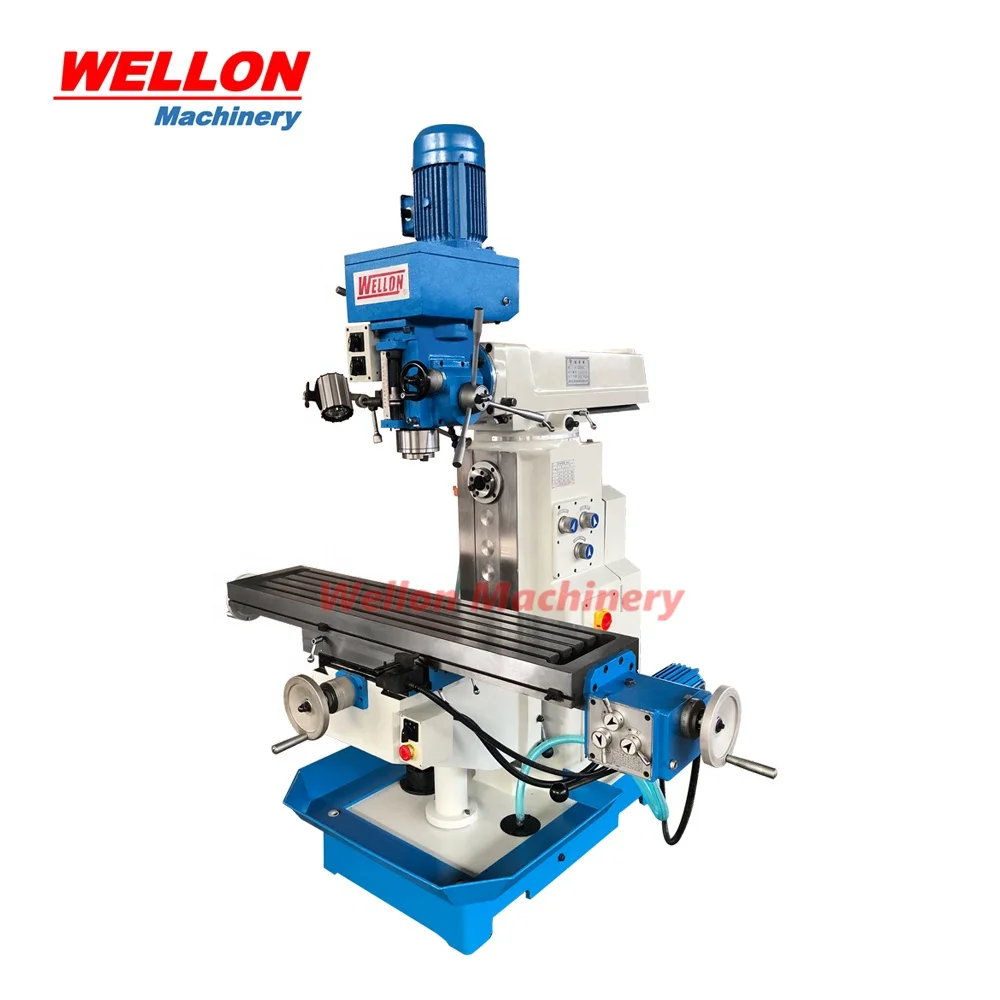

Vertical and horizontal drilling milling machine price/universal milling machine ZX6350Z
1.Rectangular table guideways with high stability.
2.Hardened and ground table surface.

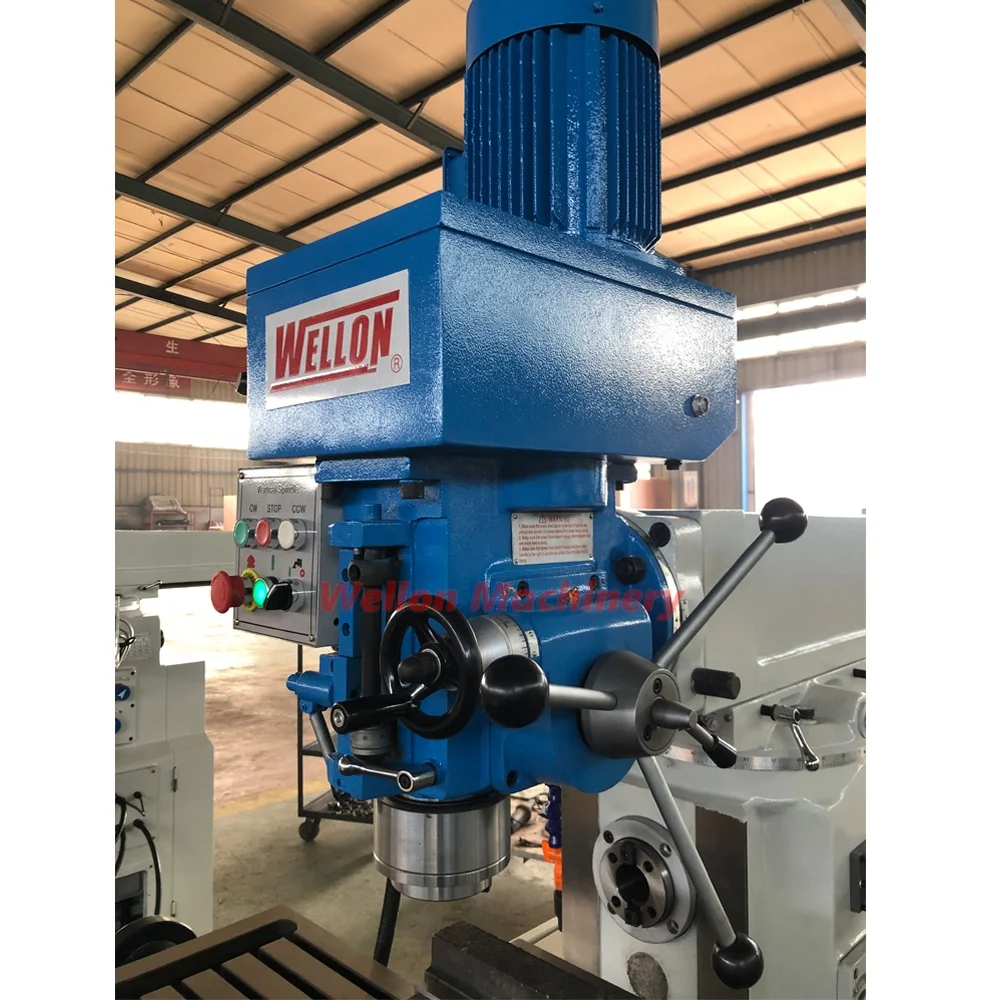

3.Headstock swivels ±45°,vertical milling spindle auto–feeding.

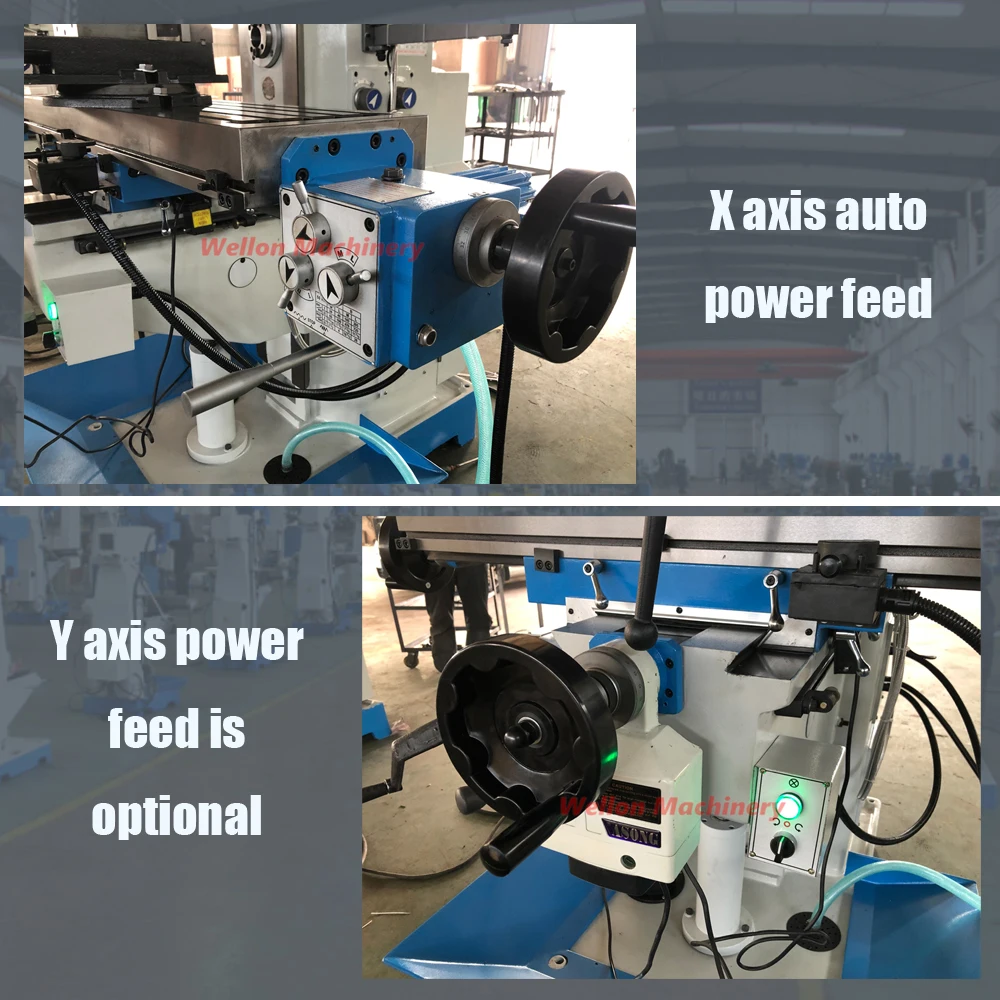

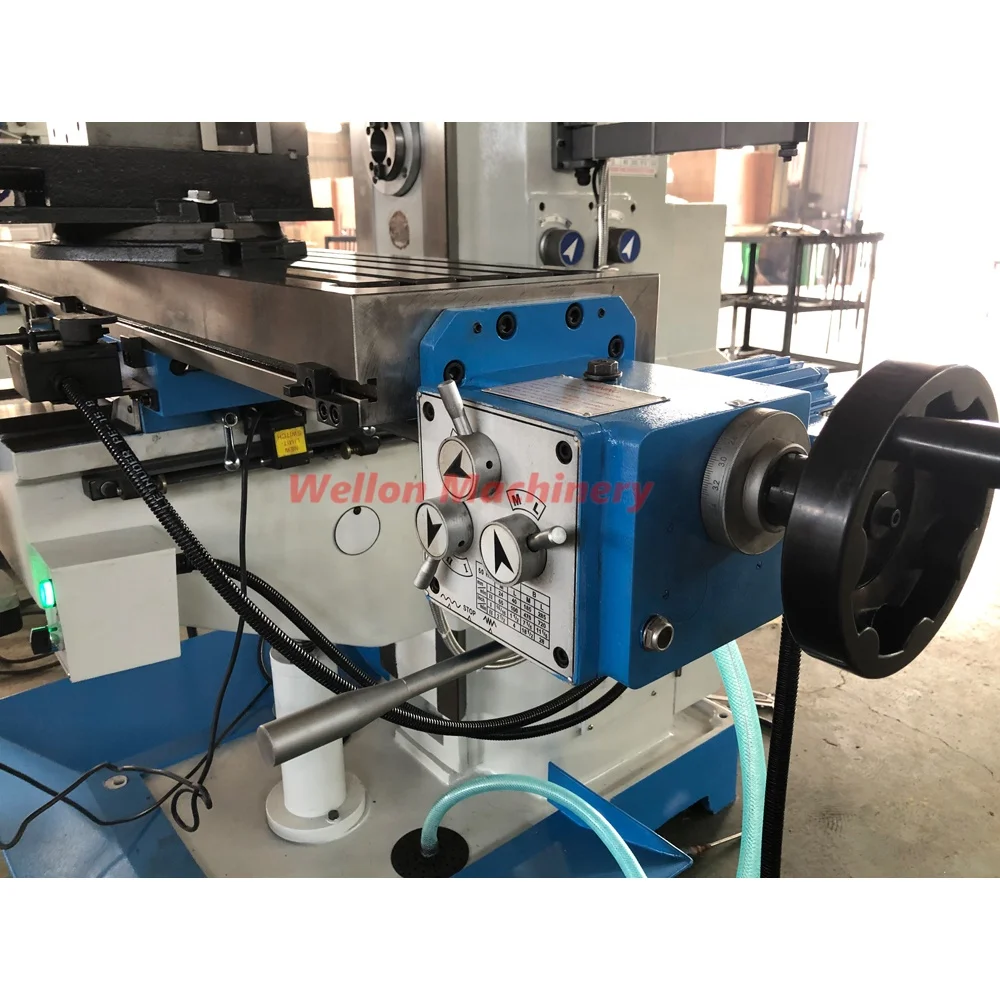

4.Automatic feeds on X,Y axes,motorized lifting and lowering of table on axis.
Standard accessories:
Drill chuck
Collet chuck kits
Draw bar
Reduction sleeve
Mill arbors
Working lamp
Coolant system
Chip tray
Machine vice
Operate tools
Optional accessories:

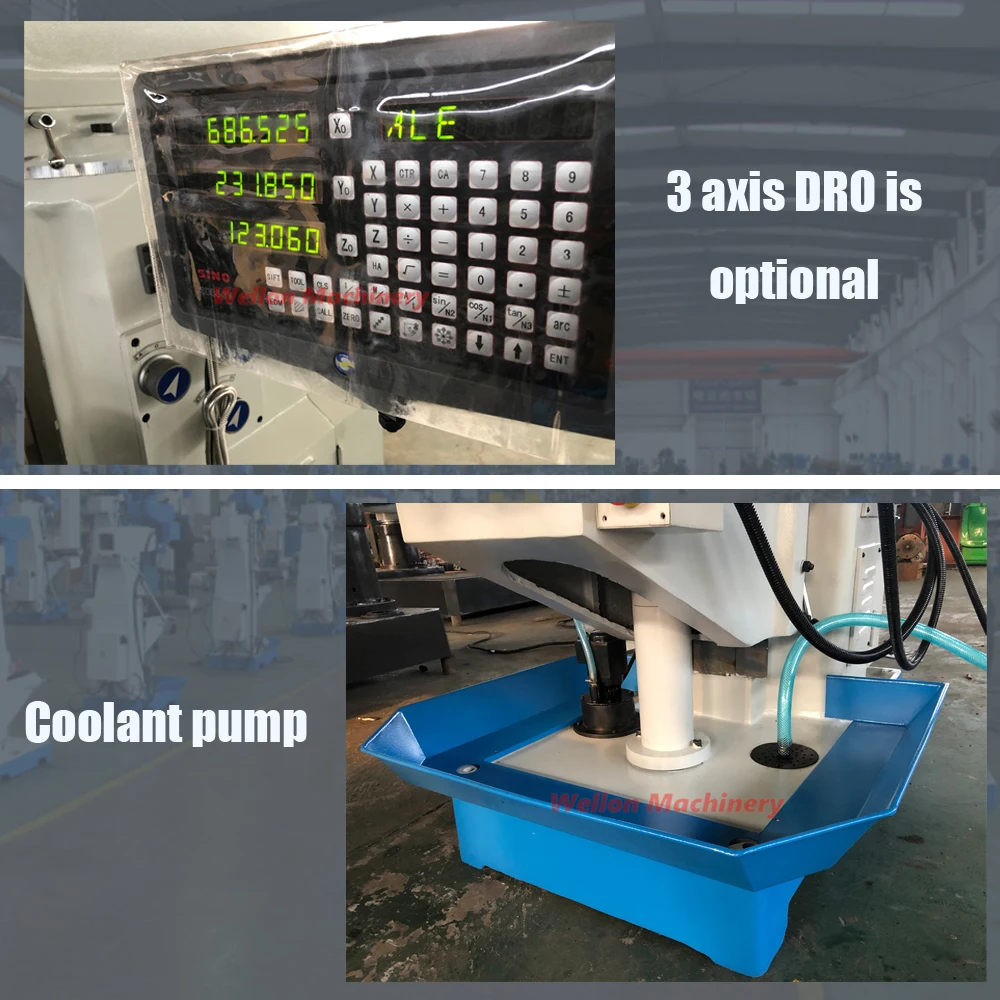

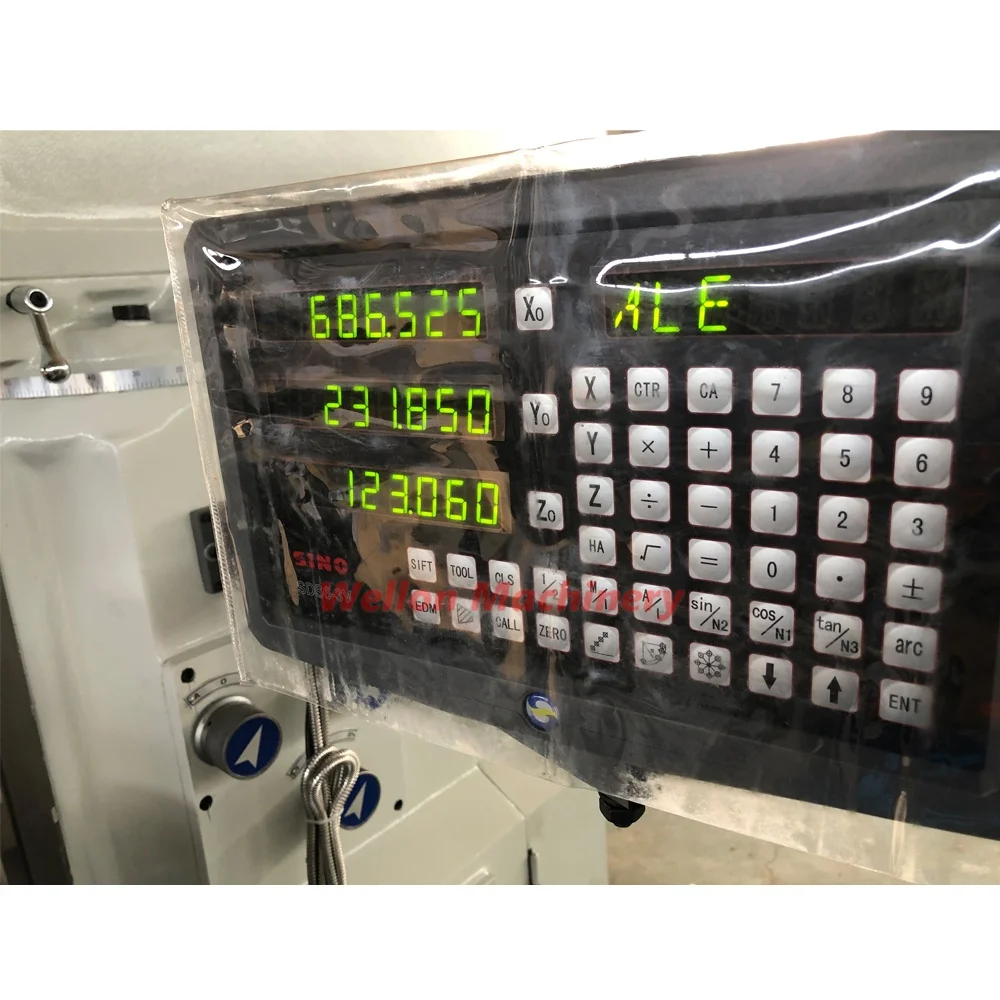

3-axis DRO
Y-Axis auto power feed
58 pcs clamping kits
Specifications | Unit | ZX6350Z |
Table size | mm | 1200X280 mm |
T slot no. /width/distance | mm | 3/16/50 mm |
Max. load of Table | kg | 250 kg |
Table XYZ axis Travel | mm | 700x340x500 mm |
Spindle taper |
| ISO40 |
spindle speed /step -- Vertical |
| 90-2000/8steps |

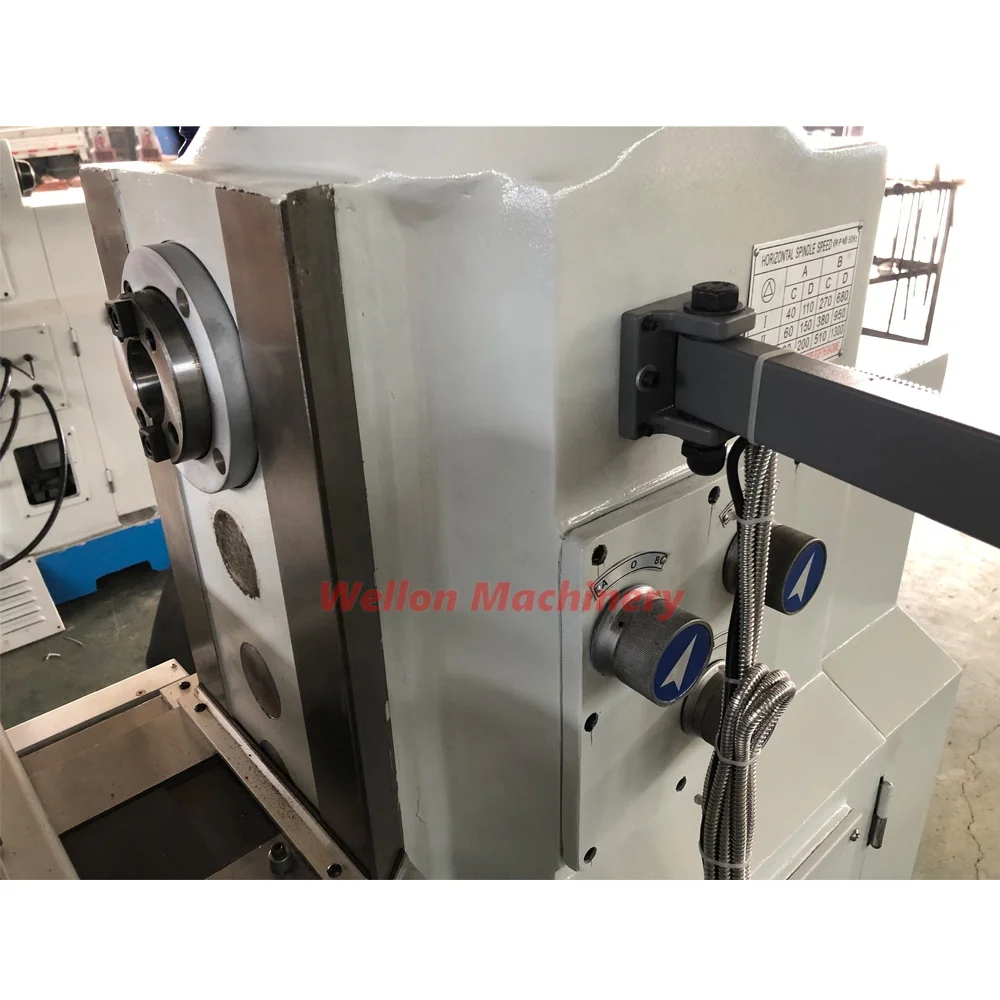

--Horizontal |
| 40-1300/12steps |
Max.drilling dia. | mm | 30 |
Max.end milling width | mm | 100 |
Max. vertical milling Dia. | mm | 25 |
Max.Tapping Dia. | mm | M16 |
Quill travel | mm | 120 |
swivel angle of headstock |
| ±45 |
vertical spindle axis to column surface | mm | 230-680 |
vertical spindle nose to table surface | mm | 30-530 |
horizontal spindle axis to table surface | mm | 0-500 |
horizontal spindle axis to arm bottom | mm | 200 |
ram travel | mm | 500 |
Longitudinal feed | mm/min | 24-720/8steps |
Longitudinal rapid speed | mm/min | 720(X) |

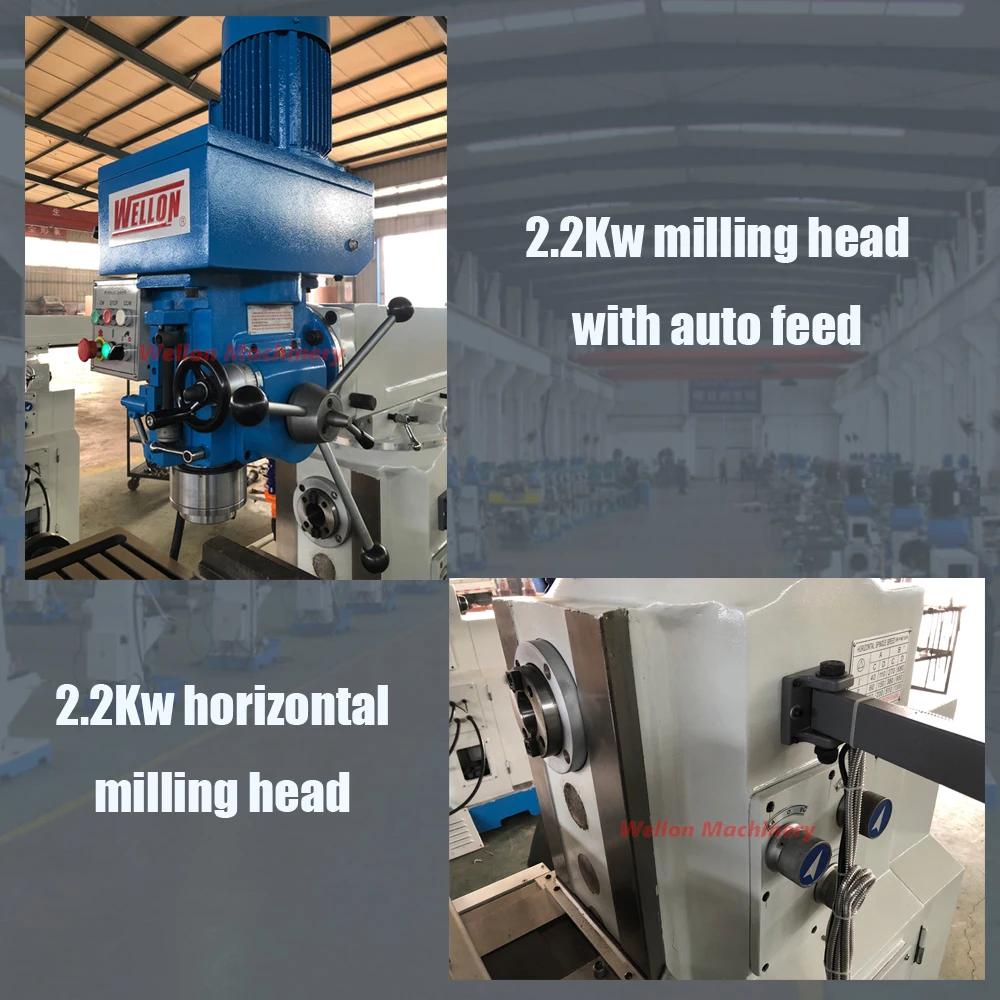

Main motor | kw | 2.2(V), 2.2(H) |
Feed motor | kw | 0.55(X) |
coolant motor | kw | 0.04 |
overall dimension (CM) | cm | 152X1285X215 |
N/W,G/W | kg | 1350/1500 |
Related Products
 |  |  |  |

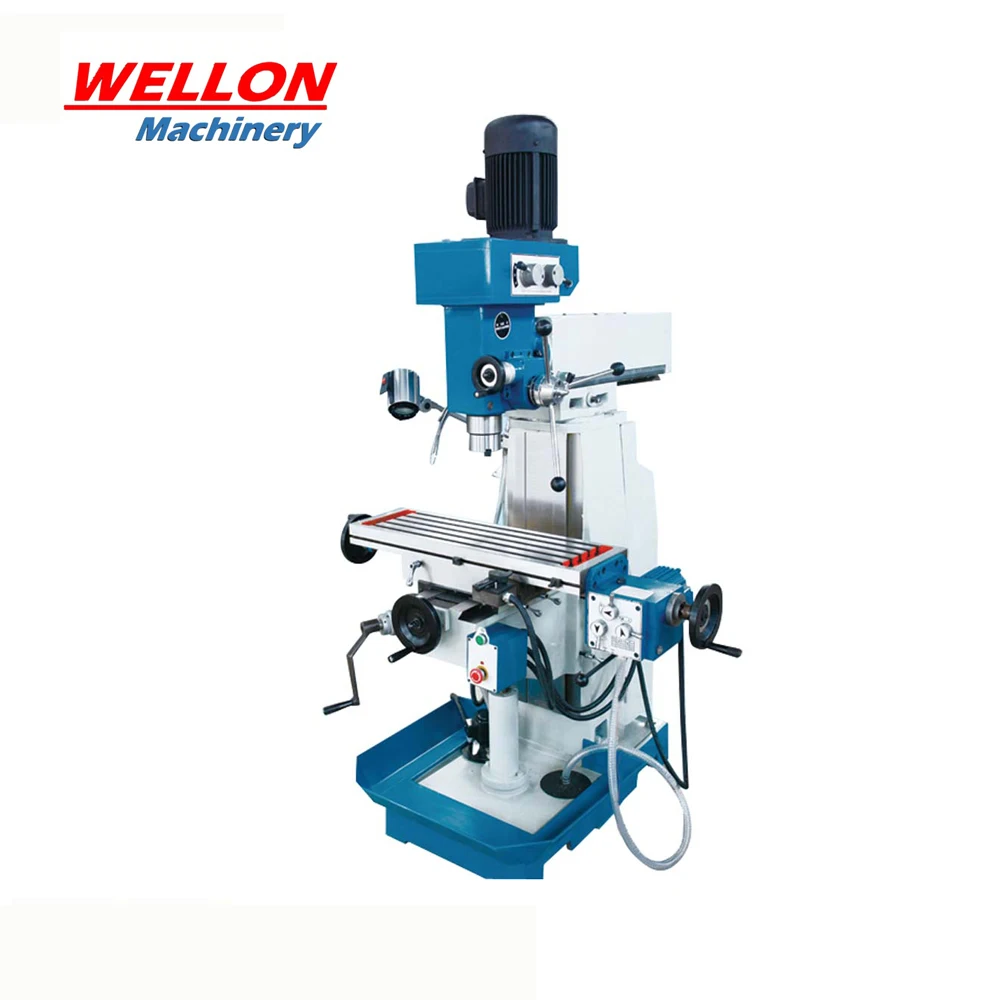

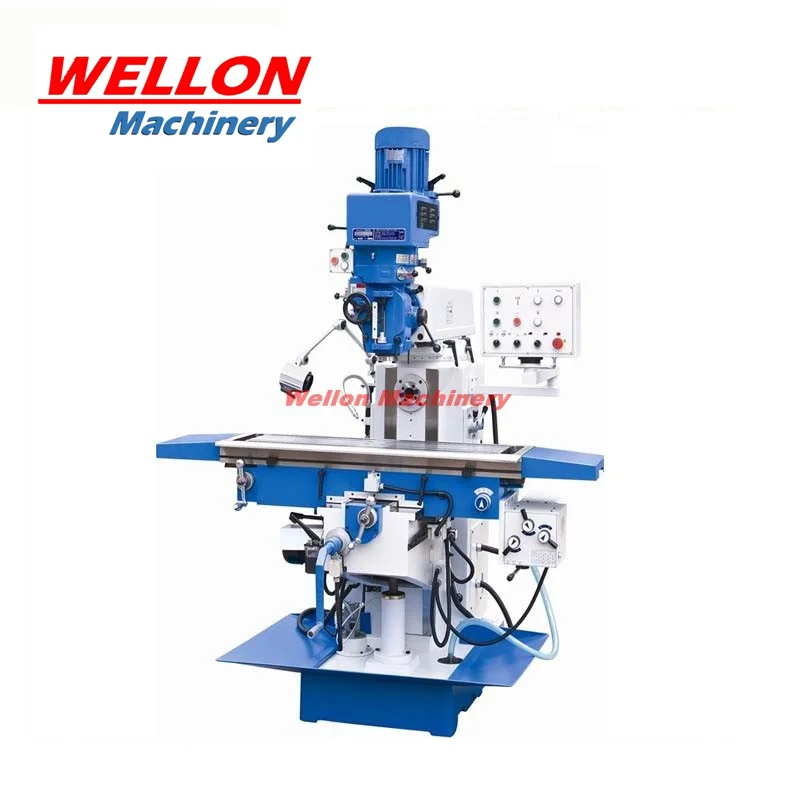

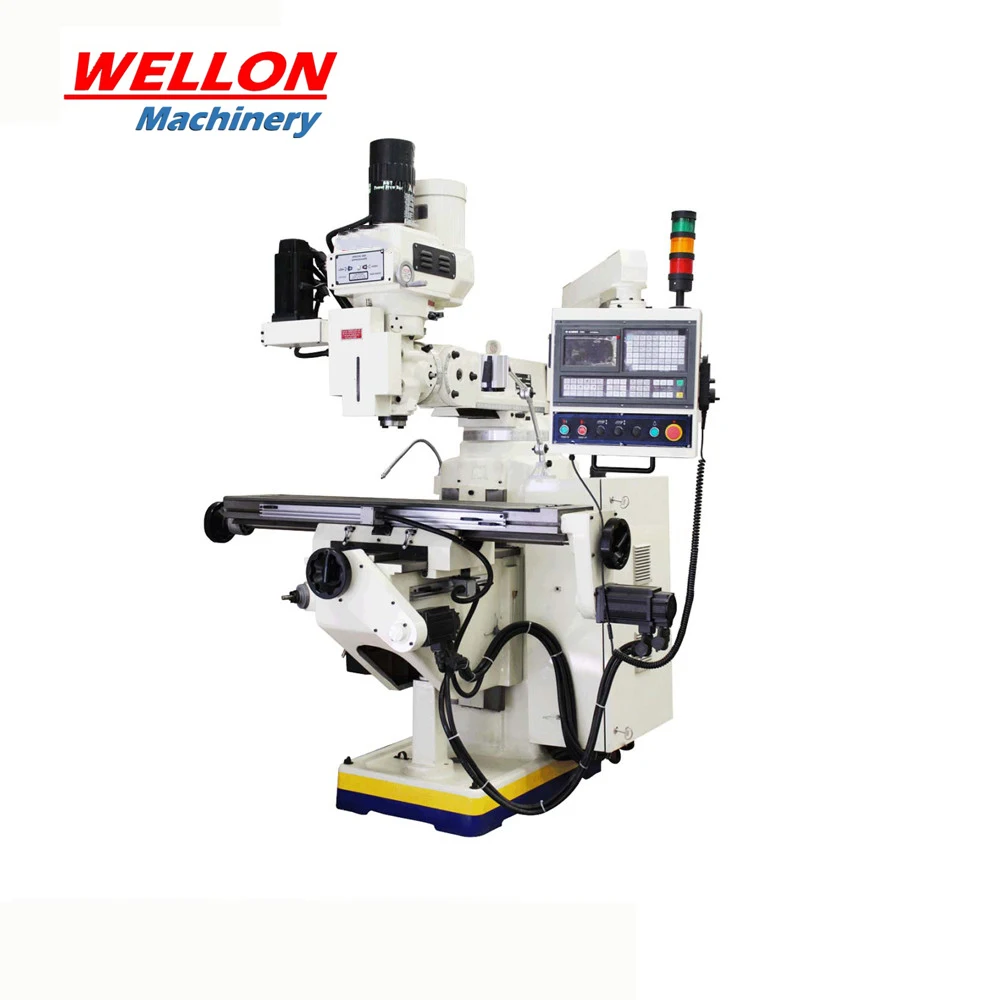

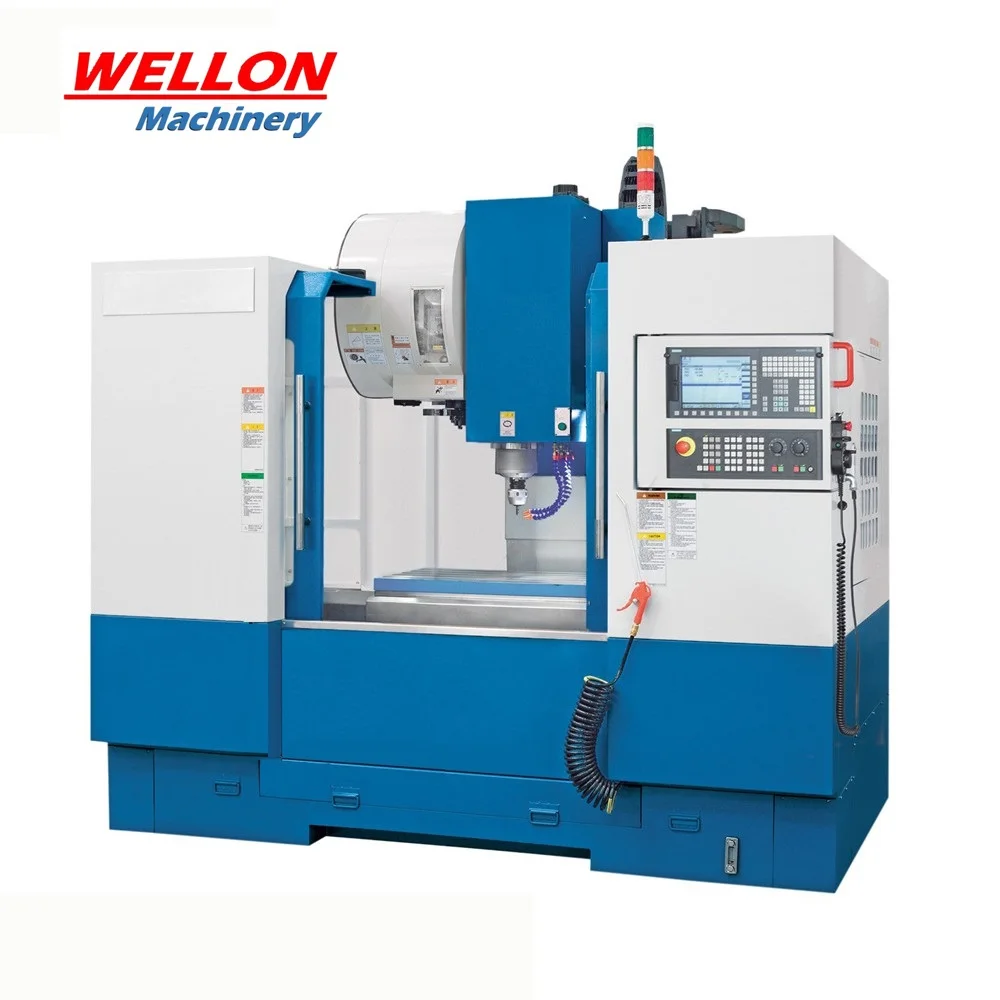

ZX7550CW Drilling... $2500-3000/set | X6332B Turret Milling... $3000-5000/set | XK6325 CNC Milling... $8000-10000/set | VMC850 Vertical... $18000-22000/set |
Company Information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
