Brief introduction:

      1.         Machine Name: DLF-2700L+DLP-340B+DLM-50 Full-auto Wet Wipe Folding and Packing and Liding Machine

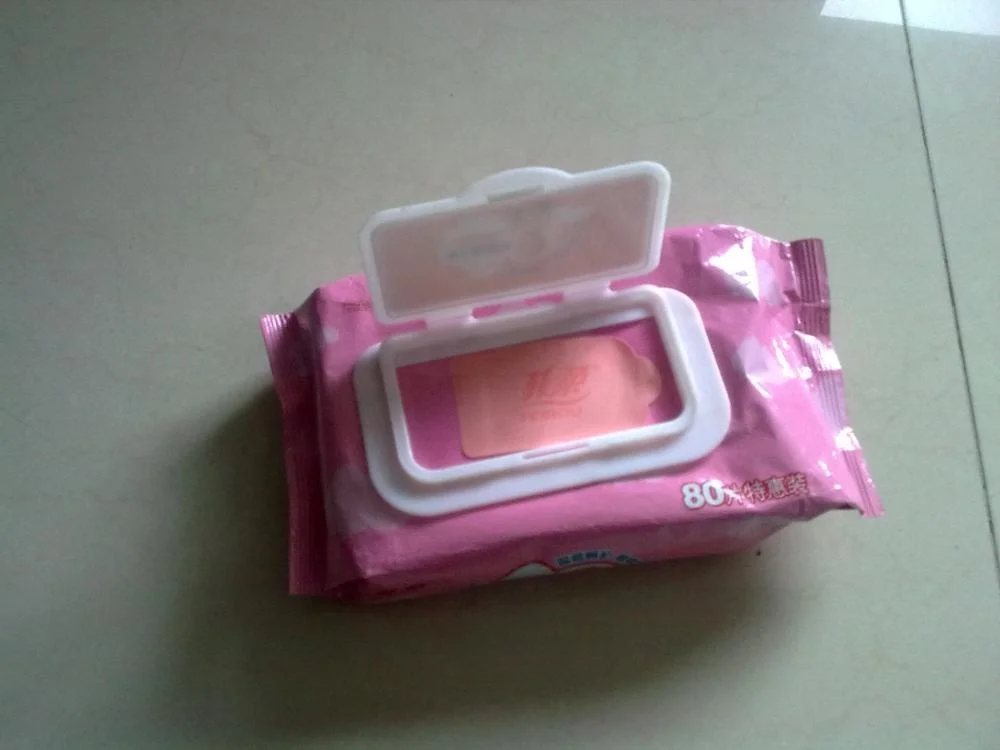

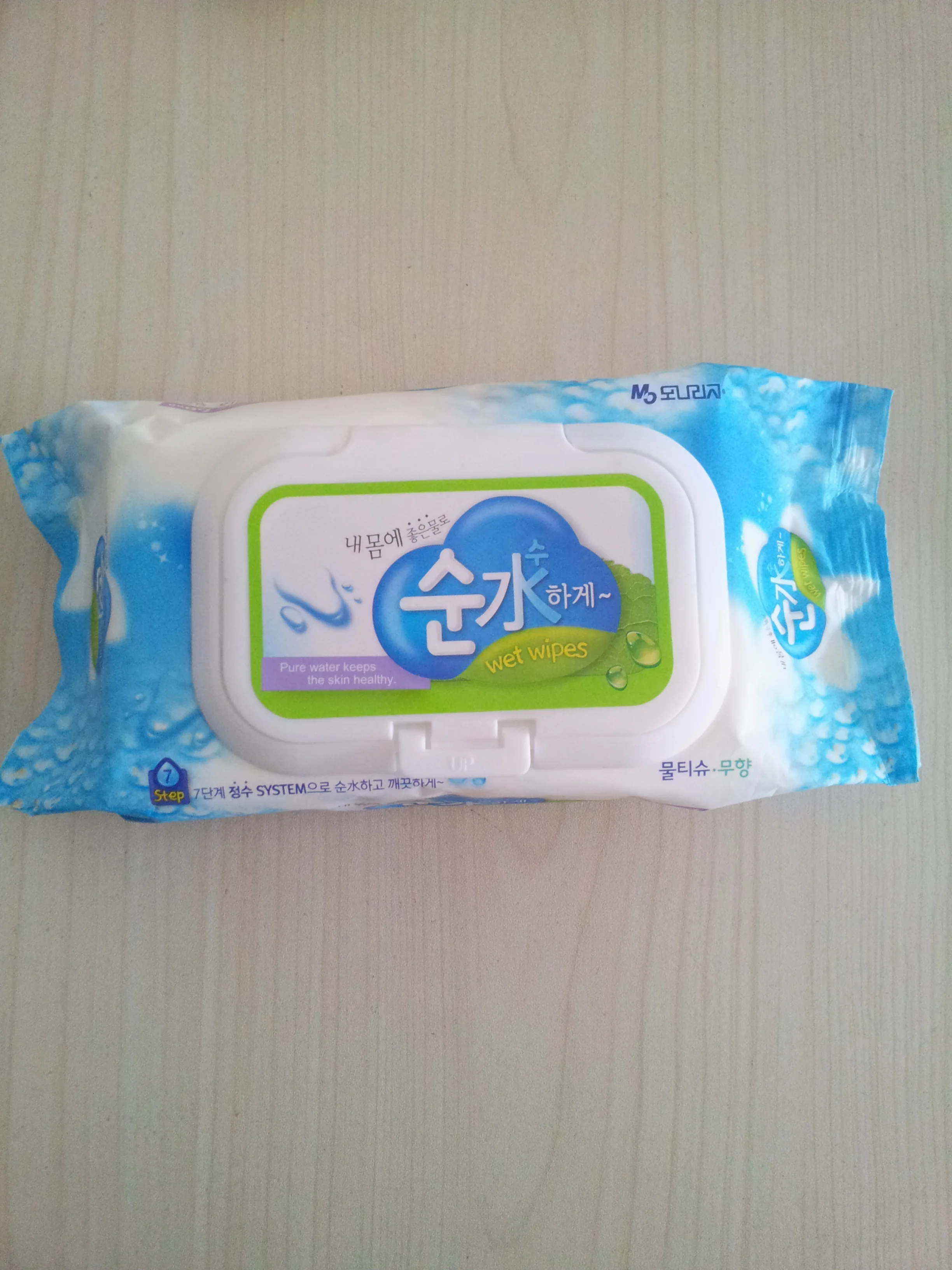

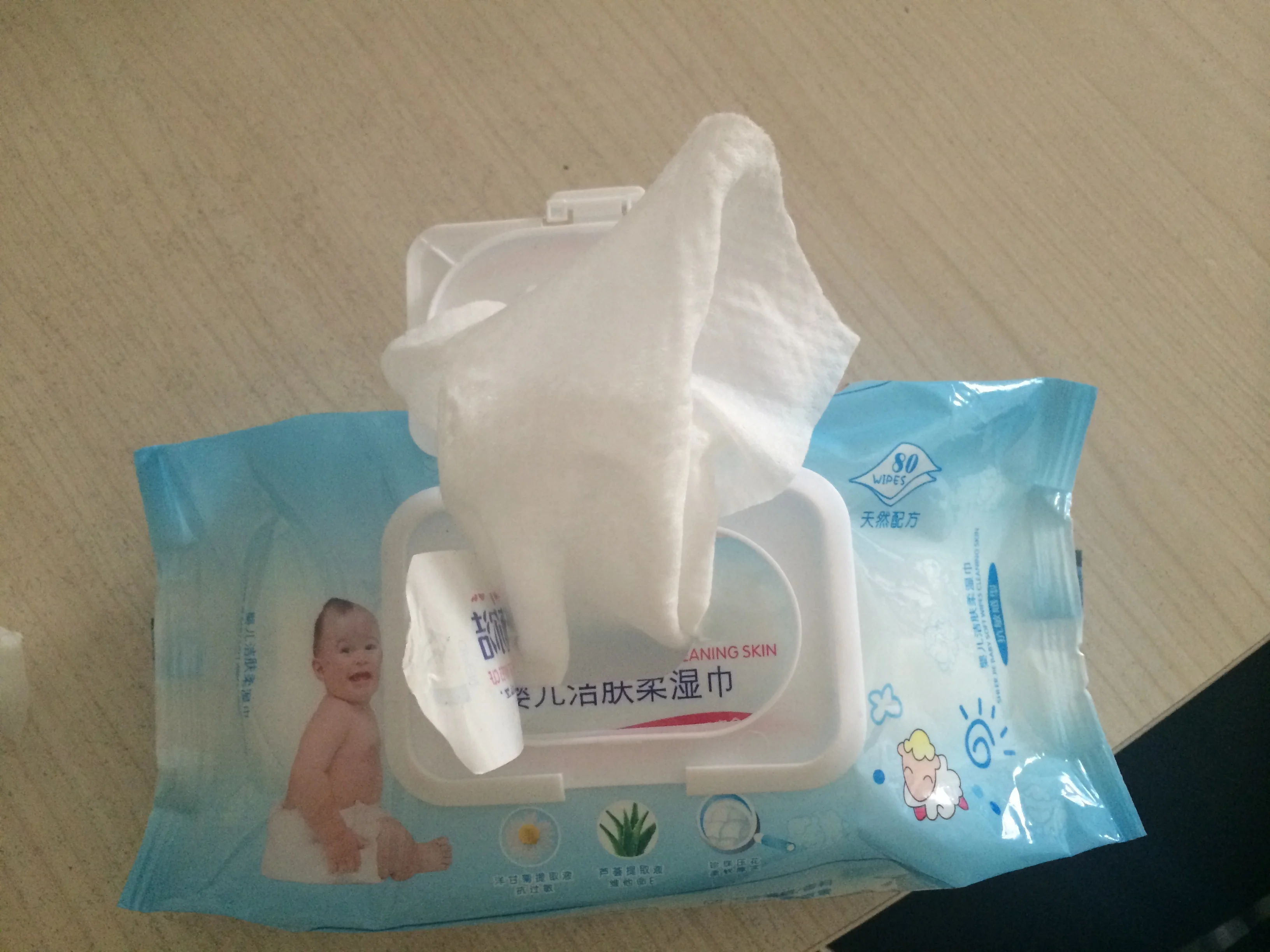

2.        Product type:                     Baby wipes, dress up wipes, lady wipes, cleaning wipes

3.        Power:                               380V 50HZ

4.        Speed:                               3200-3800pcs/min(40-50packs/min)

5.        Pcs/pack:                           30-120pcs/pack

6.        Unfolding size (mm):         (120-220)×(180-220)(L×W)

7.        Folded size (mm):             (120-220)×(90-110)(L×W)

8.        Folded type:                      Pop up or Non-Pop up(adjustable)

9.        Suitable material:              Spunlace

10.      GSM:                                 40 -80g/m2

11.       Raw material width:          180-220mm

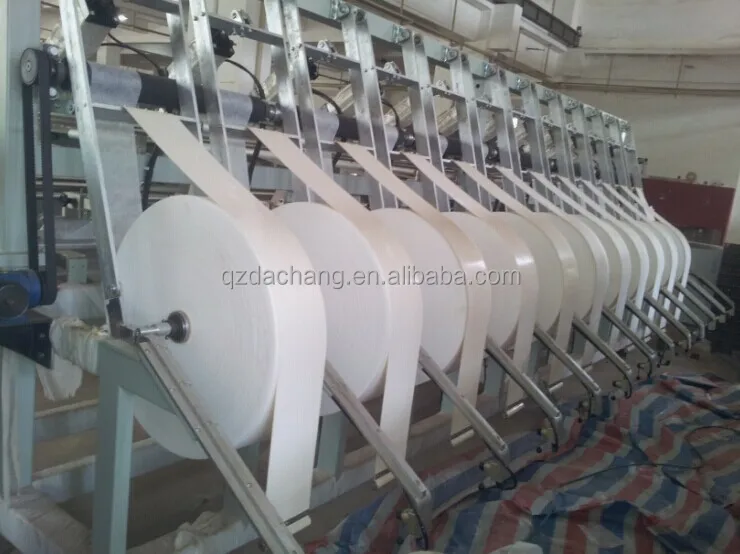

12.      12 single base raw material shelf

13.       Packing Size(mm):           (180-320) x (80-120) x (20-90) (L×W×H)

14.       Packing film:                    Width ≤ 360mm, Diameter ≤ 400mm

15.       Label:                               Width ≤60mm, Diameter ≤ 300mm

16.       Plastic lid size:                 Width≤80mm, Length≤120mm

17.       Counting model:              Counting automatically, automatic adjustable stacking system

18.       Wetting system:               Double tanks with agitators

19.       Tanks size:                      900 x 900 x 1900

20.       Installation space(mm):   About 18000x2600x2400mm(L×W×H)

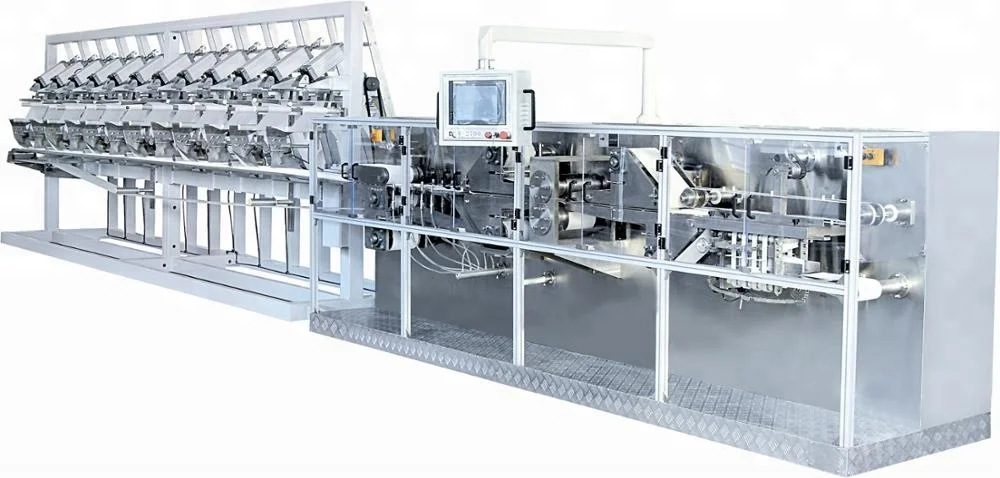

                                                            (Production speed: 3200-3800pcs/min)

Performance Introduction

1.        Semi-servo design, with scientific design and compact structure, easy operation and maintenance

2.        Servo automatically control

3.        Main electrical parts approved by CE or UL license, with safety door and E-stop and relative safety system

4.        Main mechanical parts made by CNC, main electric parts from Japan--MITSUBISHI

5.        Inverters control motors, universal couple adopted for main parts, integrity of gear box and phaser, time belt gear driving

6.        Adjust phase to be synchronized at machine running

7.        Steel structure, stainless steel plate, stainless steel parts

8.        Liquid distributed from holes of the pipes

9.        Lotion supplying system, including two tanks with continuously agitators mixing, recycle unit, adjustable amount

10.       Raw material short cutting, cut length can be adjusted

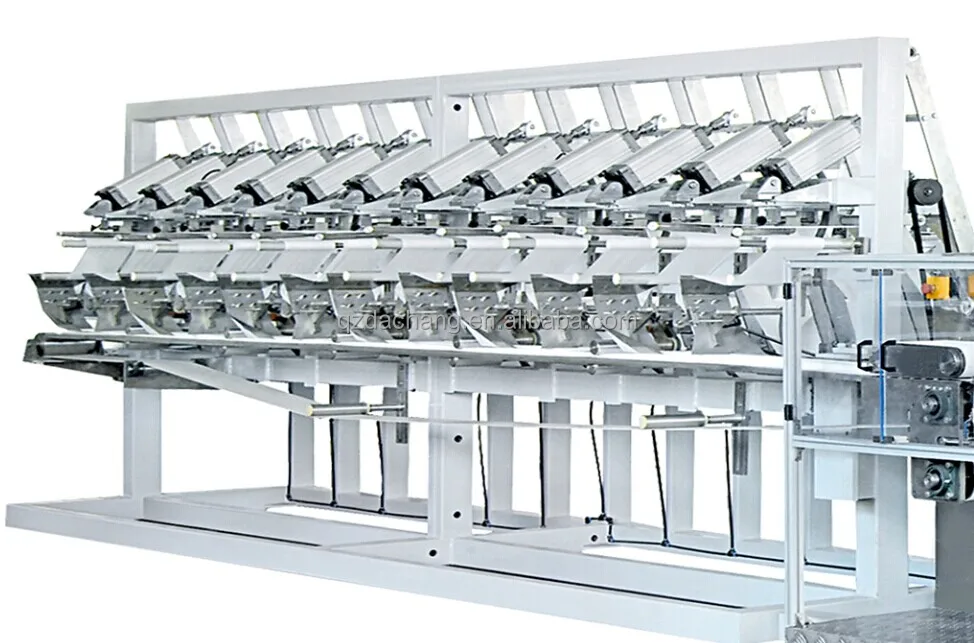

11.       Tower system to pull the folded raw materials in one way

12.       Sheet counting and stacking unit, servo motor adopted for easy adjusting quantity

13.       Conveyor system

14.       Operate interface for main machine.

15.       PLC control system and monitoring system.

16.       Adopted hard alloy for long life cutter.

17.       Safety system: Complete protection for the blade, cabinet must be made with doors. Emergency braking system

18.       Mitsubishi Servo system

19.      Touching Screen of operation interface.

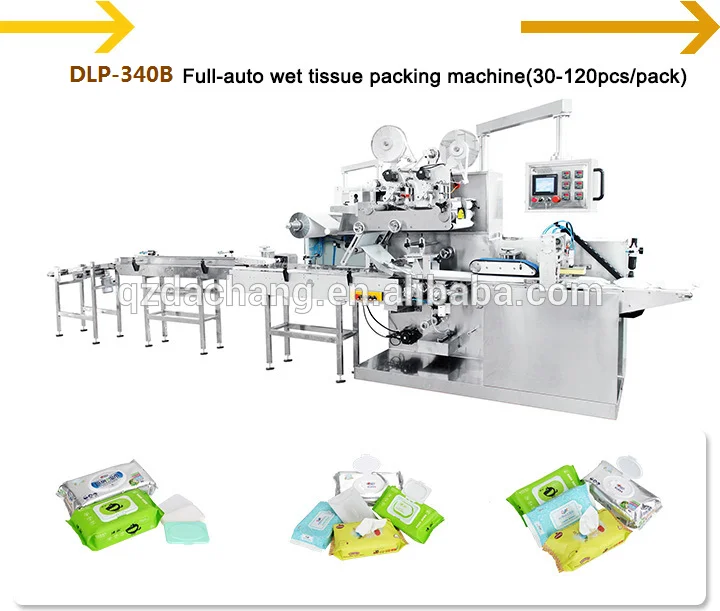

                                 (Production speed: 40-60packs/min)

Performance Introduction

1.        The packing film adopts mechanical tension control.

2.        Two label machine, one sub-labeling, the other is anti-counterfeiting label. The two labeling machines, can be used synchronously, also can be used solely.

3.        Punching at the packing film automatically.

4.        Heating printing(date)device.

5.        Four back and forth transverse sealing device with insert corner by cylinder form.

6.        Eight servo motors ,controlling feeding packing film, transverse sealing ,feeding tissue respectively.

7.        Length ways sealing device, control the open-close by cylinder. The sealing wheel are apart automatically when the machine stops.

8.        Punching ,labeling and the eye mark’s related position can be set in the touch screen.

9.        Automatic feeding raw material device.

10.      Color  touch screen ,PLC control.

11.      Main motor adopts famous brand.

12.      Main machine adopts frames form.

13.     The electric control model adopts automatism and manual ,to meet the demands in the             running control.

14.      Each motor can be started and stopped solely,being set in the touch screen.

15.      There are two urgent-stop button in the distance between the machine.

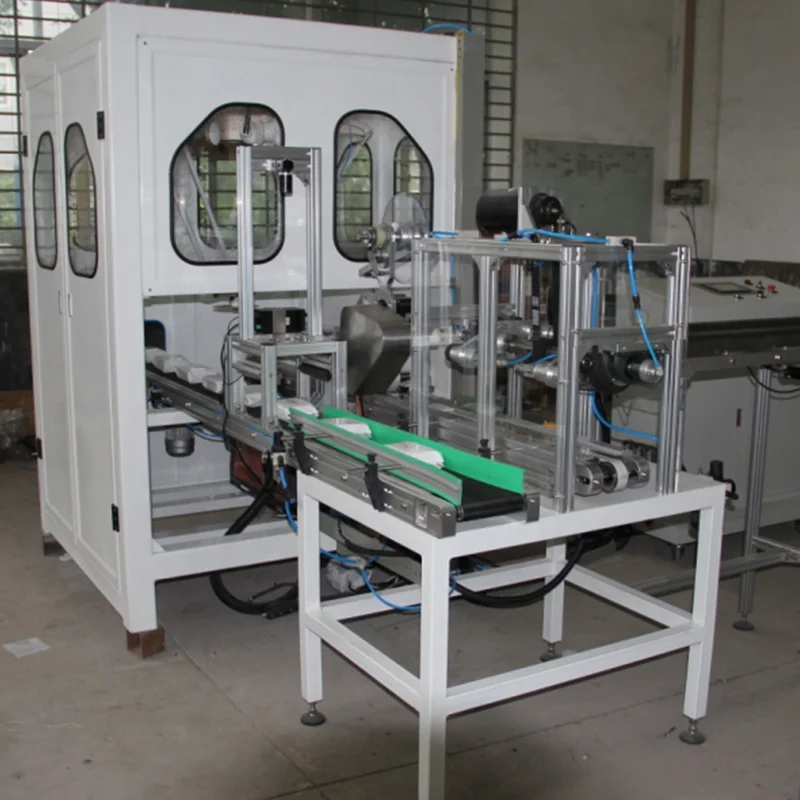

                                                (Production speed: 40-50packs/min)

Performance Introduction

1.        Positional Deviation : within ±1mm

2.        Missing Value<1%

3.        Design science, the structure is flexible and lighter.

4.        The operation is simple, convenient assembly and maintenance.

5.        Cast iron base, aluminum alloy and carbon fiber mechanical arm.

6.        Automatic transmission system.

7.        Human-computer interface.

      8.         Integrated on the platform of OMRON SYSMAC fastest scraping system.

      9.         A controller can control 8 robots and other equipment on the production line.

Quanzhou Dachang Paper Machinery Manufacturer Co., Ltd. was founded in China in 1998, Dachang consolidated its leading position as wet wipes machine manufacturer.

We have contributed to the development of the wet wipes market in China, with many technological innovations. Annually we produce 150 sets of wet wipe machines and export them to more than 70 countries and regions around the world.

Our mission is to be the leaders in wet wipes machines manufacturing worldwide, and the best industrial partner for our customers by offering them premium state-of-the-art quality machines.

(1)Technical Support
1. Free consultant service, help customers to make project feasibility analysis.
2. We provide the relevent product information of the series for customer’s reference.
3. We offer the designing, installment drawing and necessary information for production according to customer’s real situation.
4. We inform the models, technical index and request, suppliers and reference price of all necessary raw materials for production.
5. We advise customers how to solve the usual machine fault.
6. We can supply the technicians to operate the machine.

(2)After-sale Service
1. The machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
2. When the machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.

3. When the machines are delivered to the customers, we can go to customer’s factory to install, test the machines, and to train again before the operation staff start working.
4. During this period of one year warranty, if the machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
5. During this period of warranty, if there is something wrong with the machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
6. After the warranty, we charge only cost price for maintaining the machines within three years.
7. Other after-sale terms can be agreed by buyer and seller in addition.
