X6333 Universal vertical turret milling machine brands
- Category: Manual Mills >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62149661501):
Product Overview
Description

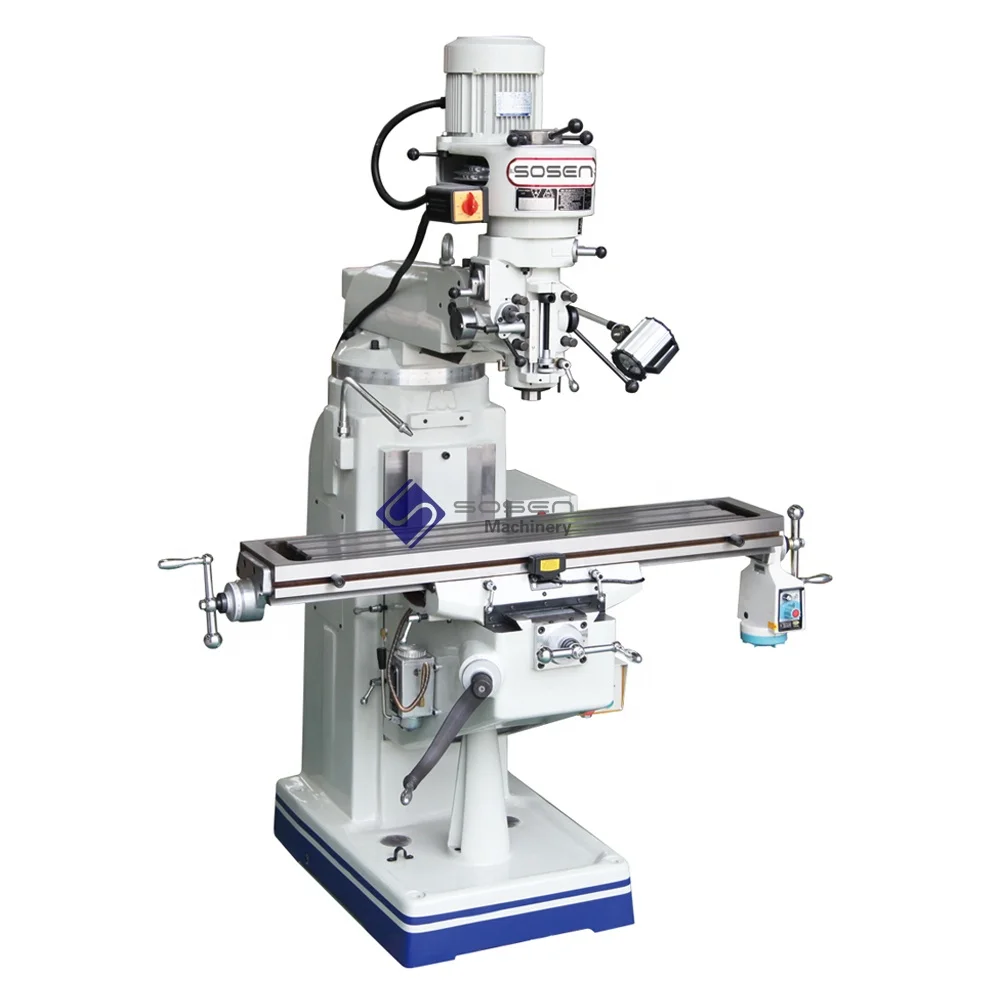

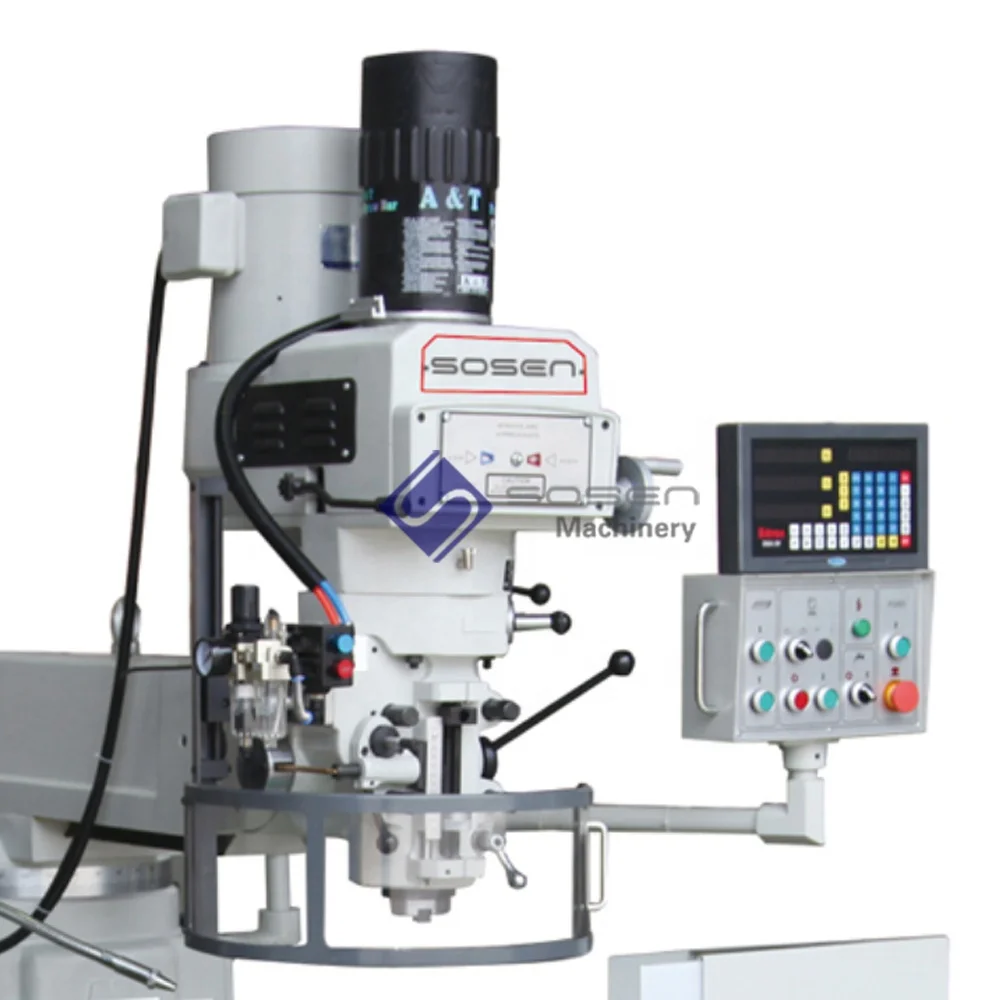

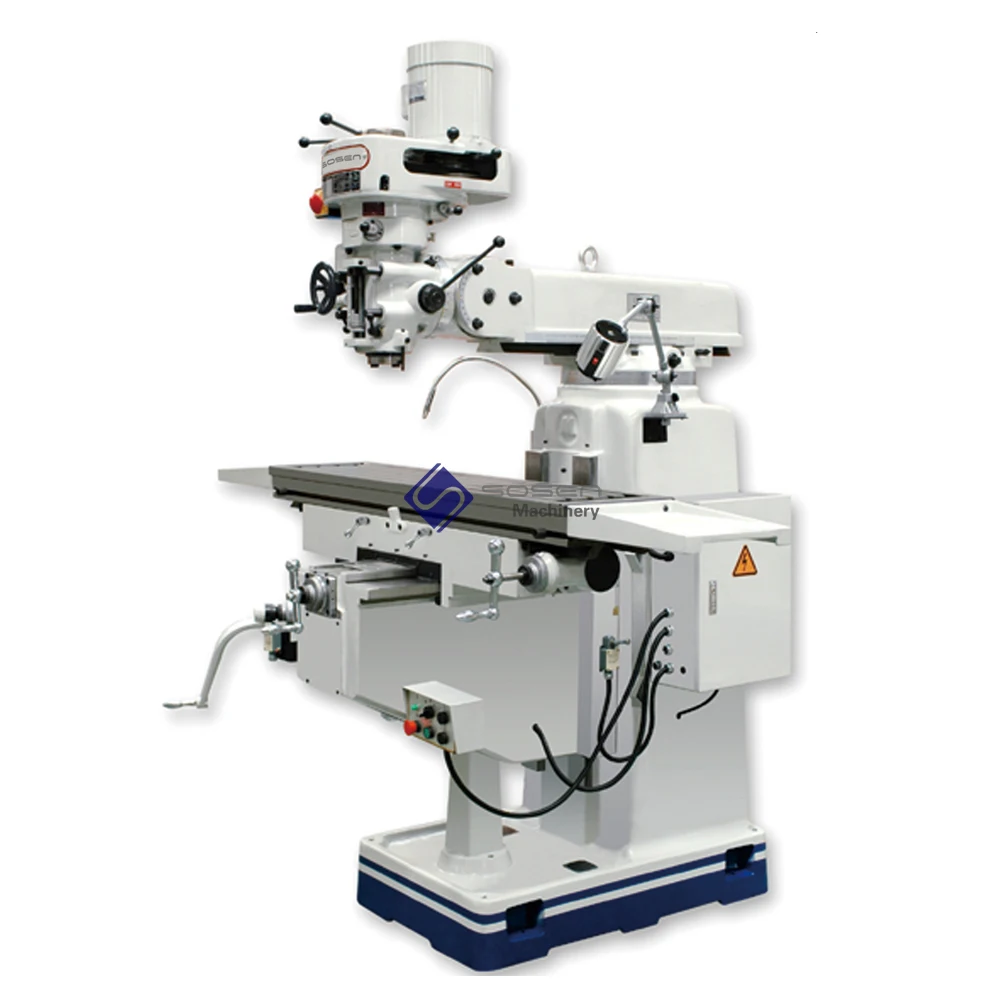

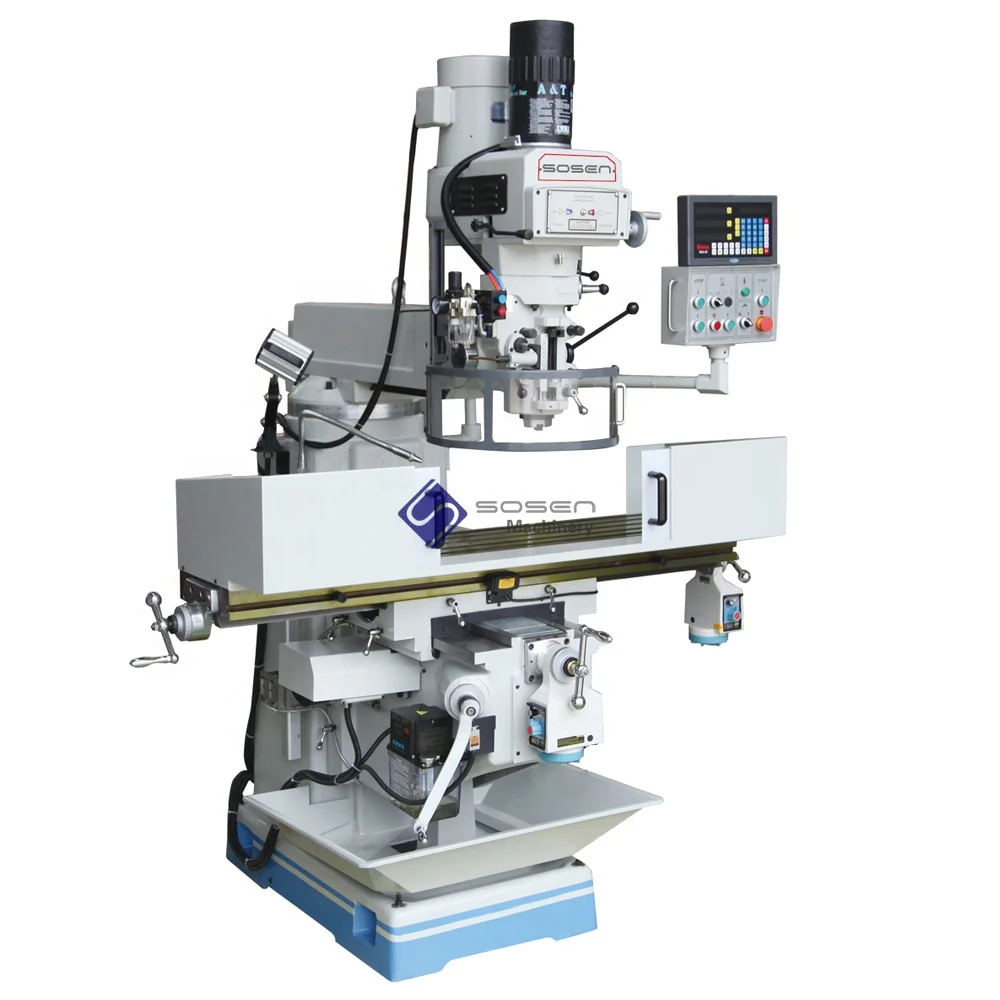

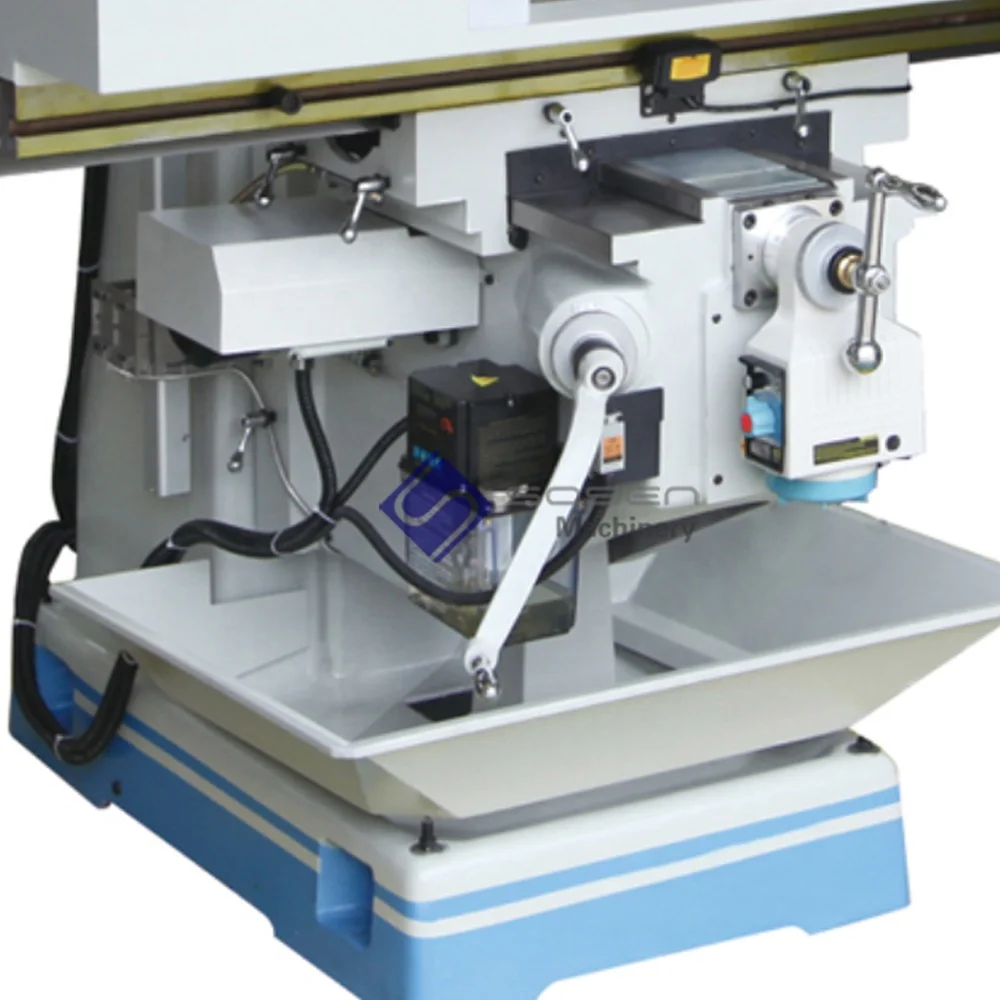

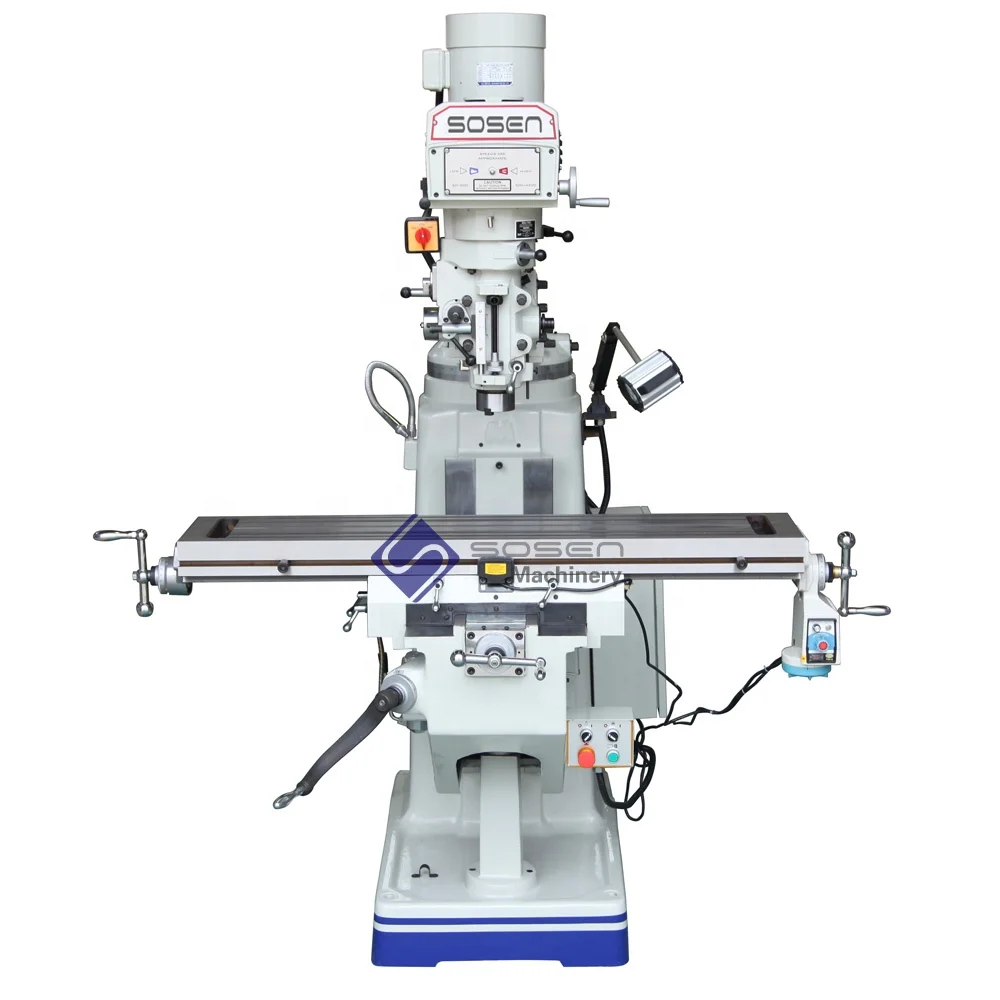

X6333 Universal vertical turret milling machine brands
Product Description
Main features:
1.SOSEN brands X6333 Universal vertical turret milling machine with high rigidityand quality casting iron, and saddle guide-way is coated by TF-material.
2.Variable speed milling head made in Taiwan, step speed milling head and inverter millinghead can be equipped as optional accessories for X6333 Universal vertical turret milling machine brands.
3.X/Y/Z-axisscrew are made in Taiwan with good smooth and reliable features.
4.Table surfaceis treated specially to harden HRC45-55.
5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.
6.Standardelectrical box with domestic brand electronics components, we also can selectoptional SIEMENS and SCHNEIDER brand.
X6333 Universal vertical turret milling machine brands:
5HP milling head from Taiwan
Leadscrew from Taiwan SHIYMIN
Guideway with Tuicite B cover
ISO40 spindle
Spindle bearing with P4 class
Specifications:
| Item / Model | Unit | X6333 | X6333A |
| Table size | mm | 330×1370(13×54") 330×1500(13×58") | |
| T-slot Nu.& size | 3 × 16 | ||
| Table longitudinal travel | mm | 820(1000) | |
| Cross travel | mm | 380 | |
| Knee vertical travel | mm | 460 | |
| Distance from spindle to table | mm | 0-450 | |
| Ram travel | mm | 500 | |
| Spindle taper | ISO40 | ||
| Quill travel | mm | 127 | |
| Spindle peed | r/min | 50HZ:65-4500 60HZ:80-5440 | |
| (optional variable):60-3600 | |||
| Quill feed rate | mm/rev | 0.04/0.08/0.15 | |
| motor power | kw | 3.7 | |
| Head swivel (Right / Left) | degree | -90/+90 | |
| Head swivel (up / down) | degree | -45/+45 | (Fixed) |
| Packing size | mm | 1set/pallet 1800×2020×2200 | |
| 2set/pallet 1800×2200×2200 | |||
| G.W. | kg | 2200 | 2250 |
Standard Accessories:
worklight, Tooland tool box, English Operation Manual,
Painting oil, lifting motor, wooden palletpackage.
Coolant, Chiptray, Guideway protection .
Optional Accessories:
Electric Power feed X,Y axis
DRO on X/Y/Z-axis
Slotting head
Machine Vice
Variable/Frequency speed milling head
Milling chuck collets
58pcs set clamping kits
Packaging & Shipping
Standard is wooden pallet package, packing size as following:
One unit X6325 per pallet: 1566*1650*2080mm
Two units X6325 per pallet: 1720*1800*2175mm
Full closed plywood case package for your choice as optional, it is suitable for shipment by LCL.
