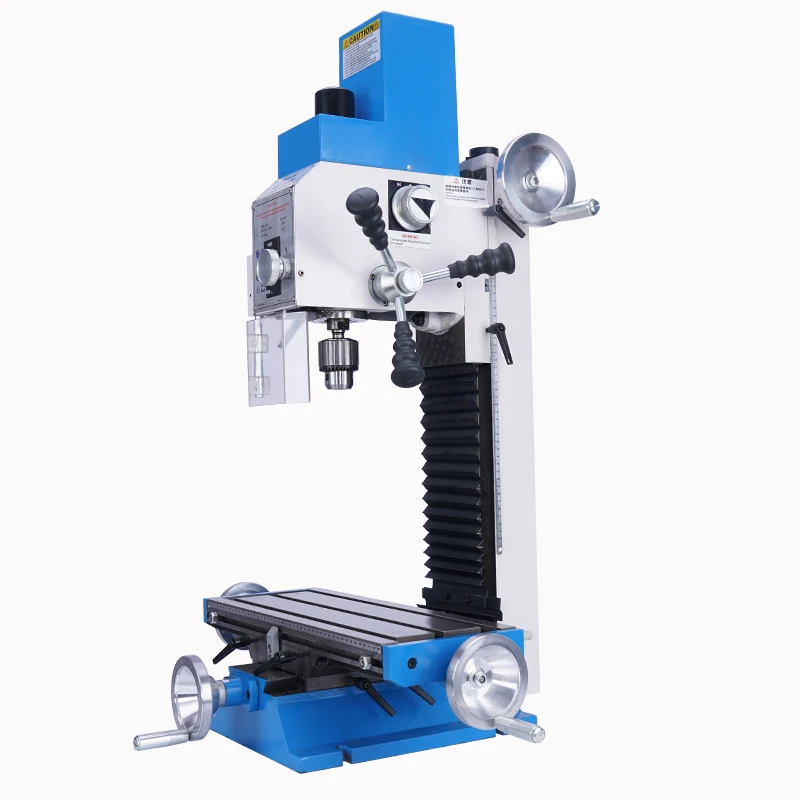

Вертикальный сверлильный станок, сверлильный и фрезерный станок с плавной регулировкой скорости
- Category: Manual Mills >>>
- Supplier: Shanghai Tongchen Industrial Co. Ltd.
Share on (62174174853):
Product Overview
Description
Product Description

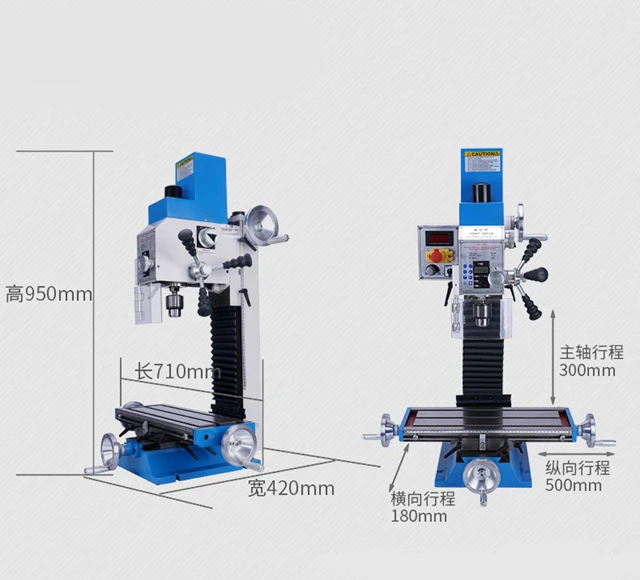

| Model | 20 | Maximum vertical milling capacity | 20MM |
| Voltage | 220V | Distance between chuck and table | 350MM |
| Power | 700W | Morse dimension of main shaft hole | MT2 |
| The vertical axis stroke | 300MM | Sleeve trip | 52MM |
| The horizontal axis stroke | 180MM | Manual lifting stroke of spindle | 190MM |
| Main shaft trip | 500MM | Spindle speed | 50-2250RPM |
| Spindle box left and right rotation Angle | 900 | Table T slot width | 12MM |
| Clamping diameter | 20MM | Gross weight | 100/130KG |
| Maximum bore diameter | 20MM | The machine size | 710*420*950MM |
| Maximum face milling capacity | 65MM | Table size | 500*180MM |

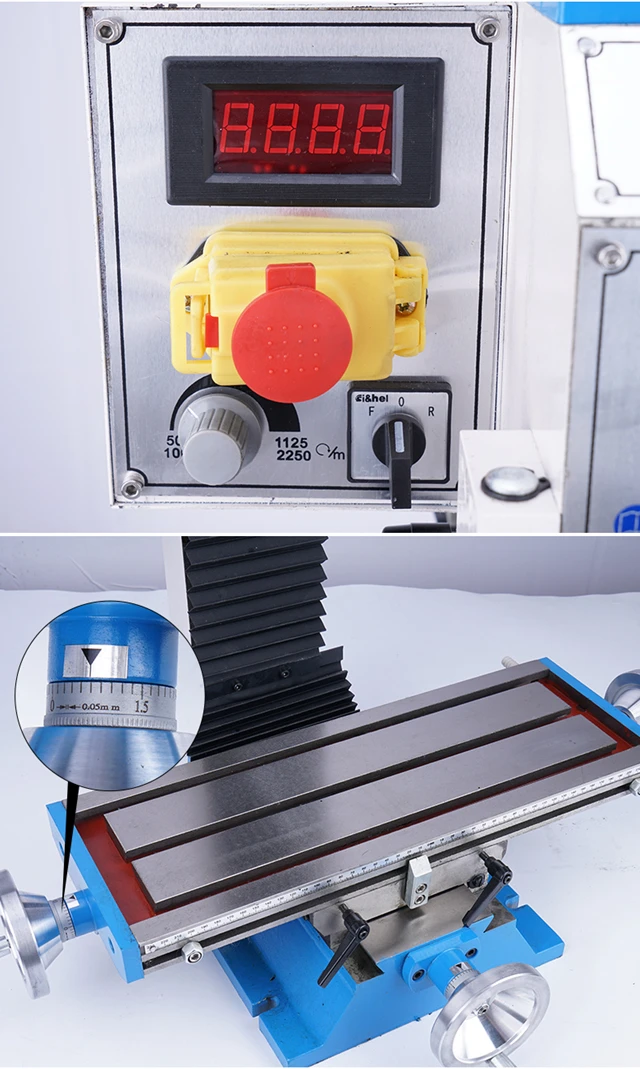

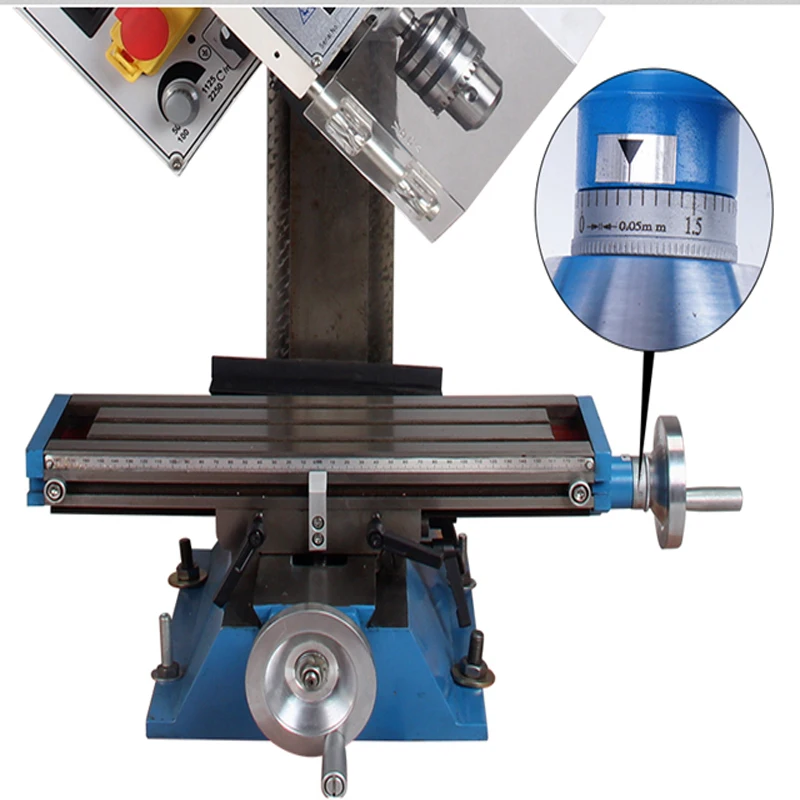

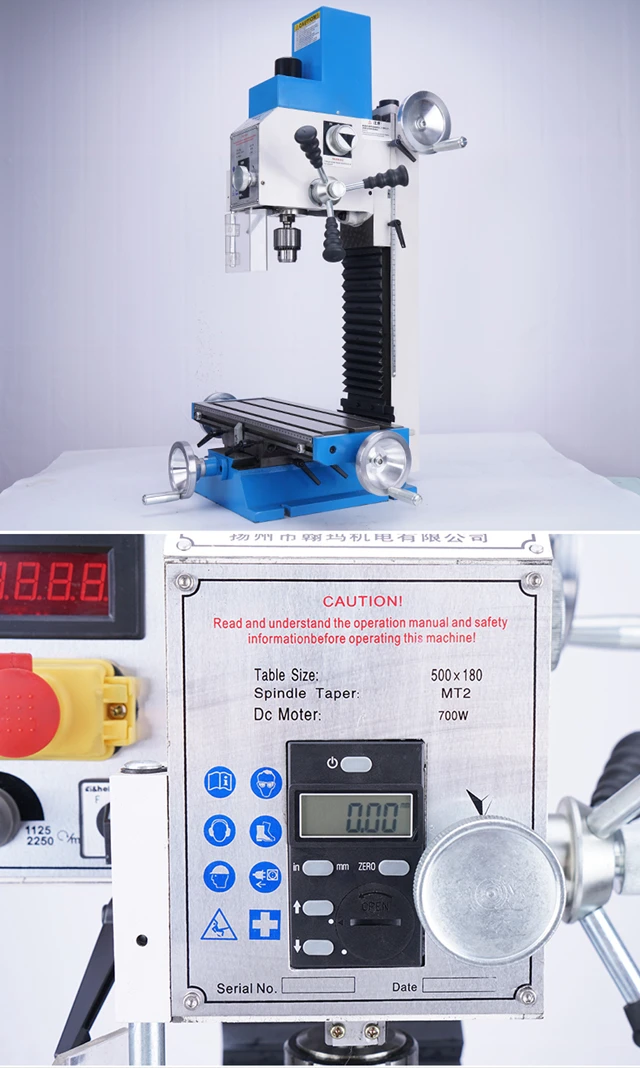

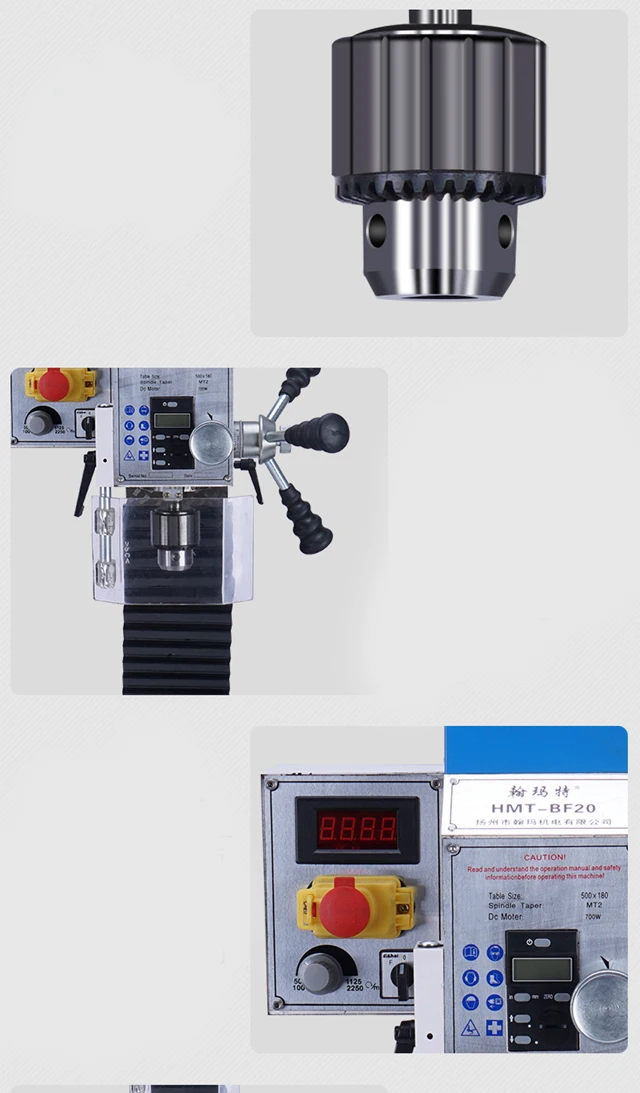

Product details
Our Factory
Packing & Delivery
Packing Details : Strong packing, 1pcs/carton
Delivery Details : 3-30 days after order
F A Q
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-30 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
