Full Auto Wipes Production Line Manufacture Wet Tissue Making Machine

Product Overview

Description

Full Auto Wipes Production LIne



Full Aoto Wipe Production Line can unroll raw material → slit fabric into lanes → fold → wetting → cut in size → output wet wipe → auto transport to packing machine, automatic packing. All these processes are completed on the machine, production is sanitary and speed is high.



Functions And Features:



Adjustable bag-making equipment for different quantity pile, Inserting corner device, Automatic electrical eye tracking, Roll type date printing device, Punching device, Labeling device, Optional avoid tear-away labeling unit.



Main Technical Parameter:

Electrical source:380V 50HZ

Power:25 KW

Production speed:2400~3600pcs/min

Folding way:"Z " folded (non-pop up)

Product size (unfolded):(150~230)×(150~250) mm (L×W)

Product size (folded):(150~230)×(90~120) mm (L×W)

Final product size:(200~300)×(90~120)×(30~80) mm (L×W×H)

Packing speed:30~50 packs/min

Suitable material:Spunlace non-woven fabric

GSM of raw material:35~80 g/m2

Size of raw material:(800~1500)×Φ1200 mm (W×D)

Control system:PLC control system, Color touching screen

Counting way:Auto-counting,pile quantity changeable on the touch screen

Humidification agitating system:Double agitating 400L×2

Water tank size:2000×1100×1900 mm (L×W×H)

Machine size:18600×3500×2200 mm (L×W×H)

Weight of machine:9000kg

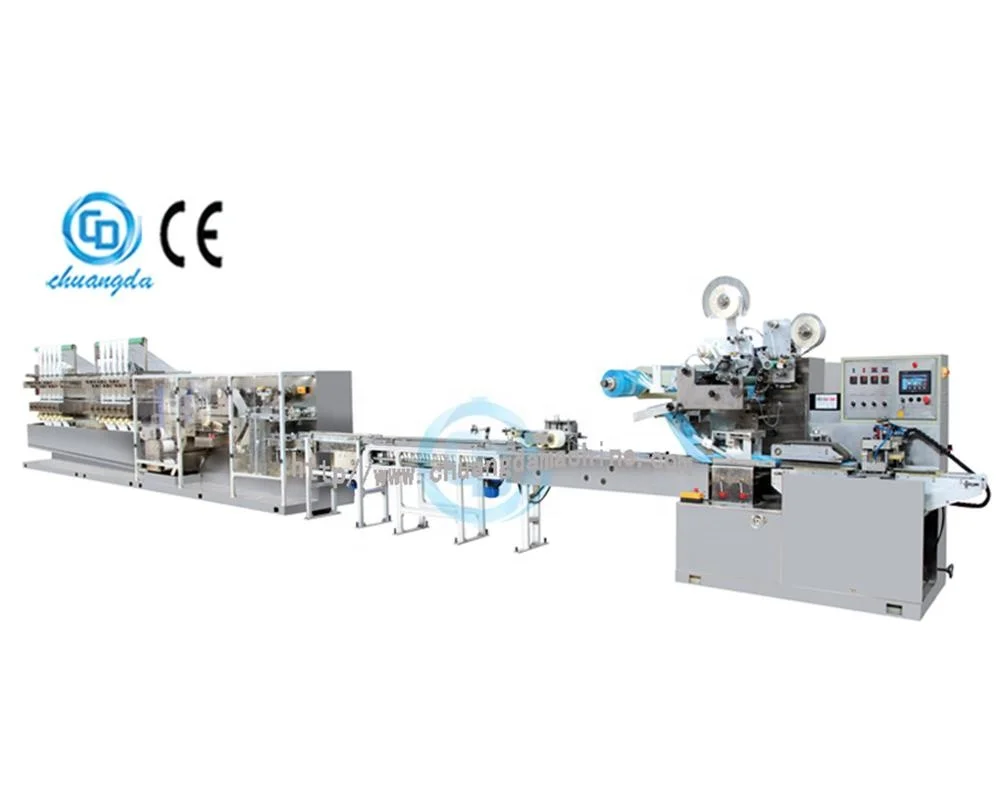

Machine  Photo:

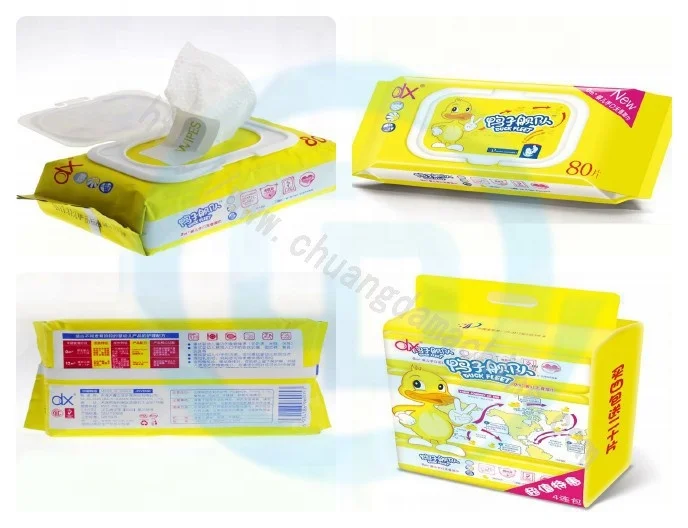

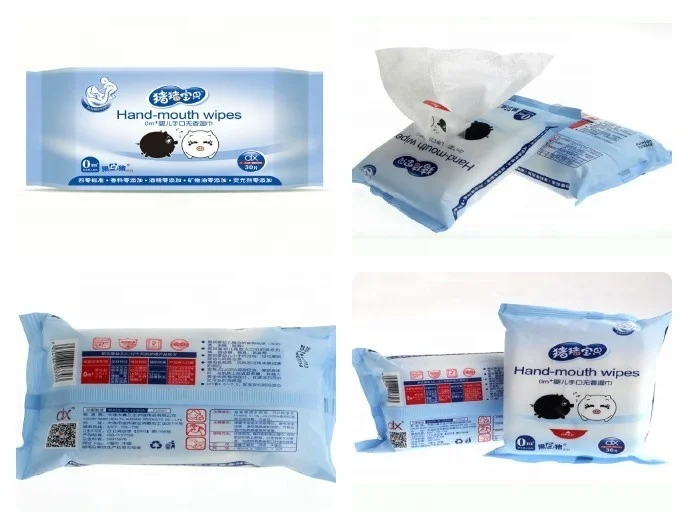

Finished Products:







Packing photo:
