Pressure Transducer Companies Melt Pressure Transducers
US $598.00-$629.00

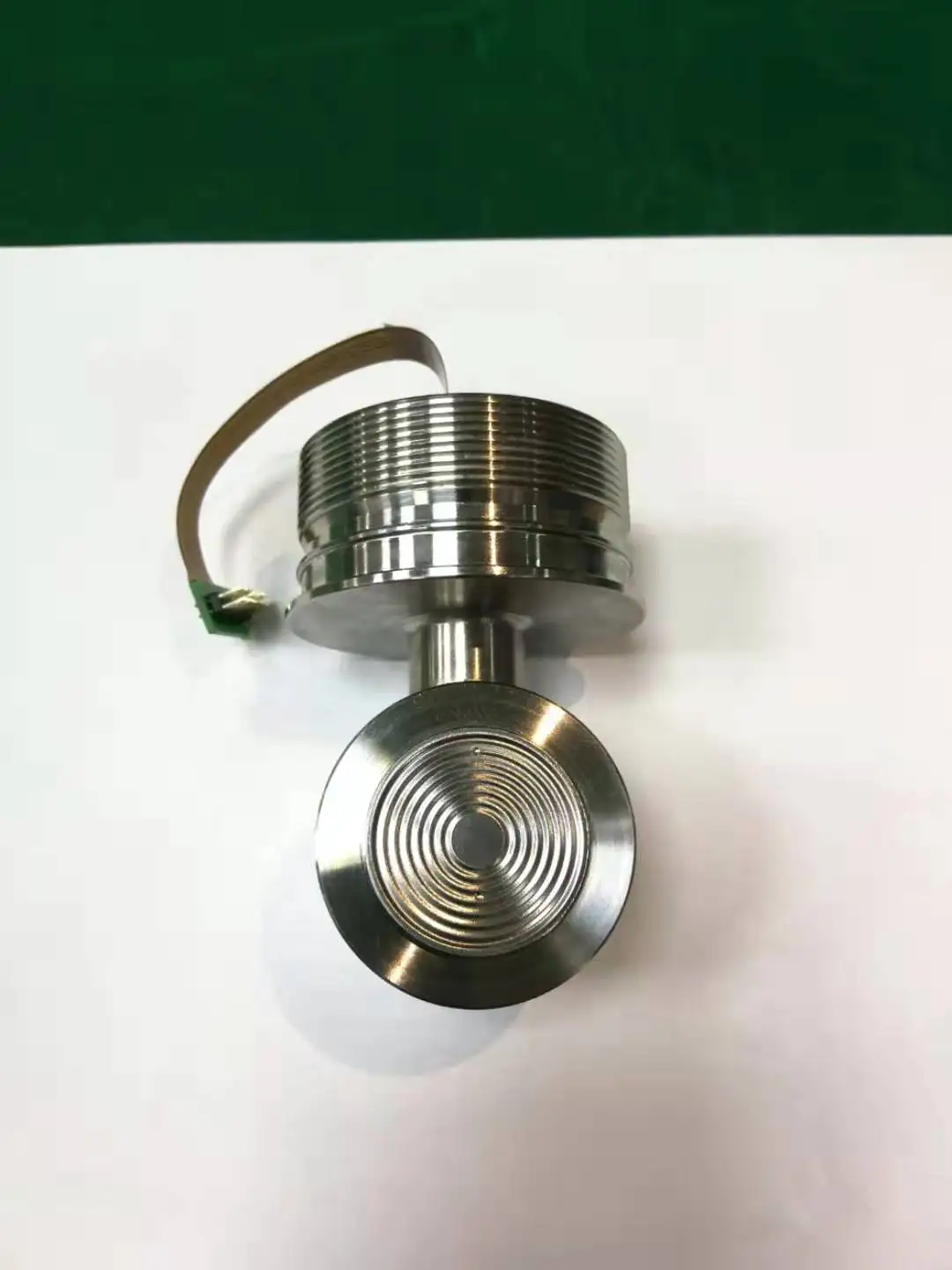

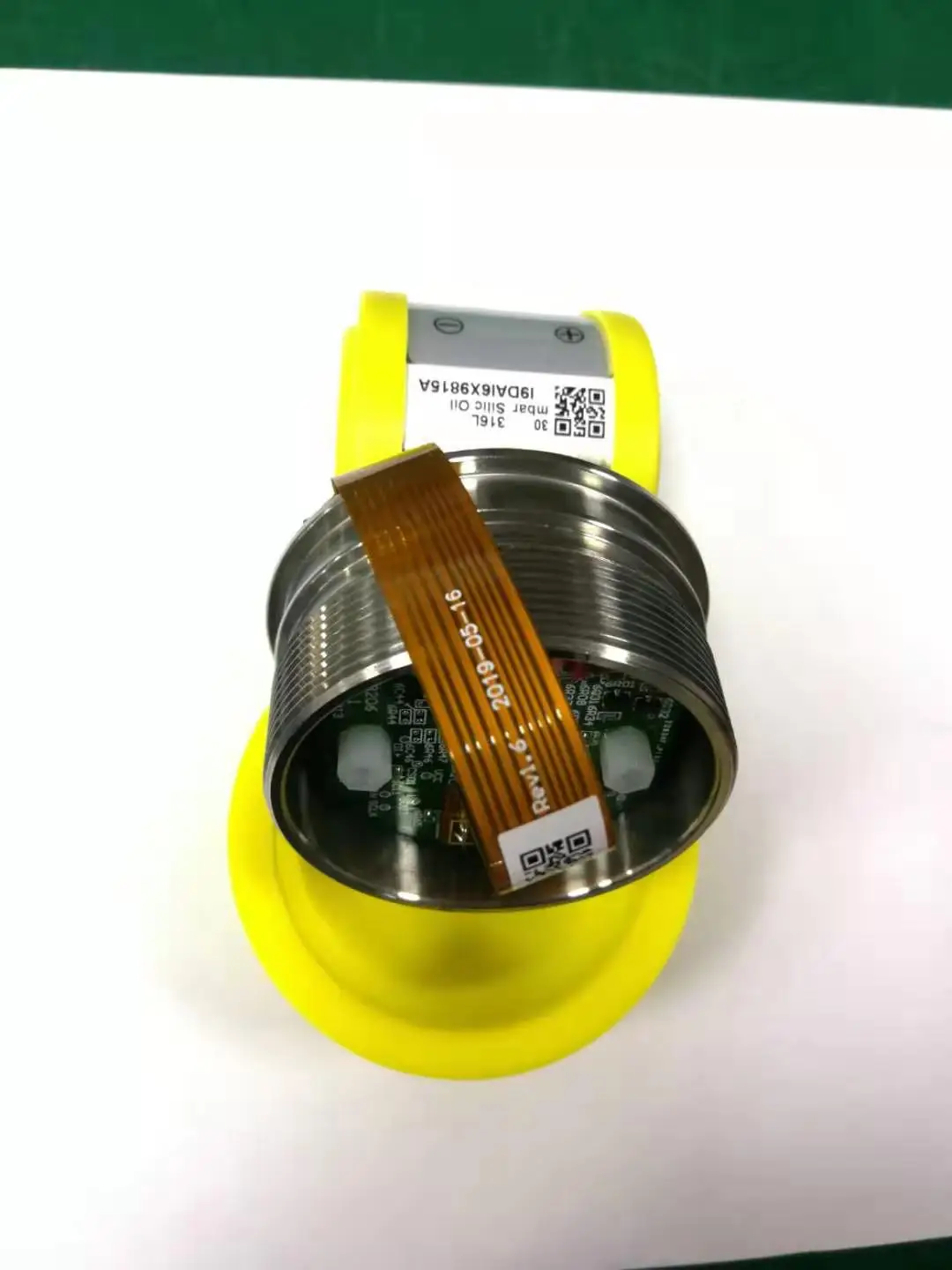

316L stainless steel diaphragm 0.1% accuracy wide range differential pressure sensor
- Category: Pressure Sensors >>>
- Supplier: Shanghai Rocksensor Automation Co. Ltd.
Share on (62316986719):
Product Overview
Description
Digital temperature compensated high stability silicon 30bar differential pressure sensor
Product Description
Size Information
RC1001 differential pressure sensor
Measurement Type | differential pressure |
Output | 4-20mA |
Reference Accuracy | 0.05%/0.075%/0.1% |
Long Term Stability | ±0.1% ×Span /3 years |
Measuring Temperature | -25 to 65°C |
Rangedown | 100:1 |
Measuring | Range |
A | 0-100Pa~1kPa(0-10~100 mmH2O)/(0-1~100mbar) |
B | 0-200Pa~6kPa (0-20~6000 mmH2O)/(0-2~60mbar) |
C | 0-400Pa~40kPa (0-40~4000 mmH2O)/(0-4~400mbar) |
D | 0-2.5kPa~250kPa(0-0.25~25 mH2O)/(0-25~2500mbar) |
F | 0-20kPa~3MPa(0-3~300 mH2O)/ (0-0.3~30bar) |
Dimension:
Certifications
Company Introduction
Shanghai Rocksensor Automation Co., Ltd. is a high technology production and service company.The company is mainly engaged in research, development, production and sales of high accuracy & stability silicon pressure sensor modules and complete pressure transmitters. All Rocksensor team members have worked in the industry and are excellent in competence and background. Most of them are high educated and have Bachelor and Master Degree. The key technicians have finished the training on theory and operation offers by IZM 。Rocksensor with solid and strong technical background, has close cooperation with several famous research institutes and groups in Europe (such as EPFL, IMT of University of Neuchatel, CESM).The research achievements transfer rate is over 93%.
Product Line
Packing&Shipping
