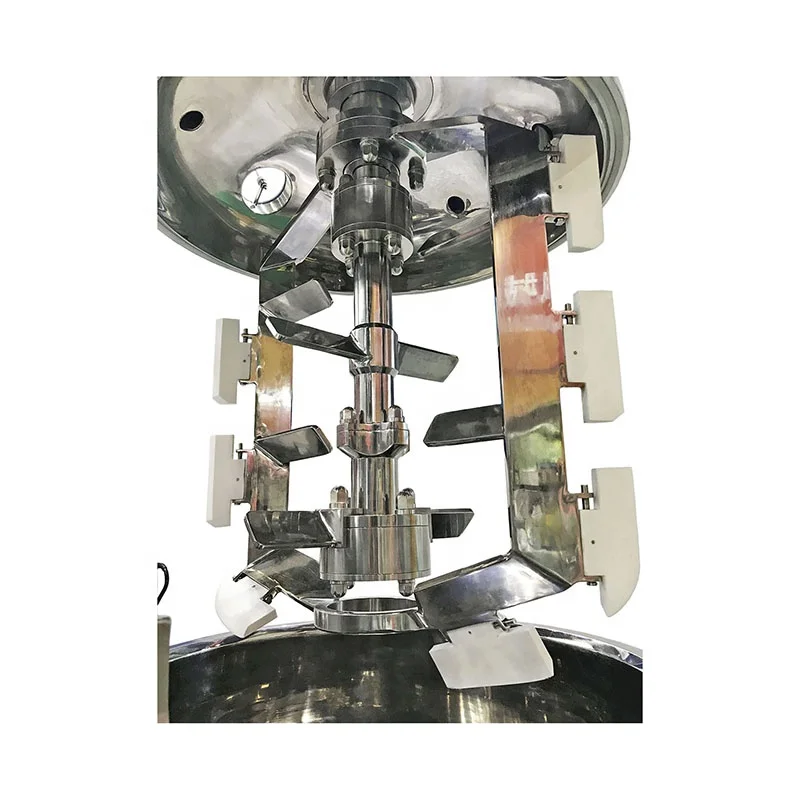

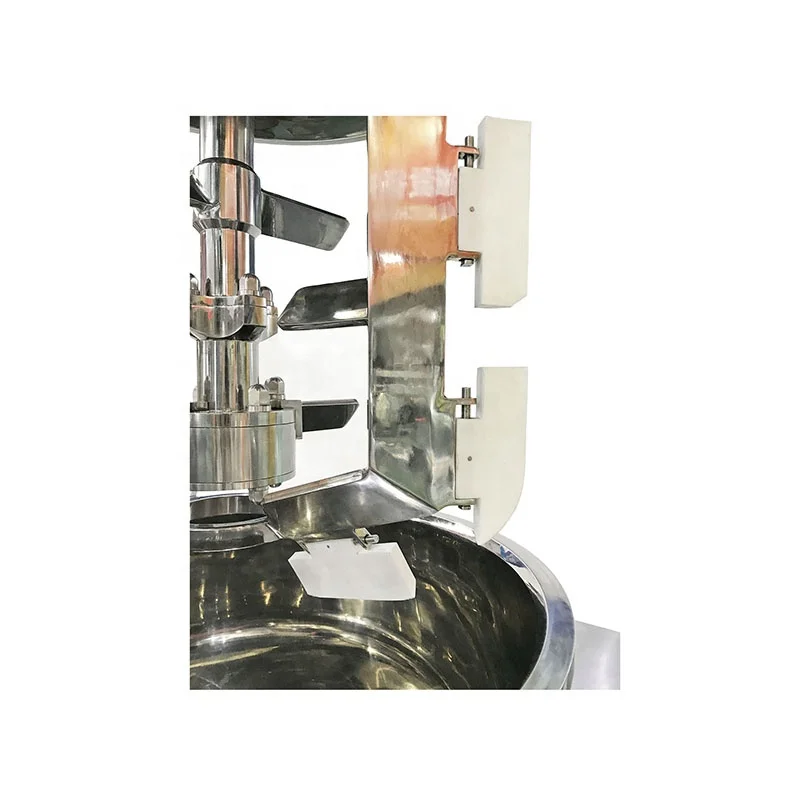

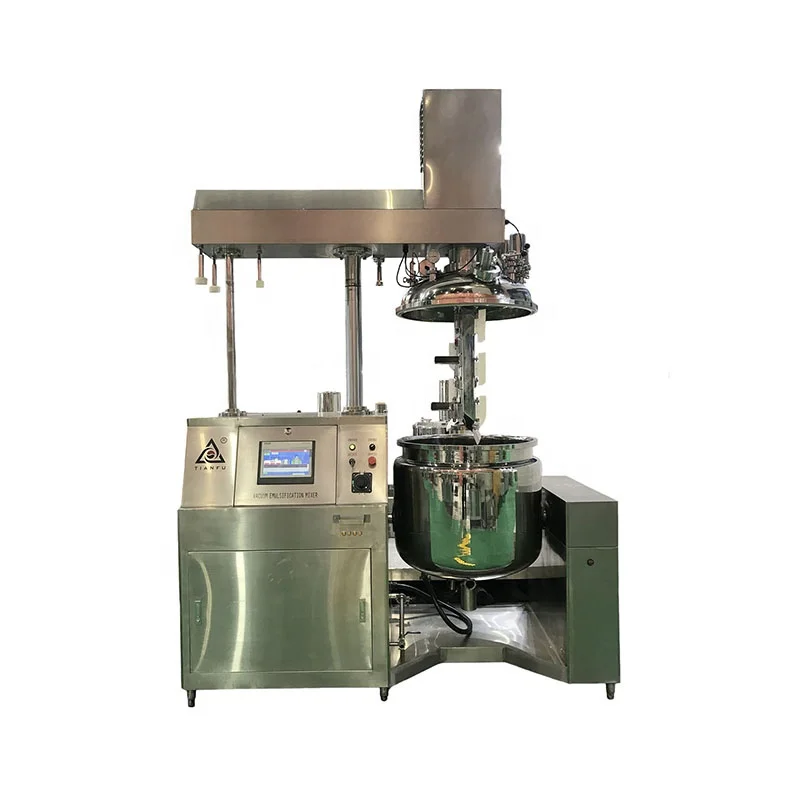

Model TFZRJ turbine emulsifying machine is a coaxial mixer of triple type, which is applied for stable homogenizing emulsification to achieve refined finished granules. The quality of emulsification is depending on dispersion of the granules at the preparation stage. The smaller the granules are, the weaker of the surface aggregation tendency will be, thus the less probability of emulsifying damage will happen. High-Quality emulsifying mixing efficiency will be achieved by the hybrid actions of reversed impellers when homogenization under the condition of vacuum status treatment. Model TFZRJ-100L cream emulsifying machine works extremely well on performance of ensuring High-quality finished products.
Capacity:
100L
Function:
Mixing
Material:
SUS316L or 304
Advantage:
Automatic

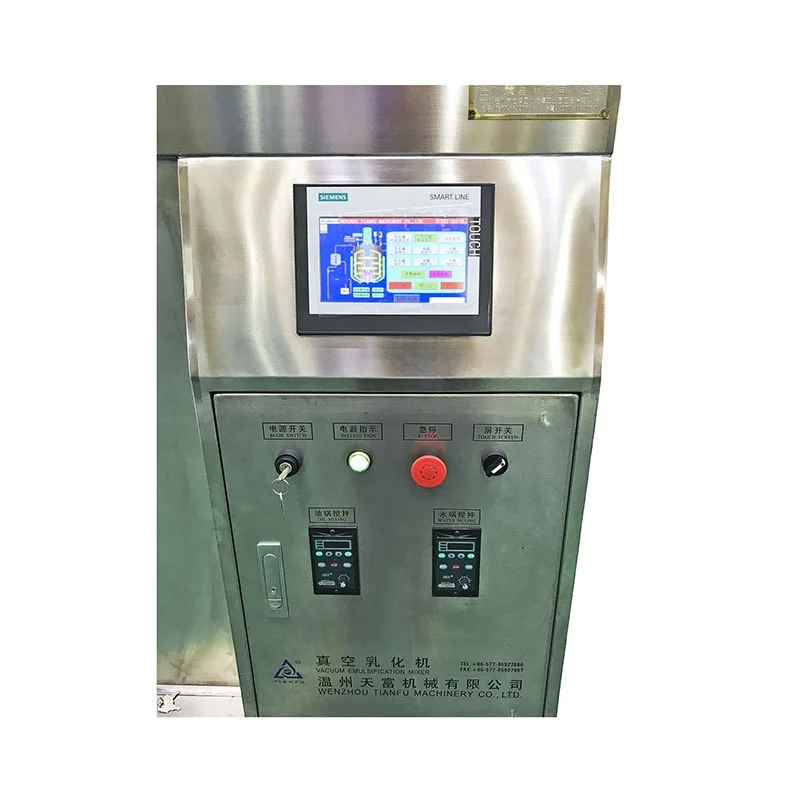

Control:
PLC
Heating:
By electricity or steam
Technical data:

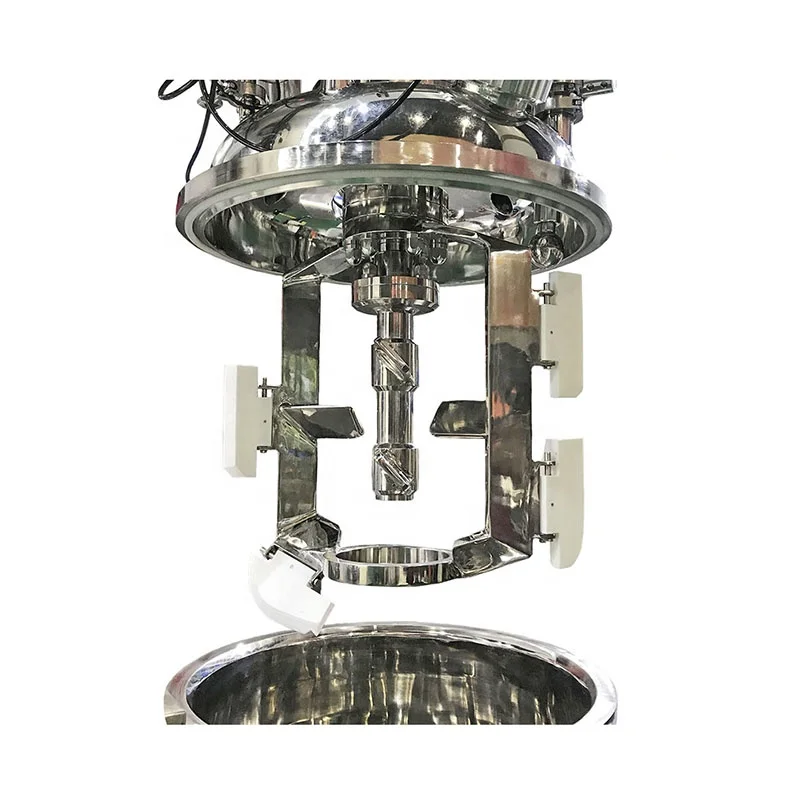

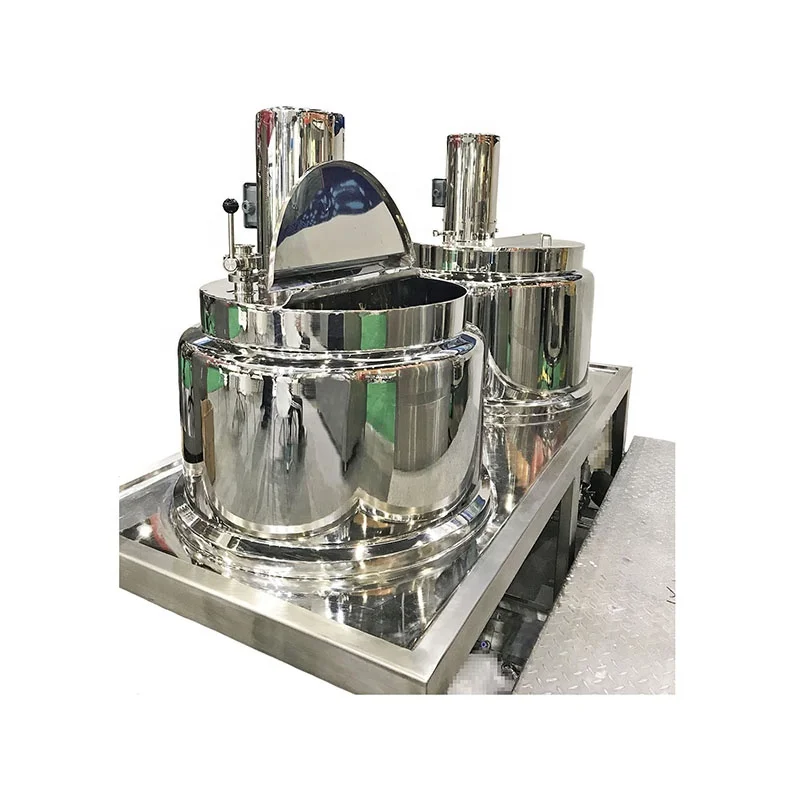

4. Technical Parameters of whole-set equipment 4.1 Total volume of container: 150L 4.2 Workable volumeof container: 100L 4.3 Min. productivity: 30L 4.4 Standard size: Refer to the Diagram 4.5 Net weight: 1800kg (only for standard Equipment) 4.6 Container body: connected by the flange with vertical and protruding edge, equipped with double jackets. 4.7 Heating: Main pot and water pot each fixed with one group of 4kw*2 hot resistance while 3kw*2 fixed in the jacket of oil pot. Cooling: By cold water 4.8 Service modes of container: atmosphere / vacuum 4.9 Basement of container: welded and high-grade mirror polished. 4.10 Upper lid: flanged and can be lifted.
Technical data:
4.11 Low-speed mixing system: 0-40 rpm, 1.5kw (frequency control). 4.12 High-speed homogenizing mixing system: 0-3500rpm, 4kw (frequency control) 4.13 Installation power of vacuum pump: 1.45kw 4.14 Working pressure of container jacket: 0.09pa 4.15 Total installation power: 29kw (only for standard equipment) 4.16 Voltage: 380 V, 50 Hz. 4.17 Voltage waving range: ±5%. 4.18 Low voltage control: 24 V 4.19 Protection: Common 4.20 The water consumption of hydraulic ring vacuum pump:4 L/min 4.21 Adjustable height of machine frame: ±10mm 4.22 The air suction device for ventilating motor 4.23 Low-voltage security guard (24 V) 4.24 The Equipment is manufactured according to GMP standard. 4.25 The machine body is fully made of stainless steel SUS304. 4.26 All parts contacted with materials are made of stainless steel SUS316L and mirror-polished.
Size Information
Size Chart of This Design
Capacity:
50L
100L
200L
500L
1000L
Related Products
Packing&Shipping
Wooden framed box packing
After Sales Service
Company Introduction
Zhejiang TIANFU Technology Co.,Ltd. (old name was Wenzhou TIANFU Machinery Co.,Ltd.) is a high-tech enterprise that founded in 2001 with registered capital of 35.18 million Yuan (about $5.1million). We are specialized in R&D, manufacturing and selling of equipment for pharmaceutical and daily chemical industries. Also, we got the Manufacture license of special equipment for pressure vessels, also the License for Installation, Alteration, Repair & Maintenance for special equipment of pressure pipelines. TIANFU certified by the ISO9001 Quality Management System and established The Enterprise Technology Research and Development Center of Wenzhou City.
Our Services & Strength
Best quality and aftersales service
FAQ
Where's our factory?Tianfu Technology is located in Wenzhou, China How's TIANFU? One of the largest emulsifying machine manufacturer of China Which industries our machines used for? Cosmetics, Pharmaceuticals, Daily chemicals, Food & Beverage etc.. Used for cream and ointment emulsification, liquid and oil mixing, body lotion, shampoo, conditioner, liquid detergent, liquid soap manufacturing etc.
