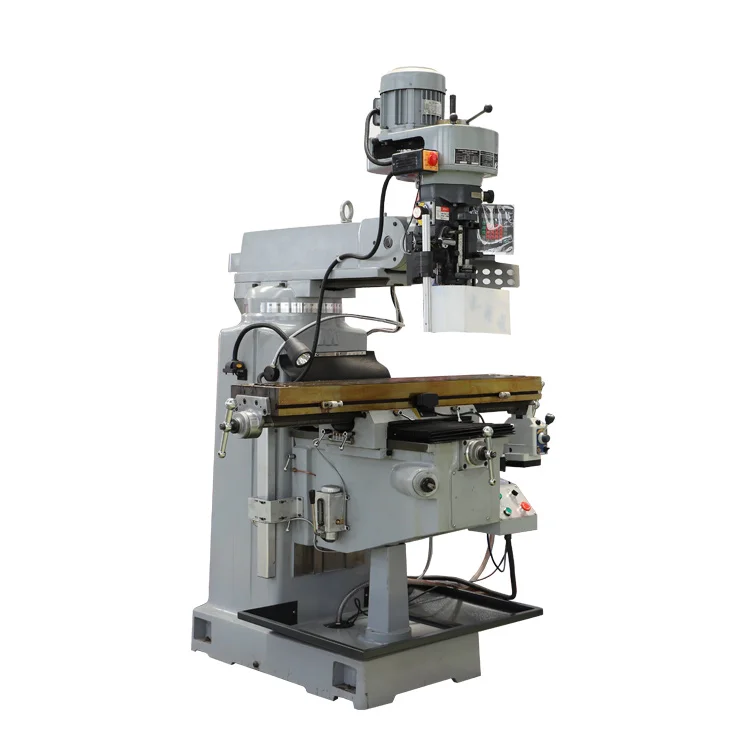

Factory outlet best price vertical turret milling machine X6330W for sale
- Category: Manual Mills >>>
- Supplier: Zaozhuang City Tengdong Machine Co. Ltd.
Share on (62363095711):
Product Overview
Description
Company Profile
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
Company under the three production bases, an import and export foreign trade companies
Product Description
Specification
Specifications | Units | X6330W | ||||
Table size | mm | 1370*305 | ||||
T- slot number and size | mm | 3x16x65 | ||||
Working table stroke | X | mm | 800 | |||
Y | 380 | |||||
Z | 360 | |||||
Arm stroke | mm | 400 | ||||
Spindle nose to working table distance | mm | 60-460 | ||||
Taper of spindle hole | r/min | Standard: R8 NT40 | ||||
Spindle speed | Standard: vertical 16(shift grade)50HZ:66-4540 horizontal 12（shift grade)40-1300 | |||||
Optional:(variable)60-4200 | ||||||
Spindle travel | mm | 127 | ||||
Spindle feed rate | mm/r | Three steps:0.04(0.0015”)/0.08(0.003”)/0.15(0.006”) | ||||
Spindle motor power | KW | 3 | ||||
Head rotation (left - right ) | ° | 90° | ||||
Head rotation (front - rear) | ° | 45° | ||||
Overall size(LxWxH) | mm | 1700x1600x2250 | ||||
Machine Weight | Kg | 1450 | ||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
characteristics:
1. High strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Vertical turret milling machine X6330W application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Vertical turret milling machine X6330W application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Q1.What machines can be available in your factory?
A:We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after receiving the deposit.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.How' s your after-sale service?
A:Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q6.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
A:We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after receiving the deposit.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.How' s your after-sale service?
A:Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q6.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
