Hot sale vertical milling machine/knee type Milling Machine X5032
- Category: Manual Mills >>>
- Supplier: Tengzhou Borui CNC Machine Tool Co. Ltd.
Share on (62367237911):
Product Overview
Description

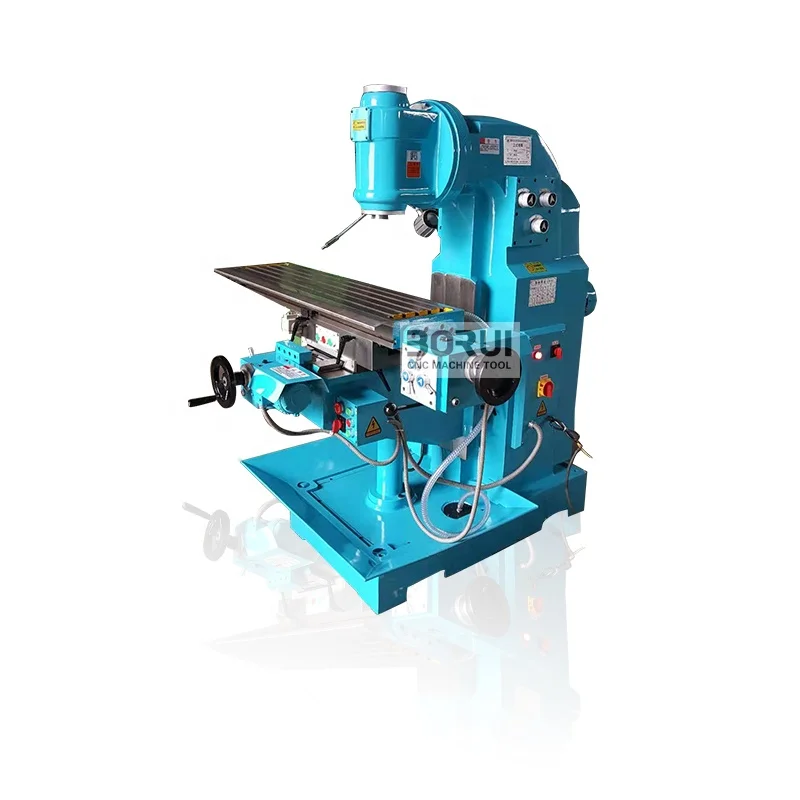

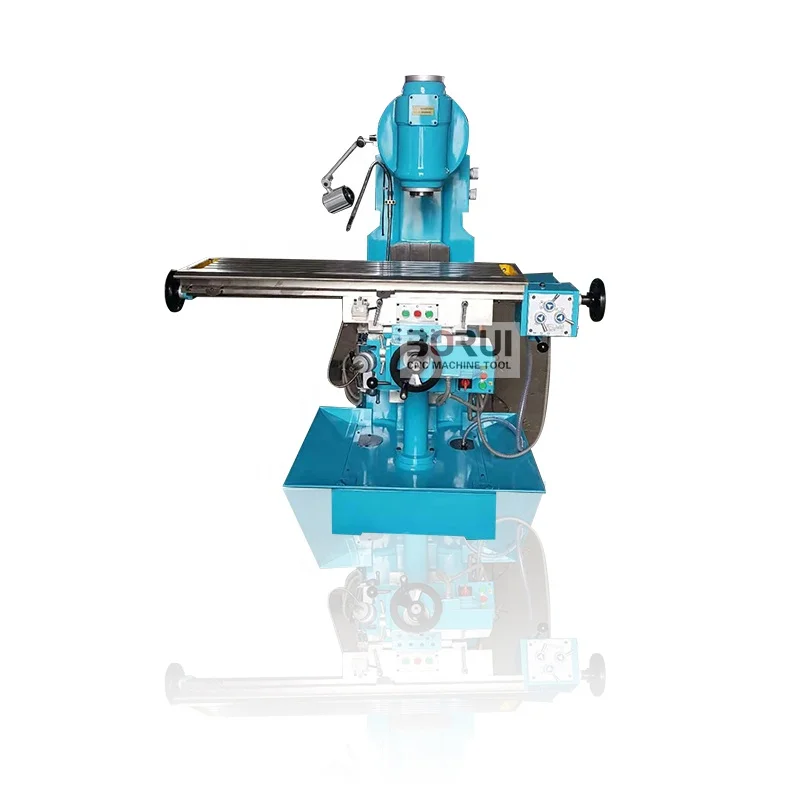

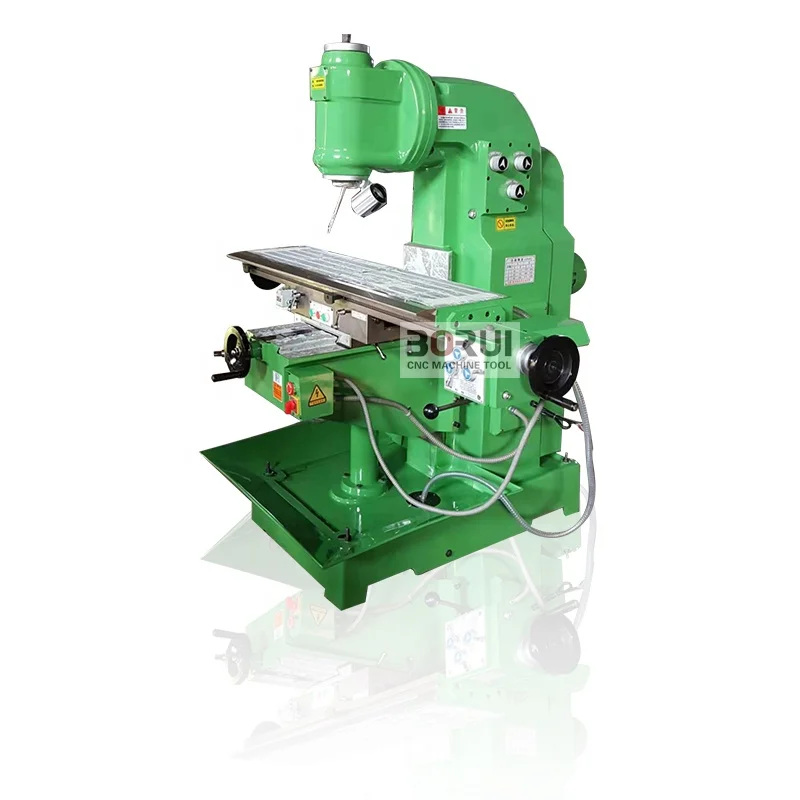

Hot sale vertical Milling Machine/Knee Type Milling Machine X5032
Product Description
Standard configuration
- Machine structure, good rigidity, can withstand heavy cutting
- Machine spindle motor power, variable speed range, give full play to the tool performance, high-speed cutting
- Wear-resistant castings using vanadium-titanium wear-resistant cast iron, the important transmission parts using high-quality alloy steel
- To ensure the durability and stability of the machine
- Machine has a perfect lubrication system
MAIN TECHNICAL DATA | Item | X5032A | X5032 |
Spindle taper |
| 7:24 ISO50 | 7:24 ISO50 |
Spindle nose to table distance | mm
| 60-540 | 60-420 |
Vertical guide surface distance spindle center to bed | mm | 325 | 320 |
Range of spindle speeds | rpm | 60-1800 | 40-1300 |
Vertical milling head turning angle | ° | 30 | 30 |
Size of Table | mm | 1500x320 | 1500x320 |
Table travel(vertical / horizontal /vertical) | mm | 1000/380/450 | 980/320/420 |
Table longitudinal /transverse motor feed rate | mm/min | 22-555 | 22-555 |
Workbench vertical motorized lift speed | mm/min | 590 | 590 |
The main drive motor power | kw | 5.5 | 3/4 |
Bench motor feed motor
| W | 750 | 750 |
Lifts motorized lift motor power
| W | 1100 | 1100 |
Cooling pump motor power
| W | 90 | 90 |
Overall dimensions of machine
| mm | 2200x1900 x 2250 | 1600x 1700 x 1800 |
Net / gross amount of
| T | 3/2.8 | 2/2.1 |
Detailed Images
hot sale
 |  |  |
| x6325 turret milling machine | x6336 turret milling machine | x6232 Swivel Head Milling Machine |
 |  |  |
| xA7150 bed type milling machine | x6140 horizontal milling machine | x5040 knee type milling machine |
