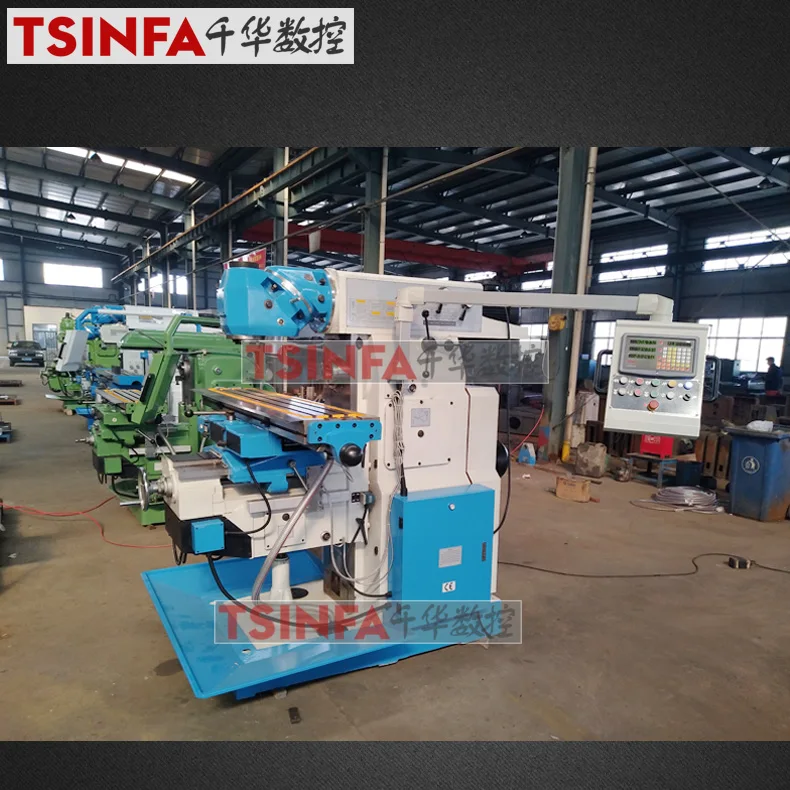

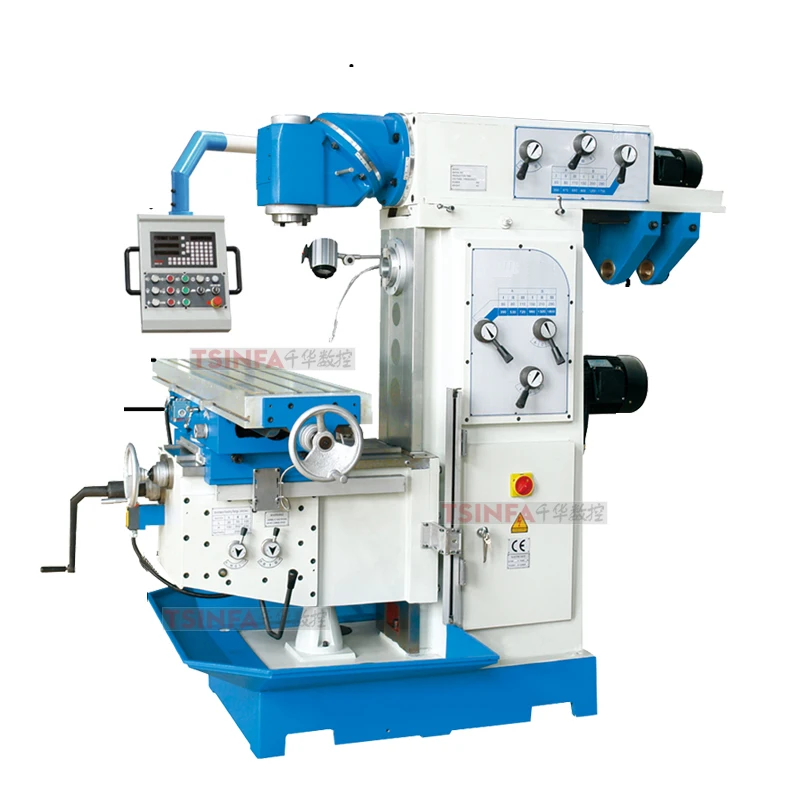

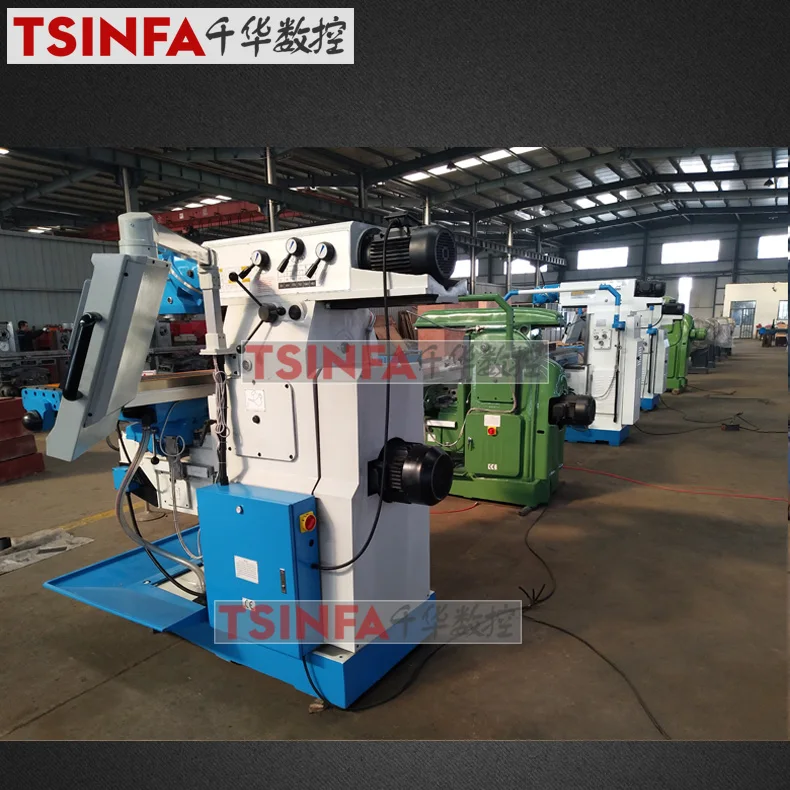

Universal milling machine vertical horizontal milling ram type China supplier CE manual control factory outlets
- Category: Manual Mills >>>
- Supplier: Shandong Tsinfa CNC Equipment Co. Ltd.
Share on (62435775042):
Product Overview
Description
Recommend Products
Products Description
Application
The machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles.
Main Feature
1.Hardened guideway

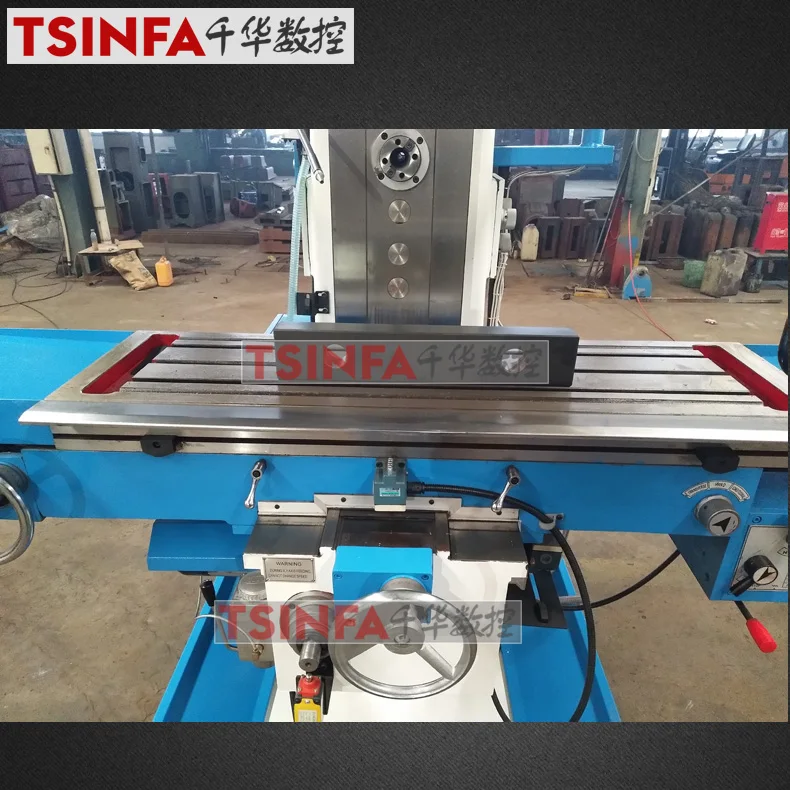

2.Work table can swivel 45 degree
3.X.Y & Z axis auto feeding

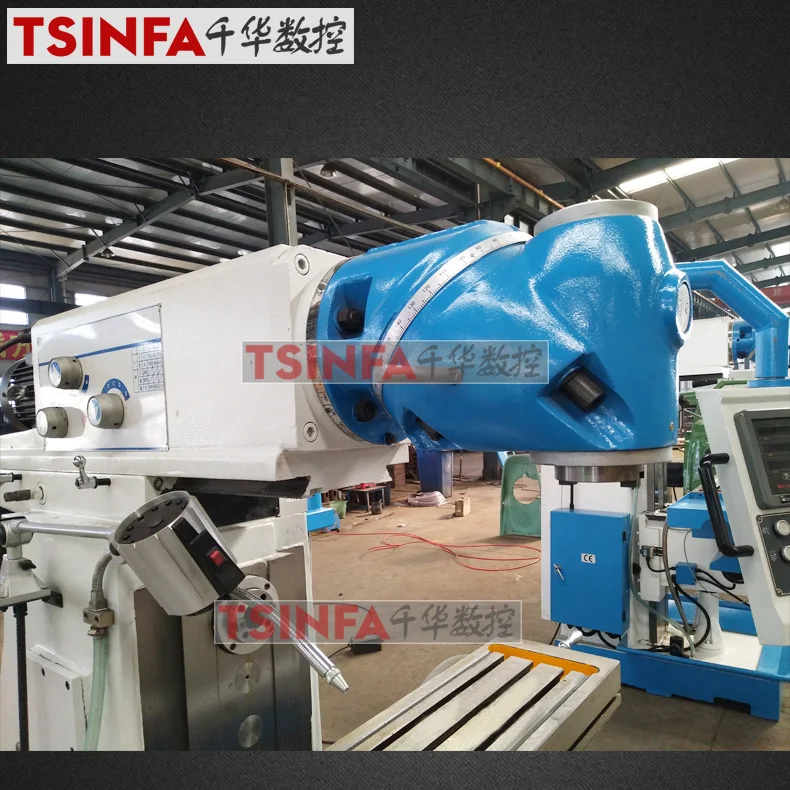

4.Mill head swivel ±360 degree with high performance
5.Spindel Taper is ISO 50,Large torgue, fast moving is 2000mm/min
The machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles.
Main Feature
1.Hardened guideway
2.Work table can swivel 45 degree
3.X.Y & Z axis auto feeding
4.Mill head swivel ±360 degree with high performance
5.Spindel Taper is ISO 50,Large torgue, fast moving is 2000mm/min
Product Paramenters
Specification | units | WN-736A |
table size | mm | 1630*360 |
Numbers, width&distance between T-slot | mm | 3*18*80 |
Max.longitudinal travel | mm | 900 |
Max.cross travel | mm | 300 |
Max.vertical travel | mm | 390 |
Travel of arm | mm | 600 |
Distance from horizontal spindle to table | mm | 0-390 |
Swivel angle of the vertical milling head | degree | ±360° |
Max.rotary angle of table | degree | ±45° |
Distance from vertical spindle to column surface (Min) | mm | 360 |
Distance from horizontal spindle to ram bottom | mm | 210 |
Level spindle taper | taper | ISO50 |
Milling head spindle taper | taper | ISO50 |
Level spindle speed grade | steps | 12 |
Level spindle speed range | rpm | 60-1800 |
Milling Head spindle speed garde | steps | 12 |
Milling head spindle speed range | rpm | 60-1800 |
Grade of the work-table feeds | steps | 6 |
Range of feed speeds longitudinal,cross,vertical | mm/min | 30-630 |
Speed of rapid travels longitudinal,cross,vertical | mm/min | 2000 |
Milling head spindle drive motor | kw | 4 |
Lift motor | kw | 4 |
Feed motor | kw | 1.5 |
Coolant pump | w | 40 |
Net weight /Gross weight | kg | 2388 |
Overall dimensions(L×W×H) | mm | 1770*1830*1980 |
Overall packing dimensions(L×W×H) | mm | 1960*2080*2250 |
Machine tool accuracy | Q/04LNJ011-1998 |
Details Images
333
Product packaging
Company Profile
Shandong Tsinfa CNC Equipment Co., Ltd specializes in high-end manufacturing and sales of CNC machine tools, machinery and
agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D
Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC
lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines,
radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural
mechanization equipment and so on. .
Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving,
high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for
society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we
stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
agricultural machinery equipment design and research and development. the company under the jurisdiction of Industrial Park D
Area, Tengzhou Shandong province.Our products cover precision CNC cylindrical grinding machines, face cylindrical grinders, CNC
lathes, three-axis CNC machining centers, four-axis CNC machining centers, five-axis CNC machining centers, CNC Slotting machines,
radial drilling machines, CNC cutting machines, boring machines, and ordinary lathes. Universal milling machine, agricultural
mechanization equipment and so on. .
Our mission is to lead in innovation as a machine tool supplier. Supply machine tools with the features of energy-saving,
high-efficient and appropriate. To satisfy requirement for customer and to provide convenience for user, to create value for
society and to seek happiness for employees are our pursuits. Driving customer success and value creation is the key of TSINFA, we
stick to giving top priority to the interest of customers by innovation of product’s design and processing technology.
Certifications
FAQ
Q:Your company's delivery time?
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
A:Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
Q:Your payment?
A:We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q:How do we get the training for the machines?
A:You can send your people to our factory and we will offer traing free of charge.
Q:How about the quality?
A:First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
Q:Your after-sales service?
A:1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
