Pressure Transducer Companies Melt Pressure Transducers
US $598.00-$629.00
SKA G100 High Pressure Glass Micro Fused Pressure Sensor
- Category: Pressure Sensors >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (62469588391):
Product Overview
Description
Products Description

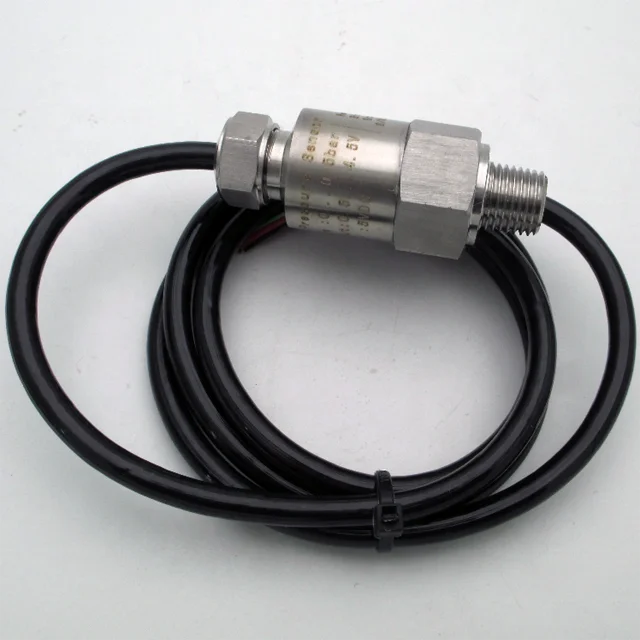

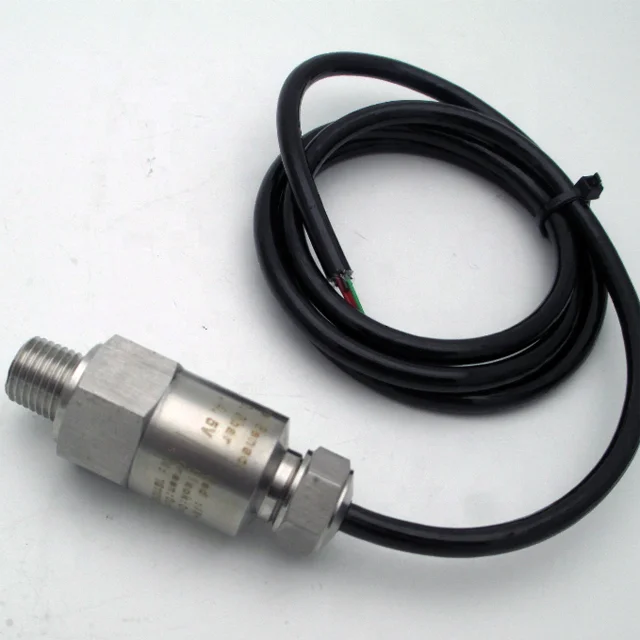

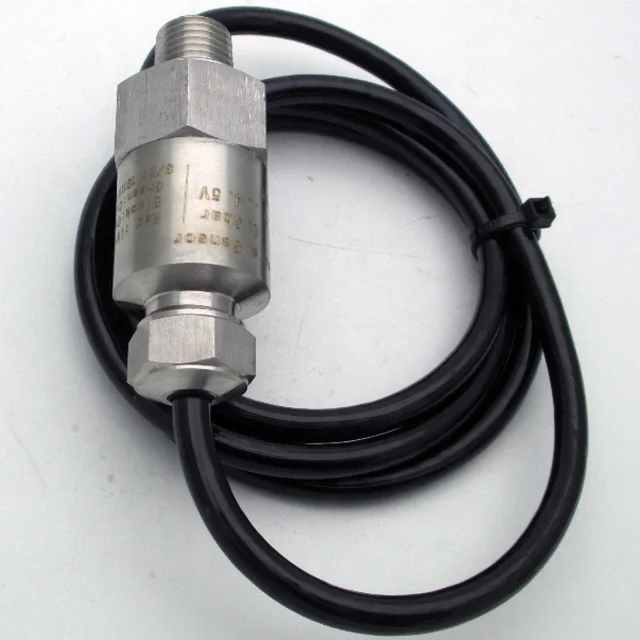

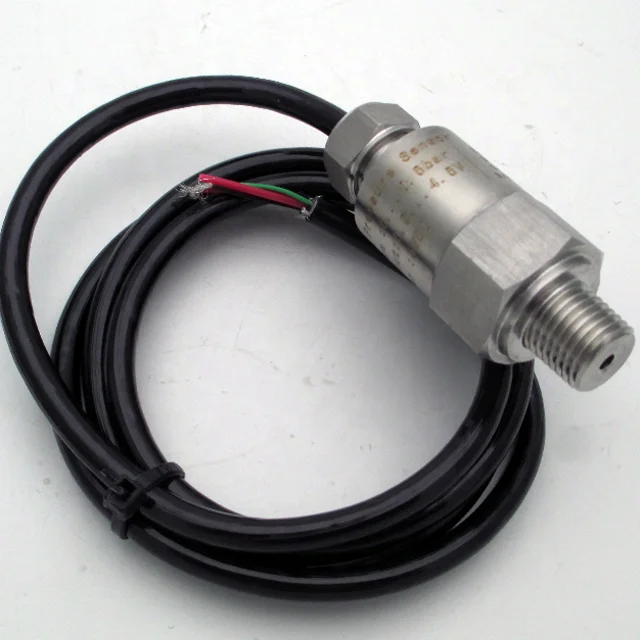

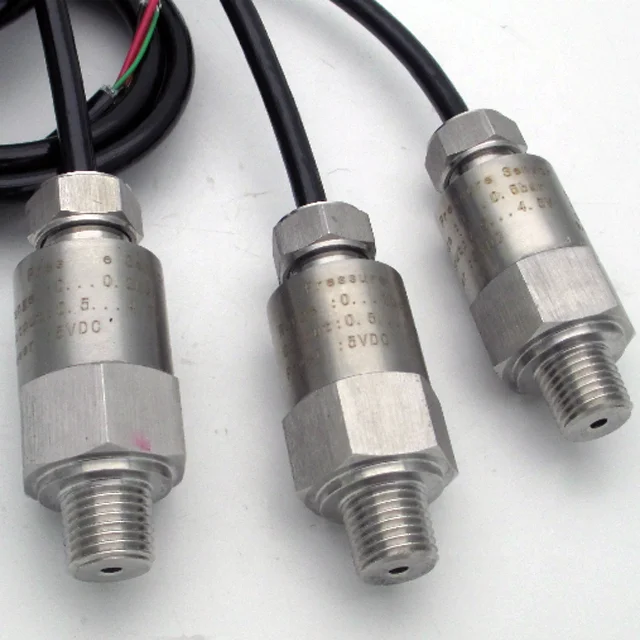

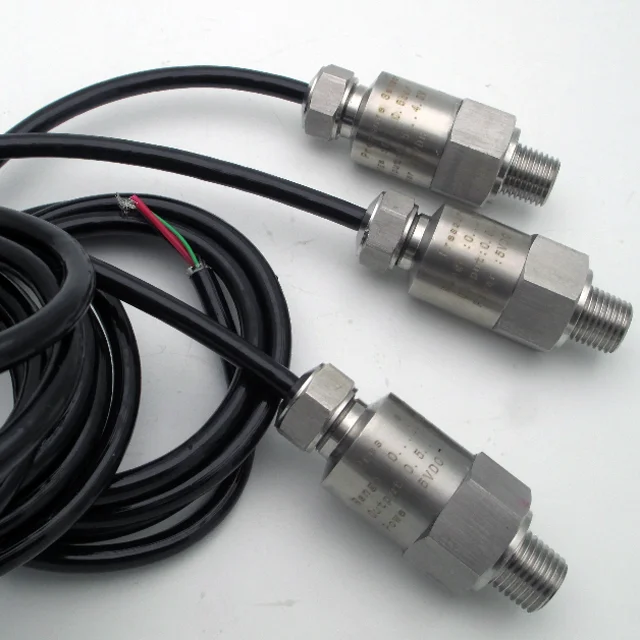

SKA-G100 High Pressure Glass Micro Fused Pressure Sensor
Parameters：
Pressure range: 0~150MPa, 180MPa, 200MPa
Pressure reference: Gauge Pressure
Accuracy: ±1%F.S.
Supply Power: 5±0.25VDC
Signal Output:
4~20mA 0.5~4.5VDC 0.5~5VDC 0.5~10VDC
Accuracy:±0.1%FS ±0.3%FS ±0.5%FS，±1%FS
Operating temp.: -40~140℃
Overpressure: 200%F.S.
Protection: IP65
Sensing element material: 17-4PH
Housing material: 304
Certificate: RoHS,
Packaging Details：Standard export packing (weight: 80g)
Features
Integrated structural design, no leakage risk, digital circuit processing
Excellent shock resistance, anti-overpressure and anti-vibration
Strong anti-interference, good long-term stability
Small size, light weight, easy to install and use
Various process and electrical connection options
Suitable for batch production, economic and reliable
Product overview
Parameters：
Pressure range: 0~150MPa, 180MPa, 200MPa
Pressure reference: Gauge Pressure
Accuracy: ±1%F.S.
Supply Power: 5±0.25VDC
Signal Output:
4~20mA 0.5~4.5VDC 0.5~5VDC 0.5~10VDC
Accuracy:±0.1%FS ±0.3%FS ±0.5%FS，±1%FS
Operating temp.: -40~140℃
Overpressure: 200%F.S.
Protection: IP65
Sensing element material: 17-4PH
Housing material: 304
Certificate: RoHS,
Packaging Details：Standard export packing (weight: 80g)
Features
Integrated structural design, no leakage risk, digital circuit processing
Excellent shock resistance, anti-overpressure and anti-vibration
Strong anti-interference, good long-term stability
Small size, light weight, easy to install and use
Various process and electrical connection options
Suitable for batch production, economic and reliable
Product overview
Details Images

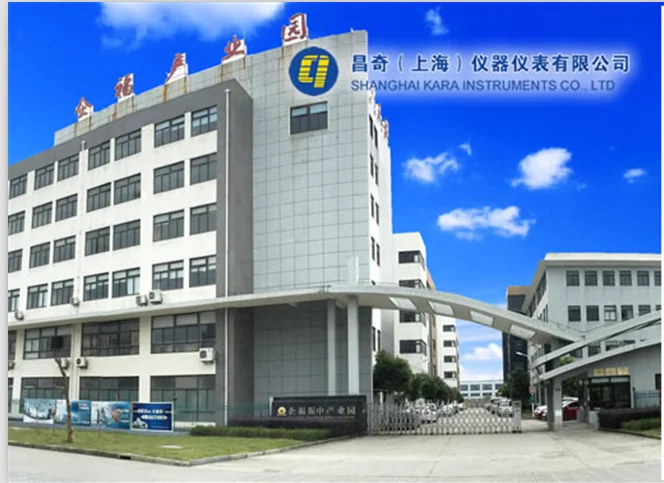

Company Profile
