Price:$1,500.00

Quantity:


Product Overview

Description



Products Description

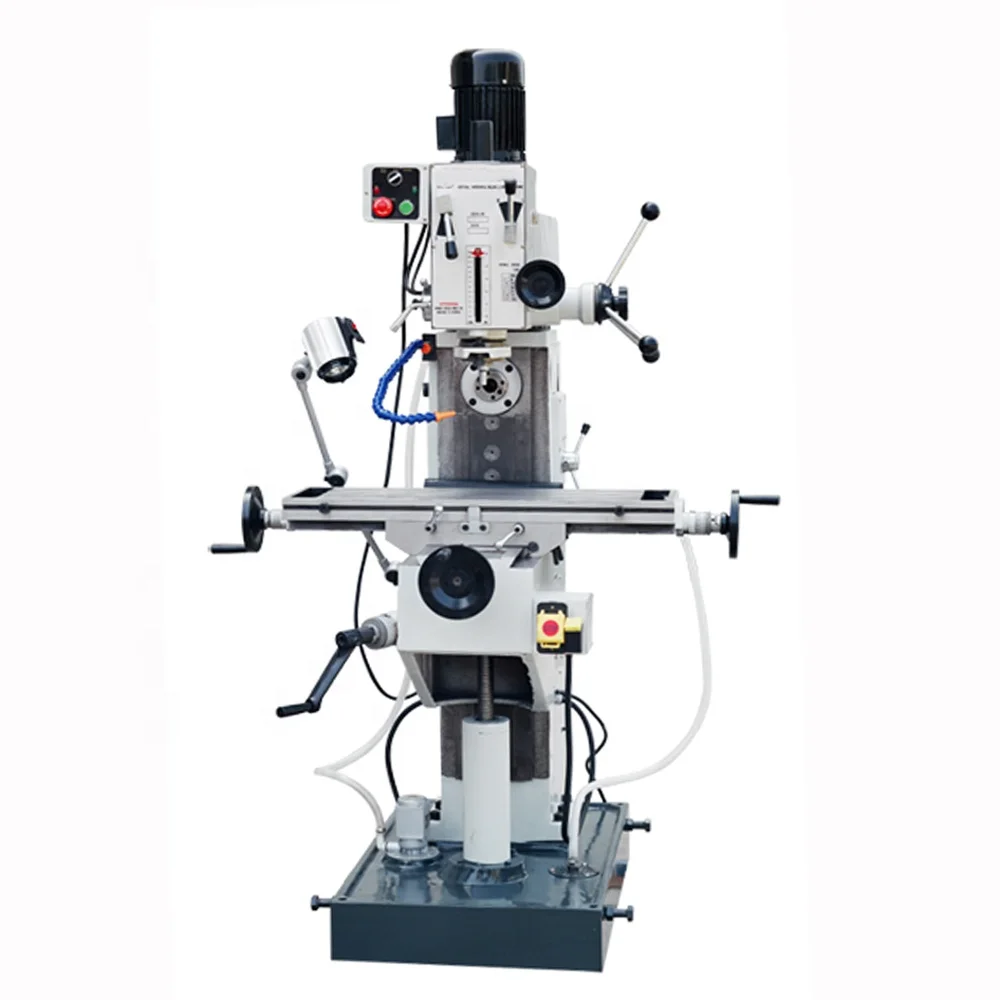

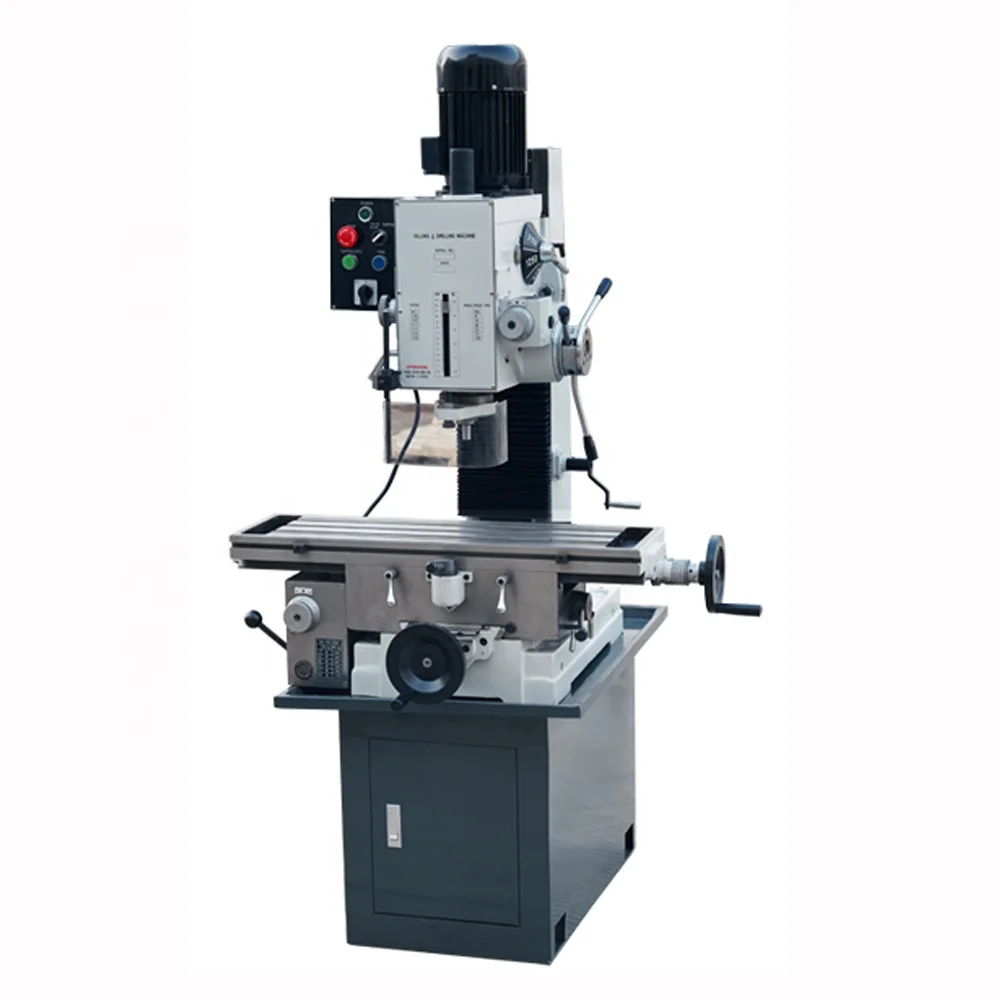

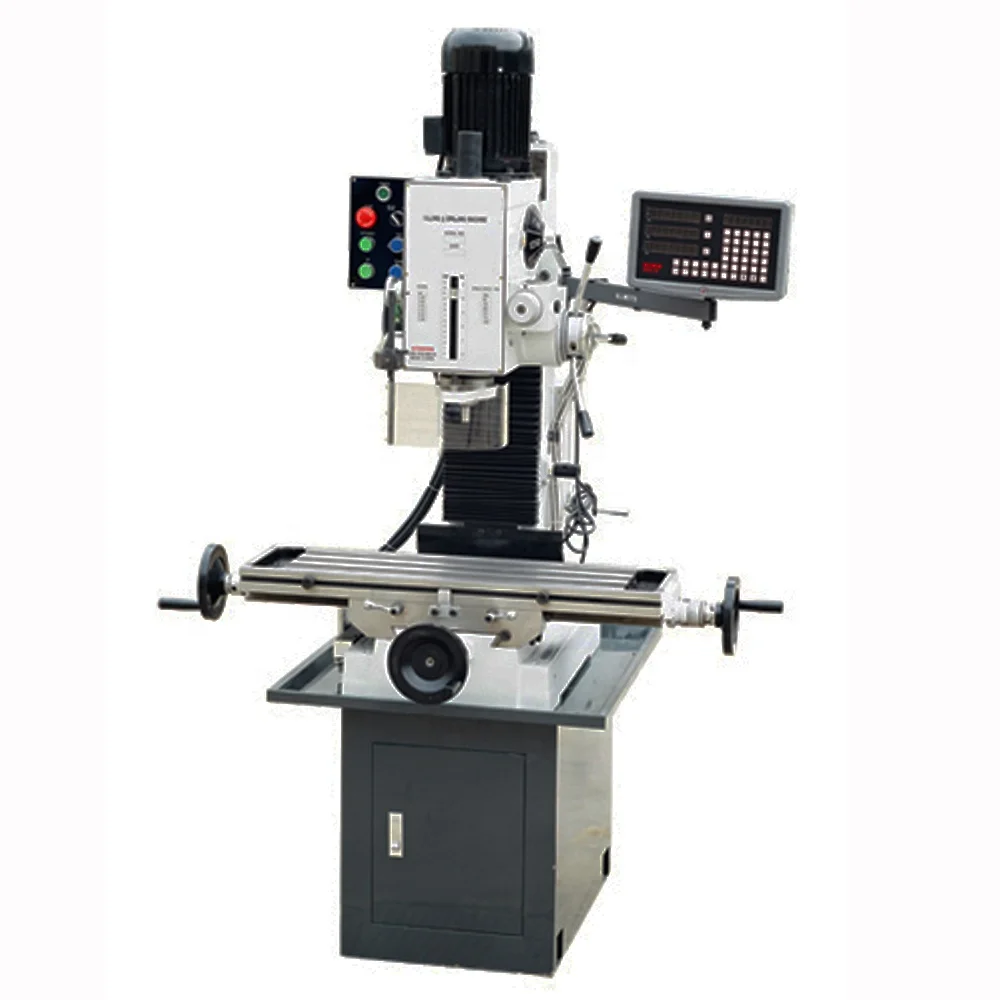

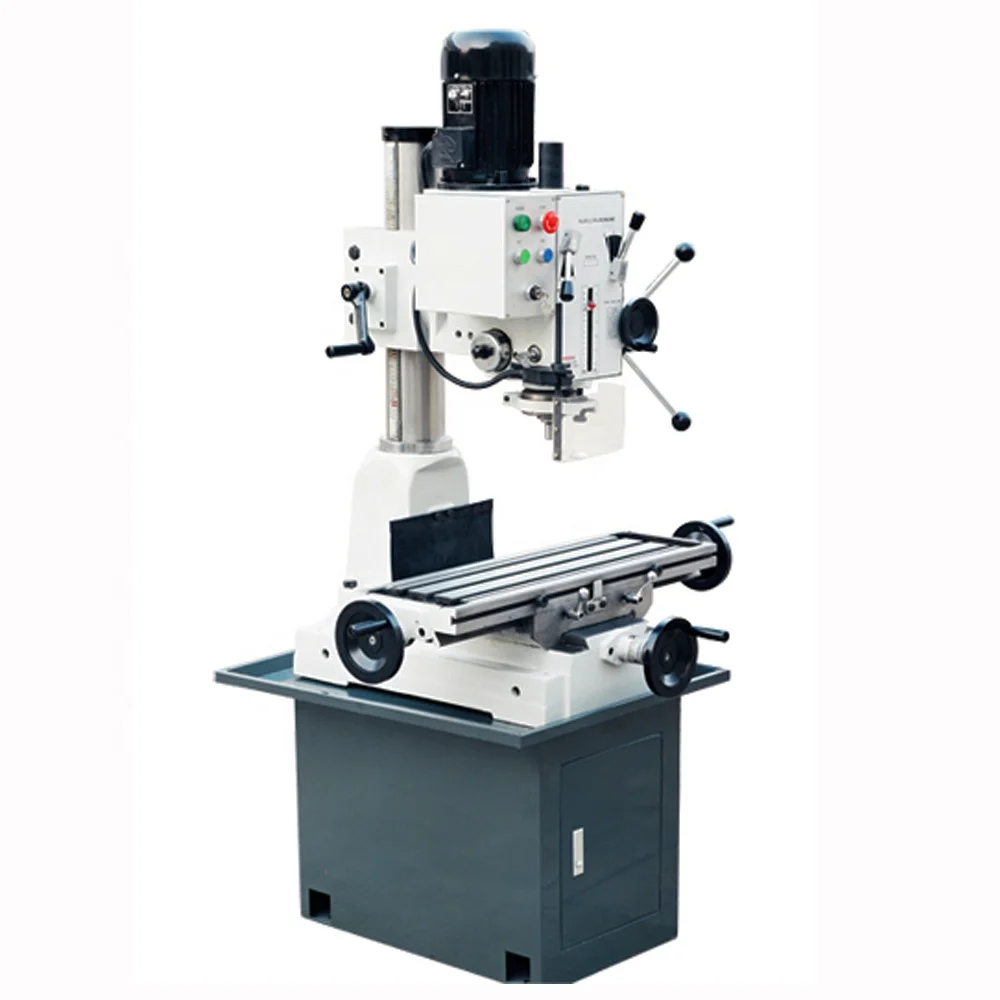

ZX7045FG DRO manual milling and drilling machine


Features:

1. Square column.

2. Gear driven milling and drilling machine.

3. Used for metal mill drill works.

4. Machine stand is optional.

5. Voltage and machine color can be chosen.

6. Wotable size 800x240mm.

7. Spindle taper MT4 or R8 can be chosen.


Model
ZX7020FG
ZX7032FG
ZX7040FG
ZX7045FG
Drilling capacity
20mm
32mm
40mm
45mm
Face milling capacity
63mm
63mm
80mm
80mm
End milling capacity
20mm
20mm
32mm
32mm
Distance from spindle nose to table
445mm
450mm
450mm
450mm
Min.distance from spindle axis to column
203mm
260mm
260mm
260mm
Spindle travel
85mm
130mm
130mm
130mm
Spindle taper
M.T.3 or R8
M.T.3 or R8
M.T.4 or R8
M.T.4 or R8
Step of spindle speed
6
6
6
6
Range of spindle speed 50Hz
95-1420 r.p.m
80-1250 r.p.m
80-1250 r.p.m
80-1250r.p.m
60Hz
115-1700 r.p.m
95-1500 r.p.m
95-1500 r.p.m
95-1500 r.p.m
Swivel angleof headstock (vertically)
90°
90°
90°
90°
Table size
520×160mm
800×240mm
800×240mm
800×240mm
Forward and backward travel of table
140mm
175mm
175mm
175mm
Left and right travel of table
290mm
500mm
500mm
500mm
Motor Power
0.37KW
0.75KW
1.1KW
1.5KW
Voltage/frequency
As customer's requirement
Net weight/gross weight
180kg/240kg
320kg/370kg
323kg/373kg
325kg/375kg
Packing size
680×750×1000mm
770x880x1160mm
770x880x1160mm
770x880x1160mm
Loading amount
48pcs/20' container
36pcs/20' container
36pcs/20' container
36pcs/20'  container


Standard accessories:
1. drill chuck
2. draw bar
3. wrench
4. tools & tool box
5. spindle protection cover
Optional accessories:
1. machine stand
2. DRO
3. power feed
4. machine vise
5. coolant pump
6. work lamp
7. milling chuck


Other models milling drilling machine for your choice:



ZX7032A-1 drilling milling machine
ZX7032G milling drilling machine




ZX7032V metal drill mill machine
ZX7032FG-1 mill drill machine
ZX7532 drilling & milling machine
