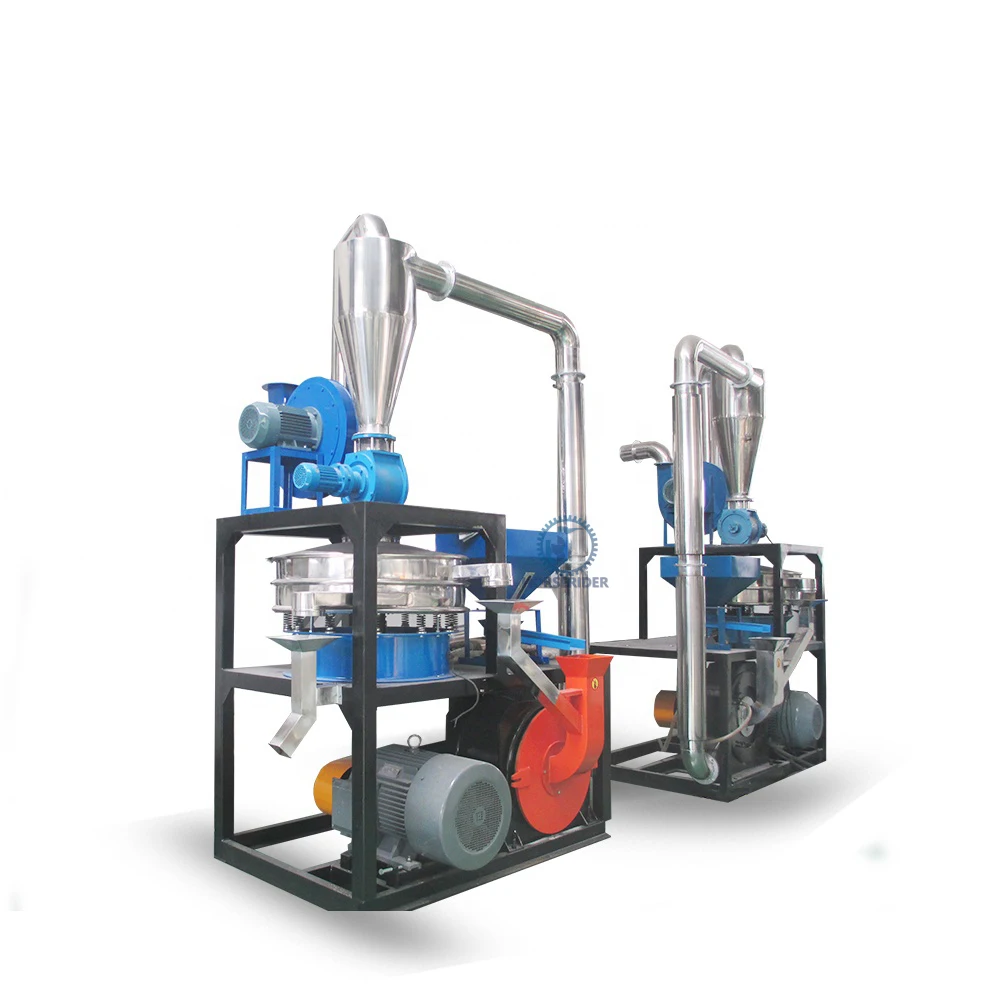

High Speed Plastic PP/PE/ABS/PVC/PC Milling pulverizer Machine

Product Overview

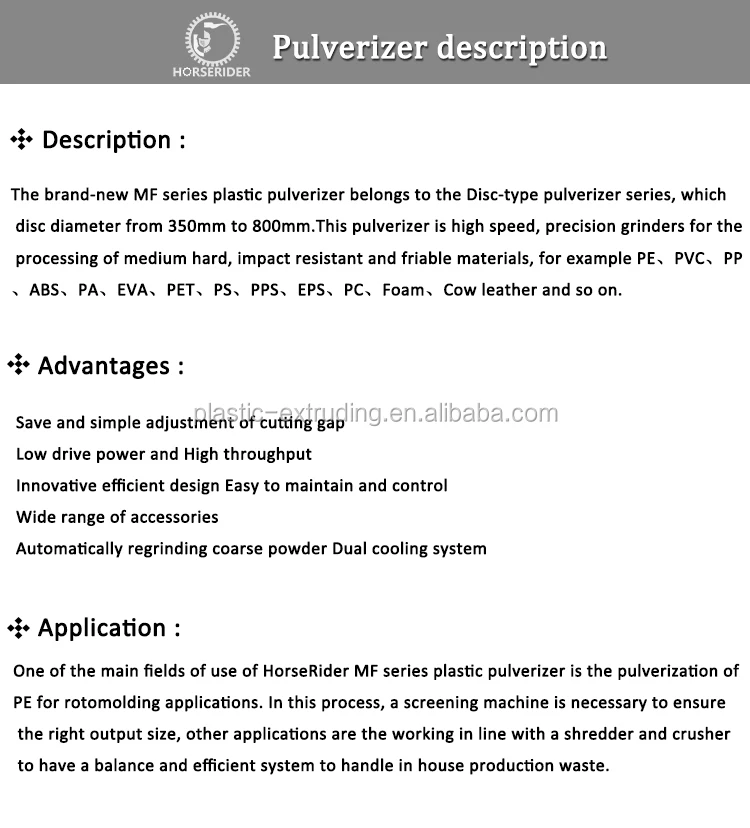

Description

Product Description:

This type machine is Suitable for recycling many kinds of grinding thermoplastic, like PP, PE, PVC,PET,EVA,ABS etc.

Product Features:

1.This type can grind all kinds Hard & Soft materials into 20-80 mesh powders in normal temperature

2.Widely using range, PVC/PE/PP/ABS/PS/PA/PC Materials

3.This machine equipped with Dust collector.  An ideal energy saving machine in plastic industries

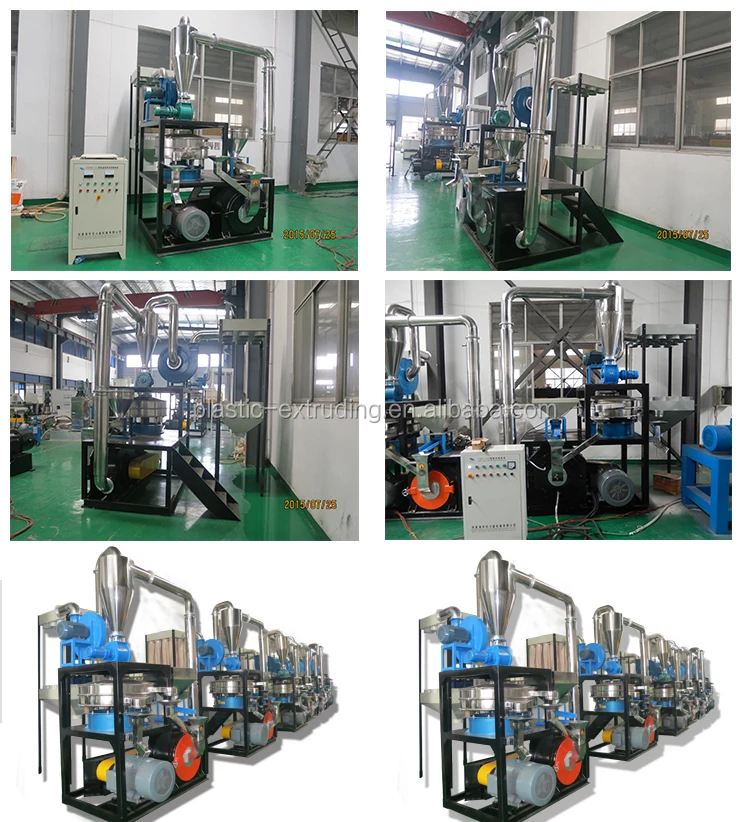

4.This miller includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling again,high-efficiency dust collector system.

5.Blade can be adjusted easily, easily maintained and control

6.Main shaft adopted SKF, matched with oil pump imported, using more than 3-4 years





Technical data of plastic pulverizing machine:



Model	MP-400	MP-500	MP-600	MP-800
Diameter of milling chamber(mm)	350	500	600	800
Motor power(kw)	35	45	55	75
Cooling	Water cooling + natural cooling
Air Blower power(kw)	3	4	5.5	7.5
Fineness of LDPE power	30 to 100mm  adjustable
Output of pulverizer(kg/h)	100-150	180-250	250-350	400-450
Dimension (mm)	1800×1600×3800	1900×1700×3900	1900×1500×3000	2300×1900×4100
Weight (kg)	1800	2200	2800	3200
