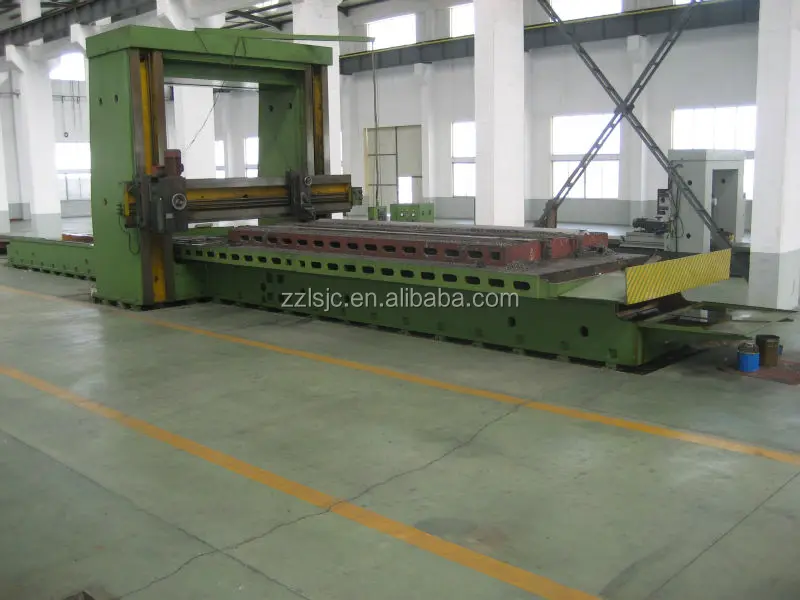

BXM20 series Heavy Planer Milling Machines
- Category: Manual Mills >>>
- Supplier: Zaozhuang Longshan Machine Tool Co. Ltd.
Share on (706921906):
Product Overview
Description
Main transmission adopts SRD or servo system,wide range of stepless speed change of table's movement satisfies the requirements of planing/milling/grinding at different speed, independent spindle feeding box enables more balanced feeding to process plane/inclined plane/T slot/combined guideway/rack,etc.
1. More stable table movement.
2.To get enough lubrication of table at any speed with independent lubrication system.
3.The adoption of heat-treatment techniques like drawing the temper off/quiver-ageing/hyperacoustic quenching on key parts as the machine body/column enables more stable accuracy and longer working life.
4.Machine body/column/beam/table are designed according to the parameters of heavy-duty machines, and the material is cast iron (≥HT250),so the machine is with better stability & accuracy retentivity.
Specifications | BXM20 series Heavy Planer Milling Machines | |||||||||||||||||
BXM220A | BXM220B | BXM220C | BXM220D | BXM220E | BXM225B | BXM225C | BXM225D | BXM230B | ||||||||||
Max. workpiece dimensions | Length mm | 4000 | 6000 | 8000 | 10000 | 12000 | 6000 | 8000 | 10000 | 12000 | ||||||||
Width mm | 2000 | 2500 | 3000 | |||||||||||||||
Height mm | 1500 | 2000 | ||||||||||||||||
Max. load kg | 18000 | 22000 | 32000 | 40000 | 48000 | 28000 | 35000 | 40000 | 45000 | |||||||||
Motor power kw | 30 | 37 | 45 | 55 | 55 | 45 | 55 | 75 | 75 | |||||||||
Table | Length mm | 4000 | 6000 | 8000 | 10000 | 12000 | 6000 | 8000 | 10000 | 12000 | ||||||||
Width mm | 1600 | 2200 | 2600 | |||||||||||||||
Max.allowable pull of rack N | 100000 | |||||||||||||||||
Feeding speed m/min | 0.08-30 Stepless | |||||||||||||||||
Distance between columns mm | 2020 | 2520 | 3020 | |||||||||||||||
Vertical tool rest feeding rate | Horizontal mm | 0.2-25 Stepless | ||||||||||||||||
Vertical mm | 0.2-25 Stepless | |||||||||||||||||
Side tool rest feeding rate mm | 0.2-12 Stepless | |||||||||||||||||
Beam up/down speed mm/min | 360 | |||||||||||||||||
Max. sectional area of planing arbor mm | 60 x 60 | |||||||||||||||||
External dimensions | Length mm | 8700 | 12700 | 16700 | 20700 | 24700 | 12700 | 16700 | 20700 | 24700 | ||||||||
Width mm | 4300 | 4300 | 4300 | 4300 | 4300 | 4800 | 4800 | 4800 | 5300 | |||||||||
Height mm | 3500 | 3500 | 3500 | 3500 | 3500 | 4200 | 4200 | 4200 | 4650 | |||||||||
