V образная машина для разделения печатных плат

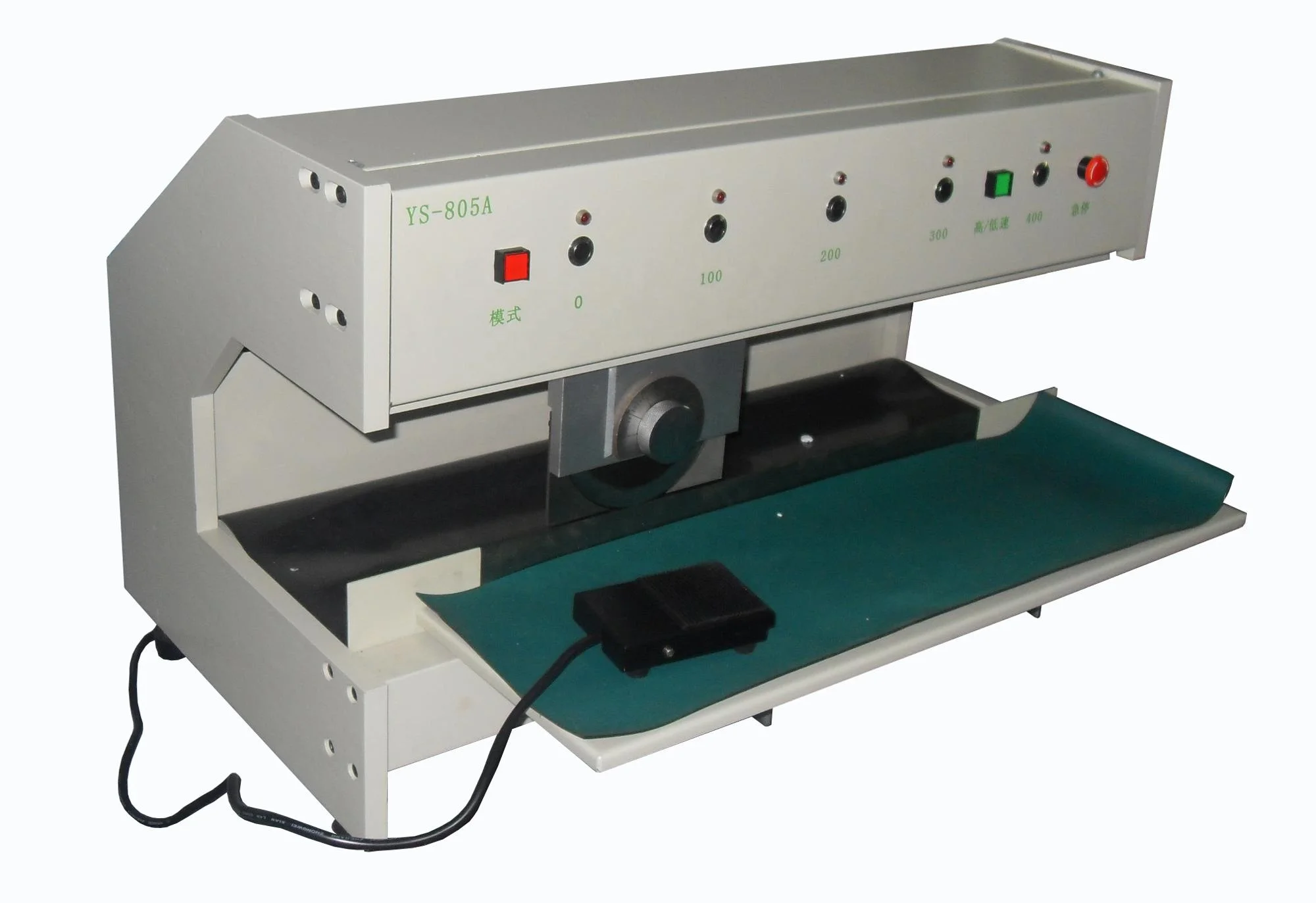

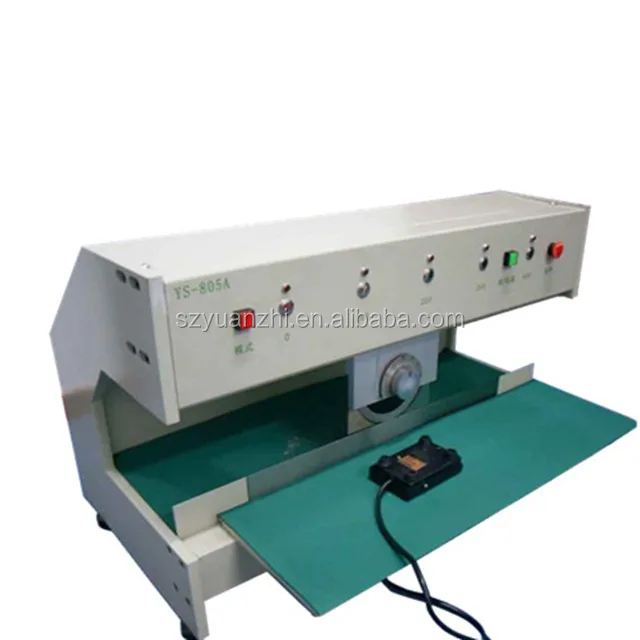

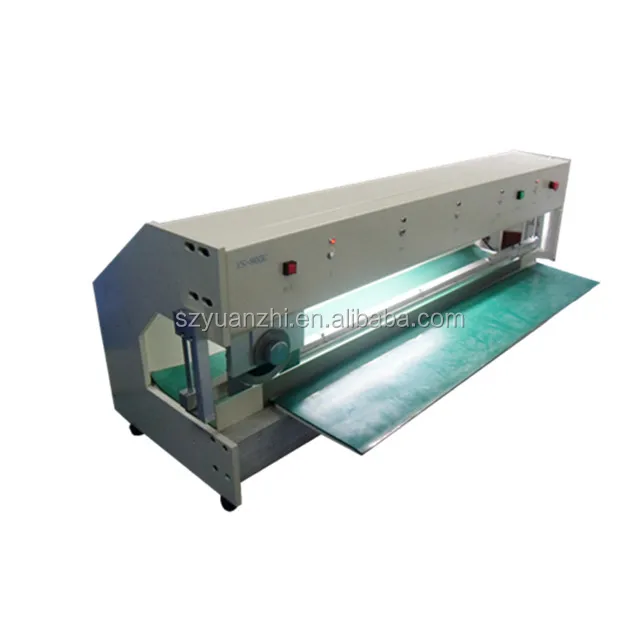

V cut PCB Separating Machine

Features:

1. The nether linear blade is used to fix the PCB V-cut, the upper circular blade moves to separate the PCB. By pressing the foot-pedal to control the action of circular blade.

2. Adopt step motor, can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm, 600mm, 900mm, 1200mm is optional)

4. The stroke of the upper circular blade can preset. (Setting rang: Between any two groups of 0,100, 200,300,400mm)

5. Blade moving speed can switch between 300mm/s and 500mm/s.

6. The gap between two blades is easy to adjust

7. Operation is very safe, the circular blade is covered by material, avoid the blade hurting hand. Also can install a sensor, when hand or foreign matter enters into the working area, it will stop immediately.

8. Blade material is SKH7 from Sweden, long lifetime. During cutting, it can effectively decrease cutting stress to avoid welding spot cracking.

9. Available PCB thickness: 0.2-3.2mm

10. PCB V-cut thickness: 0.2-2mm

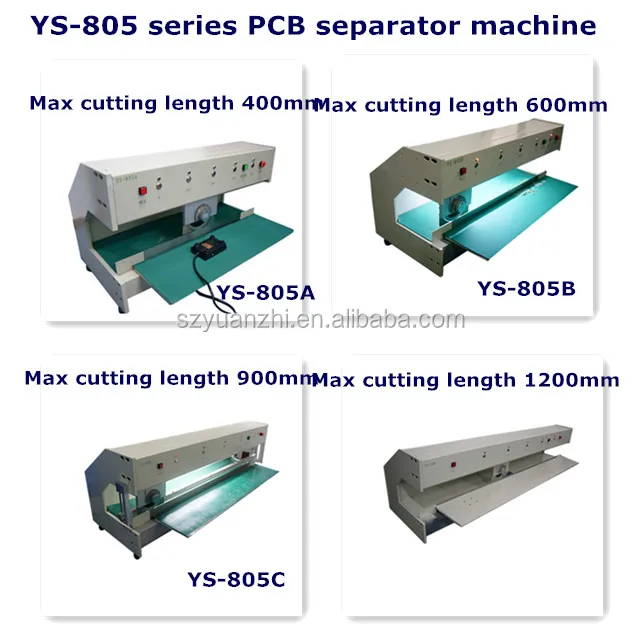

We have four models PCB separator, suitable for 0-1200mm length PCB.

Our Advantage:

 1.With more than 10 years experience in researching and developing the automatic SMD/SMT parts counter machine, quality is the most important thing that we focus on aways.

2. The system is made by our own reserch and development team, Technology support and after-sale service can be guarranteed.

3. We are manufacturer, So we can provide the most competitive price.

Other PCB separator machine

 Q: Why choose us?

Except competitive price and excellent quality, we have a very professional technical team.

Technical knowledge and solution will be provided whether you buy our products or not.

Q: What kind of content included in your after-sales service?

We will support you not only on product quality, also on technical aspects.

We will try our best to assist your side to fix it.

Q: How to talk and solve the customers’ question?

Will priority way of email, cell phone or online chat tools. If all of them still don’t work, send back to us.

Q: How about your package?

Carton or wooden case.This will depand on item weight or customer requirements

Q: Any charge for wooden case package?

No,for free

Q: What is your transport way?

DHL, UPS, FEDEX or EMS etc. we all have normal agent of them. These make us check the shipping cost very fast for you

Q: Do you accept PayPal?

Yes, we do. Our term of payment are TT, PayPal, Western Union etc. other special way can be further negotiated.

----Purchase Guidance

If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.

As one of leading manufacturer in China, we offer factory price and very thorough quality check before

----After Sale Services

We provide lifelong support after sale including operation guidance, parts replacement and maintenance support. Just feel free to contact us.

----Technology Consultation

Any question about wires, cables, machinery, and even the production line please feel free to contact us. We can provide reasonable budget and suggestions.

----OEM Services

We provide OEM services.
