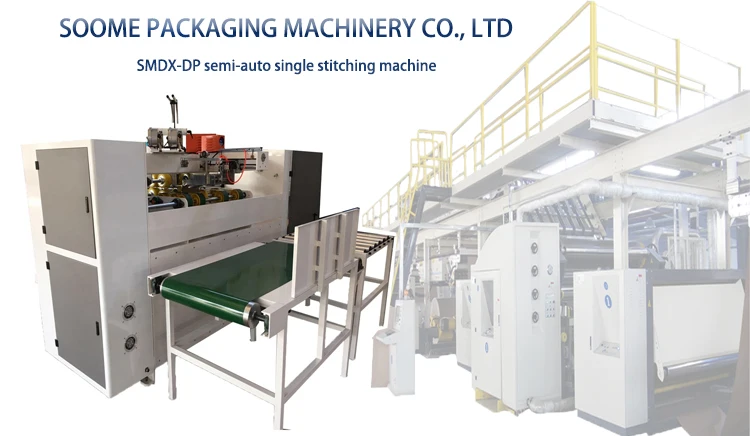

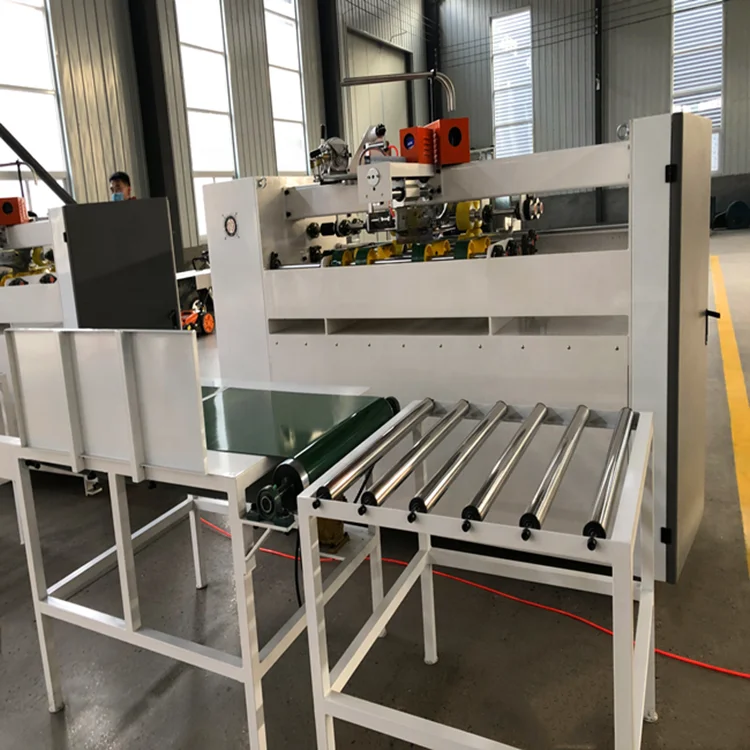

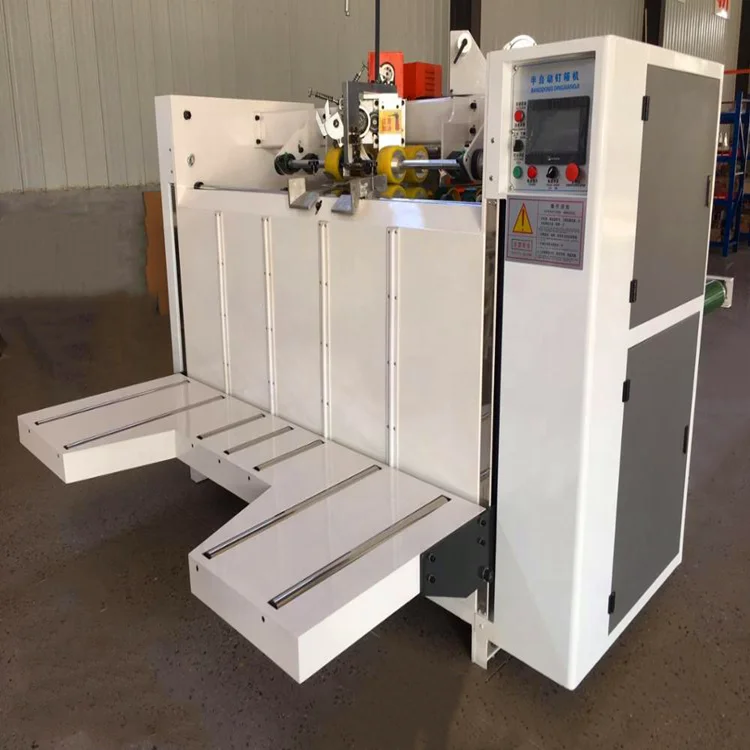

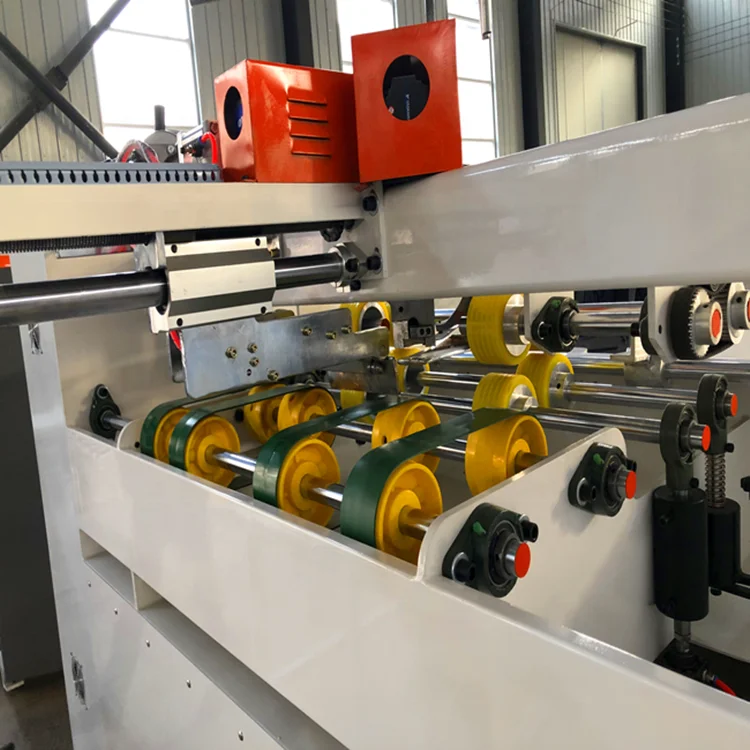

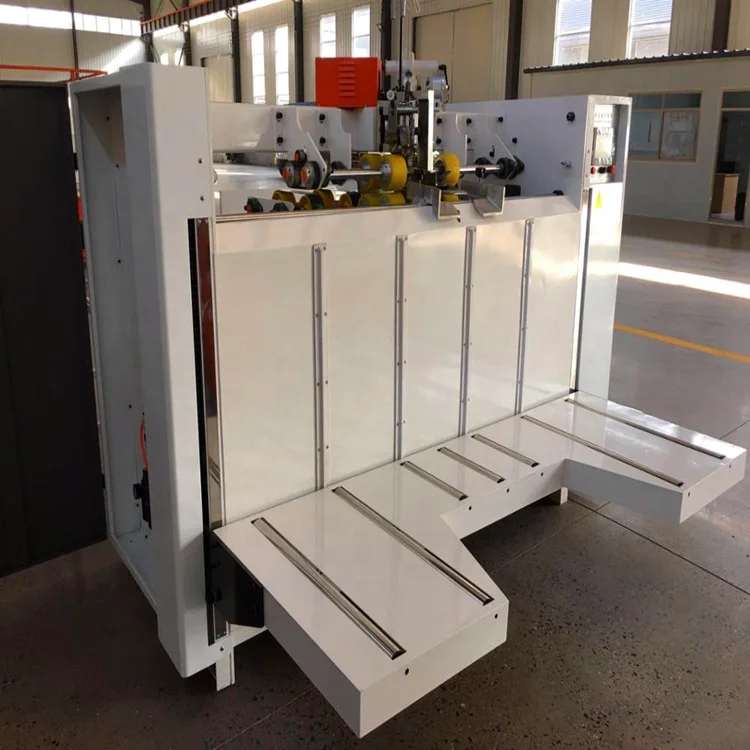

Corrugated carton semi auto stitching machine with single piece

Product Overview

Description

Corrugated carton semi auto stitching machine with single piece

Function:

1. Cannail:single,double,strengthen then ail screw in one time

2. Be suitable for the big carton,binding energy and fast

3. In pieces size using automatic control,computer screen display and fault description

4. Nail spacing:0mm~120mm

5. Full electric control pieces size used paper feeding unit adopts automatic counting

6. Adjustment screwpitch,apply computer setting automatic nail spacing

7. Be suitable for 3 or 5 layers big carton

Mechanical advantage:

1. High speed,about 500 nail/per minute.

2. Operateeasily,it does not require skilled personnel,more flexible,

3. Effective inreducing laborintensity,double servo drive,operation more convenient,less mechanical transmission part,so the failure rate is lower

4. Adual purpose machine,single and double sheet,irrgular carton,cartons without cover and bottoms can be nailed

Configuration:

The use of power:12HP(Japan Yasukawa from serving motor)

Control box switch with all Taiwan Shilin production.

Switch and button used in Taiwan plant.

Bearing used Japan brand.

ALL of the speed reducer adopts the production plant in Taiwan.

Nail head adopt saspecial tungsten steel production,computer high precision machining.

Parameters:

Model	SZ-2400	SZ-2700	SZ-3000
Max(L+W)*2	4800mm	5400mm	6000mm
Papersize	1060mm	1060mm	1060mm
Max board length	2550mm	2550mm	2850mm
Min board length	350mm	350mm	350mm
Max board width	1200mm	1300mm	1500mm
Min board width	180	180	180
Minboardhight	400	400	400
NailSpan(small-big)	0-120mm	0-120mm	0-120mm
Nailsnumber	1-99nails	1-99nails	1-99nails
Mechanical speed	500/min	500/min	500/min
ServiceMotor	18HP	18HP	18HP
Mechanical length	6000mm	6000mm	6000mm
Machineweight	4000kg	4100kg	4200kg
Maximum slotted nail length	600mm
Maximumfirstnailingposition	25mm(D)/Nocover
