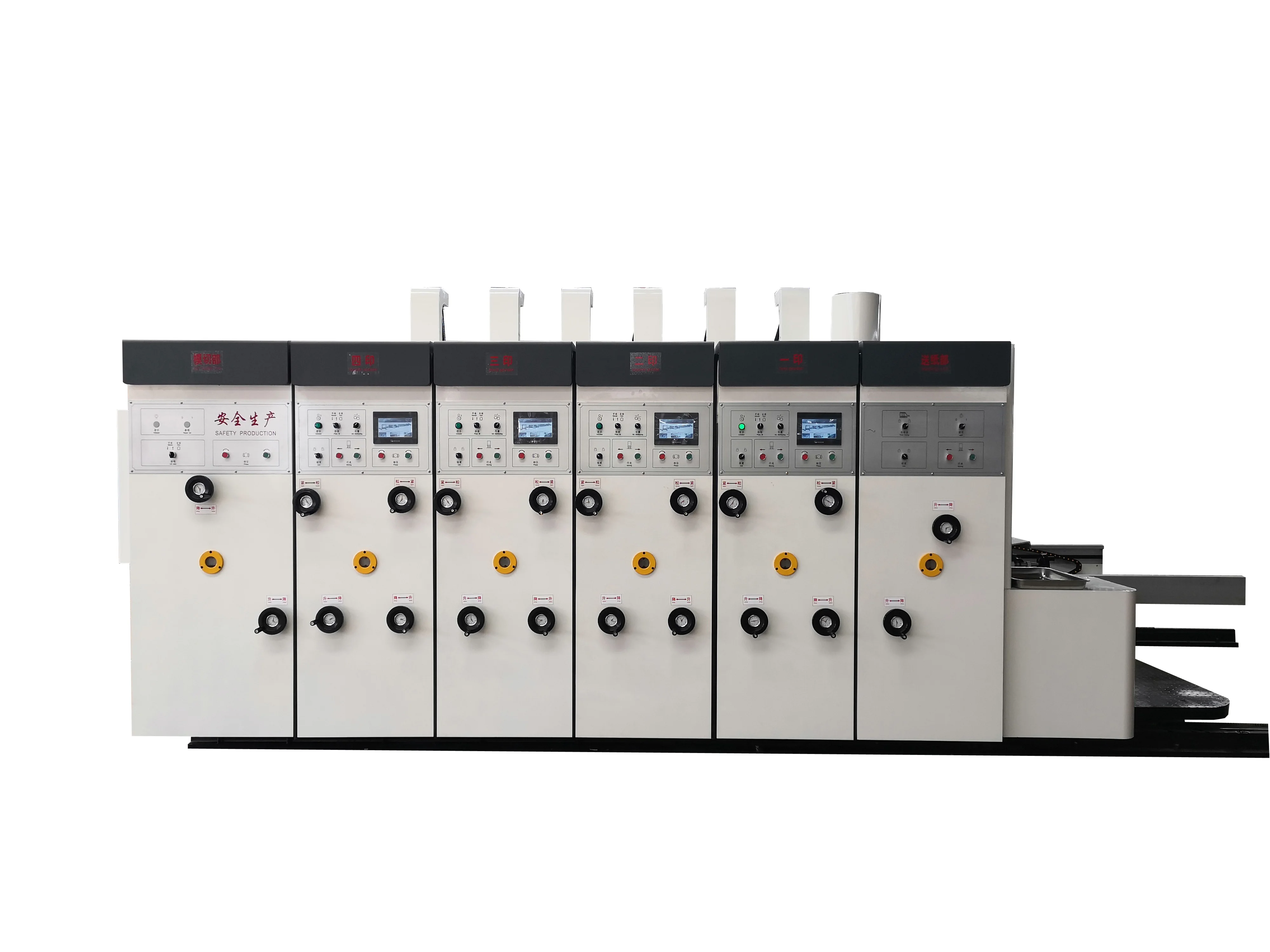

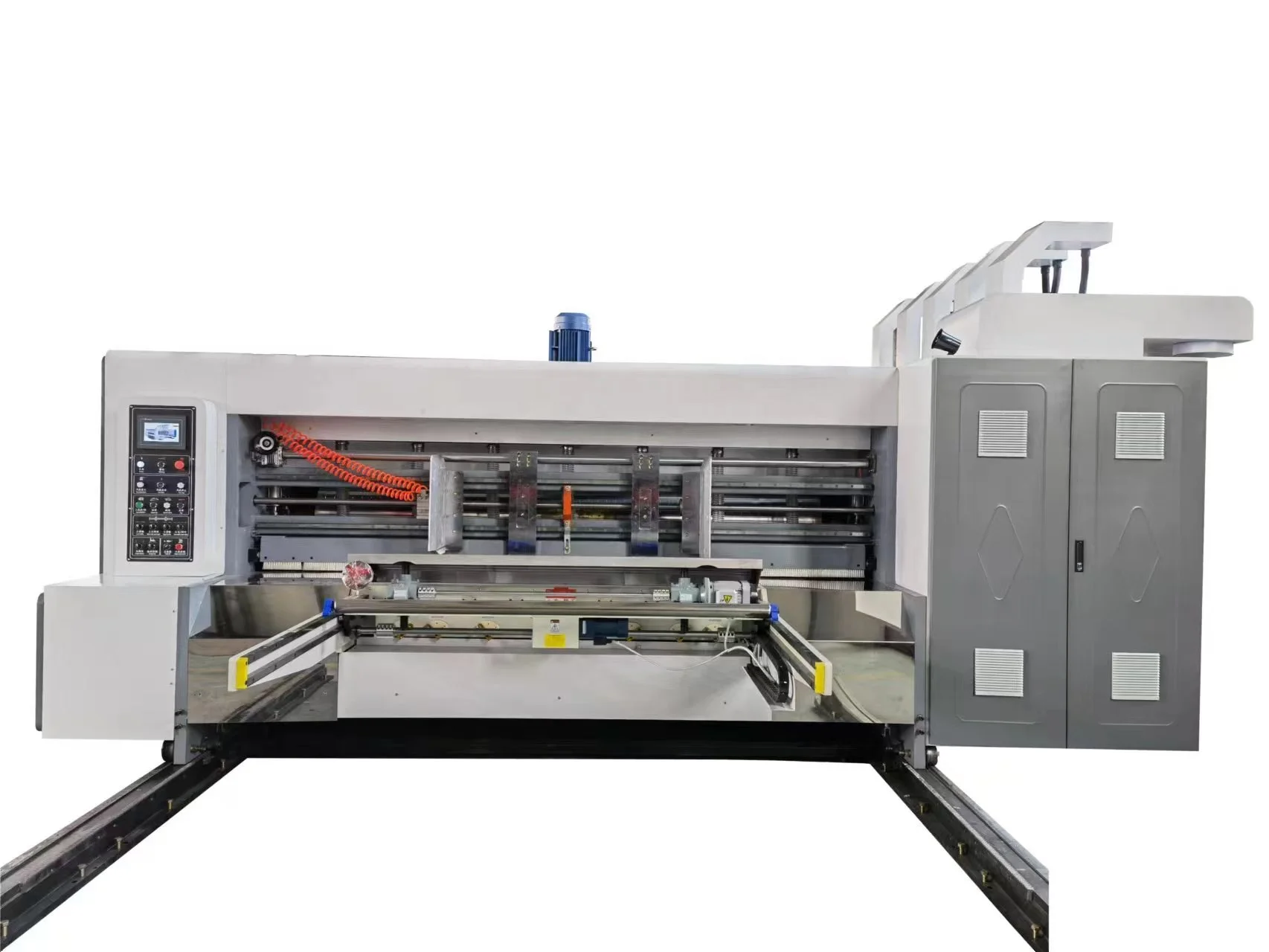

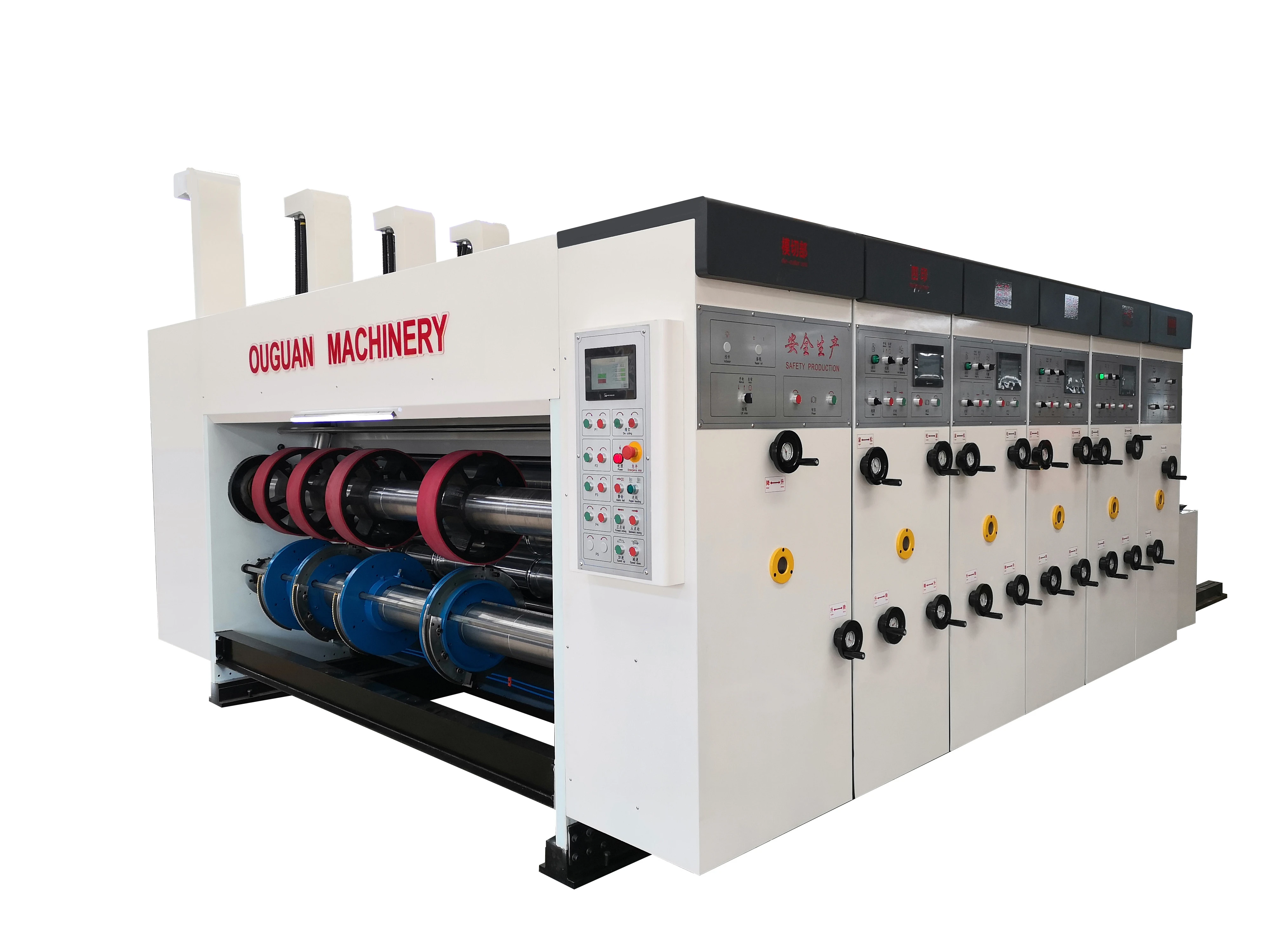

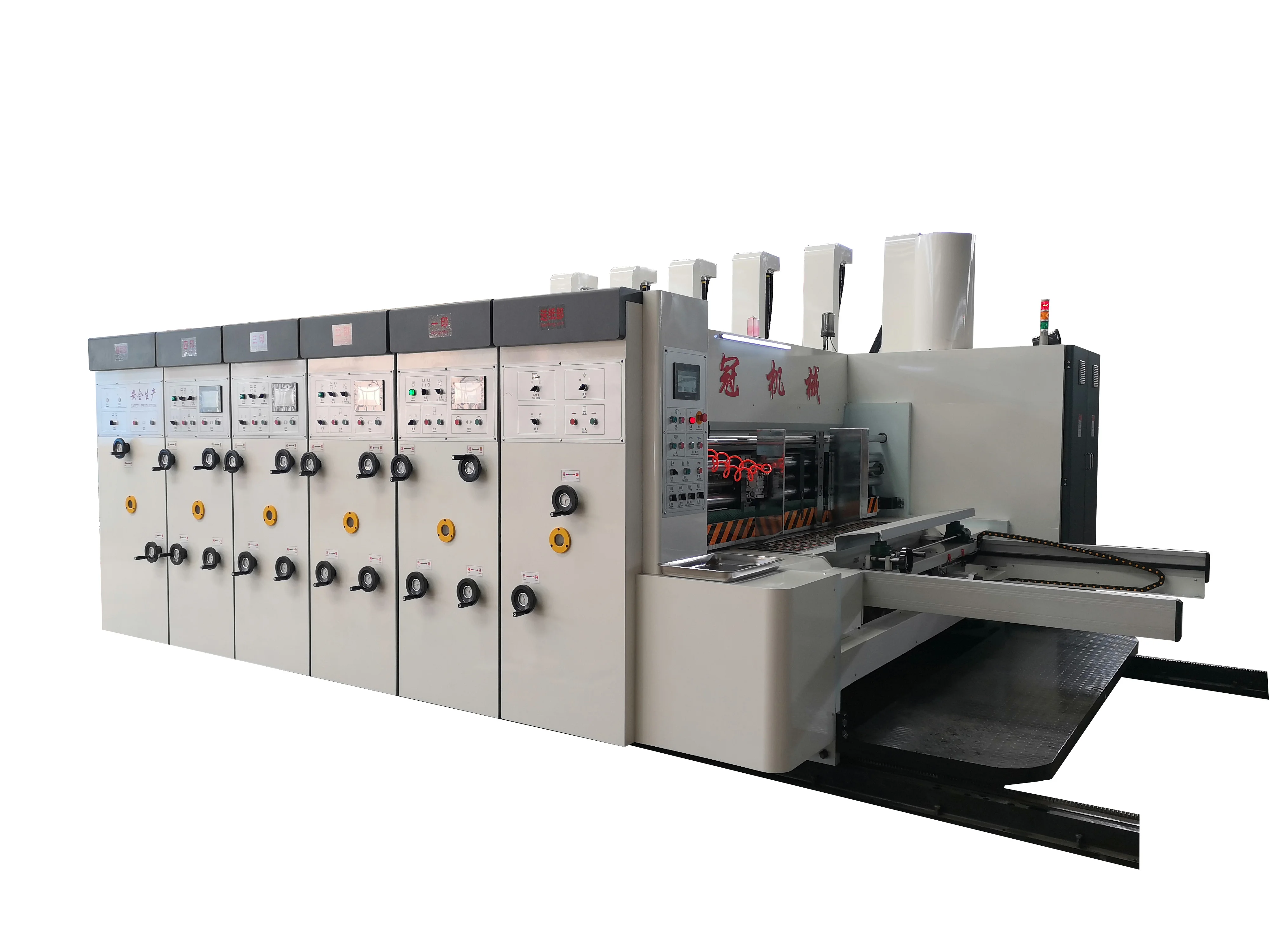

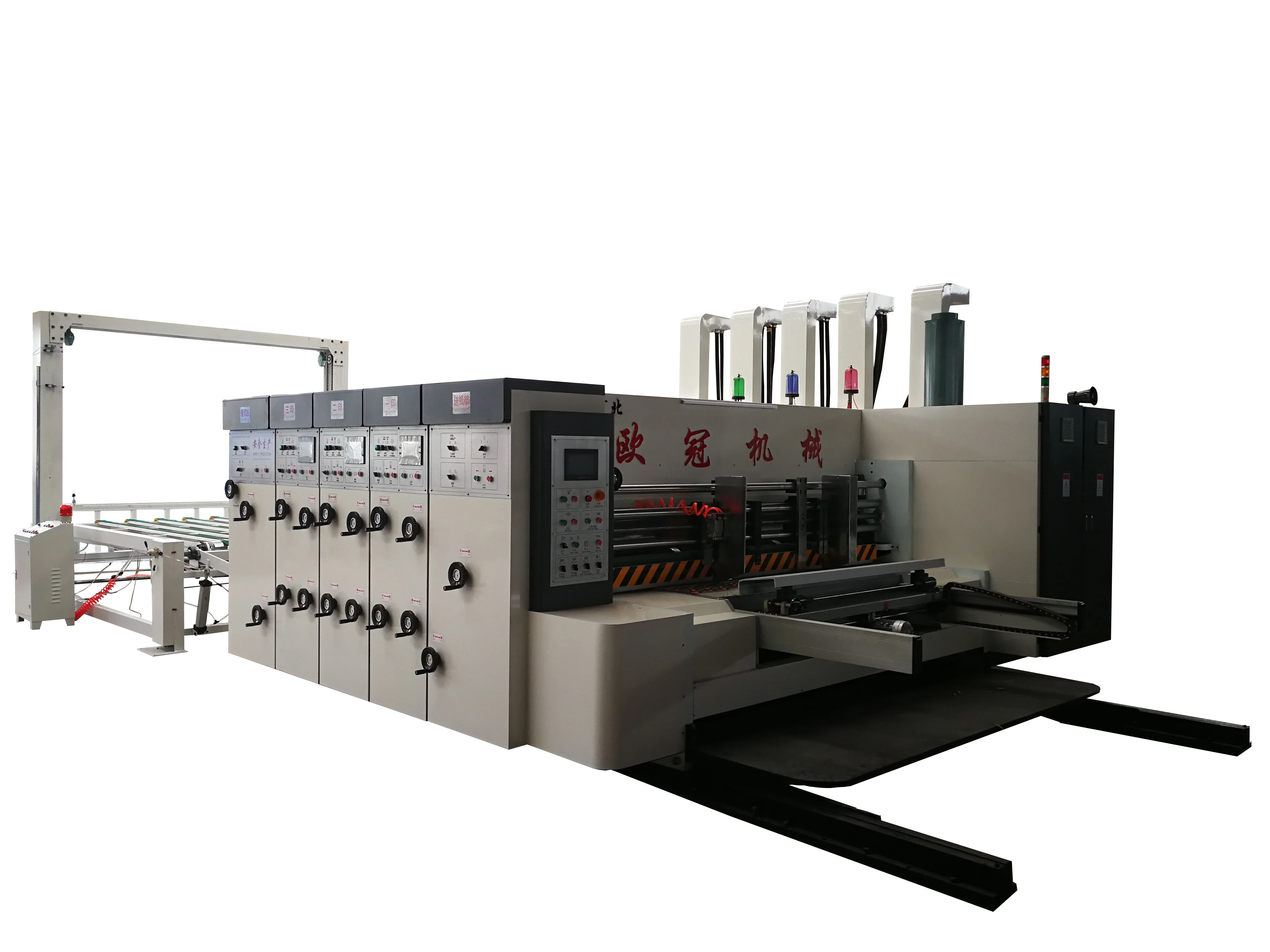

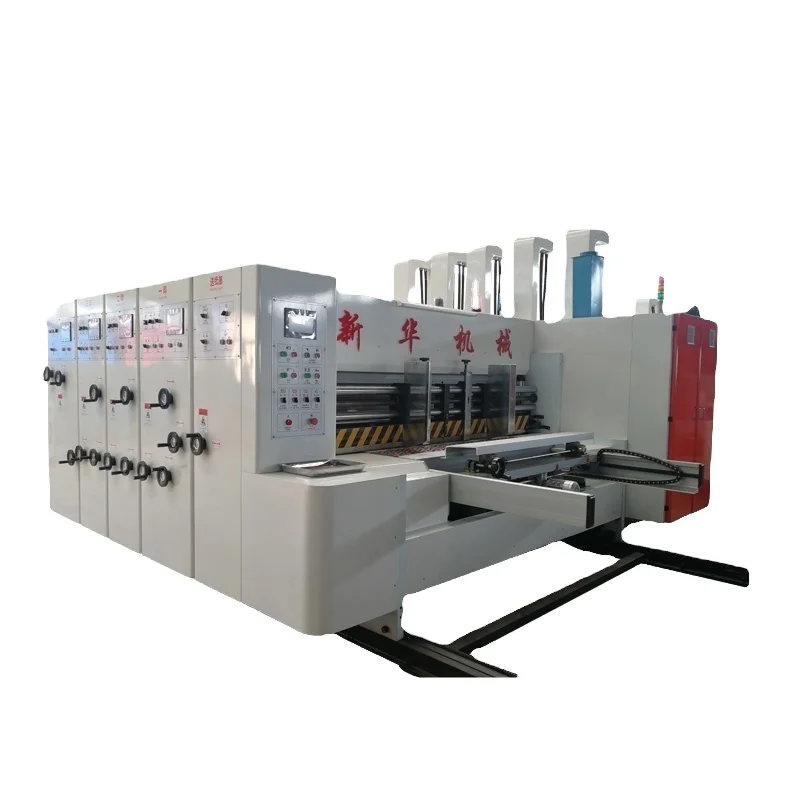

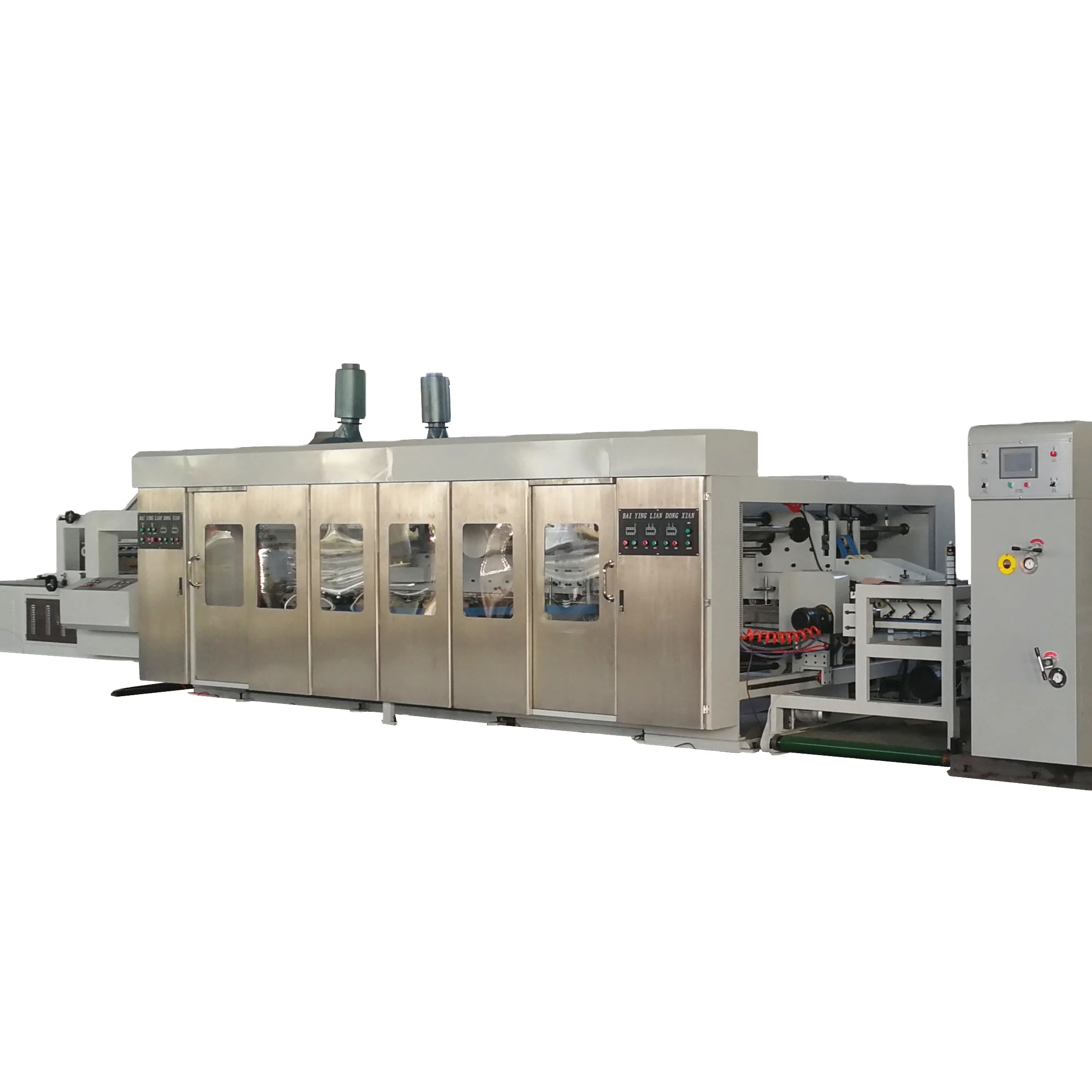

Автоматический флексографский принтер, 2 3, 4 цвета
- Category: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Supplier: Cangzhou Ouguan Packing Machinery Co. Ltd.
Share on (1600223497602):
Product Overview
Description

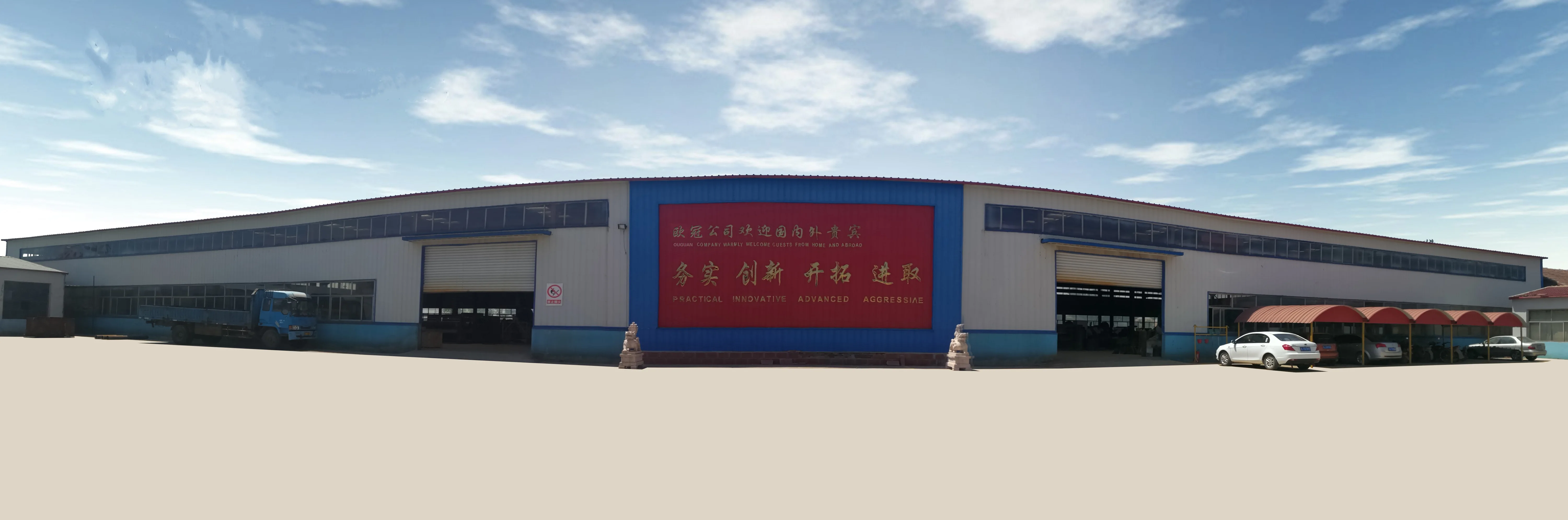

Company Information
Product Description
| Color group | to be configured according to user's needs | ||
| Printing paper | A,B,C,A/B,B/C and A/B/C type corrugated paperboard(the maximum interval 11mm | ||
| Width of machine inside | 2200m | 2600m | 2800m |
| max.paper size | 900x2000mm | 1200m2200mm | 1400x2600mm |
| Max.printing size | 900x1800mm | 1200x2200mm | 1400x2400mm |
| Skip feeding paper | 1100x2000mm | 1400x2400mm | 1600x2600mm |
| Min.paper size Positive knife negative knife | 300x640mm 300x720mm | 350x720mm 350x740mm | 400x720mm 400x740mm |
| Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
| Design speed(piece/min) | 200pcs/min | 180pcs/min | 150pcs/min |
| Economic speed(piece/min) | 80-180pcs/min | 80-160pcs/min | 80-130pcs/min |
| Tinted precision | 4( color) ±0.5mm | 4( color) ±0.5mm | 4( color) ±0.5mm |
| Slotting precision | ±1.5mm | ±1.5mm | ±1.5mm |
| Max.slotting depth | 7x220mm | 7x300mm | 7x350mm |
| increase the blade, increase the slot depth | |||
| Min. Slot distance positive knife negative knife | 150x150x150x150mm 250x90x250x90mm | 170x170x170x170mm 260x90x260x90mm | 170x170x170x170mm 260x90x260x90mm |
| Max.die-cutting size | 900x1900mm | 1200x2300mm | 1400x2500mm |
| Printing plate diameter(contain plate thickness) | φ300mm | φ405 | φ480 |

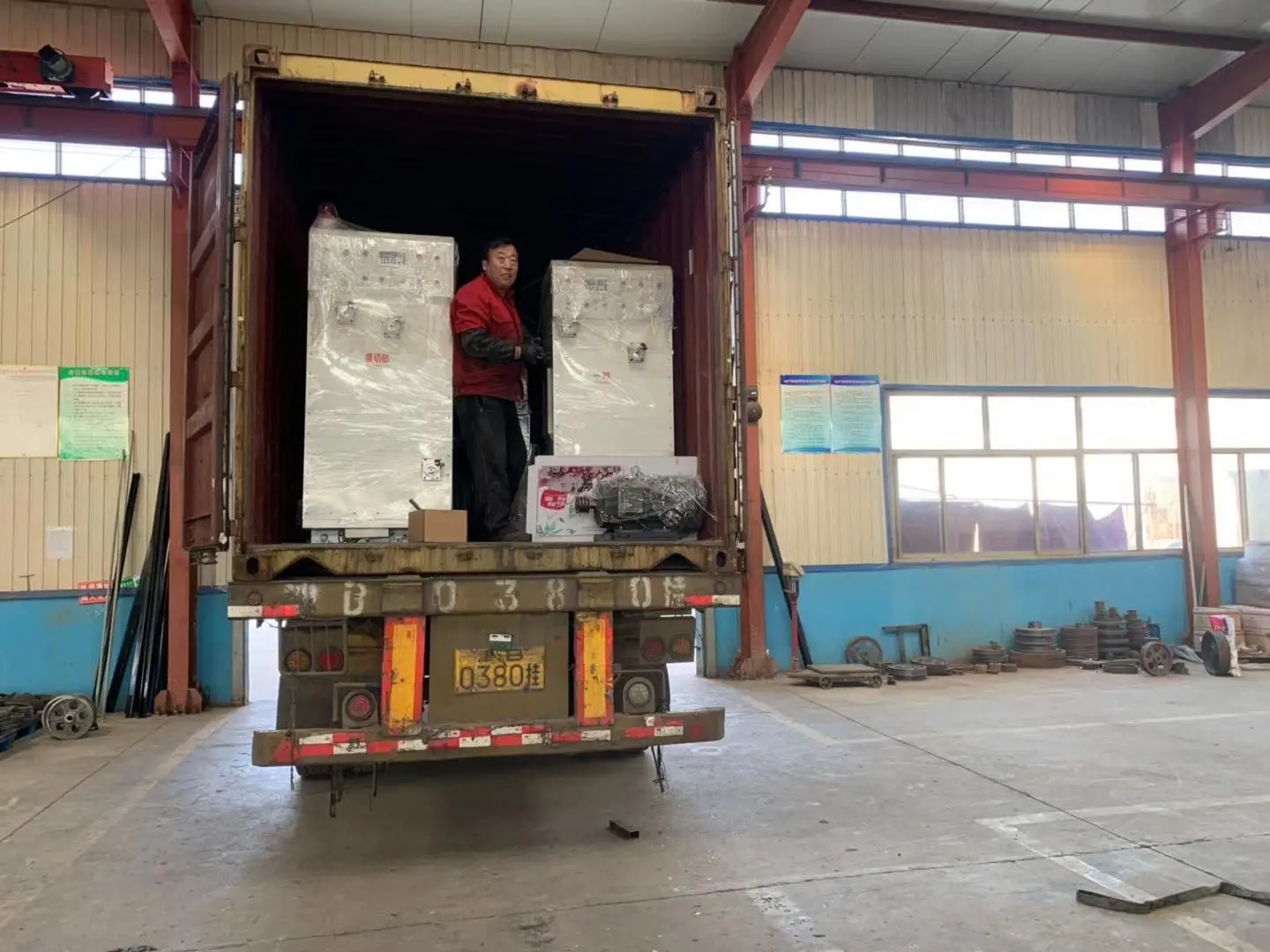

Packaging & Shipping
