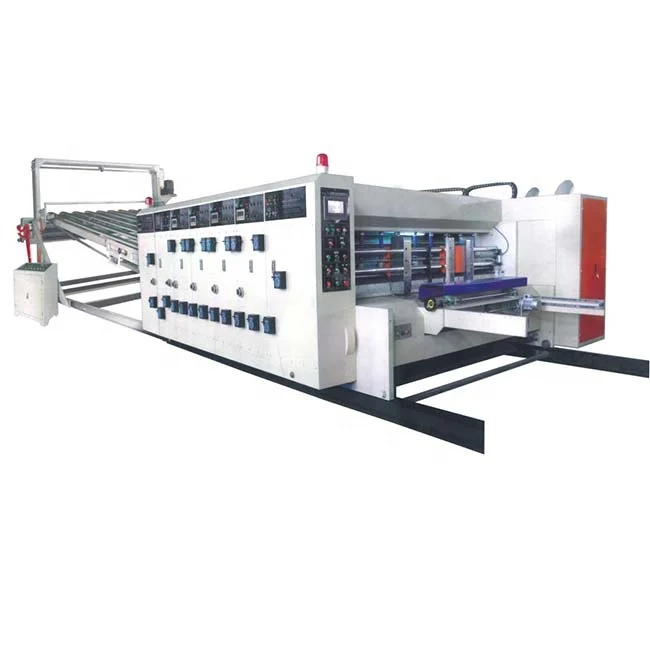

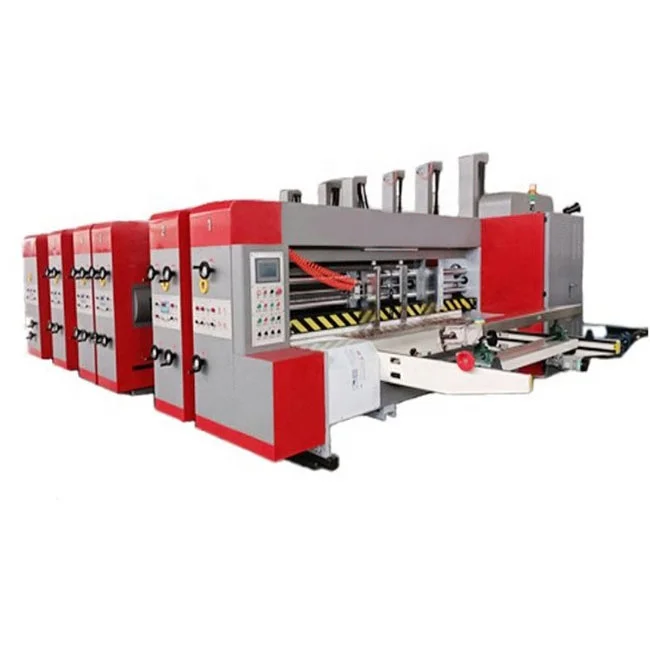

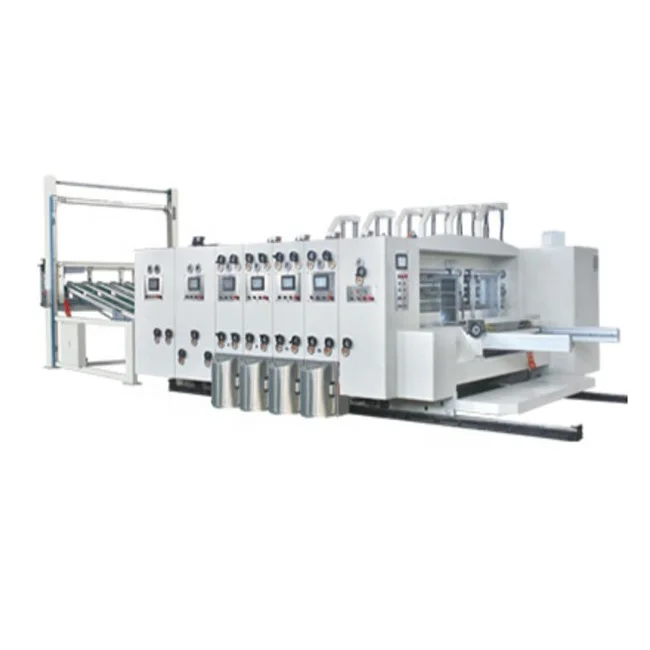

China paper machine manufacturer automatic multi-colors corrugated cardboard carton box slotting die cut flexo printing machine
Our M480-2800 flute corrugated cardboard carton box cardboard printing slotting die cutting machine is one set worker saving , energy saving equipment,with pneumatic locking, electric separation, electric phase adjusting function, it is widely used in corrugated carton box making industry, and you can also chose to combine slotting function , die cutting function onto the machine; Low investment, to performance and good quality make it very popular among our domestic and foreign carton box manufacturers; Single colors, Double colors, Three colors, Four colors five colors printer machine can be chosen,for the feeding unit, you can chose the 120-150 sheets/minute lead edge automatic feeding unit or use the semi-auto chain driving feeding unit which speed is 50-60 sheets/minute
Main Technical Data
Printing color: 1-6 colors are optional
Function: printing slotting die cutting
Max feeding cardboard sizes: 1440*2800mm
Max printing sizes: 1440*2600mm
Min cardboard sizes: 350*680mm
Working speed: 100-120 sheets/minute; 120-150 sheets/minute; 50-70 sheets/minute
Suitable for: 3 layer, 5 layer, 7 layer cardboard (3-9mm)
Max slot width*Length: 7mm*300mm
Min slot distance: 160*160*160*160mm(positive blade);300*60*300*60mm(negative blade)
Overall size: 6500*2200*1900mm
Weight: 4900kgs
Total power: 5.5KW
Optional configurations: fully automatic PLC touch screen control system; Automatic collection stacker
Configuration Details
1. Printing plate roller (optional hanging plate)
1) The outer diameter of the printing plate roller 470mm(Including the plate thickness The outer diameter 480mm)
2) The printing roller is made of high-quality thick-walled seamless steel pipe, and the surface is finely ground and plated with hard chrome.
3) Balance correction, stable operation.
4) The reel is hung on the plate and locked on one side, which makes the plate-hanging registration accurate, convenient and fast.
5) The full-page hanging board groove is suitable for 10mm hanging strips.
6) When loading and unloading the printing plate, the electric control of the forward and reverse rotation of the foot switch is convenient and flexible.
1) The outer diameter of the printing plate roller 470mm(Including the plate thickness The outer diameter 480mm)
2) The printing roller is made of high-quality thick-walled seamless steel pipe, and the surface is finely ground and plated with hard chrome.
3) Balance correction, stable operation.
4) The reel is hung on the plate and locked on one side, which makes the plate-hanging registration accurate, convenient and fast.
5) The full-page hanging board groove is suitable for 10mm hanging strips.
6) When loading and unloading the printing plate, the electric control of the forward and reverse rotation of the foot switch is convenient and flexible.
2. Embossing roller
1) The outer diameter of the embossing roller is 150mm.
2) Thick-walled seamless steel pipe with finely ground surface and hard chrome plating.
3) Balance correction, stable operation.
4) The adjustment gap of the pressure roller adopts a self-locking structure, and the adjustment range is 0-11mm
1) The outer diameter of the embossing roller is 150mm.
2) Thick-walled seamless steel pipe with finely ground surface and hard chrome plating.
3) Balance correction, stable operation.
4) The adjustment gap of the pressure roller adopts a self-locking structure, and the adjustment range is 0-11mm
3. Ink transfer anilox roller
1) The straight warp of the anilox roller is 180mm, and the mesh number is 200-280 (optional).
2) After the surface of the thick-walled seamless steel pipe is finely ground, the surface is ground, reticulated, and plated with hard chrome.
3) The dots are consistent and the ink is evenly applied, which prolongs the service life of the printing plate and the rubber roller.
4) The speed difference can be formed when the rubber roller and the anilox rotate, so that the rubber roller can play the role of scraping ink.
5) Cooperate with the pneumatic automatic lifting device of the paper feeding system (the anilox roller descends and contacts the printing plate during printing, and when the printing stops, the anilox roller rises and separates from the printing plate)
4. Ink distribution rubber roller
1) The outer diameter of the ink-spreading rubber roller is 175mm.
2) High-quality seamless steel pipes are wrapped with durable, corrosion-resistant and wear-resistant rubber.
3) The rubber roller is specially ground in medium and high, and the ink transfer effect is good.
4) The rubber roller gap adjustment adopts a self-locking structure, and the adjustment range is 0-3mm.
1) The outer diameter of the ink-spreading rubber roller is 175mm.
2) High-quality seamless steel pipes are wrapped with durable, corrosion-resistant and wear-resistant rubber.
3) The rubber roller is specially ground in medium and high, and the ink transfer effect is good.
4) The rubber roller gap adjustment adopts a self-locking structure, and the adjustment range is 0-3mm.
5. Phase adjustment structure
1) Planetary gear structure.
2) The digital display phase indication makes the operation more convenient, intuitive and accurate.
3) The printing phase adopts phase meter control and electric digital 360° adjustment (can be adjusted during operation and stop). The phase adjustment accuracy can reach 0.15mm.
4) The printing plate roller adopts a phase meter to adjust the phase. The speed of zeroing and plate adjustment is fast, and the plate adjustment accuracy is high.
5) Each group of the whole machine and the paper feeding are automatically reset to zero at first, with an accuracy of 0.5mm, and then the phase is automatically adjusted roughly.
1) Planetary gear structure.
2) The digital display phase indication makes the operation more convenient, intuitive and accurate.
3) The printing phase adopts phase meter control and electric digital 360° adjustment (can be adjusted during operation and stop). The phase adjustment accuracy can reach 0.15mm.
4) The printing plate roller adopts a phase meter to adjust the phase. The speed of zeroing and plate adjustment is fast, and the plate adjustment accuracy is high.
5) Each group of the whole machine and the paper feeding are automatically reset to zero at first, with an accuracy of 0.5mm, and then the phase is automatically adjusted roughly.
6. Ink circulation structure
1) Pneumatic diaphragm pump, stable ink supply, simple operation and maintenance.
2) Ink filter to filter impurities.
1) Pneumatic diaphragm pump, stable ink supply, simple operation and maintenance.
2) Ink filter to filter impurities.
7. Printing phase fixing device
Brake-type brake mechanism, when the unit is separated and adjusted the phase, the brake mechanism restricts the rotation of the gear and maintains the original fixed point of the tooth position.
8. Axial adjustment mechanism
Manual adjustment mechanism is adopted in the axial direction, and the control range is ±10mm.

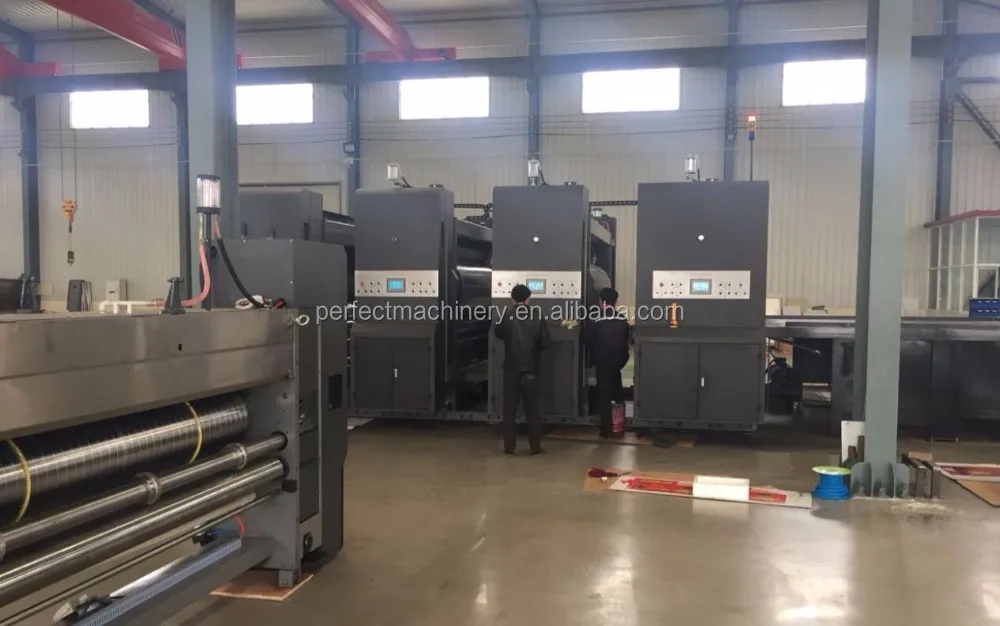

Detailed Images
Chain driving semi-auto cardboard feeding
Automatic cardboard feeding is optional
Chrome plated pressing rollers and printing rollers
Pressing rollers diameter can be customized, can also add printing plate hanging unit
Pneumatic locking, electric separating
Top quality driving gear system
Slotting sizes and distance electric adjust by button
Top quality and good performance slotting blades

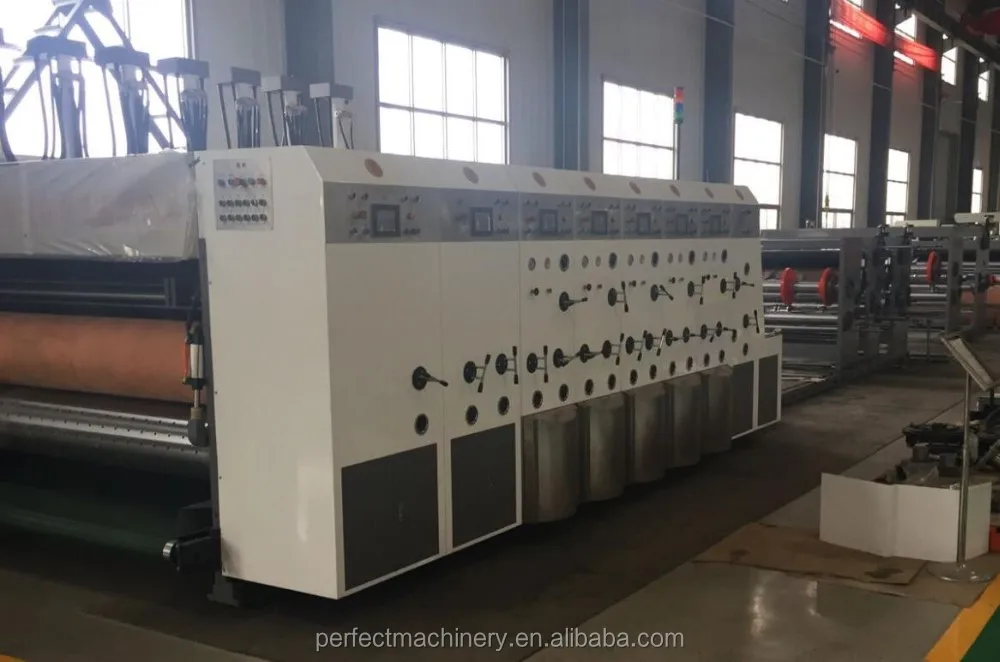

Multi-color printing function can be added
Die cutting unit can be chosen also
