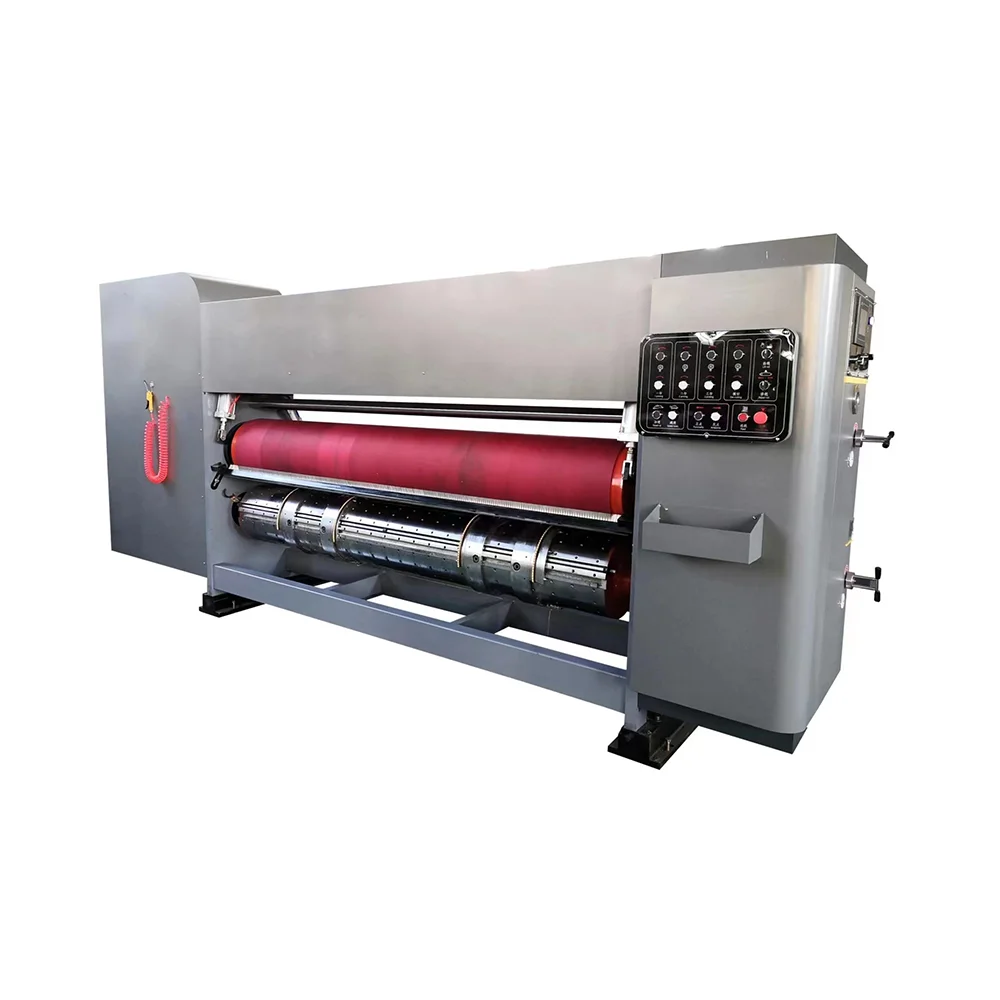

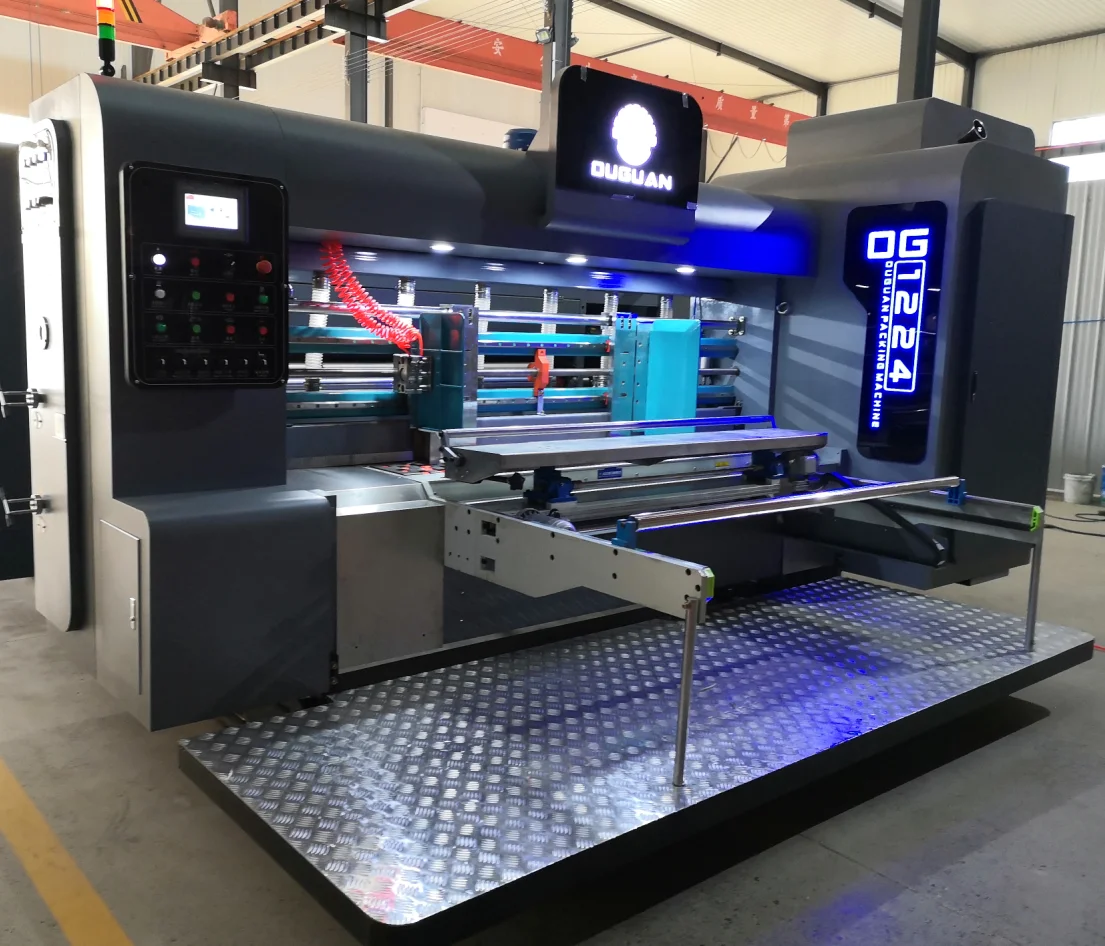

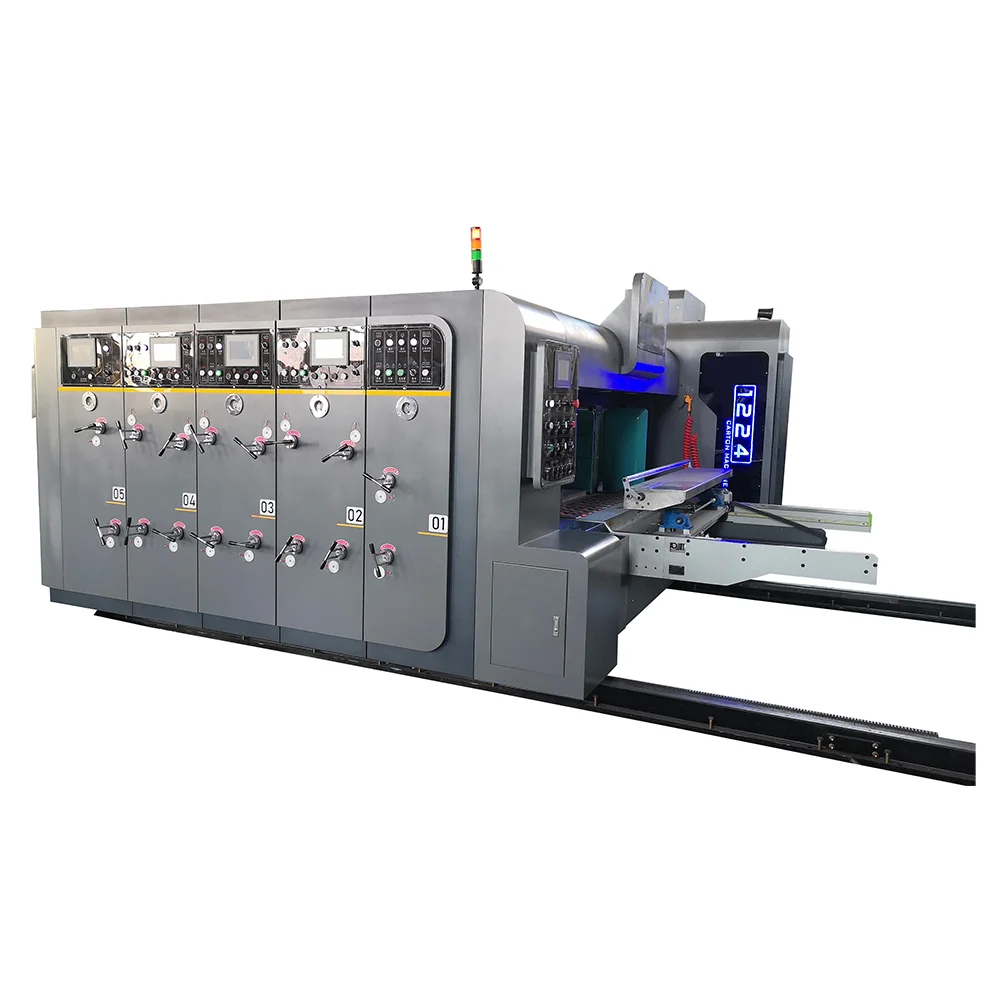

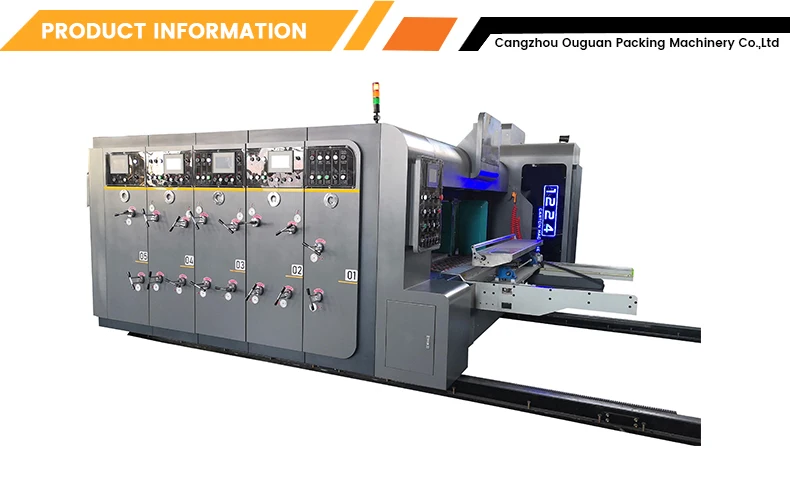

Автоматические чернила, 4 цвета, флексографский принтер
- Category: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Supplier: Cangzhou Ouguan Packing Machinery Co. Ltd.
Share on (1600893449459):
Product Overview
Description
Product Description

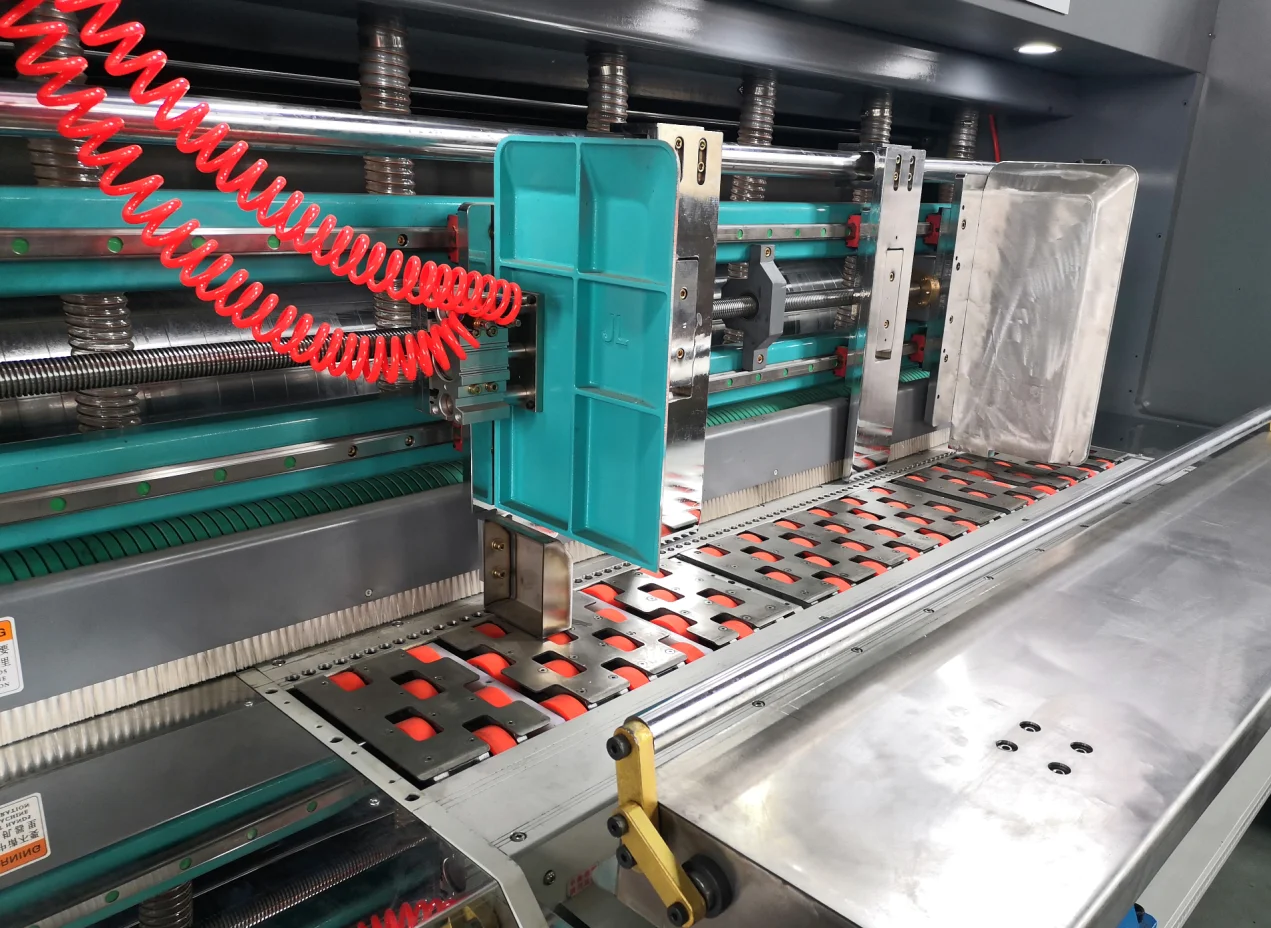

Machine features
2. Adjustable air flow, increase warped cardboard and thin cardboard secure transmission, accuracy
3. Right and left side covers, a guide mechanism, the smooth displacement accuracy.
4. Clutch, pneumatic locking, safe and reliable.
5. The feed roller is seamless wear rubber wrapped and do balance correction.
6. Lower feed roller is seamless embossed hard chrome plating, balance correction.
7. Feed roll gap adjustment dial worm adjustment range 0-12mm, the use of cross-slider mechanism, when adjusted to ensure the correct transmission gear is always engaged state.
8.The whole machine is adopted international famous brand appliances "Schneider" .The quality is stable and reliable.
model | OG 1200x2400 |
Width between two walls | 2800mm |
Economic production speed | 250 pcs/min |
Max paperboard size | 1200x2700mm |
Min paperboard size | 350mm×700mm |
Max printing size | 1200x2400mm |
Max die cutting size | 1200x2350mm |
Standard printing plate thickness | 7.2mm |
Color accuracy | ±0.5mm |
wall thickness | 50mm |
main motor power | About 18kw |
Die-cutting accuracy | ≤±1.5 mm |

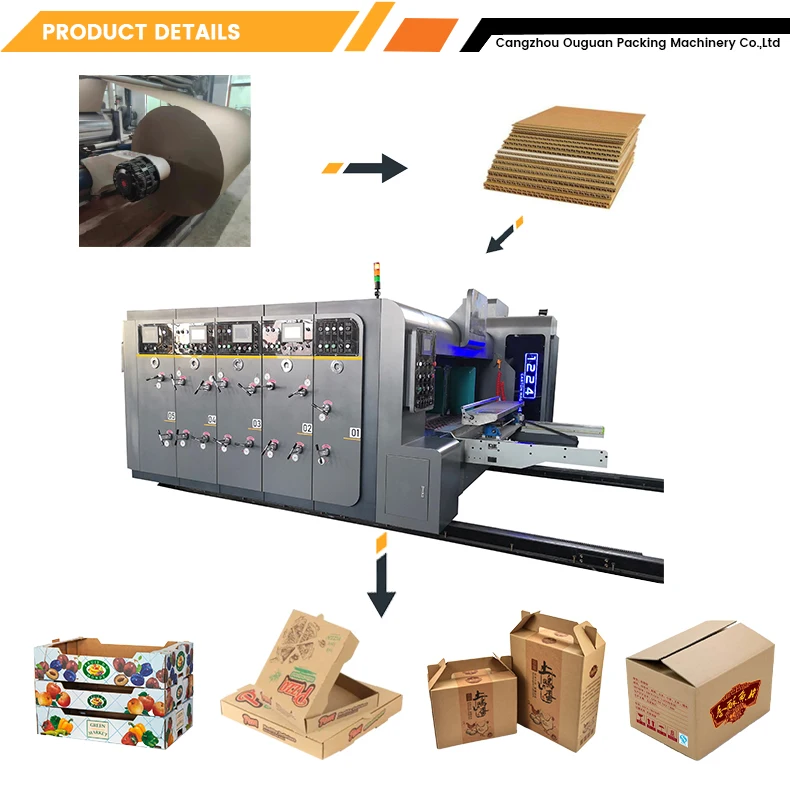

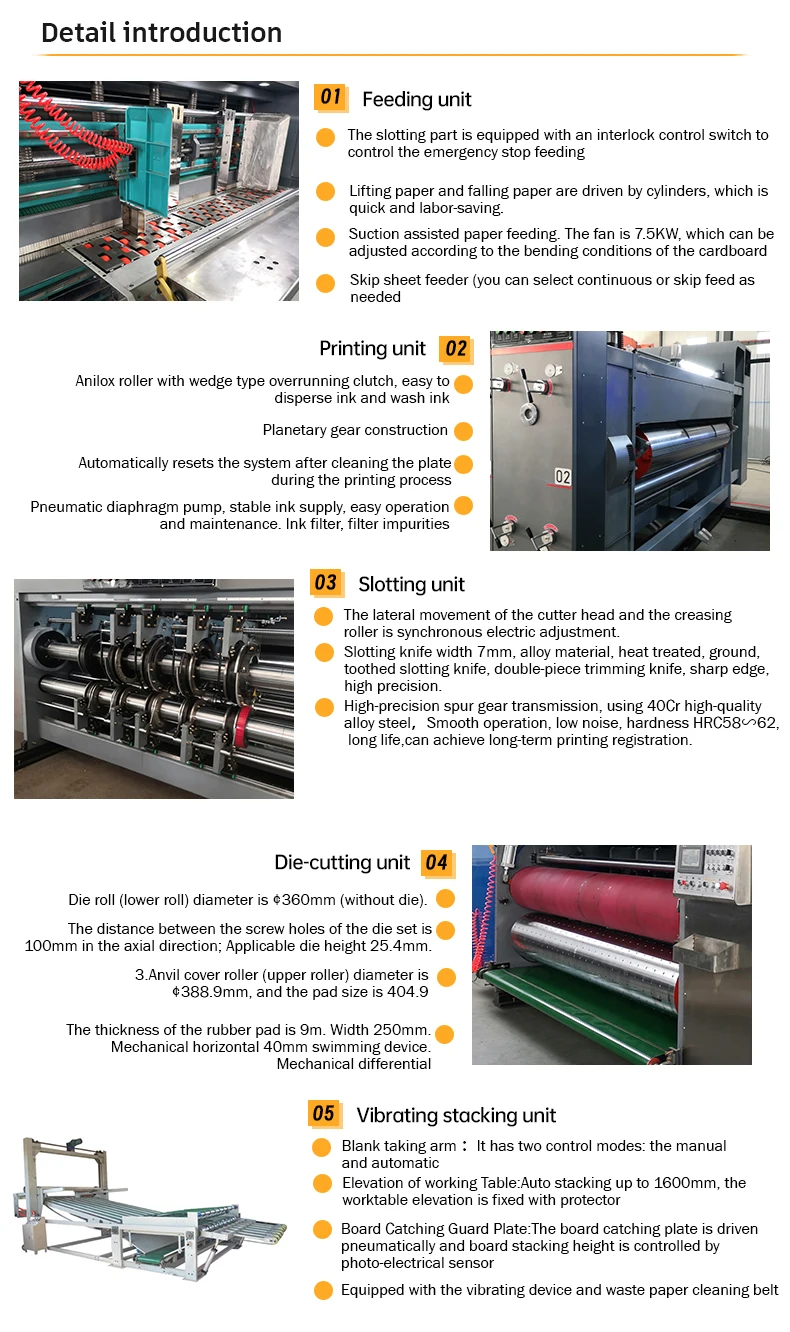

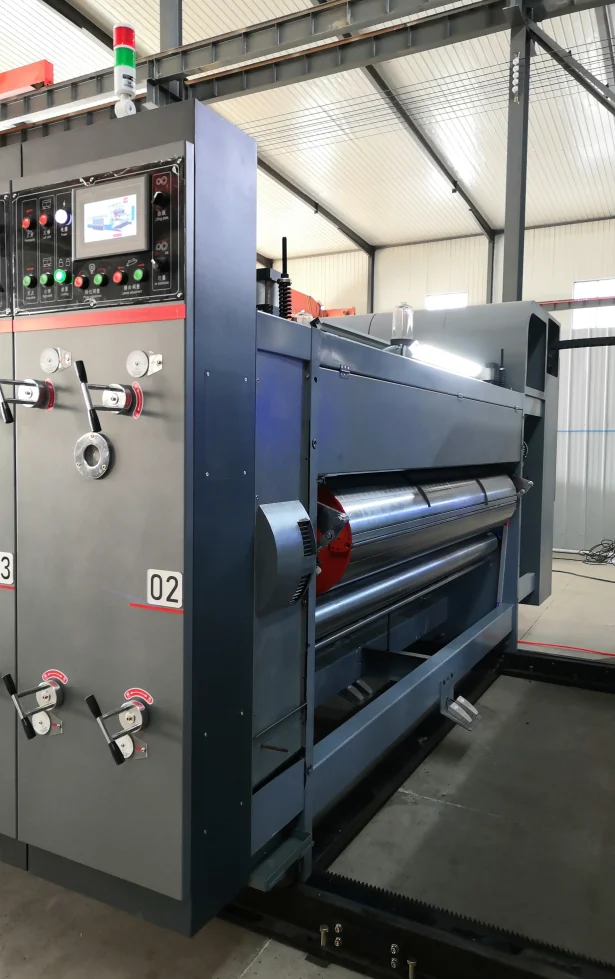

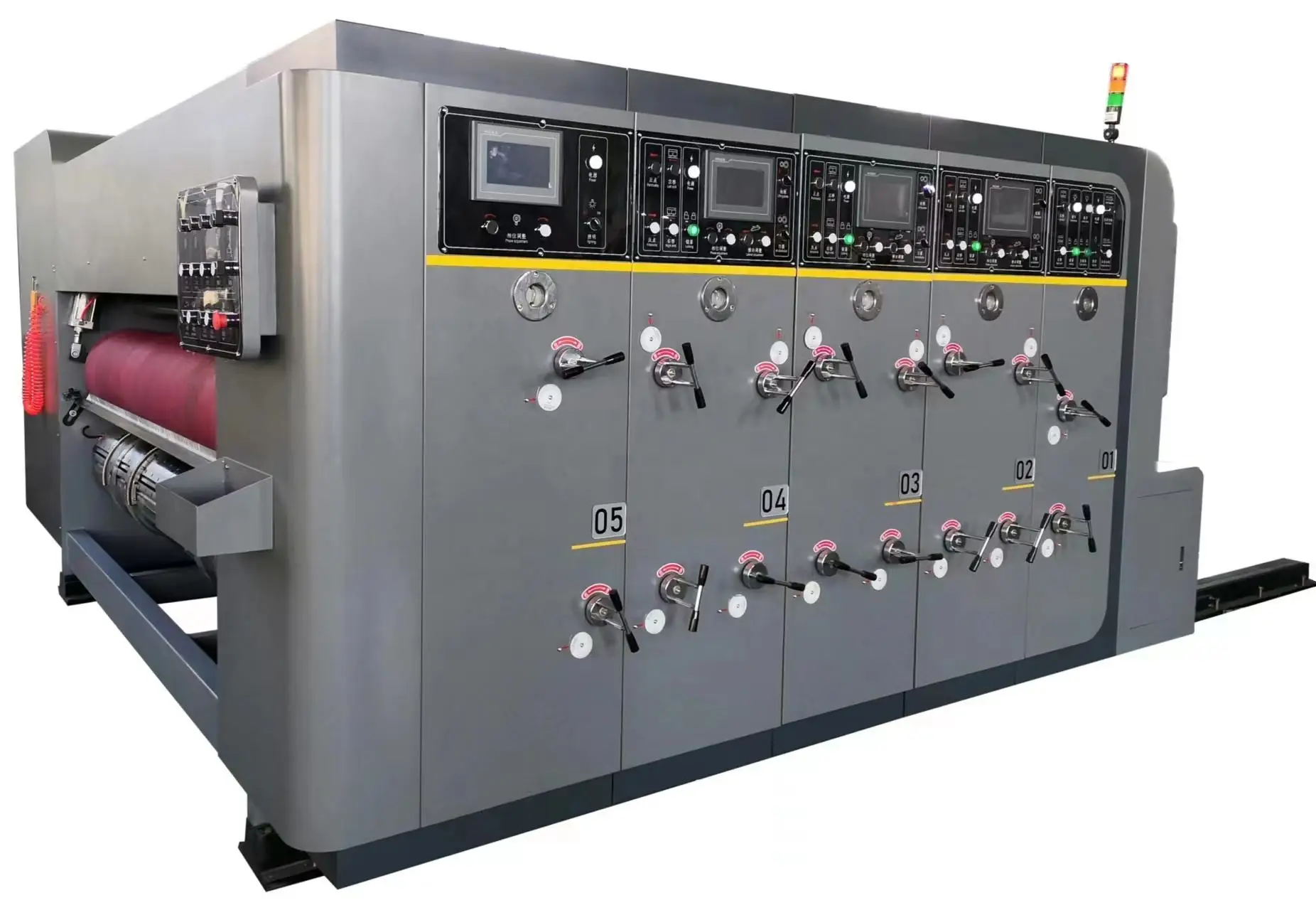

Details Images

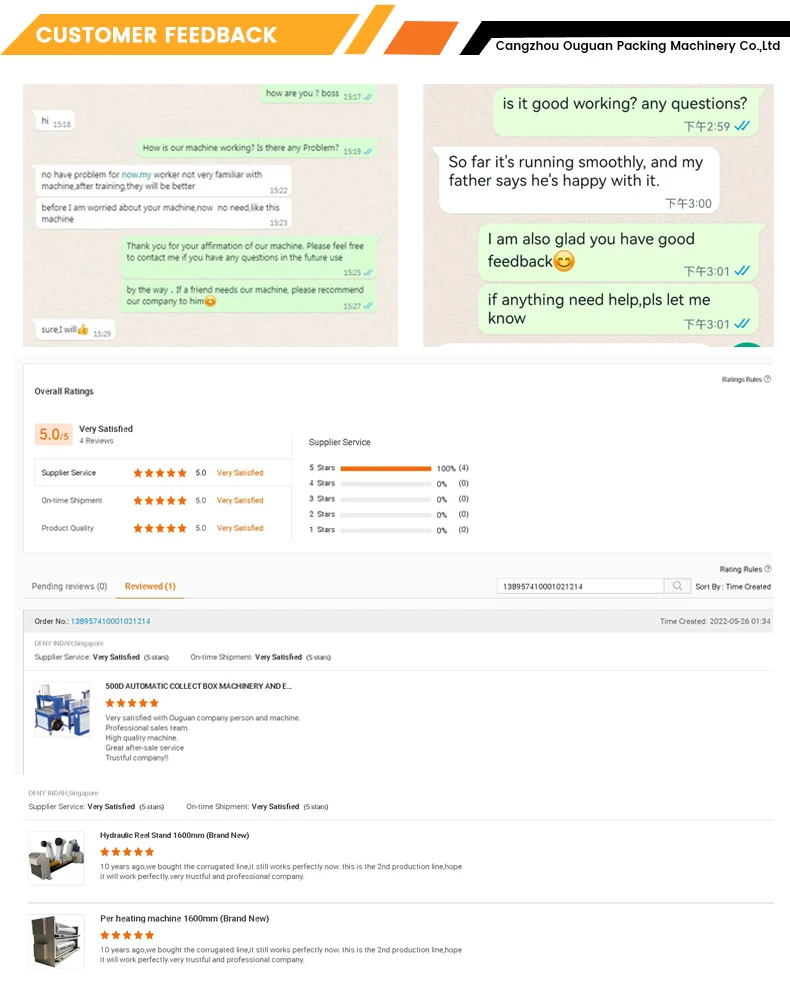

Customer Feedback
Company Profile
Why Choose Us
FAQ
1. Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
