Заводская поставка, автоматическая Четырехцветная флексографическая машина для резки гофрированной картонной коробки
- Category: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Supplier: Cangzhou Ouguan Packing Machinery Co. Ltd.
Share on (1600887008659):
Product Overview
Description
Product Description
Machine features
This machine is composed of paper feeding, printing, die-cutting（slotting）, stacking, etc. It can complete the printing,slotting,die-cutting processes of three-layer and five-layer corrugated cardboard at one time.
The transmission system is all driven by 20CrMnTi gear, grinding gear processing, super hard processing, closed spray lubrication, low noise; high strength,stable transmission.
Each unit has an automatic zero return system, and it can be adjusted to the correct size using a small amount of cardboard,this can reduce paper waste.
The main motor uses a variable frequency motor,with steady start-up and running ,saving about 30% of the power.
The whole machine is beautiful in appearance and soft in color. Modular design allows you to increase or decrease each unit.
Each unit has an automatic zero return system, and it can be adjusted to the correct size using a small amount of cardboard,this can reduce paper waste.
The main motor uses a variable frequency motor,with steady start-up and running ,saving about 30% of the power.
The whole machine is beautiful in appearance and soft in color. Modular design allows you to increase or decrease each unit.
Electric brand | Schneider |
Color group | To be configured according to user's needs |
Width between two walls | 2800mm |
Max mechanical speed | 120pcs/min |
Economic production speed | 80-100pcs/min |
Max paperboard size | 1450*2700mm |
Min paperboard size | 450mm×600mm (full plate printing) |
Max pringting size | 1450×2500mm |
Standard printing plate thickness | 7.2mm |
Color accuracy | ≤±0.75mm |
Skip feeding size | 2500*1400mm |
Die-cutting accuracy | ≤±1.5 mm |

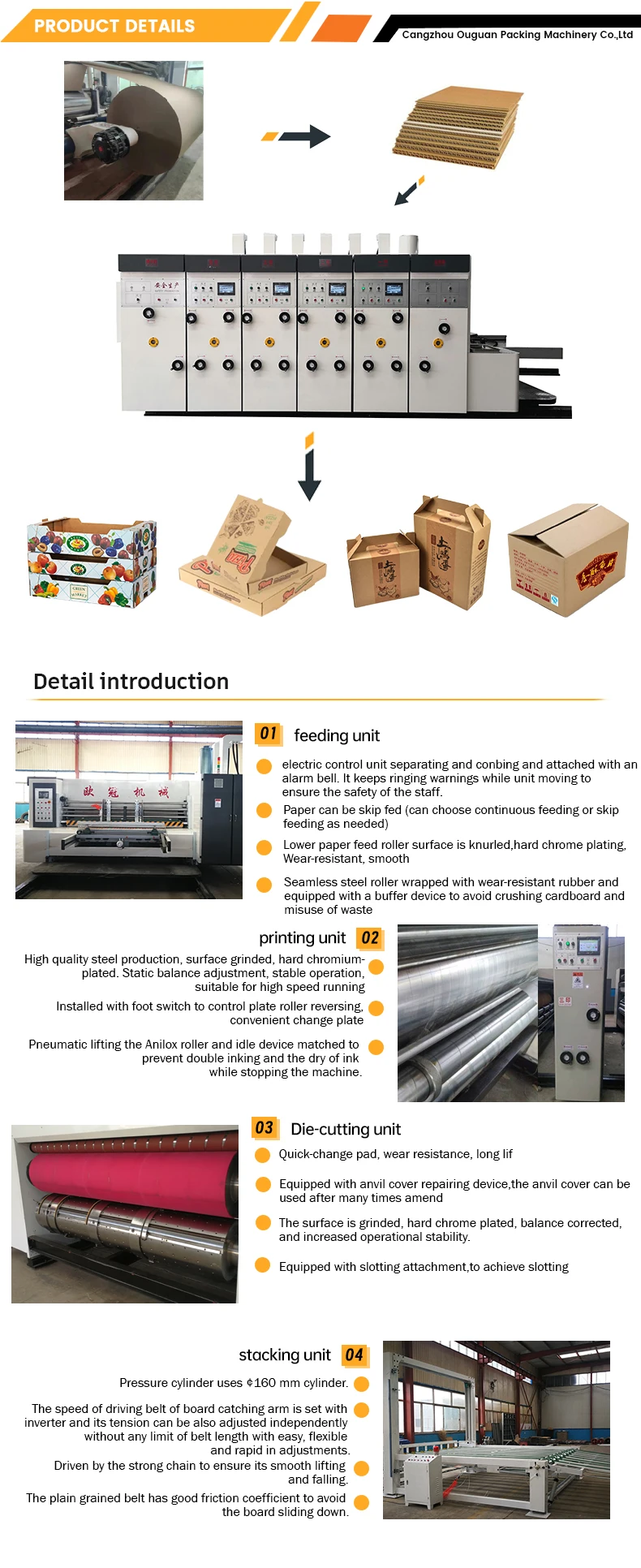

Details Images

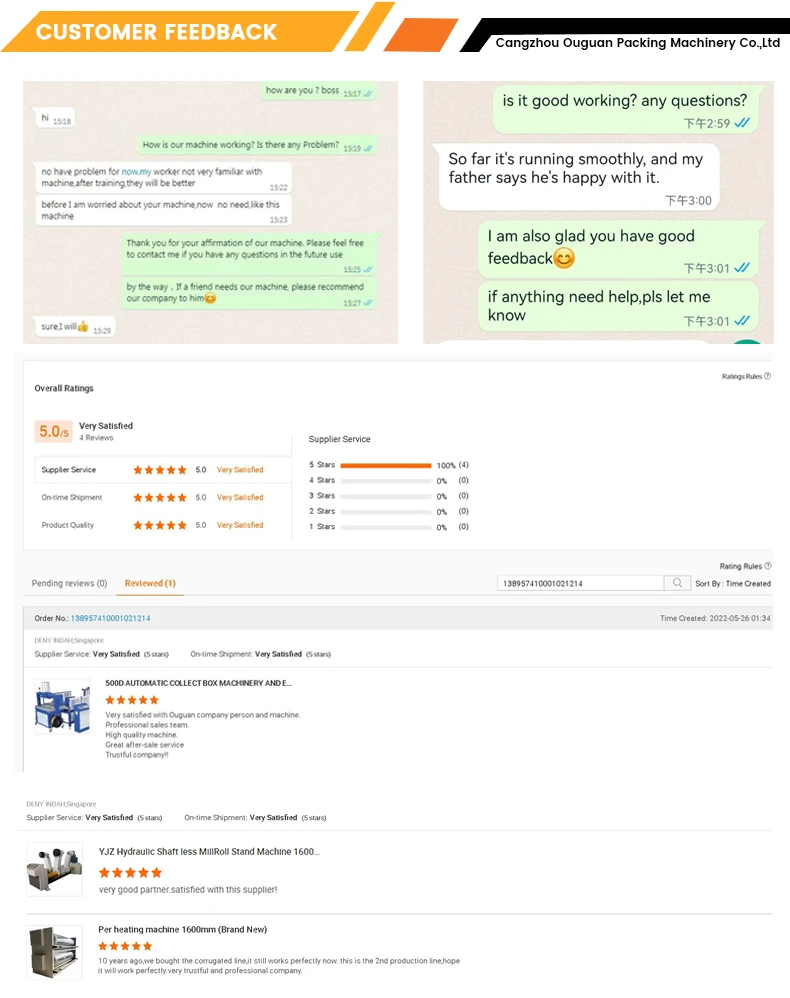

Customer Feedback
Company Profile
Why Choose Us
FAQ
1. Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
A: We are a manufacture which is specialized in the production of various kinds of carton equipments for 30 years. (with export
license)
2. Q: Where is your factory located? How can I visit here?
A: Our factory is located in Lisiwei industrial area south of Dongguang country, Cangzhou City Hebei province, China. It is about
2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up
if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary
printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our
sole purpose providing the products with excellent quality, professional technology OUGUAN packing machinery CO., LTD always
attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country.
Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
We accept LC at sight
