Полностью автоматическая флексографическая машина для печати на картонных коробках, 4 цвета
- Category: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Supplier: Hebei Shengli Paper Chest Equipment Manufacturing Co. Ltd.
Share on (1600790491500):
Product Overview
Description
No. | Item | Unit | YKW920 | YKW924 | YKW1224 | YKW1228 |
1 | Design speed | pieces/min | 300 | 280 | 260 | 260 |
2 | Maximum feeding size | mm | 900*2000 | 900*2400 | 1200*2400 | 1200*2800 |
3 | Minimum feeding size | mm | 300*600 | 300*600 | 350*600 | 350*600 |
4 | Maximum printing size | mm | 900*1960 | 900*2360 | 1200*2360 | 1200*2740 |
5 | Printing precision | mm | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
6 | Standard plate thickness | mm | 7.2 | 7.2 | 7.2 | 7.2 |
7 | Printing paperboard thickness | mm | 2-11 | 2-11 | 2-11 | 2-11 |
8 | Maximum slotting depth | mm | 260 | 260 | 300 | 300 |
9 | Printing roller axial adjusting | mm | ±10 | ±10 | ±10 | ±10 |
10 | Die cutting precision | mm | ±1 | ±1 | ±1 | ±1 |
Function and characteristics
1、 Triaxial leading edge roller wheel vacuum adsorption paper feeding system，the frequency changer adjusts the vacuum pressure, accommodate the different paperboard size and the variable paperboard.
2、 The whole machine is designed and manufactured according to reliability function and safety, in accordance with European CE standard.
3、 Remote maintenance of computers (customers with networking conditions), quickly solve equipment failures, improve service efficiency, reduce maintenance costs.
4、 All drive rollers are made of high quality steel with abrasive and hard chrome plated surface.
5、 Each unit is equipped with an emergency stop switch, which can stop the walking of each unit internally to ensure safety.
6、 Centralized treatment of paper dust to keep the working environment clean.
7、 Order storage for 100,000, automatic zero, automatic reset.
8、 The modular design facilitates the equipment upgrade.
9、 The transmission gear is made of high quality steel and grinded, after heat treatment, HRC hardness is greater than 60 degrees.
10、The application of keyless shaft collar, transmission gear and shaft do not loose after long-term using, to ensure the accuracy of printing.
11、 The whole machine adopts high precision ball screw for more accurate adjustment and durability.

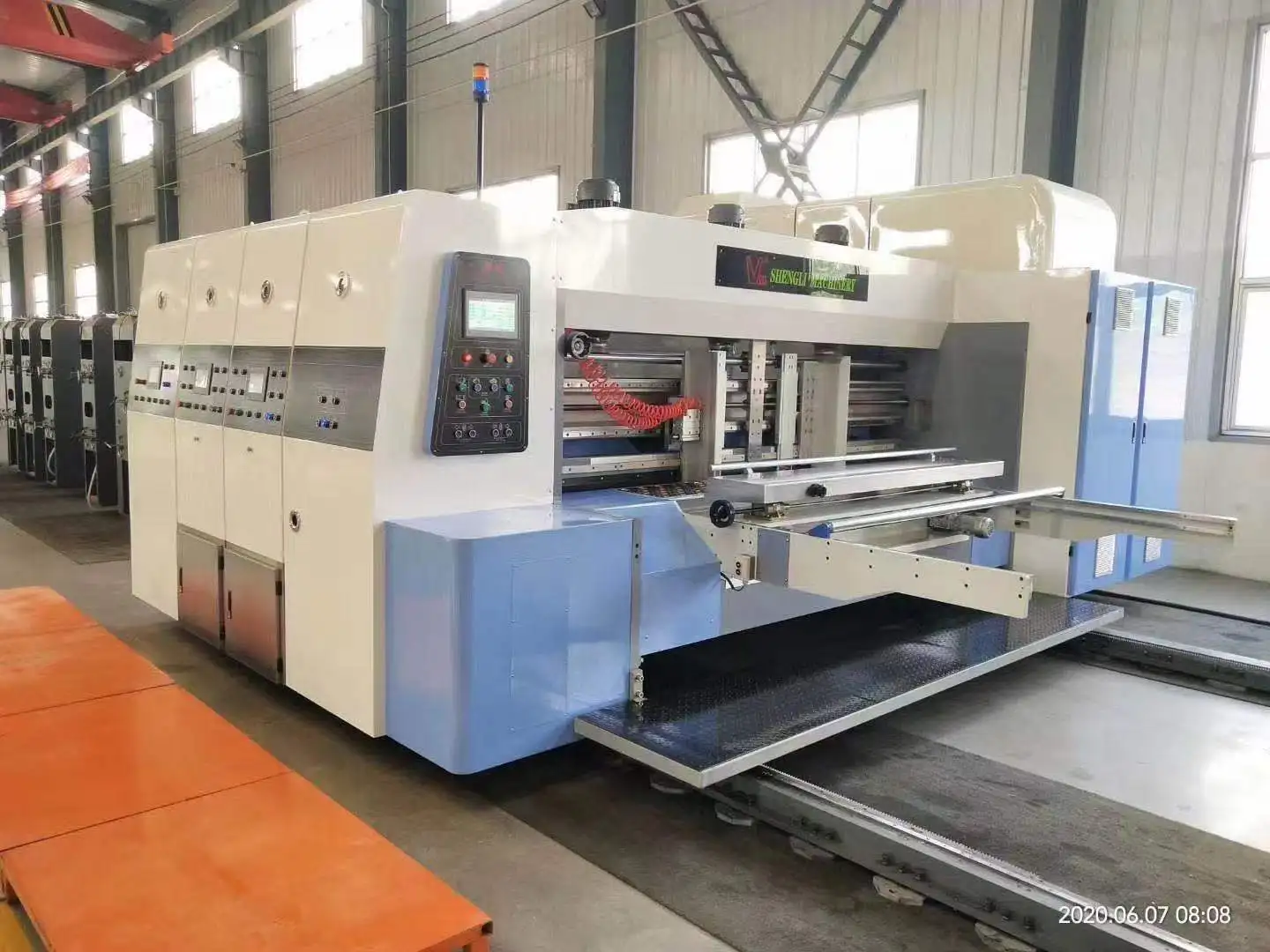

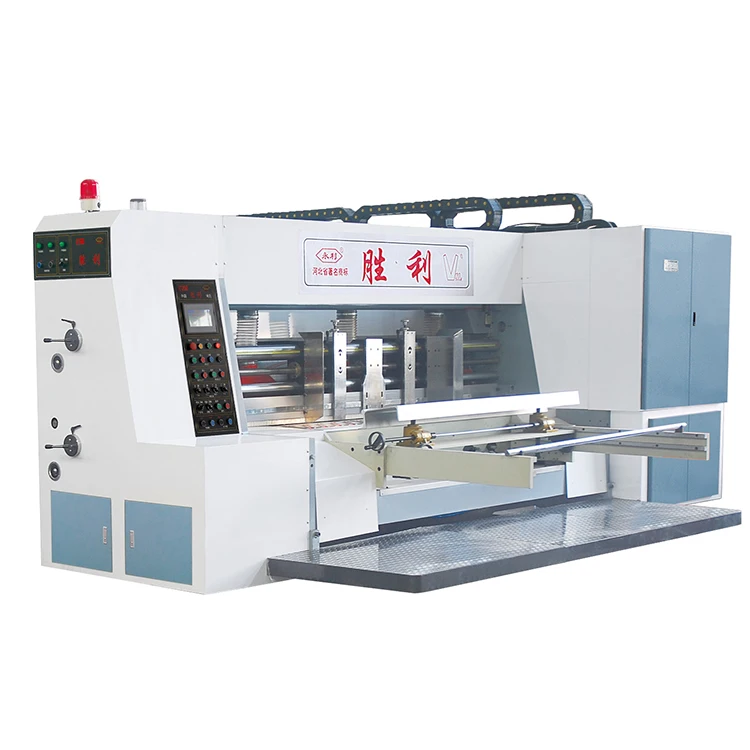

Feeding unit
The paper feeding table consists of three rows of paper feeding wheels.
Three sets of servo motors, the driving belt pulley and the driven belt pulley are connected by the expansion sleeve.
The synchronous belt contains steel wire with strong tensile strength, reliable transmission and high abrasion resistance.
Printing unit
The printing department is composed of adsorption bellows, printing plate roller, anilox roller, rubber roller (or doctor blade).
The transmission between all parts adopts the cross slider structure (especially the pressure adjustment between the anilox roller and rubber roller, the anilox roller and printing plate roller adopt the cross slider structure), which reduces the noise and makes the transmission more stable.
The whole process of vacuum paper feeding system can realize full plate and bending paperboard printing.
There is no need to leave traction margin on both sides of paperboard to reduce paperboard waste.

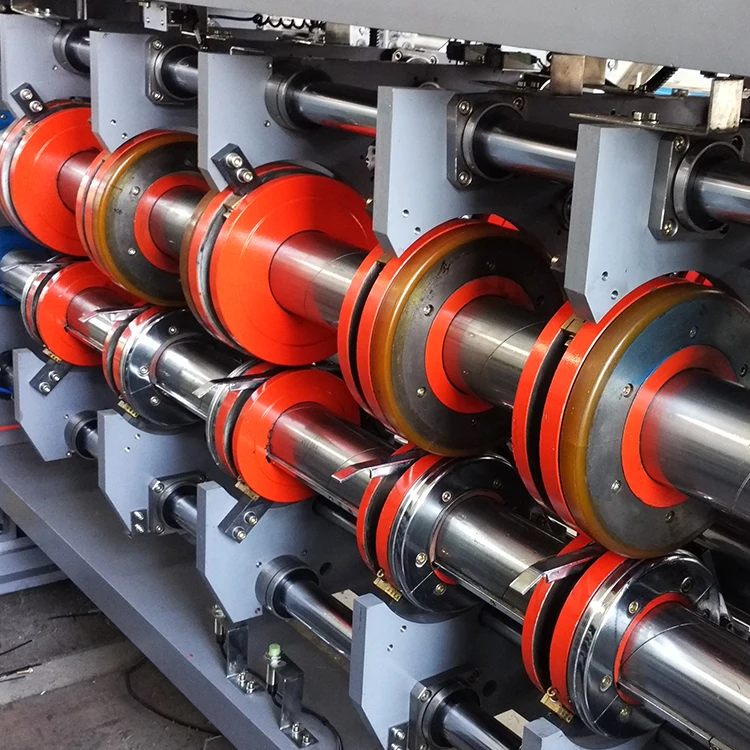

Slotting unit
Single roller and double knife slotting, box height adjustment with internal teeth gear structure, make sure the lubricating oil is not easy to pollute the carton.
The line pressing steel roller diameter ɸ130mm,abrasive machining，hard chrome plated surface.
The first line pressing wheel，after pre-pressed line paperboard is not easy to crush.
The surface of the line pressing wheel is wrapped with polyurethane, which will not damage the cardboard.
The interval adjustment of line pressing wheel and pre-press wheel adopt self-locking structure，adjusting range is 0-12mm.
The horizontal movement adjustment mechanism of slotting knife block adopts the lead screw and linear guide rail to make the movement more flexible and accurate.
The upper knife block and the lower knife block adopt the linkage of the driving shaft，hold the upper and lower knife alignment when moving to extend knives using life.
Transverse movement position of pre-press wheel、line pressing wheel and slotting knife block is controlled by computer electric digital.
The box height adjustment of slotting knife has anti-collision protection device, which will not damage the electrical appliances.(The height of the box is electrically adjusted).
Elastic angle cutting structure, can cut three layers, five layers of cardboard without adjustment, easy to operate.
The phase of die - cutting roller adopts three planets structure, high precision, large bearing capacity, stop、operation can be electric digital 360 degree adjustment.

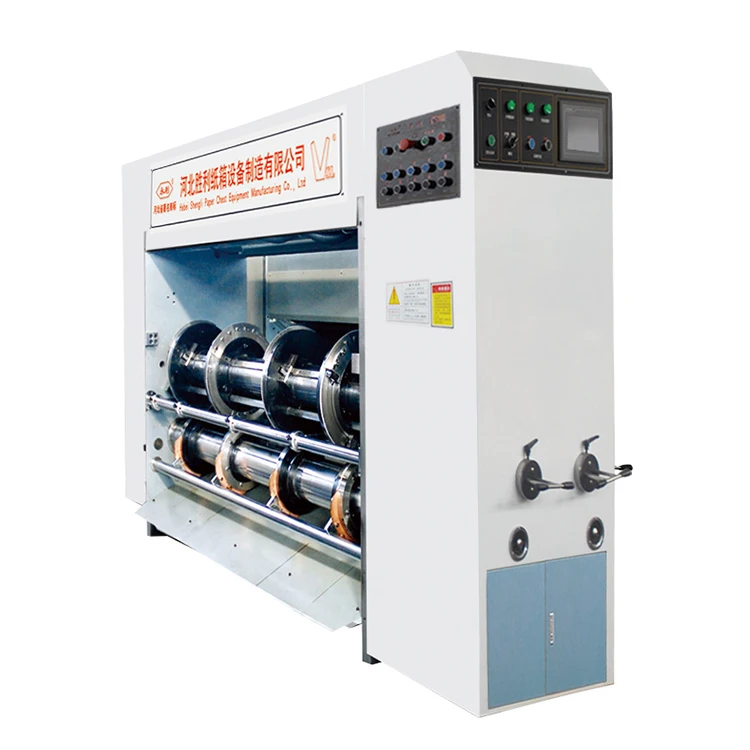

Die cutting unit
The upper and lower roller are made of high quality steel，surface grinding, hard chrome plating.
The phase of die - cutting roller adopts three planets structure, high precision, large bearing capacity, stop、operation can be electric digital 360 degree adjustment.
When the paper feeding stopped, the rubber cushion roller automatically rises to reduce unnecessary wear.
Die - cutting upper and lower roller diameter is different, but the two rollers’ linear velocity is equal.
Die - cutting knife can be controlled in the circumferential direction of infinite non - circular work, make the rubber sleeve wear evenly.
Cushion roller cutting flat structure, keep the cushion flat. Greatly improve the reuse of rubber pads.
