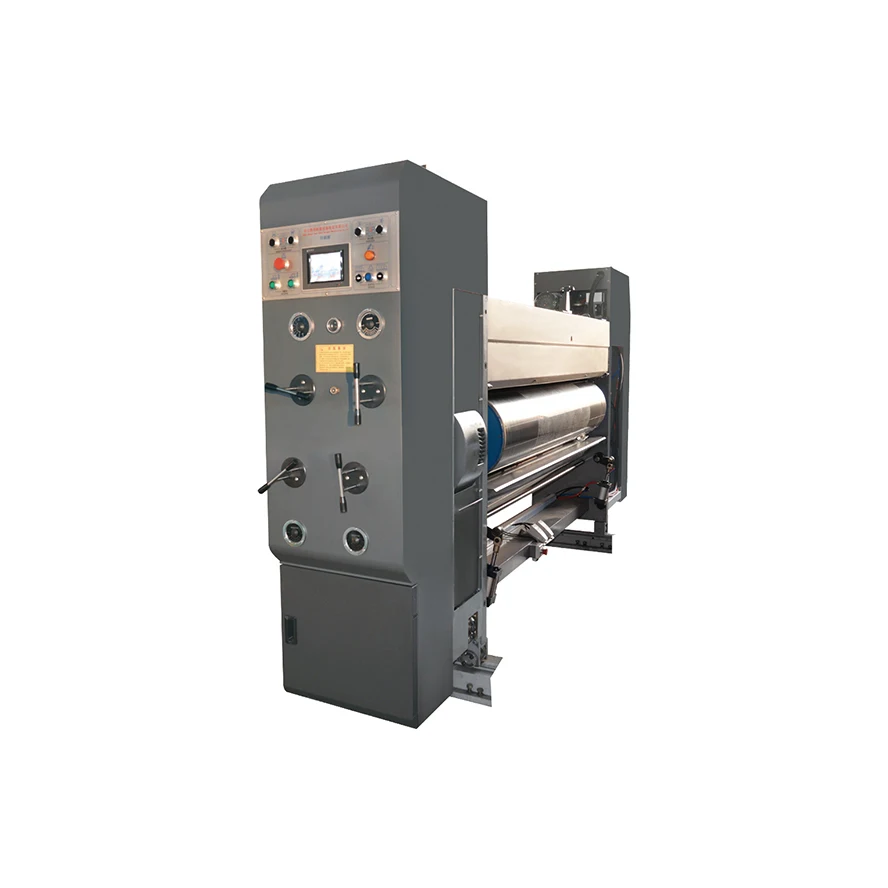

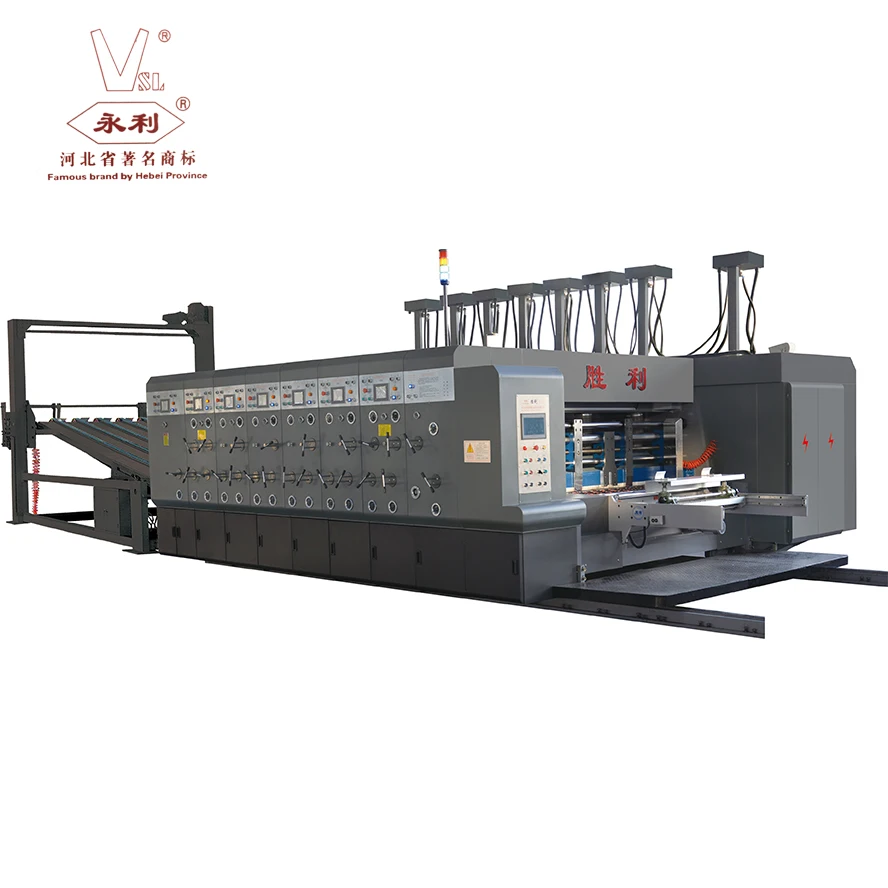

GYK1270 corrugated cardboard 4 color flexo printer slotter and rotary die cutter folder gluer machine
- Category: >>>
- Supplier: Hebei Shengli Paper Chest Equipment Manufacturing Co. Ltd.
Share on (1600123913232):
Product Overview
Description
Warm Prompt
Welcome to our company！The company was engaged in this industry since 1985.
Shengli is your best selection,why?
Because we have a complete solution for your project.
Powerful support is provided for you by our professional technical research and development team,after-sales service team.
Saving your spending and time is our purpose!
There are 6 patents for invention,12 utility model patents are on our company's website,you can have a check at Alibaba!
So...Contact us at anytime!
Shengli is your best selection,why?
Because we have a complete solution for your project.
Powerful support is provided for you by our professional technical research and development team,after-sales service team.
Saving your spending and time is our purpose!
There are 6 patents for invention,12 utility model patents are on our company's website,you can have a check at Alibaba!
So...Contact us at anytime!
Serial | Item | Unit | Specification |
1 | Design speed | Pieces/min | 200 |
2 | Maximum feeding size | mm | 1200×2200 |
3 | Minimum feeding size | mm | 350*700 |
4 | Feeding by partition | mm | 1600*2200 |
5 | Maximum printing area | mm | 1200×2040 |
6 | Printing accuracy | mm | ±0.5 |
7 | Thickness of standard printing plate | mm | 7.2 |
8 | Thickness of printing paperboard | mm | 2-11 |
9 | Adjustment of printing roller | degree | 360 |
10 | Axial adjustment of printing roller | mm | ±10 |
11 | Maximum Die cutting size | mm | 1200×2150 |
Specification
item | value |
Condition | New |
Warranty | 1 Year |
Brand Name | SHENGLI |
Applicable Industries | Manufacturing Plant, Carton box packaging printing plant |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | Egypt, Turkey, United Kingdom, United States, Italy, Germany, Philippines, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Thailand, South Korea, Algeria, South Africa, Nigeria, Uzbekistan, Tajikistan |
Showroom Location | Egypt, Turkey, United Kingdom, United States, Italy, Philippines, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, South Korea, Algeria, South Africa, Nigeria, Uzbekistan, Tajikistan |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Pump, Bearing, Engine, Motor, PLC |
After-sales Service Provided | Free spare parts, Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support |
Key Selling Points | High Productivity |
Application | Corrugated Carton Box Flexo Printing |
Product name | Automatic High Speed High Definition Printing Machine |
Place of origin | Hebei China |
Feeding way | Lead Egde Feeder |
Voltage | 380V 440V |
Certificate | CE Certificate |
Automatic grade | Full-Atuomatic |
Machine type | High Speed Flexo Printing Machine |
Advantages | Professional Team |
Printing material | 2-12thickness Corrugated Board |
Feeding section
1、The leading edge feed mechanism can be maximum reduce the congestion in the paper feeding process.
2、 Suction fan auxiliary paper feeding, to ensure the smooth feeding of the bending cardboard, the air volume can be adjusted
according to the size of the cardboard each section to ensure the maximum vacuum adsorption of cardboard, so that the paper
feeding more accurate.
according to the size of the cardboard each section to ensure the maximum vacuum adsorption of cardboard, so that the paper
feeding more accurate.
3、 The gap of front and rear baffles are manually adjusted, and the left and right side baffles are electrically adjusted.
4、The paper feeding wheel is made of polyurethane material with great friction and long durability.
5、 Suitable for three or five layers of corrugated board, including E-type corrugated board.
6、 Supply paper counter, set and display production quantity.
........................
Printing unit
1、Steel plate material, surface grinding, hard
chrome plating.
2、Balance correction, smooth operation.
3、Ratchet fixed plate shaft.
4、Full - format plate groove, suitable for 9mm
plate strip.
5、Loading and unloading printing plate, foot switch electric control positive and negative rotation.
chrome plating.
2、Balance correction, smooth operation.
3、Ratchet fixed plate shaft.
4、Full - format plate groove, suitable for 9mm
plate strip.
5、Loading and unloading printing plate, foot switch electric control positive and negative rotation.
6、The gap of printing roller is adjusted manually, the dial displays the adjustment data, and the adjustment range is 0-11mm.

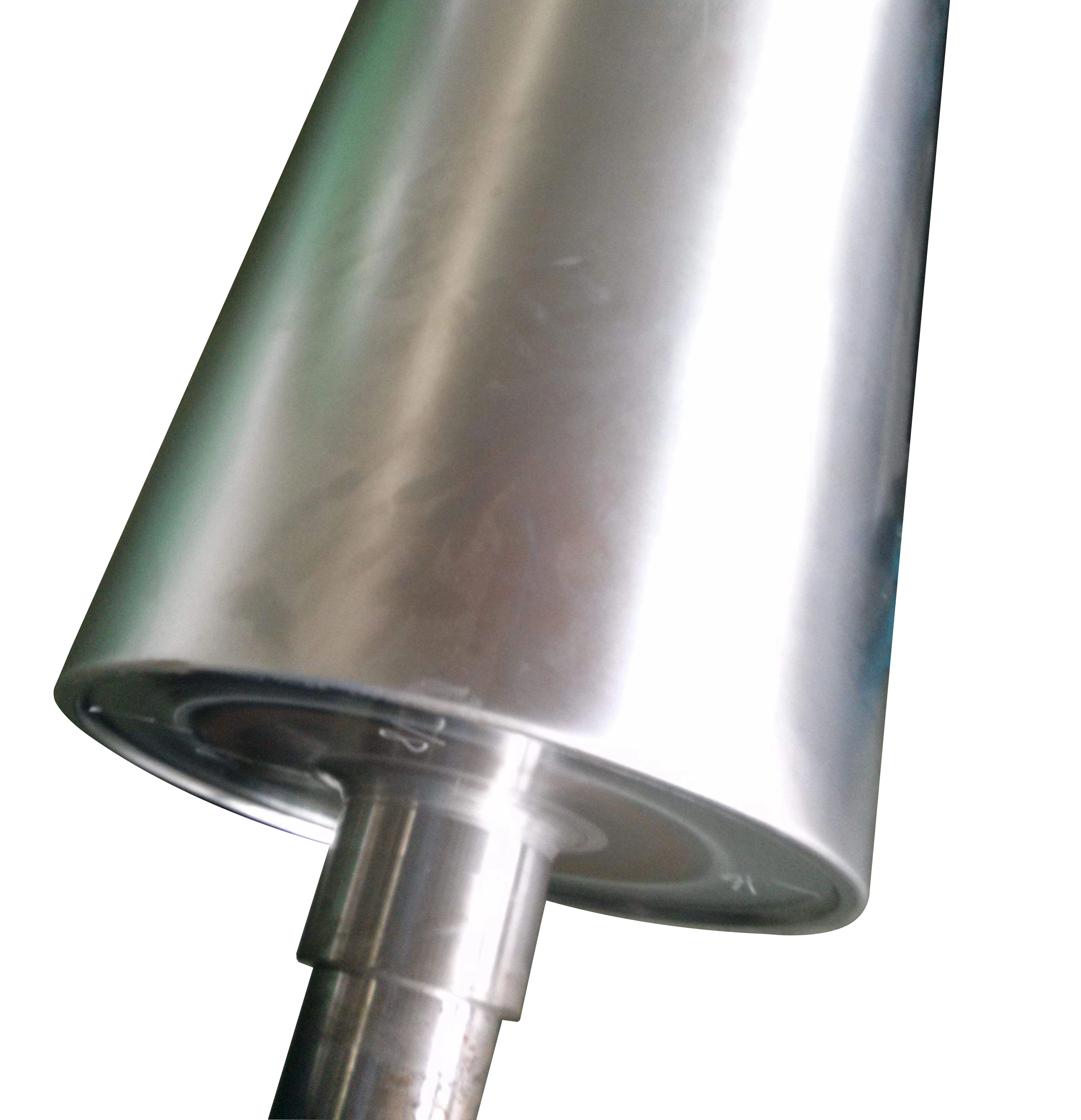

Ceramic anilox roller（The first group of printing department before paper feeding is 280 meshes, the second group is 300 meshes,
the third group is 300 meshes, the fourth group is 330 meshes, the fifth group is 330 meshes, which can also be selected according
to user requirements）
the third group is 300 meshes, the fourth group is 330 meshes, the fifth group is 330 meshes, which can also be selected according
to user requirements）

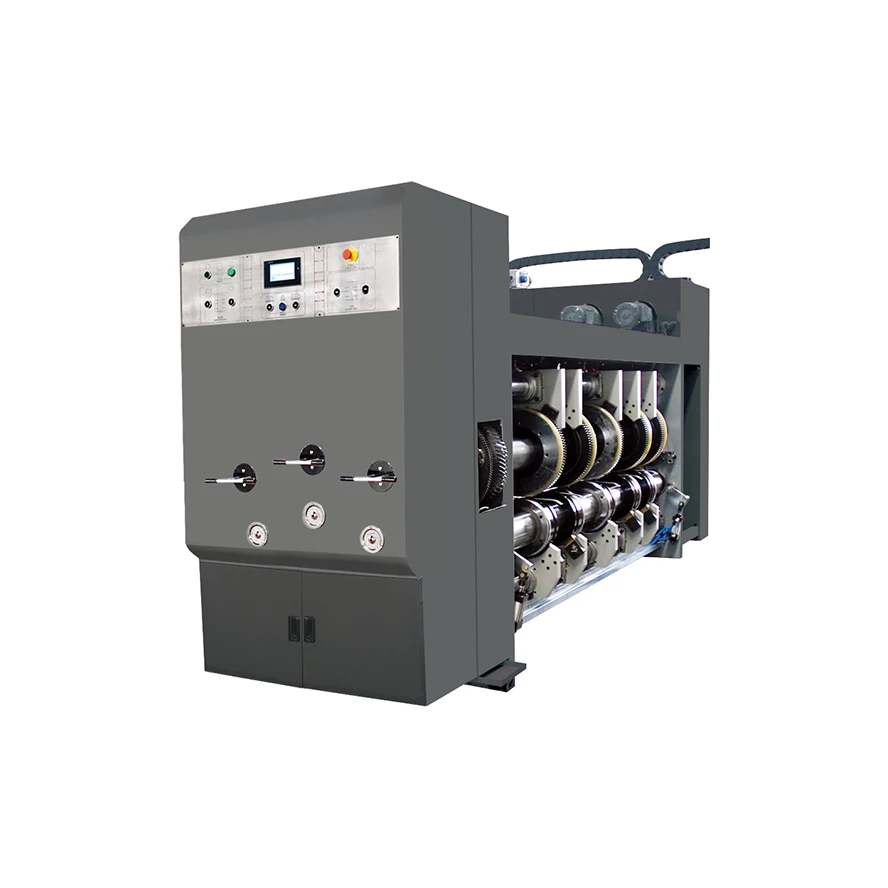

Slotting unit
1、Electric horizontal movement: the line pressing wheel and the slotting knife block are connected by the auxiliary plate, equipped with the guide slide bar and driven by the ball screw, which can make the line pressing wheel and the slotting knife block move horizontally, with stable movement and high precision.
2、Box height adjustment: electric adjustment (PLC control, static and dynamic can be adjusted), scale display.

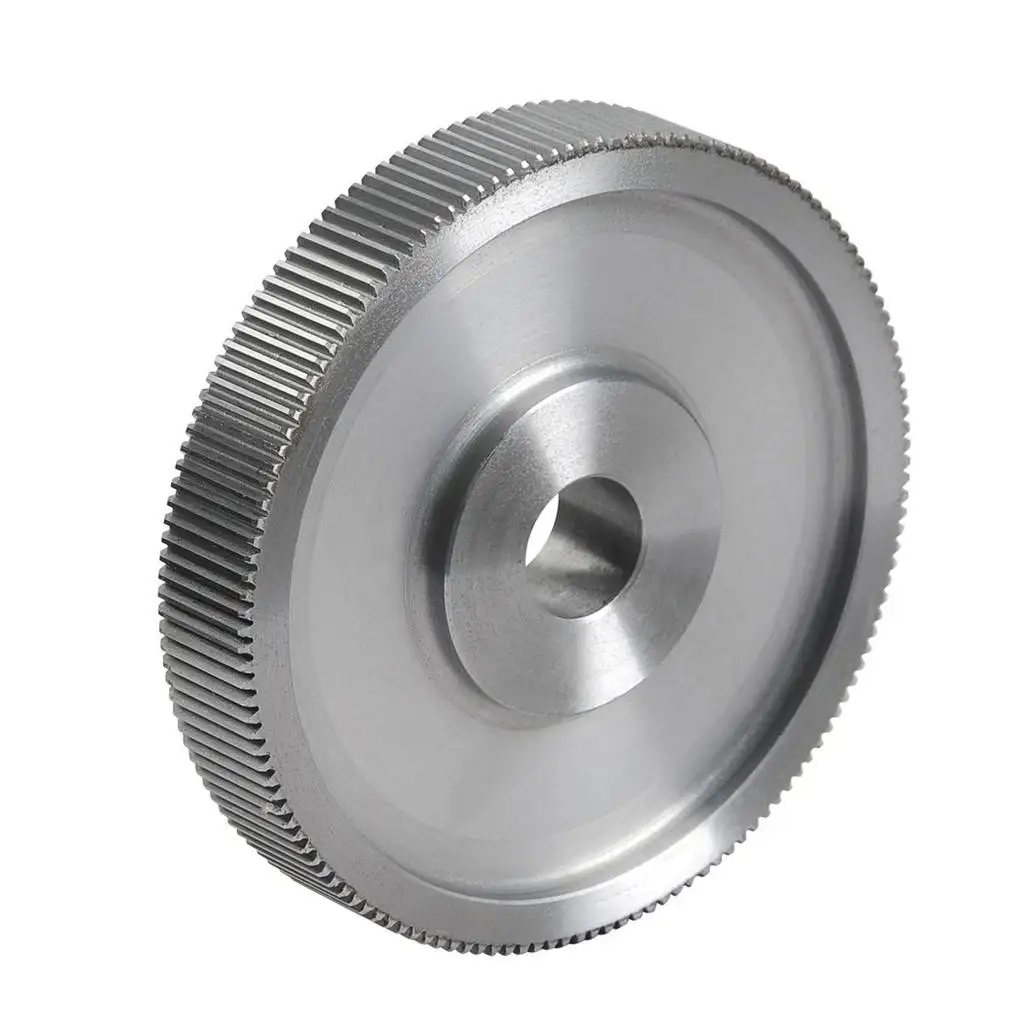

3、The slotted upper and lower shafts are made of seamless steel tubes with a diameter of 155mm. After two times of grinding, the
surface is plated with hard chrome, and the movement is stable.
4、Alloy steel material after heat treatment grinding tooth groove cutter, hardness and toughness are good; The slotting knife width
is 7.0mm.
5、Alloy steel material by heat treatment grinding double - piece trimming knife, knife edge sharp, high precision.
6、The slot holder clearance is adjusted manually, the dial displays the adjustment data, and the adjustment range is 0-11mm.
2、Box height adjustment: electric adjustment (PLC control, static and dynamic can be adjusted), scale display.
3、The slotted upper and lower shafts are made of seamless steel tubes with a diameter of 155mm. After two times of grinding, the
surface is plated with hard chrome, and the movement is stable.
4、Alloy steel material after heat treatment grinding tooth groove cutter, hardness and toughness are good; The slotting knife width
is 7.0mm.
5、Alloy steel material by heat treatment grinding double - piece trimming knife, knife edge sharp, high precision.
6、The slot holder clearance is adjusted manually, the dial displays the adjustment data, and the adjustment range is 0-11mm.

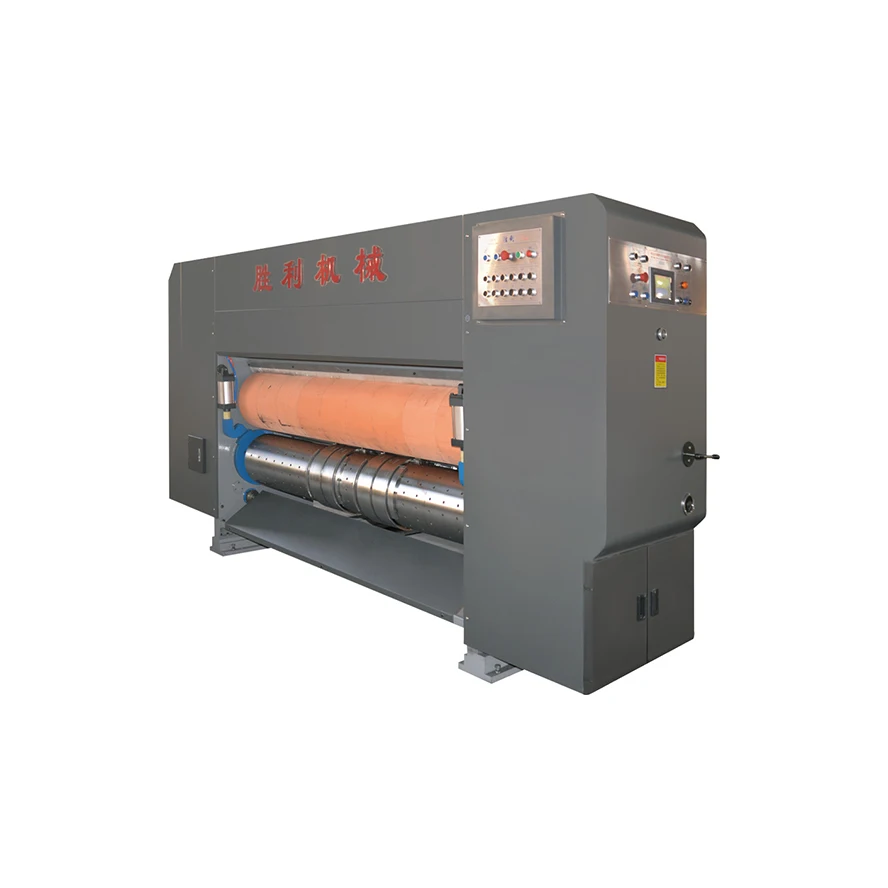

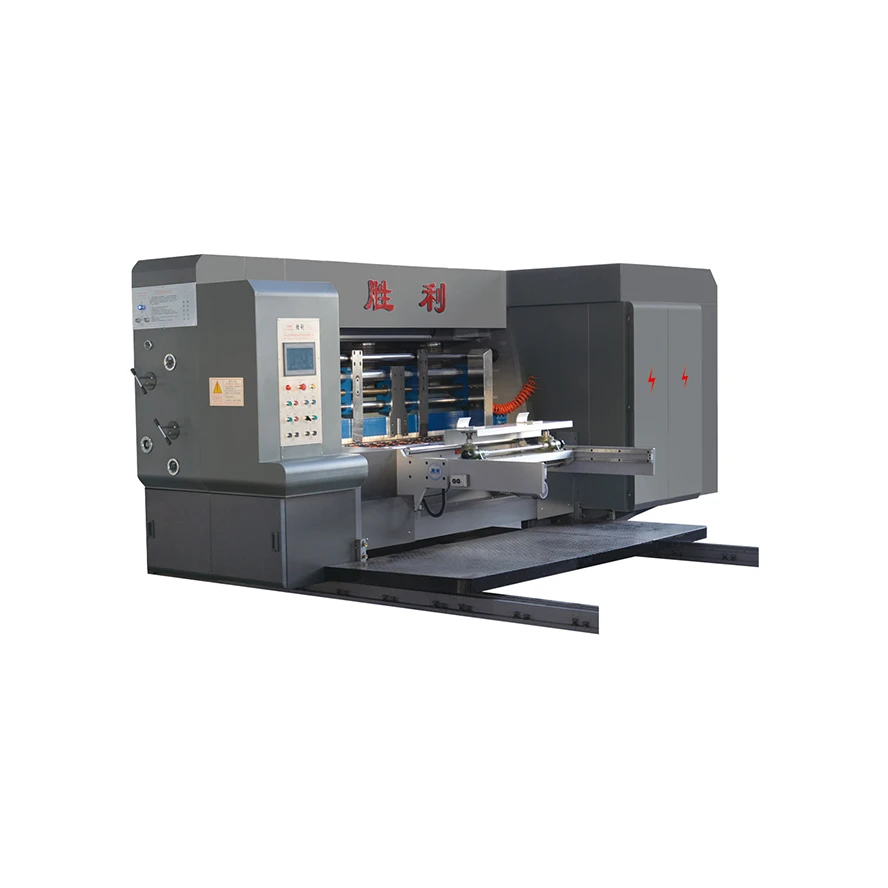

Die cutting unit
1、The roller is plated with hard chrome on the surface of high quality steel, and the dynamic balance correction is to increase its operation stability and reliability.
2、Die cutting rollers and rubber pad rollers are of international standard size, and suitable template and rubber pad can be purchased anywhere in the country.
3、The gap between the die cutting roller and the rubber cushion roller is electrically adjusted, parameters can be set and adjustment data can be displayed.
4、The phase of die - cutting roller adopts three planets structure, high precision, large bearing capacity, stop, operation can be electric digital 360° adjustment.
5、The rubber pad roller is automatically lifted to reduce the abrasion when the paper feeding is stopped.
6、The rubber pad is made of polyurethane felt sleeve produced in Taiwan, which can achieve 100% cutting rate and smooth incision.
7、The replacement order of the rubber pad shall be subject to the loading and unloading operation manual of the rubber pad.
8、The rubber cushion roller adopts the mechanical CAM type left and right moving device, each knife is in a different position,effectively extending the service life of felt sleeve.
9、The cutter die roller can be adjusted by manual axial distance ±10mm.
10、Die cutting upper and lower roller diameter is different, but the two roller linear velocity is equal. Can control the die -cutting knife in the circular direction of infinite non - circular work, so that the wear of rubber sleeve more uniform.
11、Linear speed compensation device. When the diameter of the pad roller changes, the linear speed compensation device automatically tracks and compensates.No need to manually adjust the speed, to ensure that each batch of carton die-cutting size is exactly the same, while greatly extending the felt sleeve and knife mold life.
12、The pad roller automatic repair device can repair the worn felt sleeve for many times. The repaired felt sleeve is smooth and clean, maintaining the same performance as the new felt sleeve. Greatly improves the reuse rate of pad.
2、Die cutting rollers and rubber pad rollers are of international standard size, and suitable template and rubber pad can be purchased anywhere in the country.
3、The gap between the die cutting roller and the rubber cushion roller is electrically adjusted, parameters can be set and adjustment data can be displayed.
4、The phase of die - cutting roller adopts three planets structure, high precision, large bearing capacity, stop, operation can be electric digital 360° adjustment.
5、The rubber pad roller is automatically lifted to reduce the abrasion when the paper feeding is stopped.
6、The rubber pad is made of polyurethane felt sleeve produced in Taiwan, which can achieve 100% cutting rate and smooth incision.
7、The replacement order of the rubber pad shall be subject to the loading and unloading operation manual of the rubber pad.
8、The rubber cushion roller adopts the mechanical CAM type left and right moving device, each knife is in a different position,effectively extending the service life of felt sleeve.
9、The cutter die roller can be adjusted by manual axial distance ±10mm.
10、Die cutting upper and lower roller diameter is different, but the two roller linear velocity is equal. Can control the die -cutting knife in the circular direction of infinite non - circular work, so that the wear of rubber sleeve more uniform.
11、Linear speed compensation device. When the diameter of the pad roller changes, the linear speed compensation device automatically tracks and compensates.No need to manually adjust the speed, to ensure that each batch of carton die-cutting size is exactly the same, while greatly extending the felt sleeve and knife mold life.
12、The pad roller automatic repair device can repair the worn felt sleeve for many times. The repaired felt sleeve is smooth and clean, maintaining the same performance as the new felt sleeve. Greatly improves the reuse rate of pad.
Why Choose Us
Remote computer maintenance (if the client has networking conditions), quickly solve equipment failures, improve service
efficiency, reduce maintenance costs.
efficiency, reduce maintenance costs.
All of the electric mechanical components are international famous brands

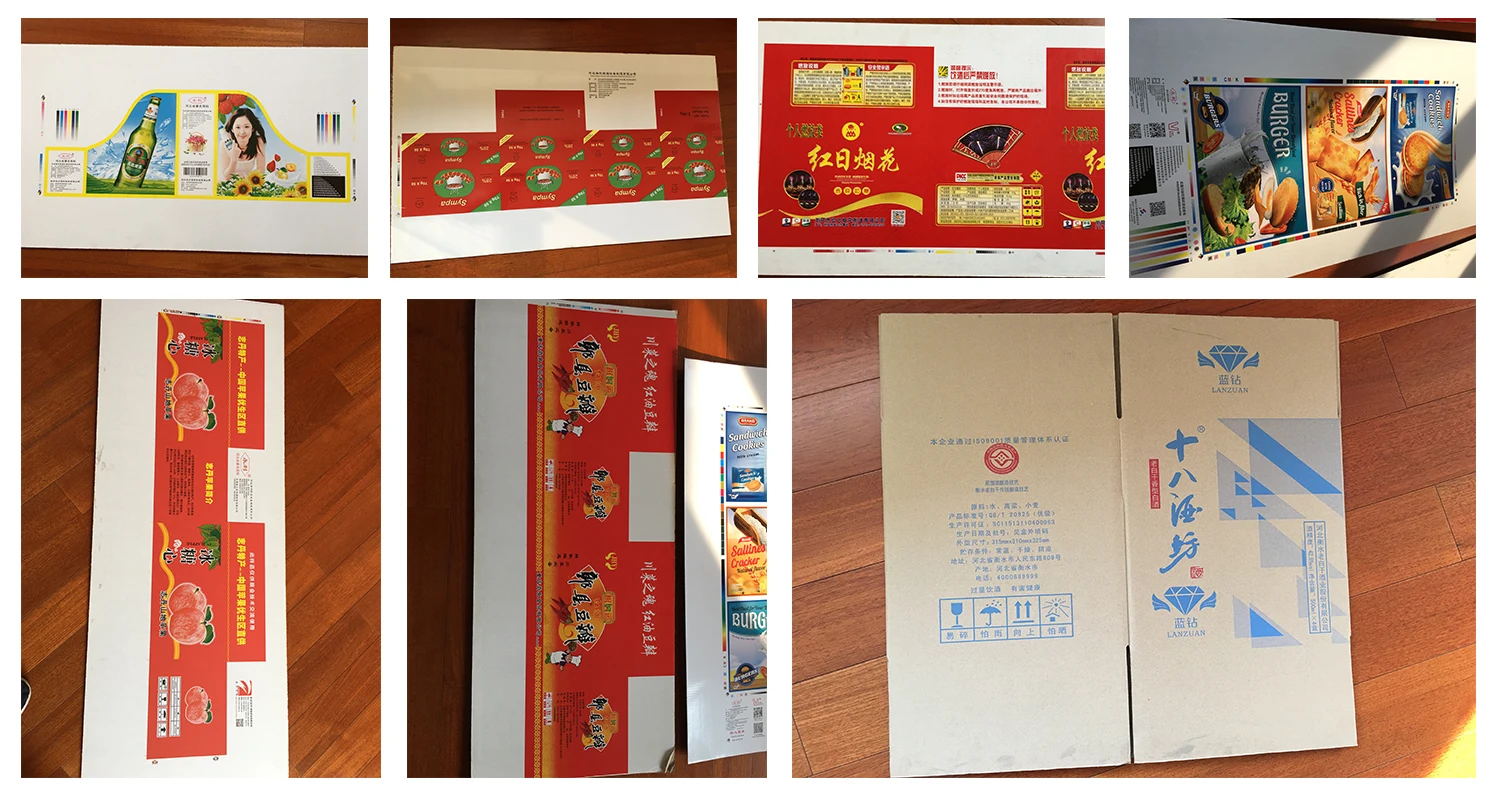

Printing samples

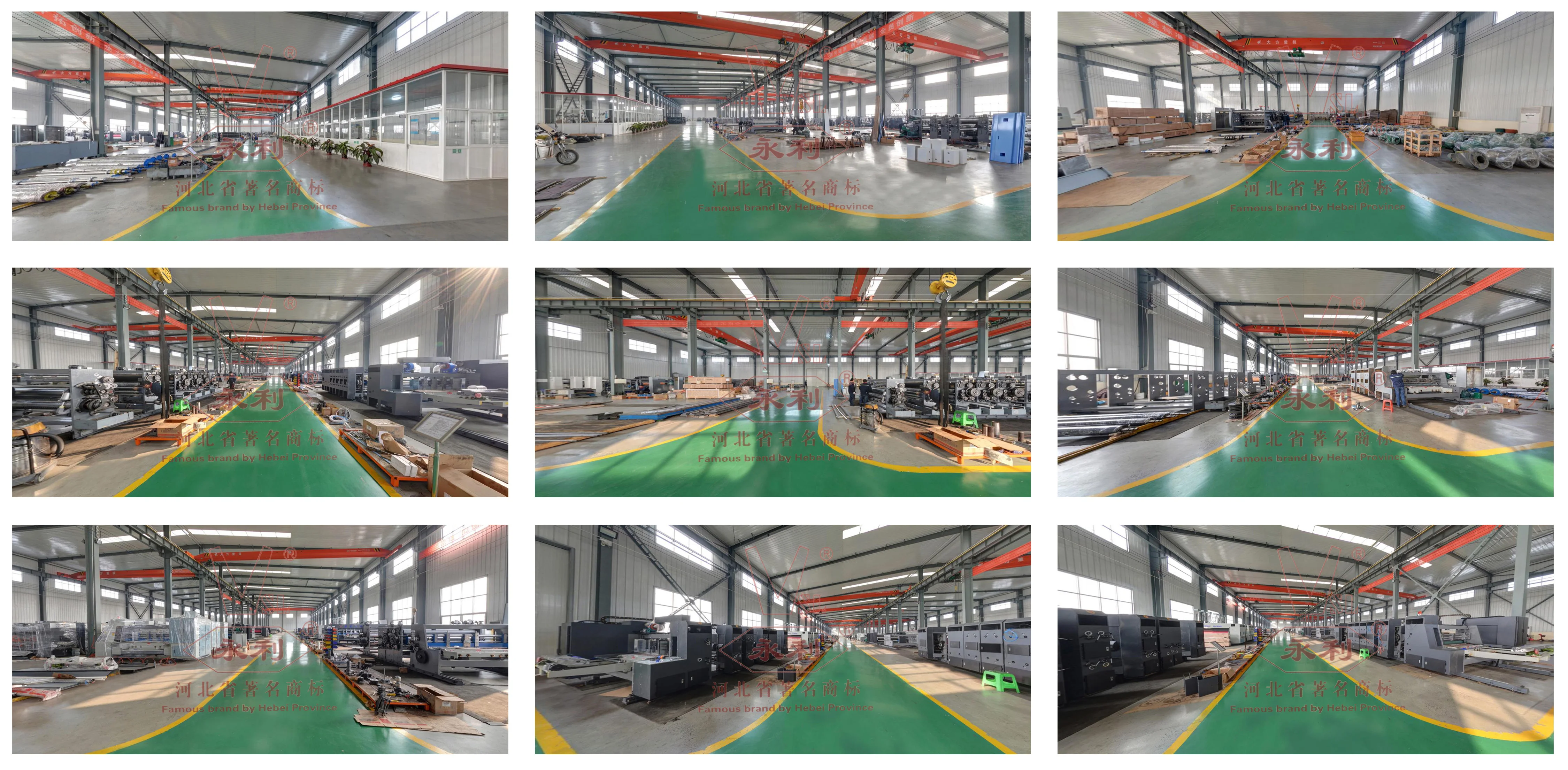

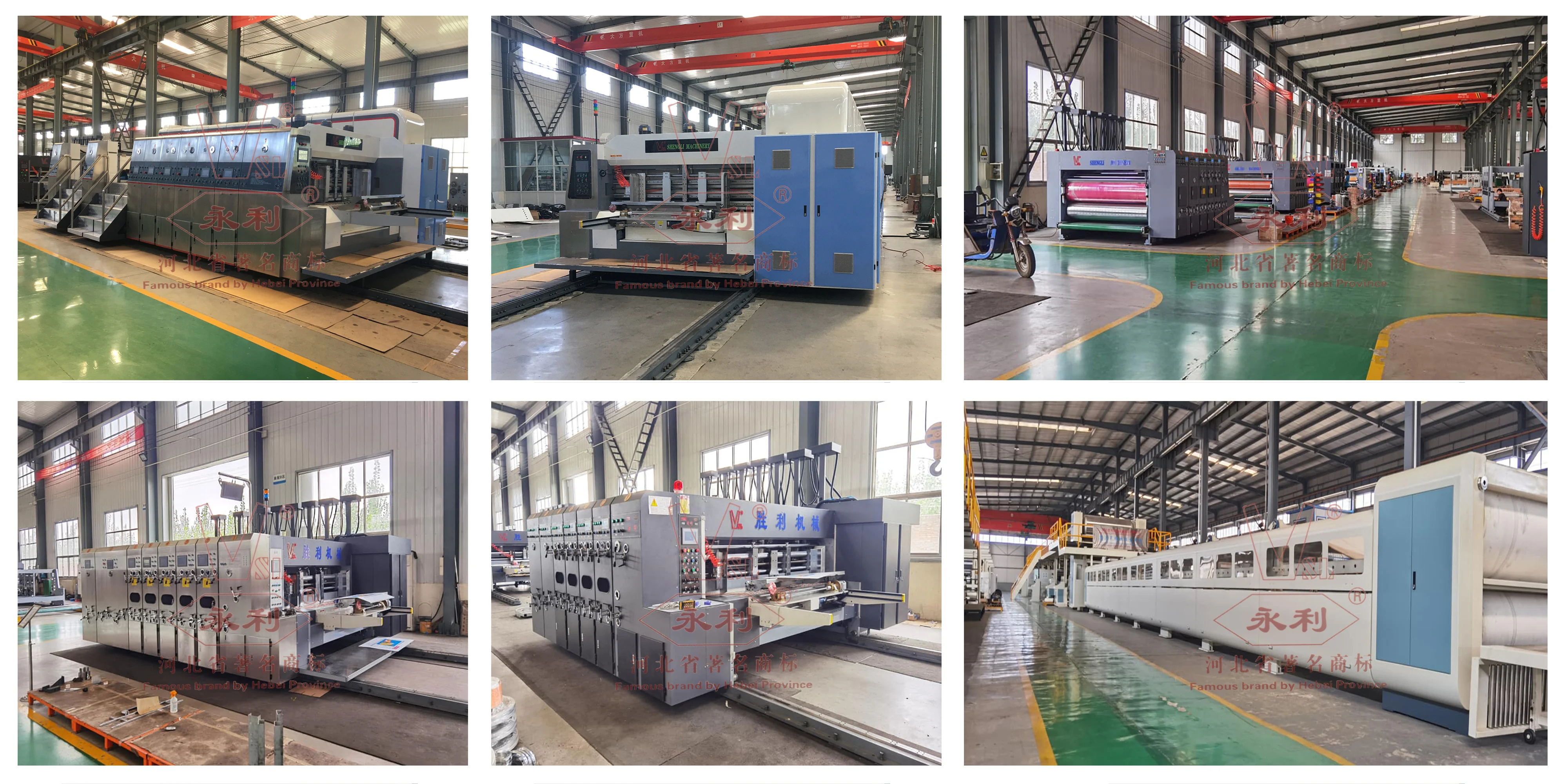

Company workshop
Customer Photos

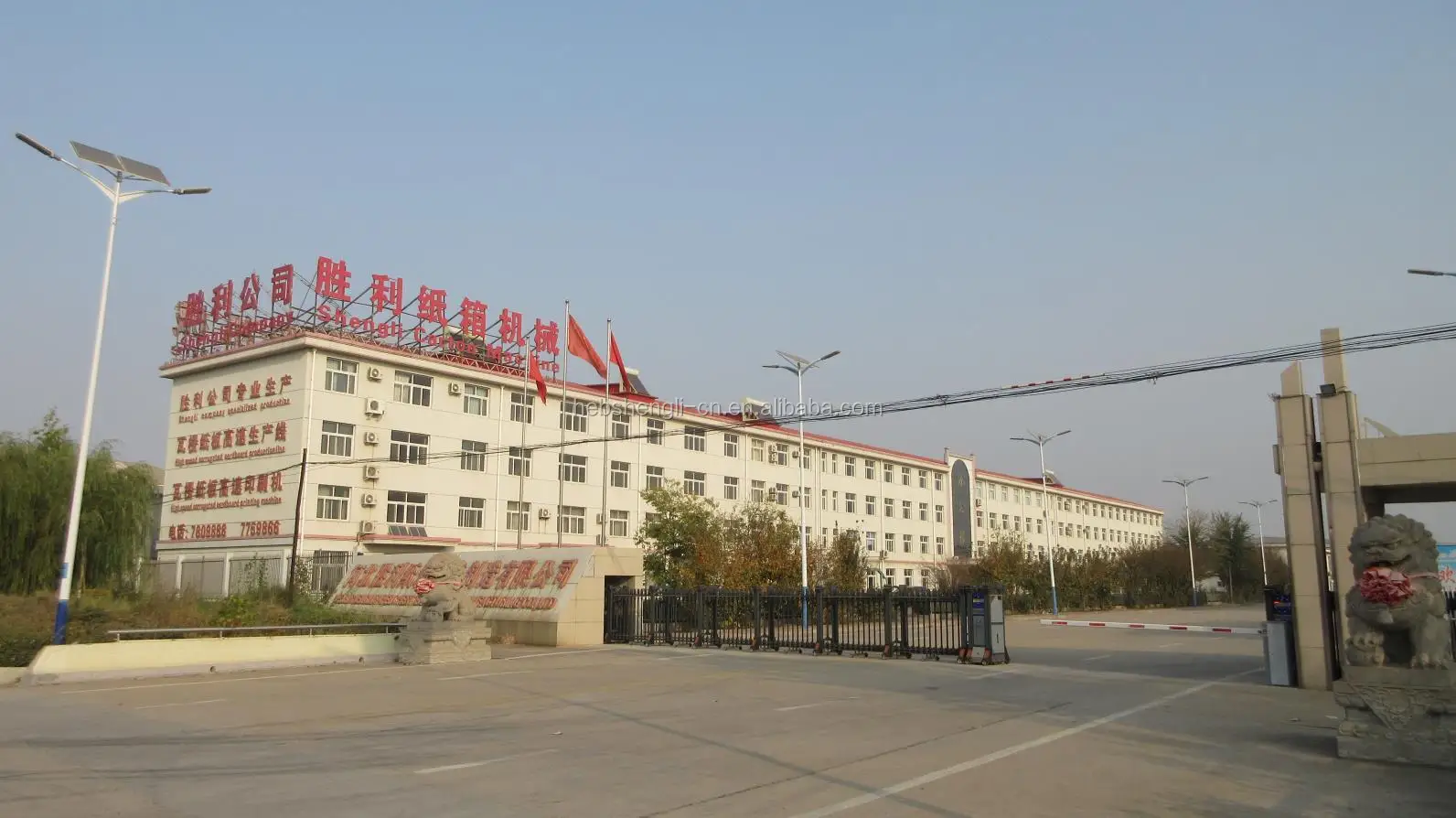

Company Profile
Founded in 1985 Hebei Shengli Paper Chest Equipment Manufacturing Co., Ltd. located in the major carton machinery production area of Dongguang County in North China's Hebei Province, with the major cities of Jinan to the south, Tianjin to the north and Shijiazhuang to the west. With our 66,000 square meter factory beside the Jing-Hu Highway, Jing-Hu Railway and No. 104 National Road, we have convenient access to major transportation networks.With accumulated experience and rapid growth over the past 25 years, we now boast sophisticated manufacturing equipment and a team of experienced managerial personnel. Producing low, middle and high-speed corrugated paperboard printing, pressing and slicing machines, our main units include pressure corner slicers, slitting machines, 3, 5 and 7-ply corrugated cardboard production lines, automatic and chained rotary die-cutters and rolling lines, single face corrugated cardboard machines, paper rolling lines, pasting machines, platform grinder slicers, stitching machines and other related products.Boasting over twenty branch offices and maintenance stations around China, we have also exported our various products to Australia, Mongolia, India, Egypt, Mexico and Vietnam. As an ISO9001 certified entity that has been commended as a "Brilliant Star", "Star Enterprise" and "Unit Trusted by Consumers", we have meanwhile been awarded "Quality Trusted Product" titles in many cities, counties and provinces in China.
Adhering to the concept of "Honesty and Trustworthiness", we are striving to ensure that all customers receive high quality products and services. By shaking hands with us, both sides can go from one victory to another!
Adhering to the concept of "Honesty and Trustworthiness", we are striving to ensure that all customers receive high quality products and services. By shaking hands with us, both sides can go from one victory to another!
