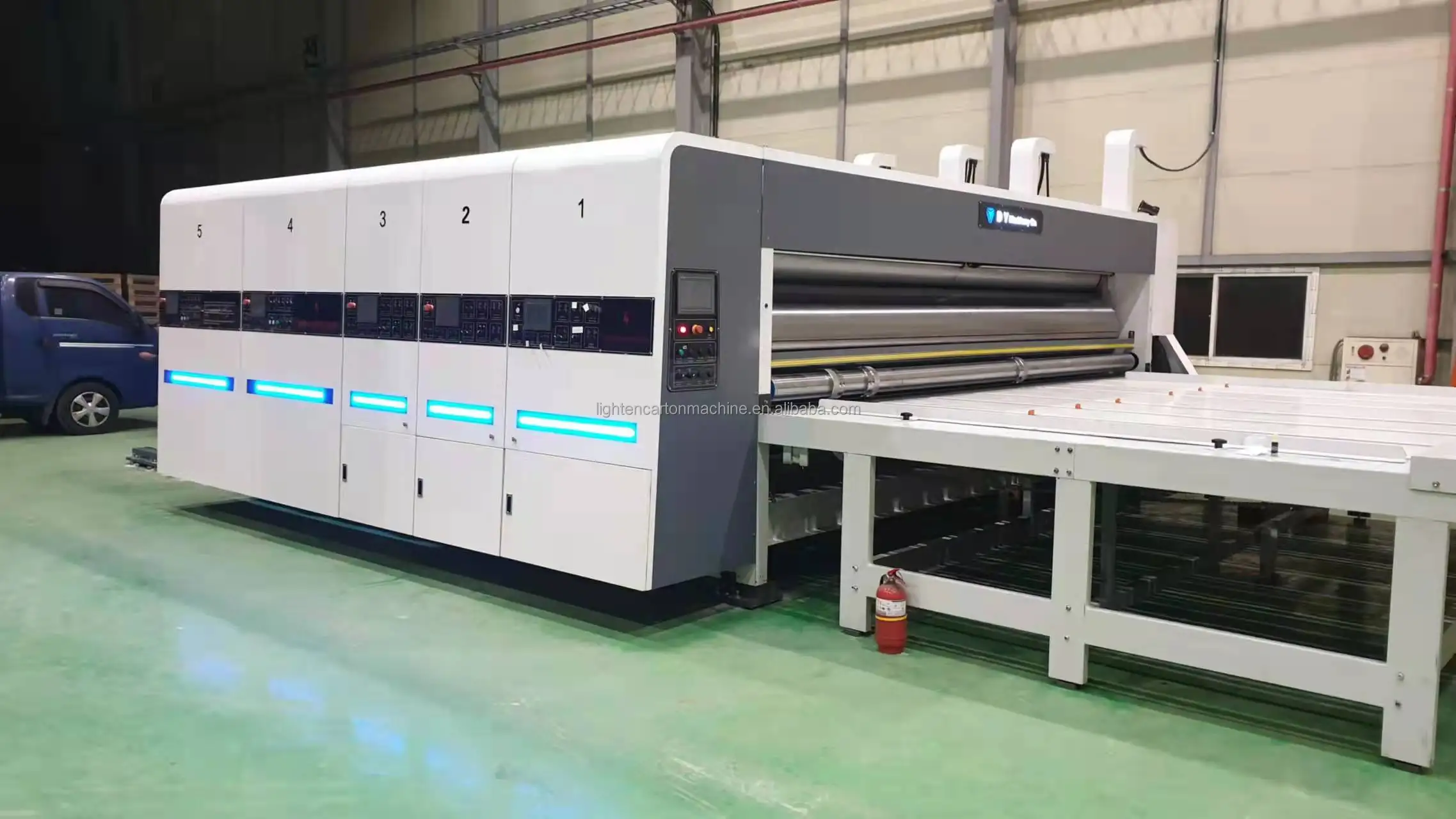

Semi automatic flexo 4 colors printing slotting and die cutting machine cardboard box making machine Cangzhou cartoon machinery
Semi automatic flexo 4 colors printing slotting and die cutting machine cardboard box making machine Cangzhou cartoon machinery
Semi automatic flexo 4 colors printing slotting and die cutting machine cardboard box making machine Cangzhou cartoon machinery
Semi automatic flexo 4 colors printing slotting and die cutting machine cardboard box making machine Cangzhou cartoon machinery
Semi automatic flexo 4 colors printing slotting and die cutting machine cardboard box making machine Cangzhou cartoon machinery
Semi automatic flexo 4 colors printing slotting and die cutting machine cardboard box making machine Cangzhou cartoon machinery
Semi automatic flexo 4 colors printing slotting and die cutting machine cardboard box making machine Cangzhou cartoon machinery

Semi automatic flexo 4 colors printing slotting and die cutting machine cardboard box making machine Cangzhou cartoon machinery

Share on (1600617533988):


Price:$10,000.00 - $11,000.00

Quantity:


Product Overview

Description



Product Description


Semi automatic chain feeder flexo 2 3 4 colors printing slotting rotary die cutting machine




Specification


Project
0920
1224
1426
1628
Max speed (pcs/min)
60
60
60
60
Feeding precision (mm)
±1
Min Sheet size (mm)
300×600
420×600
450×600
450×600
Max sheet size (mm)
900×2100
1200×2500
1400×2700
1600×2900
Skip Sheet size (mm)
1100×2100
1400×2500
1600×2700
2800×2900
Max printing area (mm)
900×2000
1200×2400
1400×2600
1600×2800
Printing precision (mm)
±0.5
Plate thickness (mm)
5
positive knife (mm)
Minimum slot distance (mm)
negative knife (mm)
130×130×130×130
140×140×140×140
150×150×150×150
230×65×230×65
230×70×230×70
240×75×240×75

Max slot depth (mm)
230
300
360
400
increase the blade, increase the slot depth
Slotting precision (mm)
±1
Max die cutting size (mm)
900×200
1200×2400
1400×2600
1600×2800
Die cutting precision (mm)
±1


Products Description

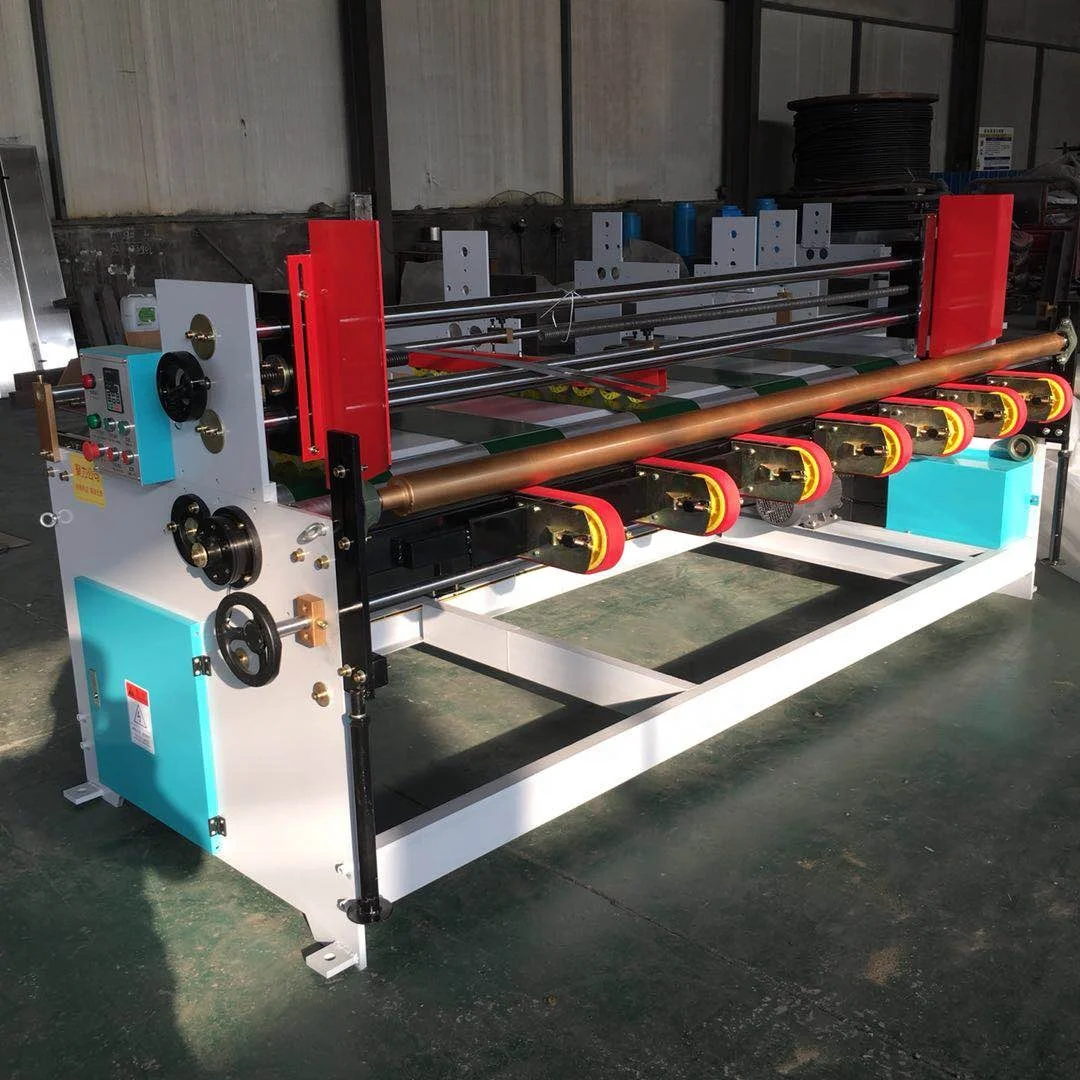

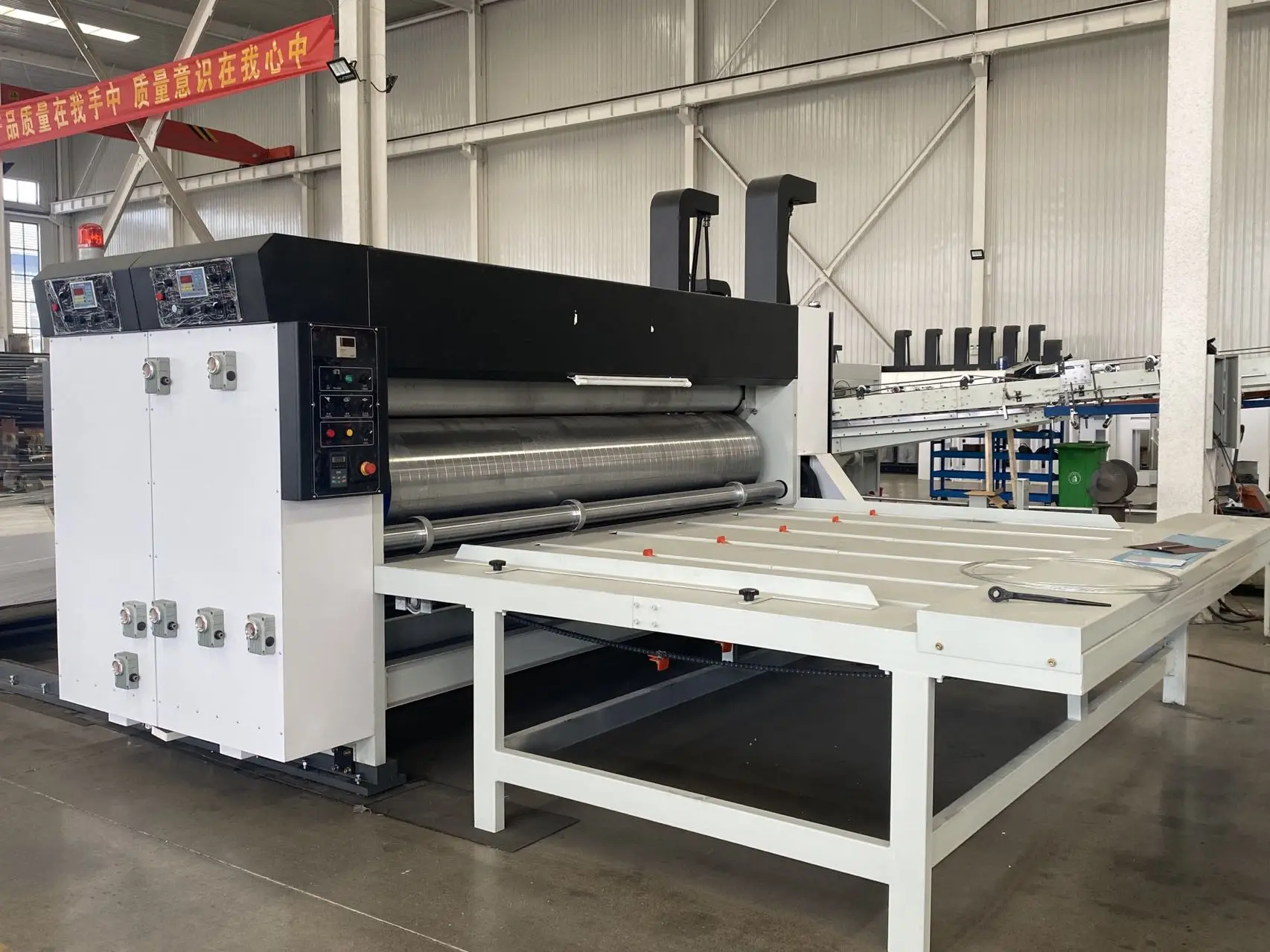

Chain feeder unit
1.Feeding way:
Use chain feeding,chain continuous paper feeding,side regulation
2:Electromagnetic speed regulation,speed range 0-60 sheets per min

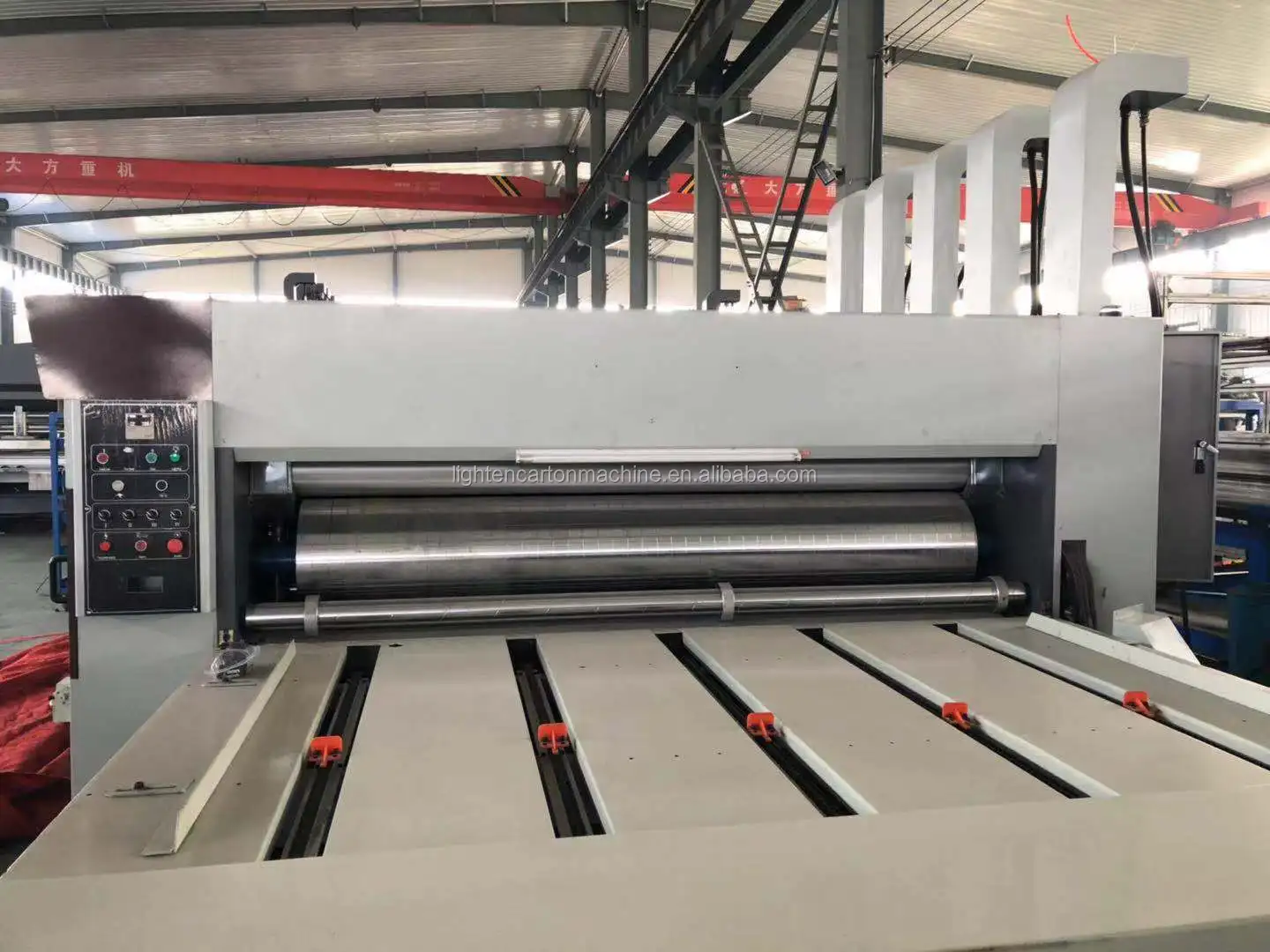

Printing unit
1. Steel material, surface grinding and hard chrome plating.
2. Balance correction, stable operation.
3.Anilox roller is pneumatic lifting-dwon roller
4.Printing phase with electromagnetic clutch brake mechanism

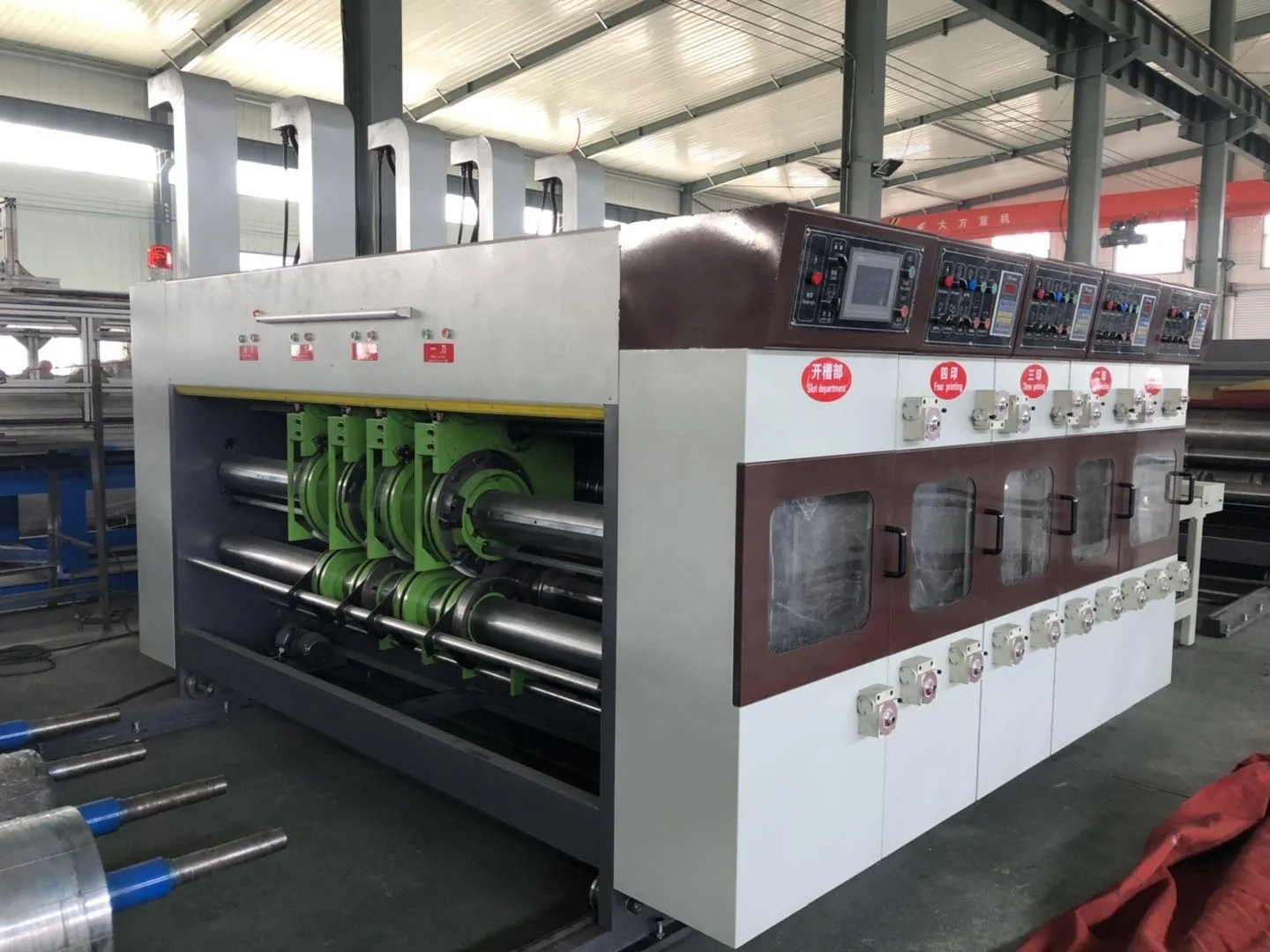

Slotting unit (manual adjustment)
1.Manually adjust the slotted four knife sliding,
2.Tooth grinding heat treated alloy steel slotted knife
3.Heat treated alloy steel grinding trimming knife, sharp knife, high precision



Auto feeder unit
It can be used with chain-feeding printing machine, which can save labor to a certain extent and increase output.

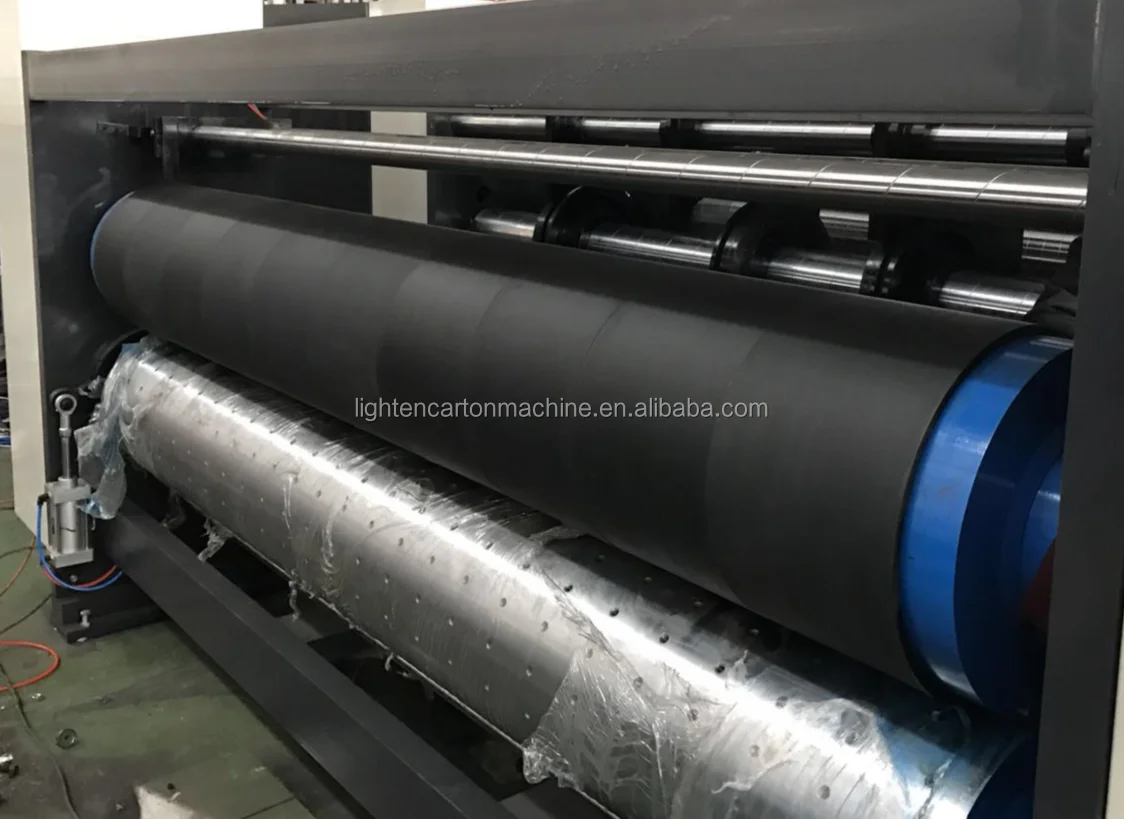

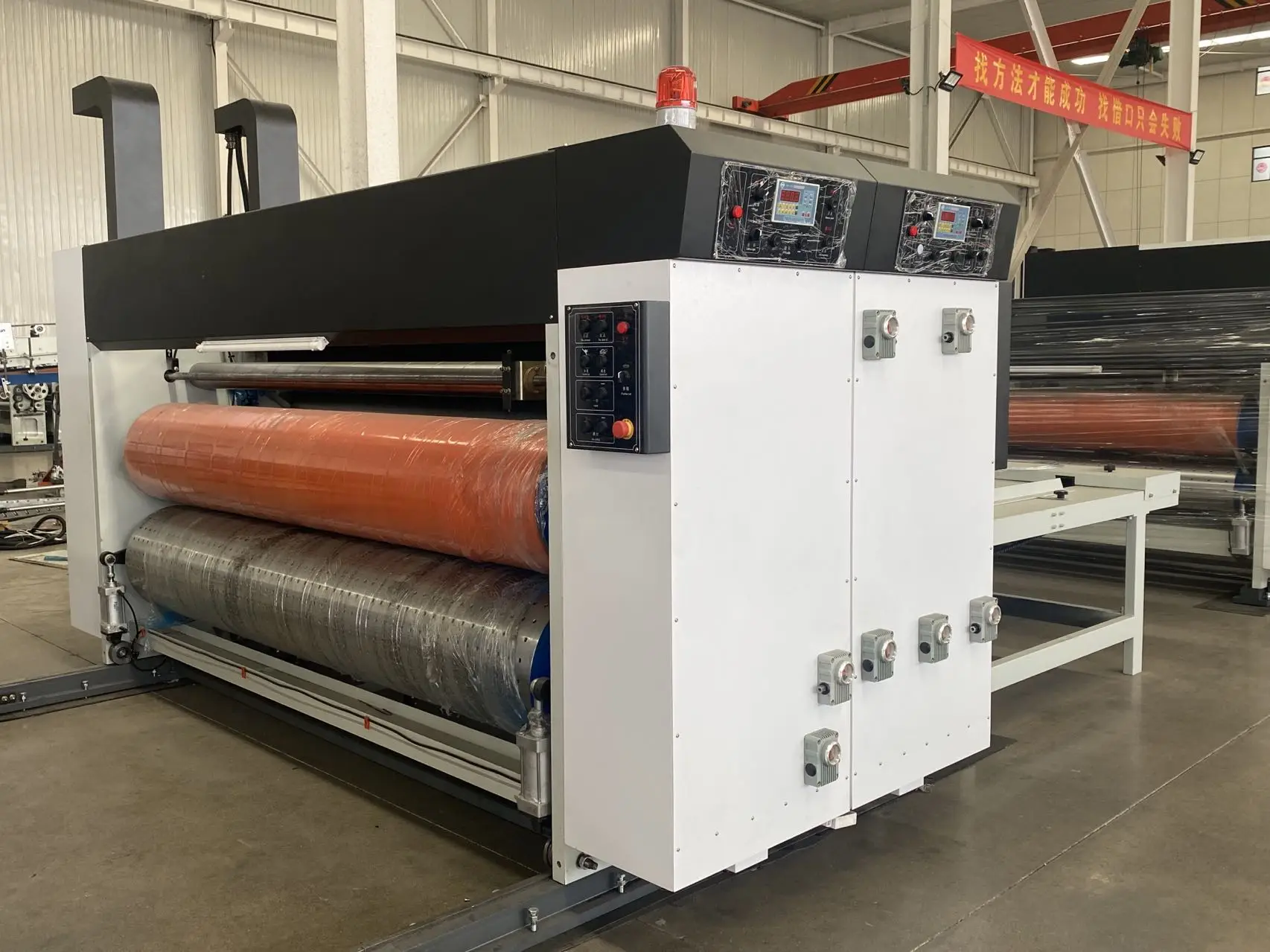

Rotary die cutting unit
die cutting roller add the wooden die mould can make special shape carton box like pizza box,easy to operate




Rotary die cutting unit with slotting attachment
Die cutter unit can also install slotting attachment to cut the standard carton box.
Stacker unit
It can automatically collect paper and realize the automation of receiving paper

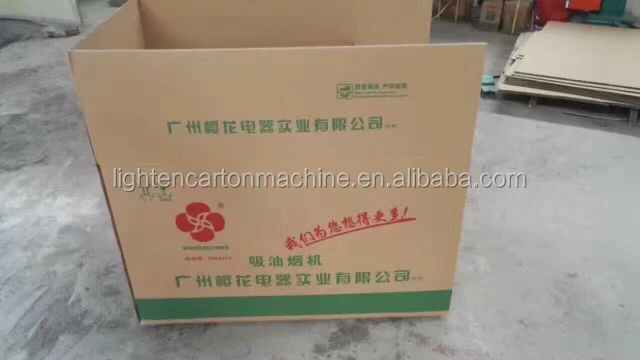

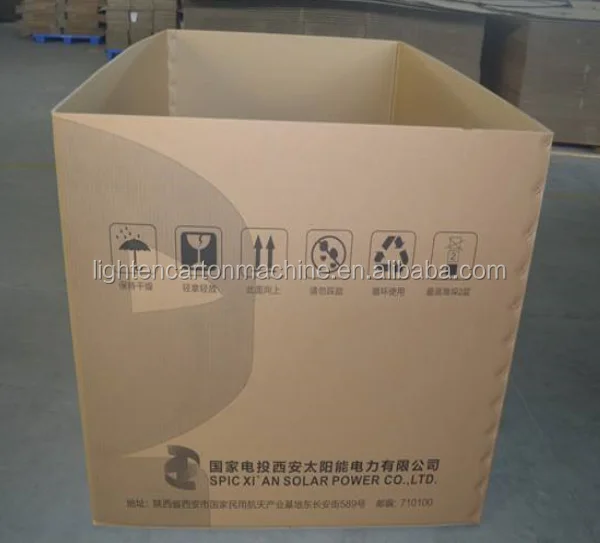

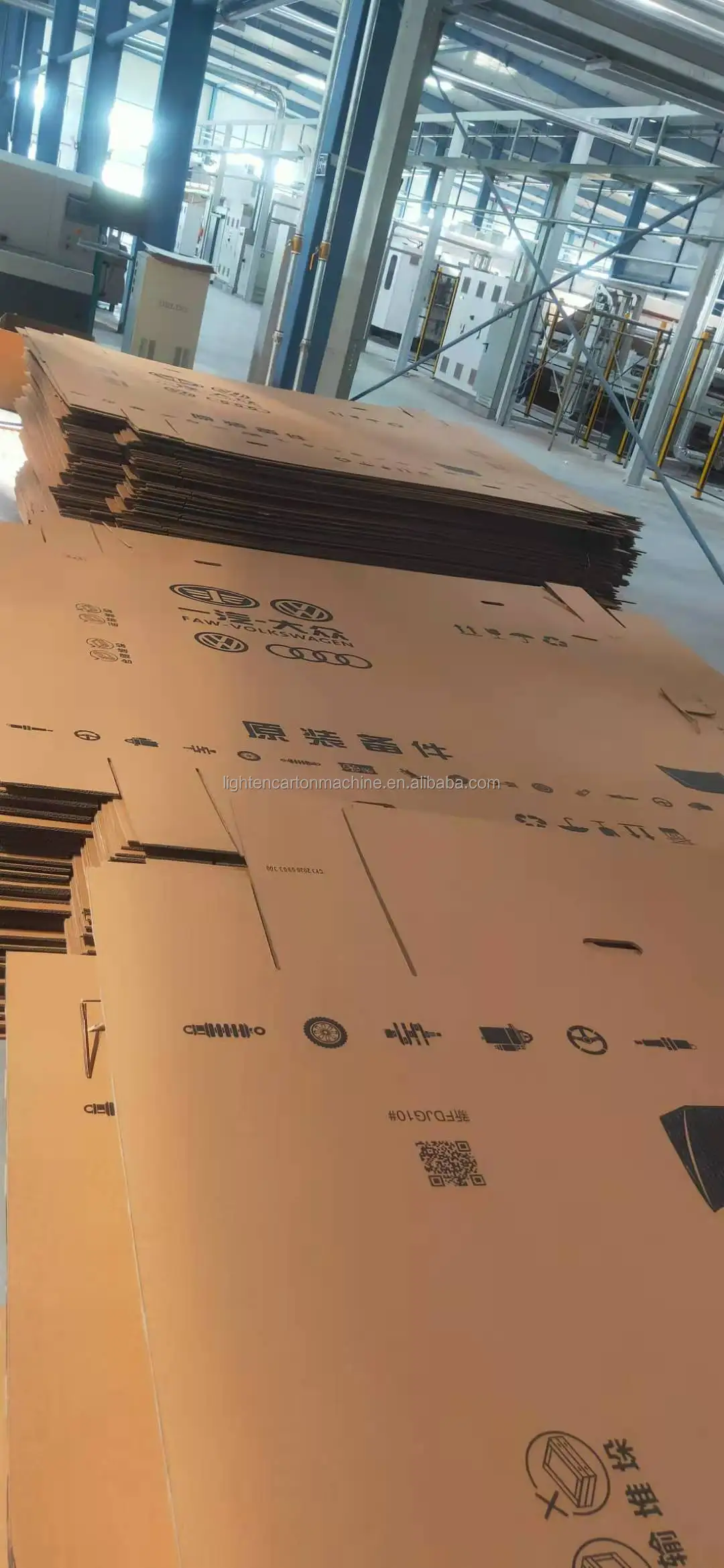

Printing sample

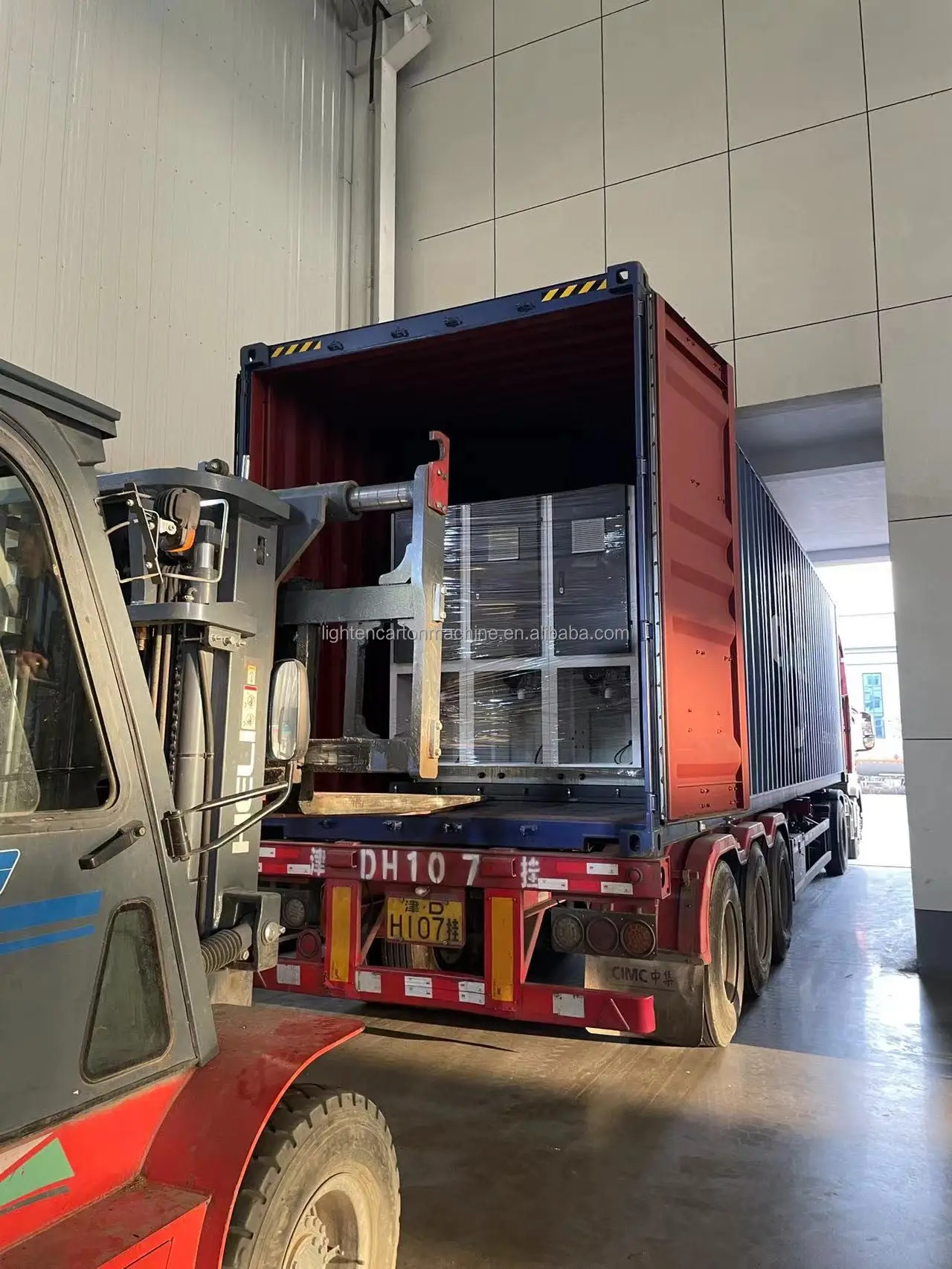

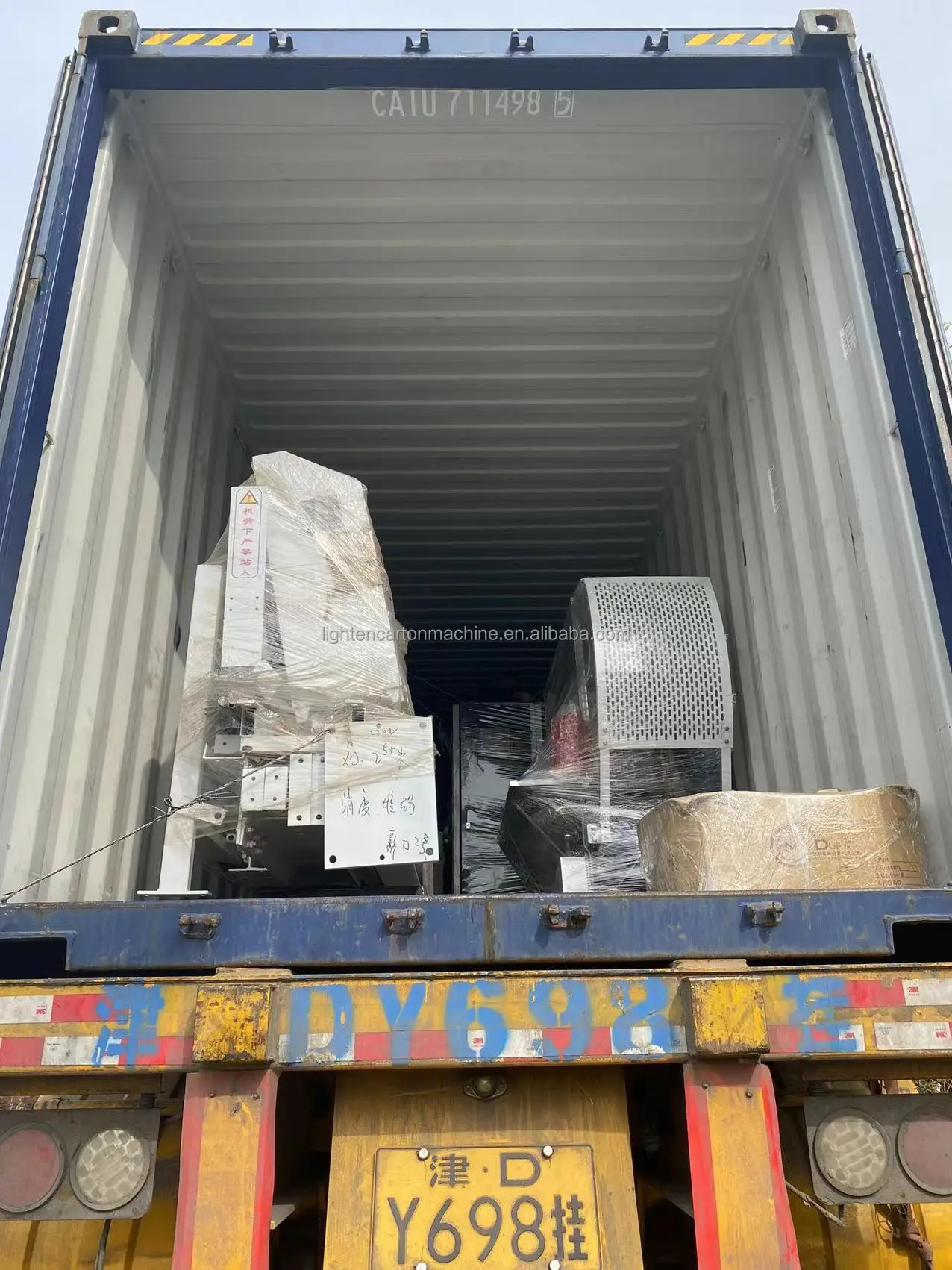

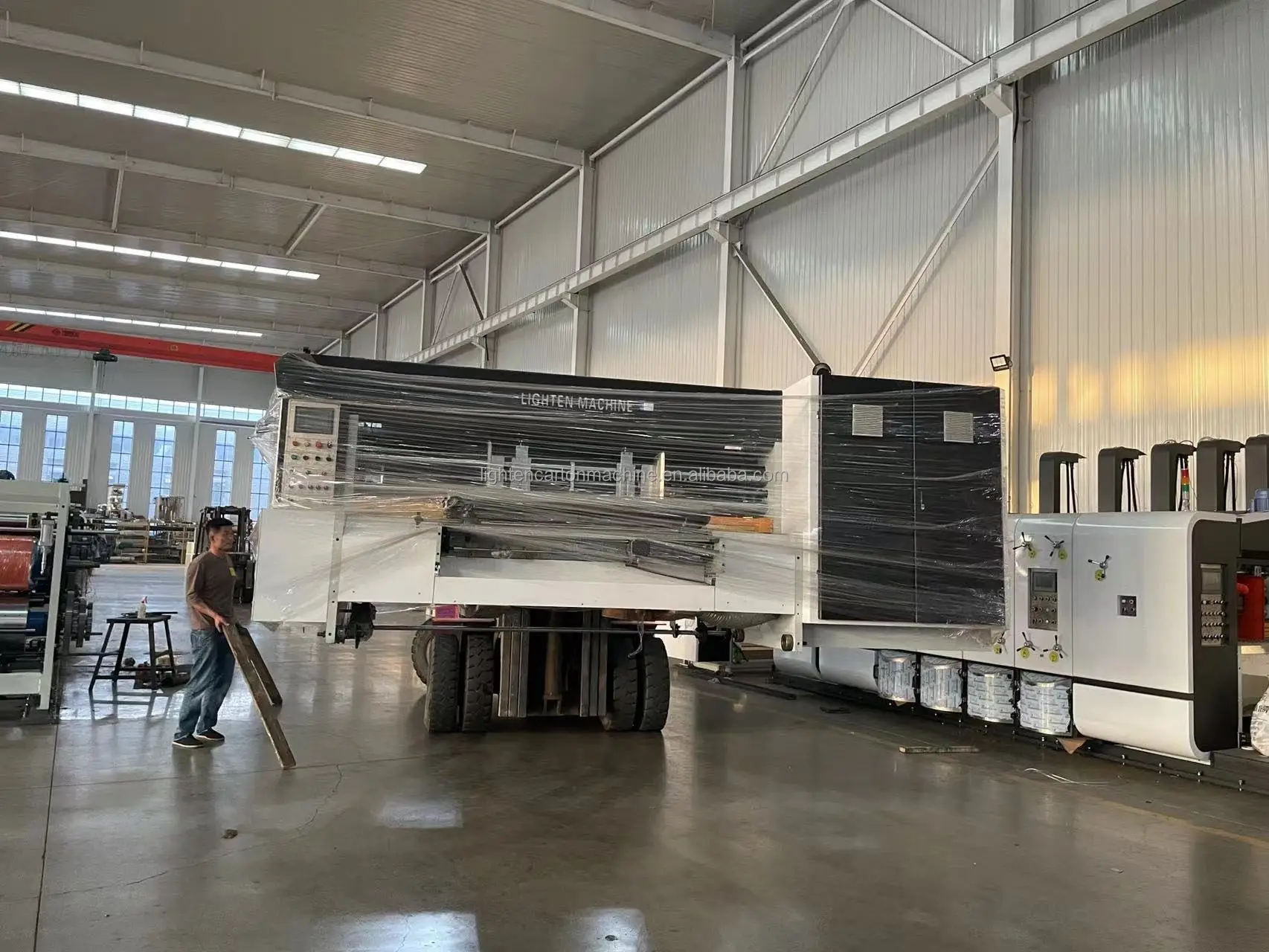

Packing & Delivery








Sea worthy packages

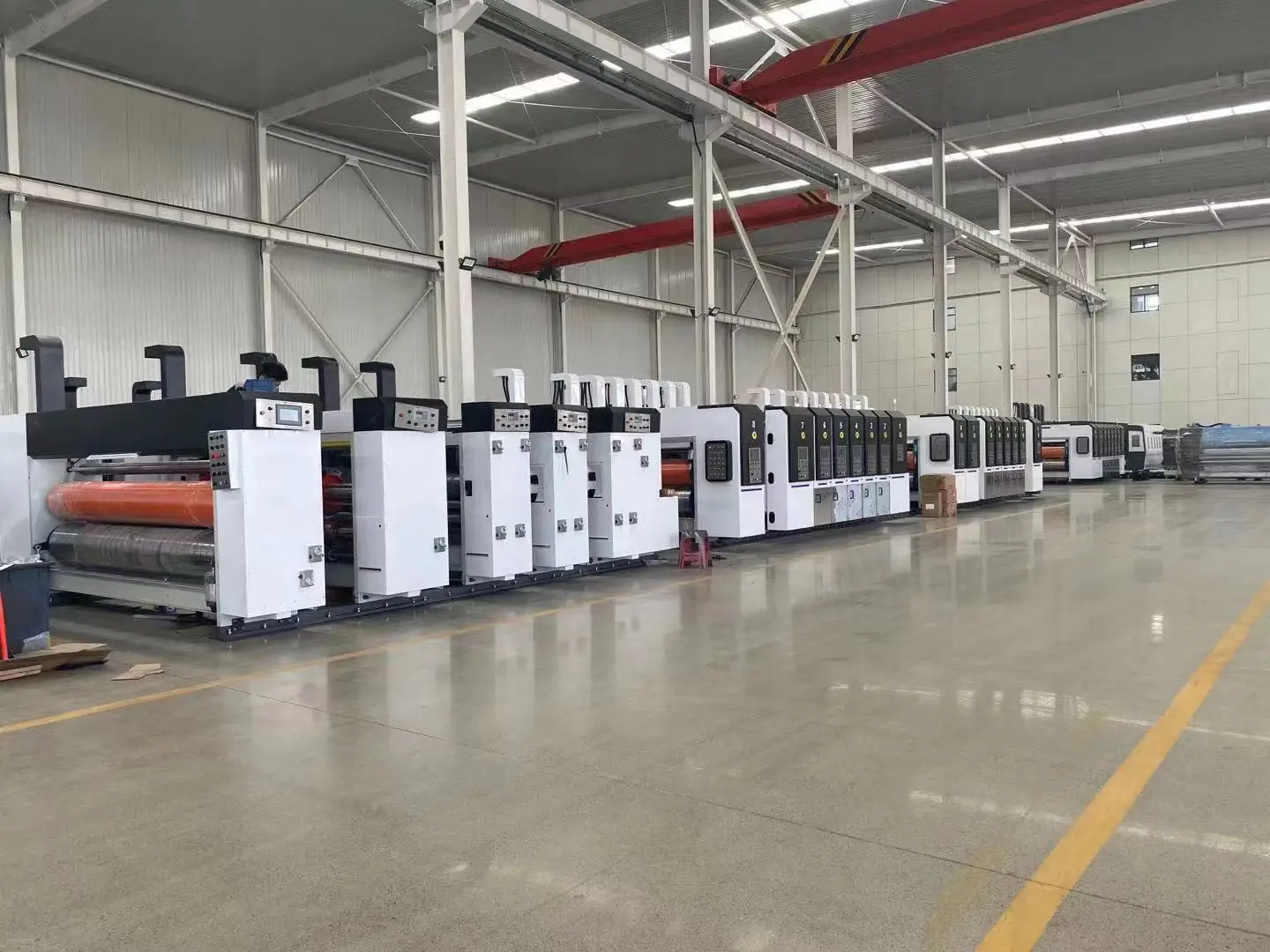

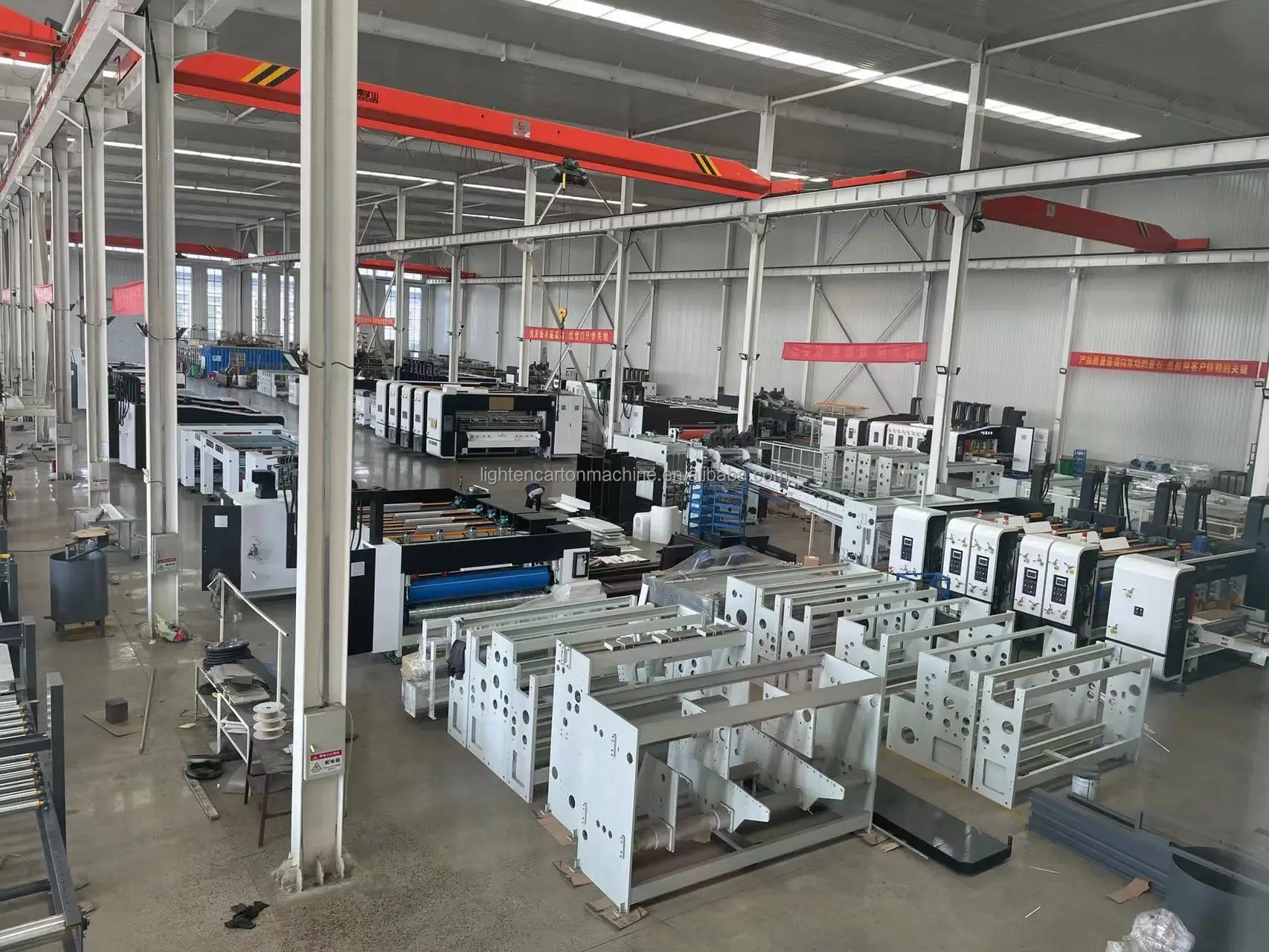

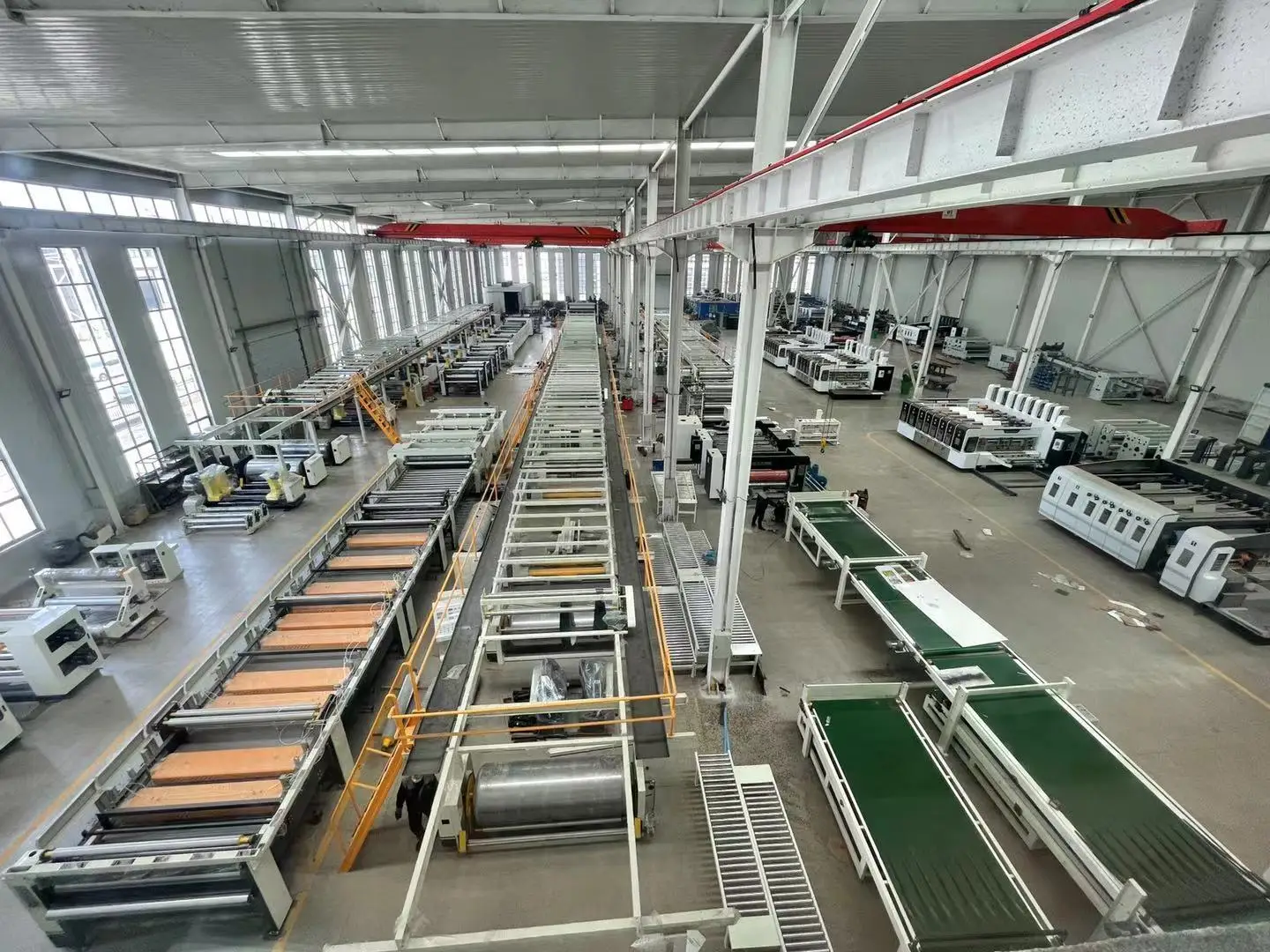

Company Profile










We are a Factory-Owed professional carton machinery export company. Located in China northern Carton machinery manufacturing base --- Dongguang County, Hebei Province.
Lighten machinery devote to provide the most suitable and reasonable carton machinery combine solutions for client from different countries. Combine the best quality machinery manufactures and provide high value machinery and professional export services.
Based on manufacturing factory in northern China, which has more than 30 years experience, we have powerful design and installation engineer team, our factory is the biggest carton machinery manufacture in northern China, machinery sells to more than 100 countries and regions in the world. Quality passed ISO 9001-2008 international standard and CE quality standard. Already setup overseas branch office in several countries in order to provide the best and most convenient services.


FAQ


1. who are we?
We are based in Hebei, China, start from 2018,sell to Mid East(25.00%),South America(20.00%),Eastern Europe(20.00%),Africa(15.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Asia(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making Line,Box Printing Forming Machine,Automatic Die Cutting Machine

4. why should you buy from us not from other suppliers?
Factory related carton machinery import & export company, based on 35 years experience in providing complete and A to Z carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian
