DGM Processing Machinery Automatic Flatbed Creasing Die Cutting printing slotting die cutting machine
- Category: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Supplier: Huizhou Degang Machinery Co. Ltd.
Share on (1600633640642):
Product Overview
Description
Product Description
item | value |
Brand Name | DGM |
Condition | New |
Warranty | 1 Year |
Applicable Industries | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Other, Advertising Company |
Showroom Location | United States, Italy, India, Mexico, Russia, Thailand, Algeria |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2022 |
Warranty of core components | 1 Year |
Core Components | Gearbox, Pump, Gear, Bearing, Motor, PLC |
Type | full automatic |
Key Selling Points | Automatic |
Weight (KG) | 16KG |
After-sales Service Provided | No after-sales service |
Carton board min | 80g/m |
Carton board max | 2000g/m |
Corrugated board max | 4mm |
Sheet size min | 360*400mm |
Sheet size max | 740*1050mm |
speed | 7500s/h |
cutting force | 300ton |
cutting size max | 730*1040mm |
Product Description

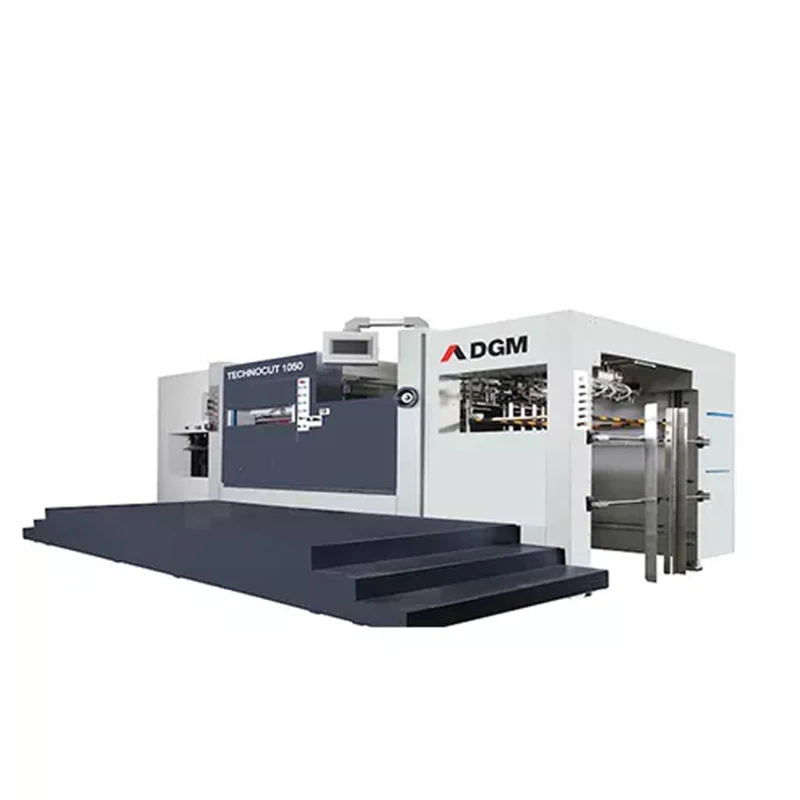

TECHNOCUT 1050 Automatic Die Cutting Machine. It can run large formats. High precision, high speed, easy to operate, quick
changeovers, durability and stable performance. Features that make this machine one of the best options available.
changeovers, durability and stable performance. Features that make this machine one of the best options available.
1. Feeder section
* Automatic feeder with non-stop system.
* Pallet & cart direct load.
* 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from paper to corrugated board. They guarantee
the accuracy, reliability and smoothness of paper feeding.
* Double sheet detector.
* Pallet & cart direct load.
* 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from paper to corrugated board. They guarantee
the accuracy, reliability and smoothness of paper feeding.
* Double sheet detector.

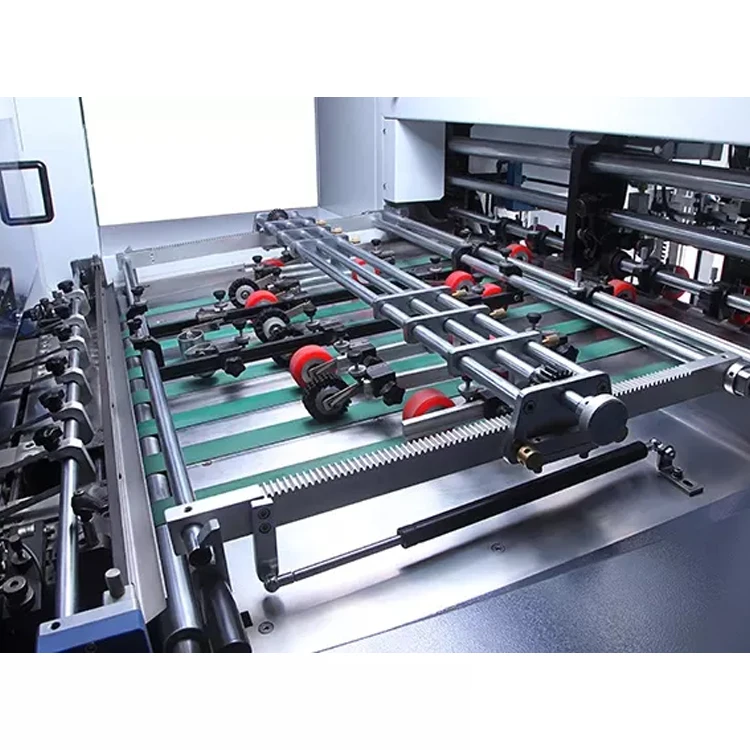

2. Register table
* Side-register table with 8 belts.
* 2 register side guides working with pulling and pushing system.
* 4 register front lays, independently adjustable.
* 2 register side guides working with pulling and pushing system.
* 4 register front lays, independently adjustable.

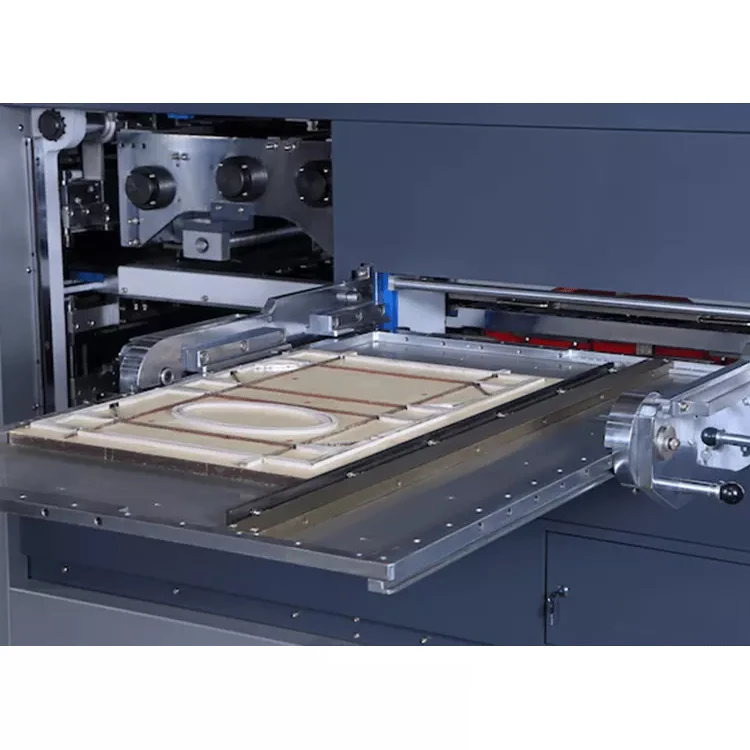

3. Press section
* Closed chase with central positioning system device for fast positioning of the die.
* Cutting plate 5 mm thickness.
* Pressure control system, can be easily adjusted through touch screen. It has a security system to avoid any damage in the
press.
* Manual & automatic lubrication system.
* 5 light weight gripper bars.
* Turn-over bracket for cutting chase and honeycomb chase.
* Pneumatic lock & release system for cutting chase and honeycomb plate.
* Cutting plate 5 mm thickness.
* Pressure control system, can be easily adjusted through touch screen. It has a security system to avoid any damage in the
press.
* Manual & automatic lubrication system.
* 5 light weight gripper bars.
* Turn-over bracket for cutting chase and honeycomb chase.
* Pneumatic lock & release system for cutting chase and honeycomb plate.
4. Delivery section
* Non-stop device with automatic conveyor at delivery.
Detailed Images
Size Information
SCHEME
Company Introduction
DGM Worldwide Carton Converting Equipment
DGM Machinery provides 360° services. Service process, DGM not only embodies in to pre-sales service, such as helping the customer
get to know DGM products, enhancing customer confidence in DGM products, knowing customers ́s individual needs etc., but also in
to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core
after- sales service includes:
get to know DGM products, enhancing customer confidence in DGM products, knowing customers ́s individual needs etc., but also in
to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core
after- sales service includes:
FAQ
1. who are we?
We are based in Guangdong, China, start from 2003,sell to Domestic Market(65.00%),Southeast Asia(7.00%),Southern Europe(7.00%),South Asia(5.00%),Africa(3.00%),Northern Europe(2.00%),North America(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),Eastern Europe(1.00%),Central America(1.00%),South America(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Folder Gluer,Automatic Die Cut Machine,Automatic Foil Stamping Machine,Automatic Carton Laminator
4. why should you buy from us not from other suppliers?
With a 20 year track record of manufacturing superior printing & packaging machinery, we specialize in the manufacture of High-Speed Fully Automatic Folder/Gluer line,Automatic Laminator and High-Speed Fully Auto Die-Cutting machines .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2003,sell to Domestic Market(65.00%),Southeast Asia(7.00%),Southern Europe(7.00%),South Asia(5.00%),Africa(3.00%),Northern Europe(2.00%),North America(2.00%),Western Europe(2.00%),Eastern Asia(2.00%),Mid East(2.00%),Eastern Europe(1.00%),Central America(1.00%),South America(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Folder Gluer,Automatic Die Cut Machine,Automatic Foil Stamping Machine,Automatic Carton Laminator
4. why should you buy from us not from other suppliers?
With a 20 year track record of manufacturing superior printing & packaging machinery, we specialize in the manufacture of High-Speed Fully Automatic Folder/Gluer line,Automatic Laminator and High-Speed Fully Auto Die-Cutting machines .
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
