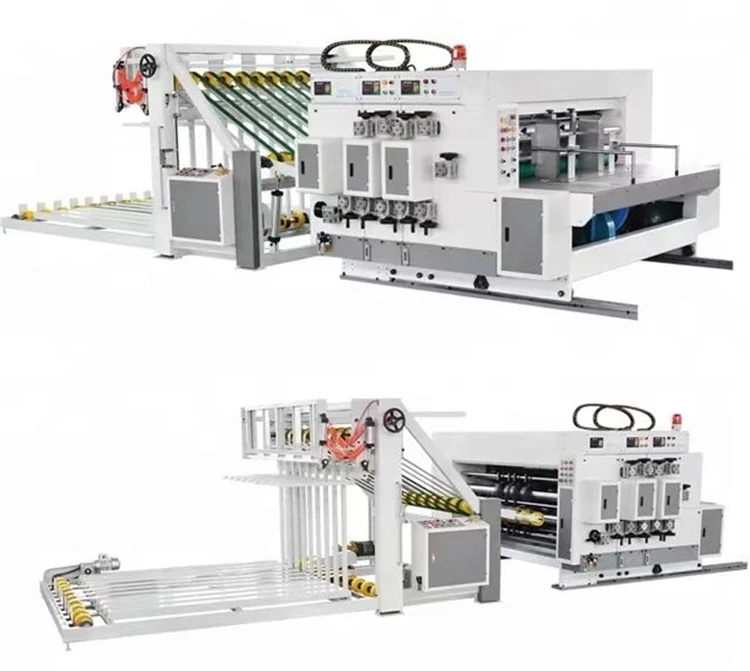

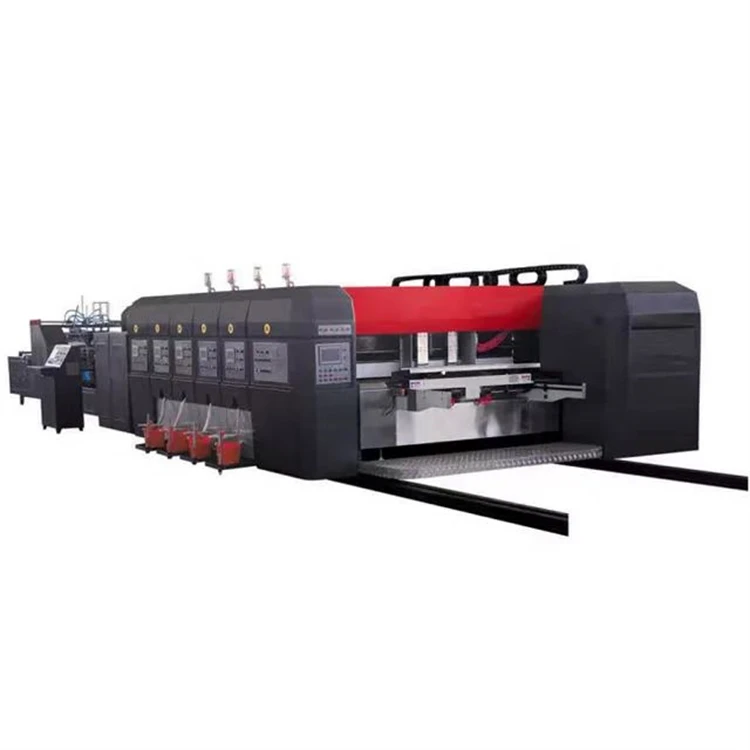

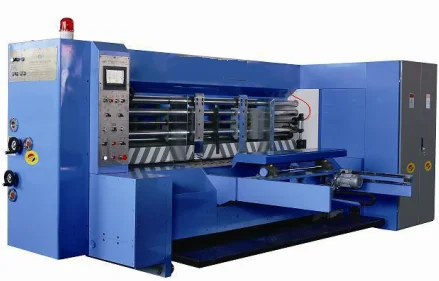

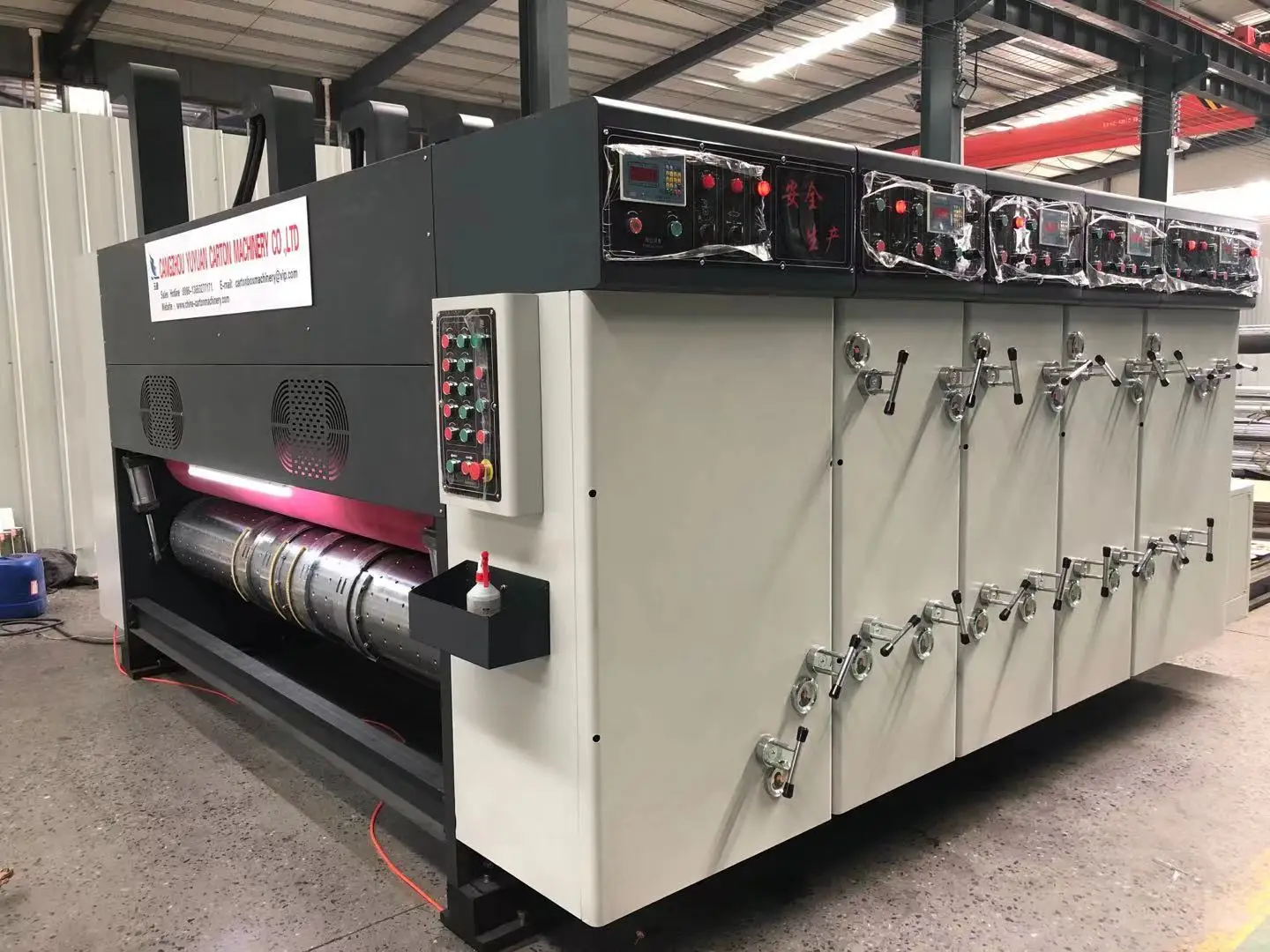

corrugated carton Lead Edge Feeder 4 Colors Printer Slotter with Stacker machine
- Category: Carton\u00A0Printing\u00A0Slotting\u00A0Die-Cutting\u00A0Machinery >>>
- Supplier: Cangzhou Yuyuan Imp & Exp Trade Co. Ltd.
Share on (1600640920294):
Product Overview
Description
Product Description
1.The machine wall thickness 50mm High quality cast iron, made by high precision process center and grinded by digit- controlled grinder.
2.Equipped with digital touch screen to display the machine running situation and have the features of whole machine zero reset, preset function, printing and die cutting phase zero reset and adjustment.
3. All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
4.Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
2.Equipped with digital touch screen to display the machine running situation and have the features of whole machine zero reset, preset function, printing and die cutting phase zero reset and adjustment.
3. All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
4.Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
5.Different alarm ring will along with the machine launching and stopping.
6.The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
7.Each unit equips with emergency stop button.
8. There have different color of LED light to indicate the machine situation of power on, standby, running, and abnormal.
9.Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
10.Equipped with automatic lubrication system.
6.The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
7.Each unit equips with emergency stop button.
8. There have different color of LED light to indicate the machine situation of power on, standby, running, and abnormal.
9.Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
10.Equipped with automatic lubrication system.
Feeding unit:
1\tSeparation and combination of the machine :
A\tControl of separation and combination of machine units is electrically, with alarm to keep the safety of operating
A\tControl of separation and combination of machine units is electrically, with alarm to keep the safety of operating
personnel.
B\tThere is friction clutch on the transmission shaft, to avoid damage the machine when mis-operation.
C\tPneumatic interlock device.
D\tMain motor is variable-frequency motor. Variable-frequency control. Energy saving and stable to start. There is motor start-protected device.
2\tFront edge idler wheel feeding system :
A\tAbsorbing feeder. Fan: 11 kw. The air volume can be adjusted according to the camber of the paperboard to keep feeding smoothly.
B\tThere is interlock control clutch in the slotting unit to control the scram feeding.
C\tCylinder drives sheets up and down. It acts fast and easily.
D\tFront edge idler wheel feeding system
E\tLocation of side baffle and back block box are adjusted electrically. Clearance of front baffle is adjusted manually.
F\tPaper skip feeding device. (It can feed skipped or continuously).
G\tFeeding counter, which set and display the production quantity.
3\tDust cleaning device :
A\tBrush dust cleaning device in feeding unit, which can remove most of dust on the surface of paperboard. It can improve the printing quality.
B\tThere is friction clutch on the transmission shaft, to avoid damage the machine when mis-operation.
C\tPneumatic interlock device.
D\tMain motor is variable-frequency motor. Variable-frequency control. Energy saving and stable to start. There is motor start-protected device.
2\tFront edge idler wheel feeding system :
A\tAbsorbing feeder. Fan: 11 kw. The air volume can be adjusted according to the camber of the paperboard to keep feeding smoothly.
B\tThere is interlock control clutch in the slotting unit to control the scram feeding.
C\tCylinder drives sheets up and down. It acts fast and easily.
D\tFront edge idler wheel feeding system
E\tLocation of side baffle and back block box are adjusted electrically. Clearance of front baffle is adjusted manually.
F\tPaper skip feeding device. (It can feed skipped or continuously).
G\tFeeding counter, which set and display the production quantity.
3\tDust cleaning device :
A\tBrush dust cleaning device in feeding unit, which can remove most of dust on the surface of paperboard. It can improve the printing quality.
4 Paper feeding roller :
A Outer diameter of upper roller: Φ86mm. Solid steel, covered with durable rubber and treated with balance correction.
B Outer diameter of lower roller: Φ155mm. Embossed, hard chrome-plated, and balance-corrected.
C Feeding roller clearance dial is adjusted manually. Adjusting range: 0-12mm.
5 Automatic zero reset device
A Electric zero reset device on feeding unit, printing unit, slotting unit.
A Outer diameter of upper roller: Φ86mm. Solid steel, covered with durable rubber and treated with balance correction.
B Outer diameter of lower roller: Φ155mm. Embossed, hard chrome-plated, and balance-corrected.
C Feeding roller clearance dial is adjusted manually. Adjusting range: 0-12mm.
5 Automatic zero reset device
A Electric zero reset device on feeding unit, printing unit, slotting unit.
B\tIt can be adjusted to the right position after process 2 sheets of normal carton board. It reduces waste of carton board.

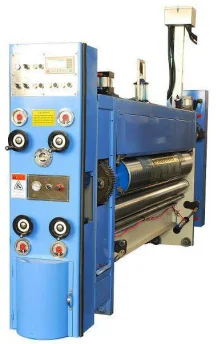

Printing unit：
1\tPrinting roller (plate roller)
A\t Outer diameter: Φ455mm
B\t Surface of roller is grinded and hard chrome-plated.
C\t Treated with balance correction, runs steady and smoothly.
D\t Ratchet stationary rolling plate axil.
E Whole plate hanging slot. The suitable hang plate bar is: 10mm×3mm.
F \tPrinting roller rotation forward or backward is controlled by pedal switch, when the printing plate is hung up or taken off.
2\t Printing pressure roller
A Outer diameter: Φ188mm.
B\t Surface of roller is grinded and hard chrome-plated.
C\t Treated with balance regulating, runs steady and smoothly.
D\tPrinting pressure roller clearance dial is adjusted manually. Adjusting range: 0-12mm.
3\tPaperboard feeding upper and lower roller
A\tUpper roller: outer diameter: Φ86mm, thickness steel pipe, attached with 4 feeding rings.
B\tLower roller: outer diameter: Φ156mm, thickness steel pipe, the surface is grinded and hard chrome plated.
C\tPaperboard feeding roller clearance dial is adjusted manually. Adjusting range: 0-12mm.
4\tSteel anilox roller
A\tOuter diameter: Φ213mm.
B\tSurface of roller is grinded, embossed and hard chrome-plated.
C\tTreated with balance correction, runs steady and smoothly.
D\tAutomatic pneumatic lifting device, act in with feeding system. (The anilox roller will go down to touch printing plate, when the feeder begins to run. It will separate from the plate, when the feeder stops running.)
E\tThere is wedge overrunning clutch on the anilox roller. It is easy and convenient to even ink and wash ink.
5\tRubber roller
A\tOuter diameter: Φ210mm.
B\tSurface of the steel pipe is covered with wear-resistant rubber and it is after balance correction.
C\tRubber is medium-high grade special grind. Ink transfer well.
6\tPhase adjust system
A\tPlanet gears structure.
B\tPrinting phrase is adjusted electrically in 360° . (It can be adjusted when running or stopping.)
C\tLateral width is adjusted electrically. Total adjusting range is: 14mm.

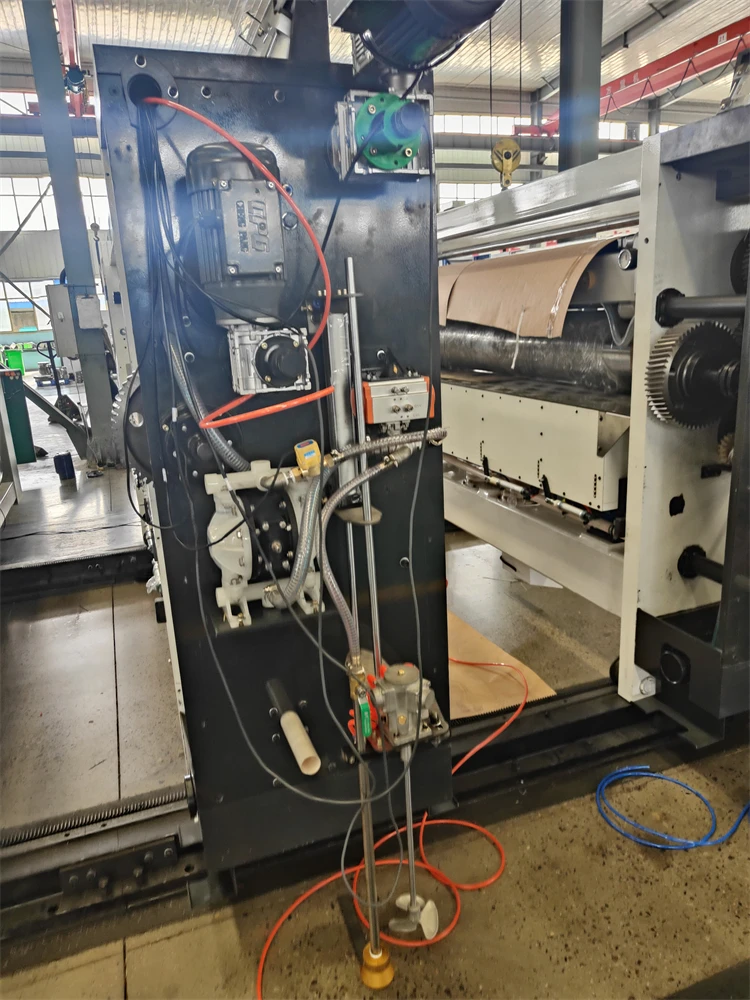

7\tWater ink circulating
A\tPneumatic surge pump. It is steady to supply ink and easy to operate.
B\tPrinting ink filter screen to filter out impurities.
A\t Outer diameter: Φ455mm
B\t Surface of roller is grinded and hard chrome-plated.
C\t Treated with balance correction, runs steady and smoothly.
D\t Ratchet stationary rolling plate axil.
E Whole plate hanging slot. The suitable hang plate bar is: 10mm×3mm.
F \tPrinting roller rotation forward or backward is controlled by pedal switch, when the printing plate is hung up or taken off.
2\t Printing pressure roller
A Outer diameter: Φ188mm.
B\t Surface of roller is grinded and hard chrome-plated.
C\t Treated with balance regulating, runs steady and smoothly.
D\tPrinting pressure roller clearance dial is adjusted manually. Adjusting range: 0-12mm.
3\tPaperboard feeding upper and lower roller
A\tUpper roller: outer diameter: Φ86mm, thickness steel pipe, attached with 4 feeding rings.
B\tLower roller: outer diameter: Φ156mm, thickness steel pipe, the surface is grinded and hard chrome plated.
C\tPaperboard feeding roller clearance dial is adjusted manually. Adjusting range: 0-12mm.
4\tSteel anilox roller
A\tOuter diameter: Φ213mm.
B\tSurface of roller is grinded, embossed and hard chrome-plated.
C\tTreated with balance correction, runs steady and smoothly.
D\tAutomatic pneumatic lifting device, act in with feeding system. (The anilox roller will go down to touch printing plate, when the feeder begins to run. It will separate from the plate, when the feeder stops running.)
E\tThere is wedge overrunning clutch on the anilox roller. It is easy and convenient to even ink and wash ink.
5\tRubber roller
A\tOuter diameter: Φ210mm.
B\tSurface of the steel pipe is covered with wear-resistant rubber and it is after balance correction.
C\tRubber is medium-high grade special grind. Ink transfer well.
6\tPhase adjust system
A\tPlanet gears structure.
B\tPrinting phrase is adjusted electrically in 360° . (It can be adjusted when running or stopping.)
C\tLateral width is adjusted electrically. Total adjusting range is: 14mm.
7\tWater ink circulating
A\tPneumatic surge pump. It is steady to supply ink and easy to operate.
B\tPrinting ink filter screen to filter out impurities.
C\tPlastic ink tank.
8\tPrinting phrase fixing device
A\tSolenoid brake.
B\tBrake device will stop running of machine when each sections separate or adjust phrase. It can keep gears at origin location.
8\tPrinting phrase fixing device
A\tSolenoid brake.
B\tBrake device will stop running of machine when each sections separate or adjust phrase. It can keep gears at origin location.

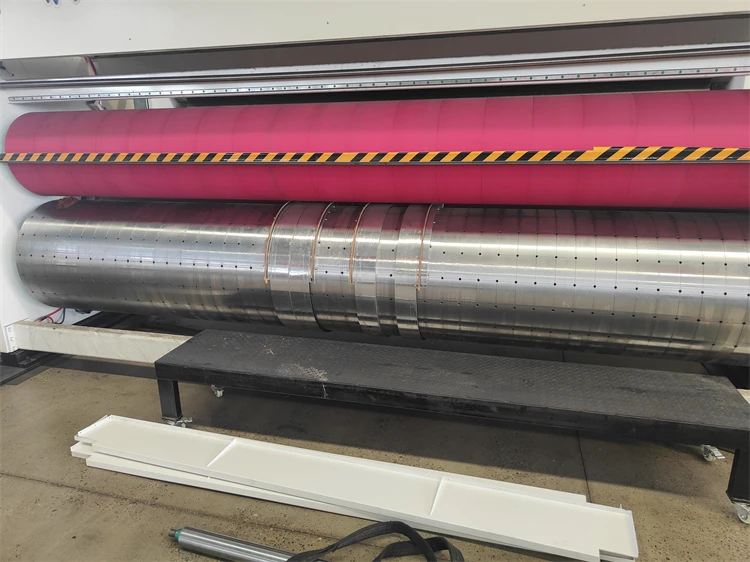

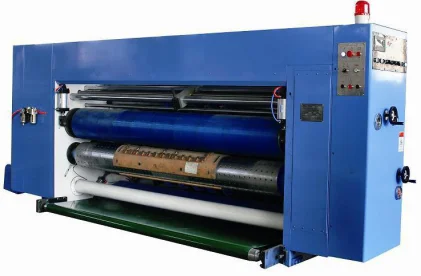

Die-cutting Unit (add slotting holder)
1\tDie cutter roller (down roller)
A\tOuter diameter: Φ410mm.
B\tMaterial: cast iron. It is surface-grinded and hard chrome-plated.
C\tIt is balance regulated to make it more smoothly and steady when running.
D\tDistance of screw hole to fix die-cutter:50mm × 18mm.
E\tHeight of suitable die-cutter: 25.4mm.
F\tThickness of wooden mold: 16-18mm (suit to 3 layers board); 13-15mm (suit to 5 layers board)
A\tOuter diameter: Φ410mm.
B\tMaterial: cast iron. It is surface-grinded and hard chrome-plated.
C\tIt is balance regulated to make it more smoothly and steady when running.
D\tDistance of screw hole to fix die-cutter:50mm × 18mm.
E\tHeight of suitable die-cutter: 25.4mm.
F\tThickness of wooden mold: 16-18mm (suit to 3 layers board); 13-15mm (suit to 5 layers board)
2 Rubber roller (upper roller)
A Outer diameter: Φ434.2mm.
B Material: cast iron. It is surface-grinded and hard chrome-plated.
C It is balance regulated to make it more smoothly and steady when running.
D It is electrical adjusted clearance of it with die-cutter roller.
E Rubber thickness: 10mm
F Mechanical lateral 40mm movement device.
3 Phase adjust system
A Planet gears structure.
B Printing phrase is adjusted electrically in 360° . (It can be adjusted when running or stopping.)
C Lateral width is adjusted electrically.
A Outer diameter: Φ434.2mm.
B Material: cast iron. It is surface-grinded and hard chrome-plated.
C It is balance regulated to make it more smoothly and steady when running.
D It is electrical adjusted clearance of it with die-cutter roller.
E Rubber thickness: 10mm
F Mechanical lateral 40mm movement device.
3 Phase adjust system
A Planet gears structure.
B Printing phrase is adjusted electrically in 360° . (It can be adjusted when running or stopping.)
C Lateral width is adjusted electrically.

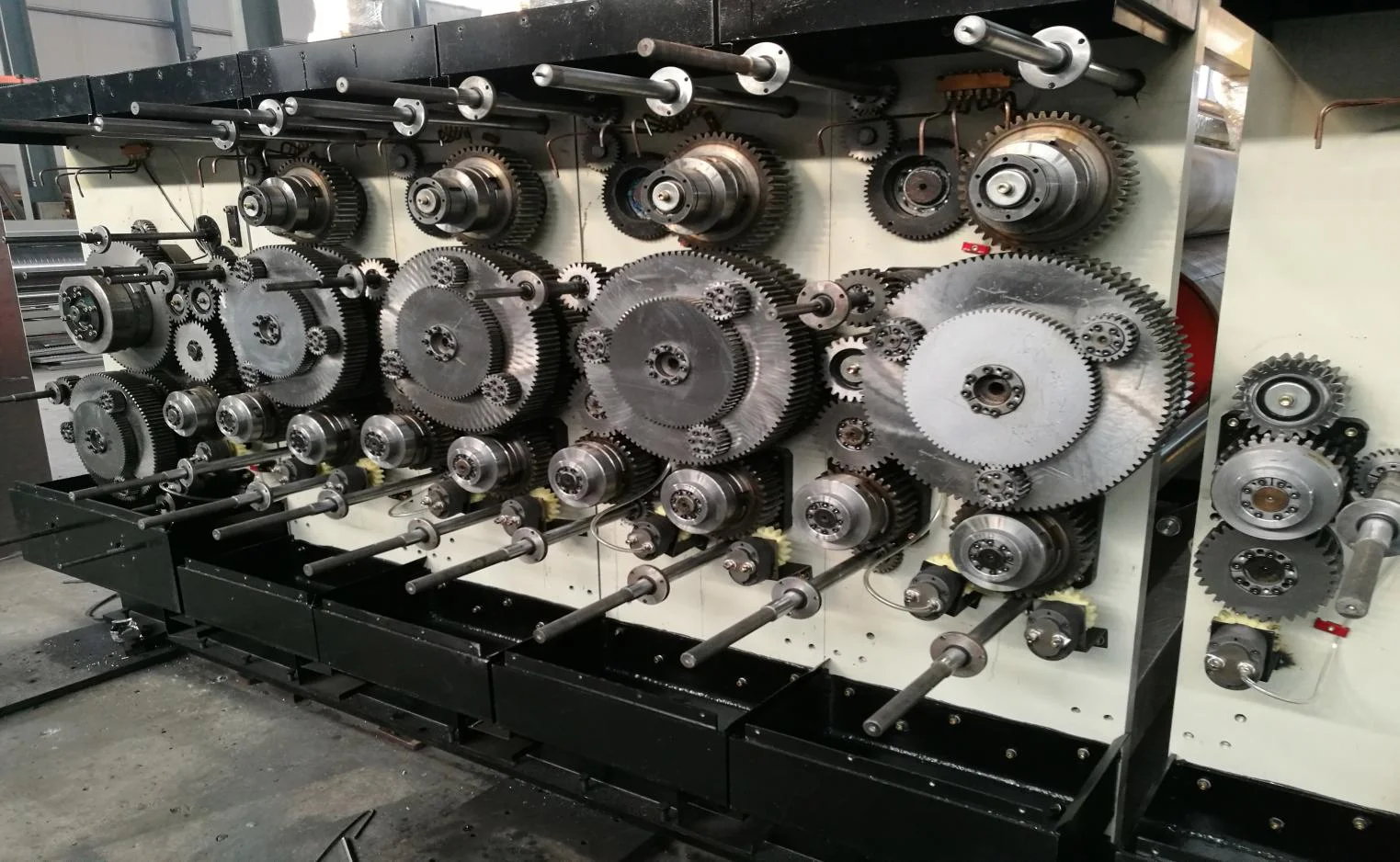

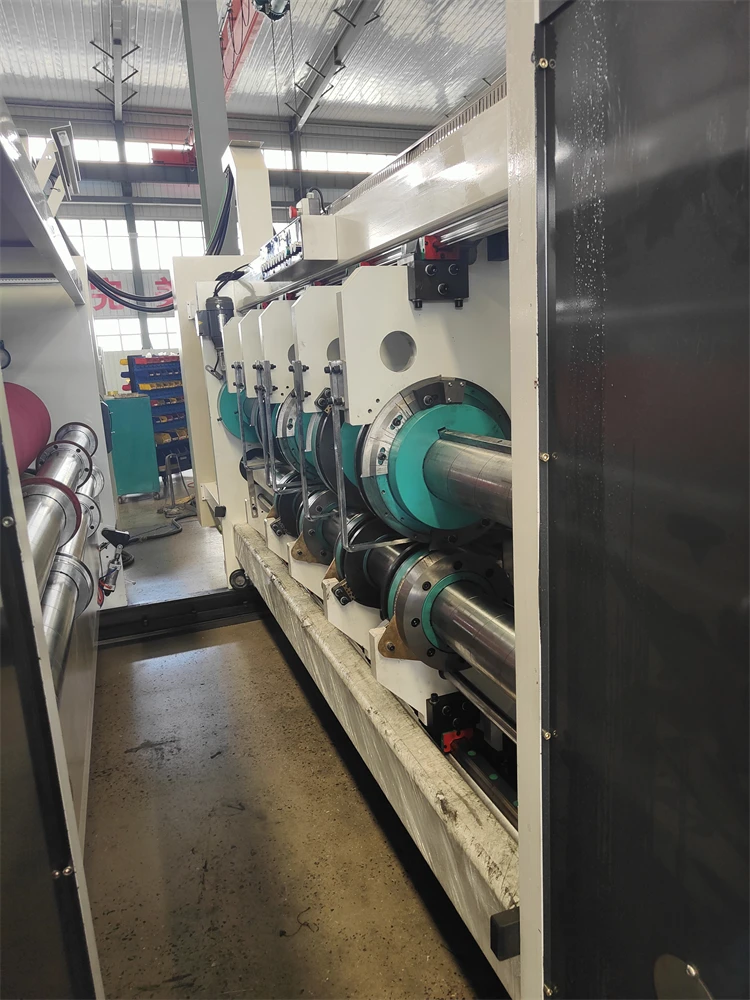

Gear department
A Precision straight tooth transmission, using 20 CrMnTi high quality alloy steel, quenching treatment, technological means such as grinding processing.Make the drive gear high strength, good abrasionresistance, work smoothly.Lubrication using close spray lubrication system to ensure the transmission accuracy of life.
B Six levels of precision, and automotive transmission gear box) at the same level smooth operation, low noise, hardness HRC58 ∽ 62, long life, can achieve long-term printing alignment.
B Six levels of precision, and automotive transmission gear box) at the same level smooth operation, low noise, hardness HRC58 ∽ 62, long life, can achieve long-term printing alignment.
B Equipped with digital touch screen to display the machine running situation and have the features of whole machine zero reset, preset function, printing and die cutting phase zero reset and adjustment.Memory reset function: when the print version of the need to repair or wipe version, you can use this function, repair or wipe version is automatically reset, no need to adjust.
C The main motor running smoothly, power saving
D Automatic inking function, first pieces of cardboard and the last 1 pieces of cardboard inking clear.
E Unique pre-release paper feeding function
Specification
Item | unit | 2400 |
Sheet cardboard size | mm | 2400×1450 |
Printing cardboard size | mm | 2200×1450 |
Min cardboard size | mm | 400×600 |
Printing plate thickness | mm | 7.2 |
Max machine speed | Sheets/min | 150 |
Color precision | mm | ±0.5 |
Die cutting precision | mm | ±1 |
Packing & Delivery
Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.
Company Profile
Hebei LIHENG Packaging machinery Co.,LTD, located at DONGGUANG county economic development zone east. Beilian jingjin, south by shandong, with cangzhou iron lion, wuqiao acrobatic world adjacent; The beijing-shanghai railway, 104 national highway and beijing-fuzhou expressway adjacent to it, has convenient transportation and excellent production environment.
Our factory specializing in the production of all kinds printing machine and a complete set of packaging machinery and equipment, with independent development and research ability, to achieve sustainable development of high-tech equipment level, and constantly improve the deficiency existing in international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, the safety of automated machinery and equipment. Enterprise recruitment of talent, strong technical force, with high-tech design, sophisticated production equipment, advanced detection means, strict quality management system and a skilled production team, in order to ensure the quality of the product performance has laid a solid foundation.
Over the years, enterprises follow the "innovation, the pursuit of excellence, frolic in the waves waves, have the courage to
lead," the purpose, make the product quality improved steadily. And has a reputation for timely delivery and thoughtful service well received by new and old customers.
I plant to the revitalization of China's packaging industry as own duty, sincerely cooperate with the masses of users. In the
future, we will be quality products and perfect after-sales service to meet customers needs.
Our factory specializing in the production of all kinds printing machine and a complete set of packaging machinery and equipment, with independent development and research ability, to achieve sustainable development of high-tech equipment level, and constantly improve the deficiency existing in international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, the safety of automated machinery and equipment. Enterprise recruitment of talent, strong technical force, with high-tech design, sophisticated production equipment, advanced detection means, strict quality management system and a skilled production team, in order to ensure the quality of the product performance has laid a solid foundation.
Over the years, enterprises follow the "innovation, the pursuit of excellence, frolic in the waves waves, have the courage to
lead," the purpose, make the product quality improved steadily. And has a reputation for timely delivery and thoughtful service well received by new and old customers.
I plant to the revitalization of China's packaging industry as own duty, sincerely cooperate with the masses of users. In the
future, we will be quality products and perfect after-sales service to meet customers needs.
FAQ
1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(20.00%),South America(15.00%),Eastern Europe(15.00%),South
Asia(10.00%),Africa(8.00%),Eastern Asia(8.00%),Southeast Asia(7.00%),Mid East(7.00%),North America(5.00%),Oceania(5.00%). There
are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line/Printer Slotter Die Cutting Machine/Folder Gluer
4. why should you buy from us not from other suppliers?
Cangzhou Yuyuan IMP&EXP CO.,LTD is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2017,sell to Domestic Market(20.00%),South America(15.00%),Eastern Europe(15.00%),South
Asia(10.00%),Africa(8.00%),Eastern Asia(8.00%),Southeast Asia(7.00%),Mid East(7.00%),North America(5.00%),Oceania(5.00%). There
are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line/Printer Slotter Die Cutting Machine/Folder Gluer
4. why should you buy from us not from other suppliers?
Cangzhou Yuyuan IMP&EXP CO.,LTD is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
